Author Topic: [IC]60% Z60-ACR, Acrylic Gasket, Nor/Tsangan/WKL/HHKB in one affordable keyboard  (Read 2476 times)

0 Members and 1 Guest are viewing this topic.

Offline tommyamoszhao

  • Thread Starter
  • Posts: 70
Hi, Geekhack! Z60-ACR is a third board we put to the market, this is a half-stock project, means, PCB, daughter board, were already in-stock using extra pcs from our last Z60-Evolve project. Lead time is only used to cover production of case and plates. GB time will be settled when review vid is out, IC runs for about 2 weeks and GB runs for 30 days, after that, 30-50days lead-time is expected before shipping.

Join our Discord

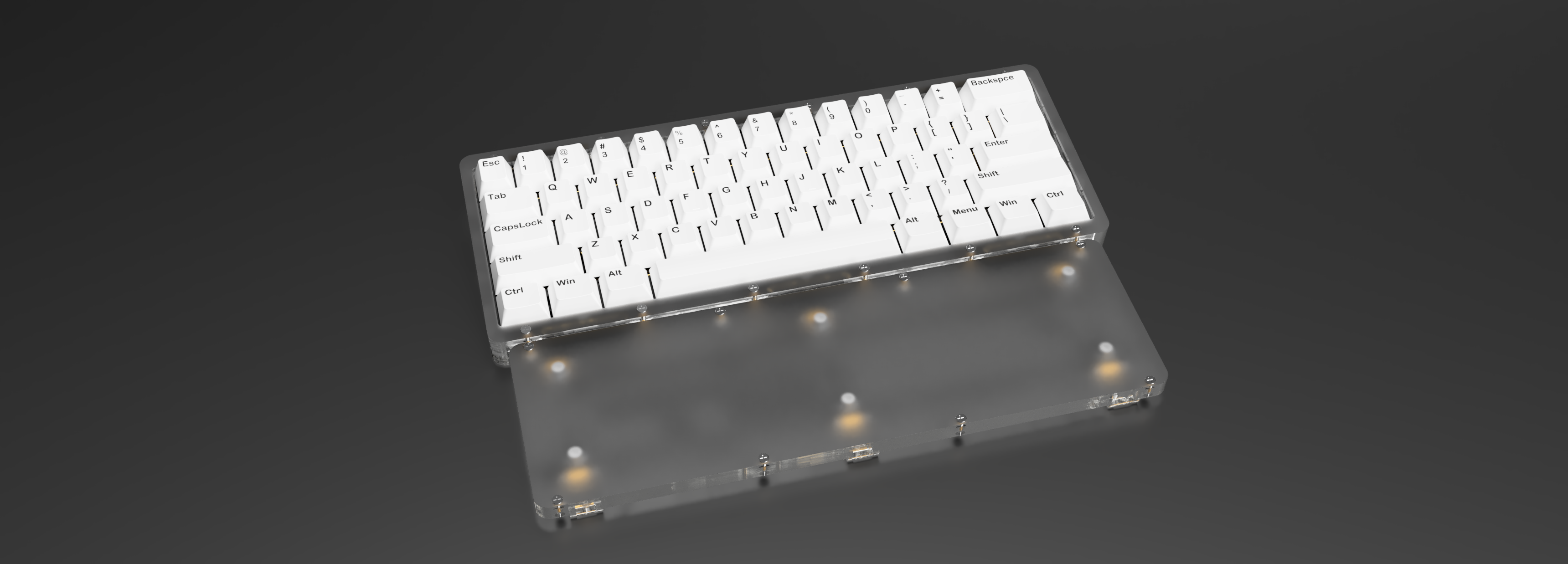

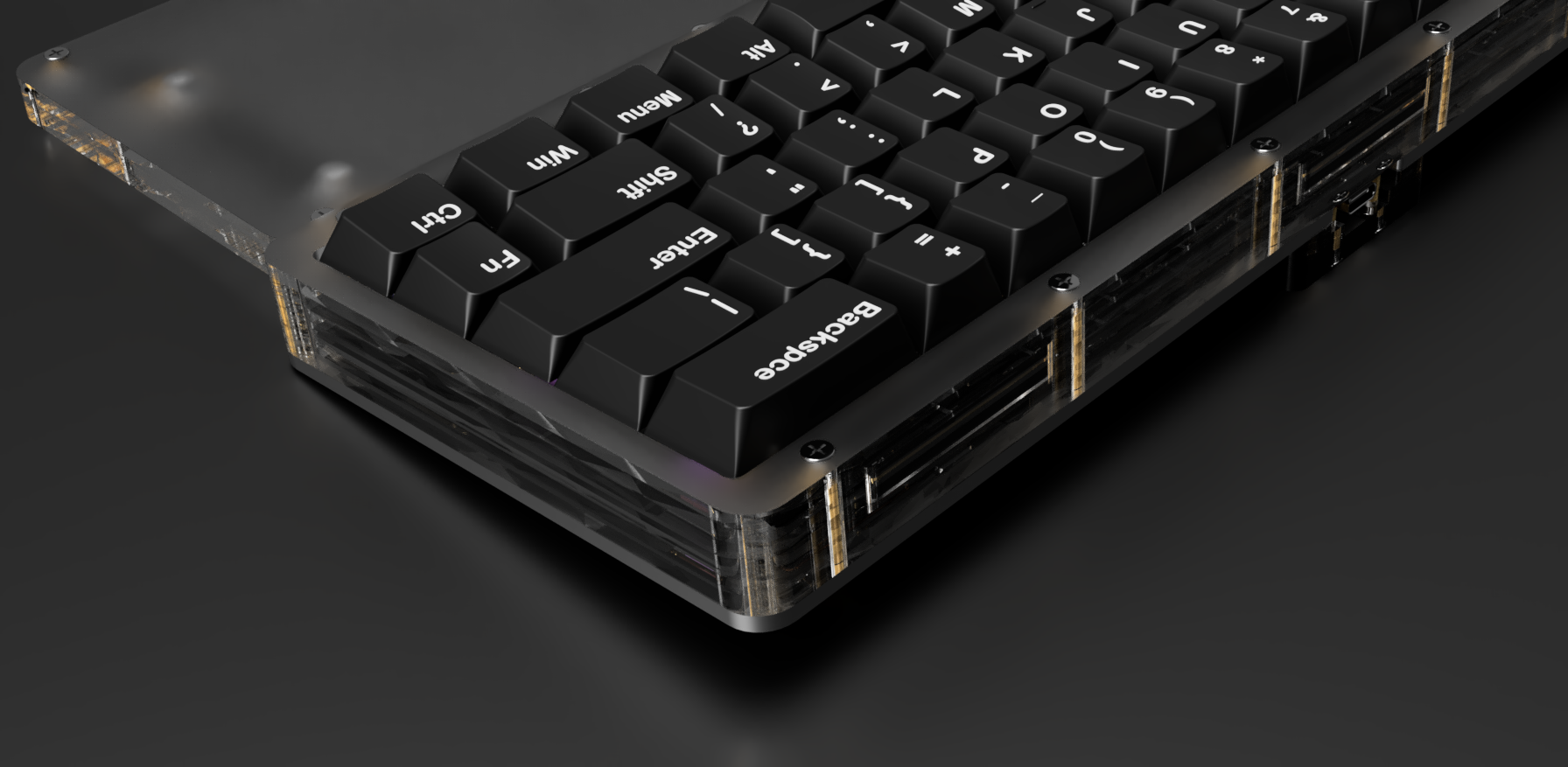

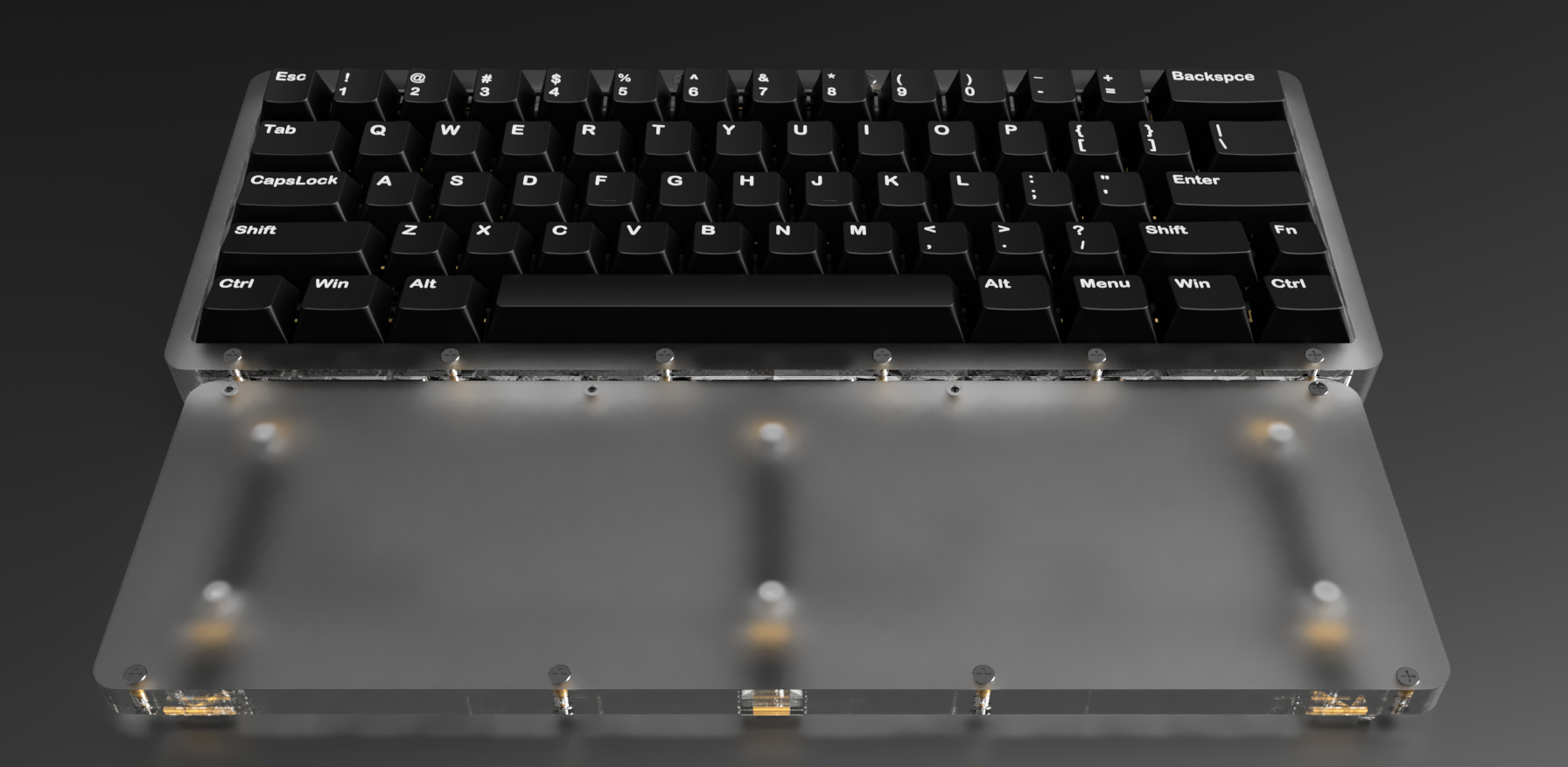

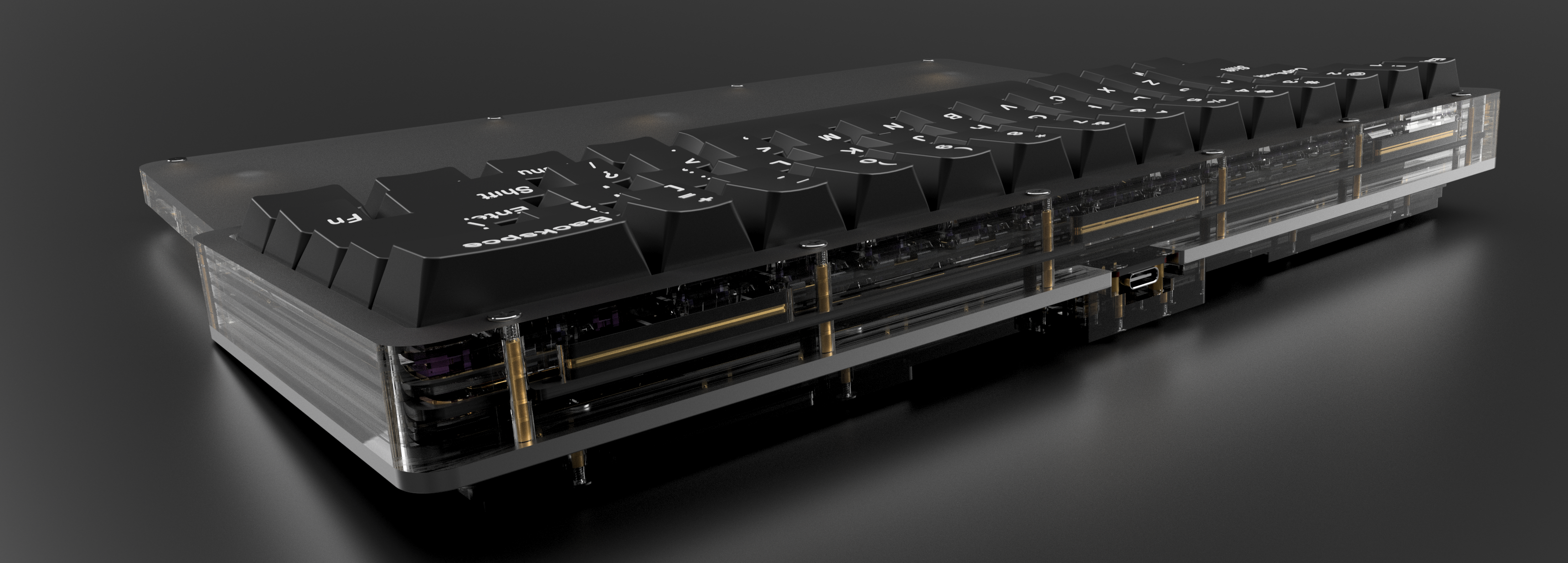

Rendered Image




Dimension:

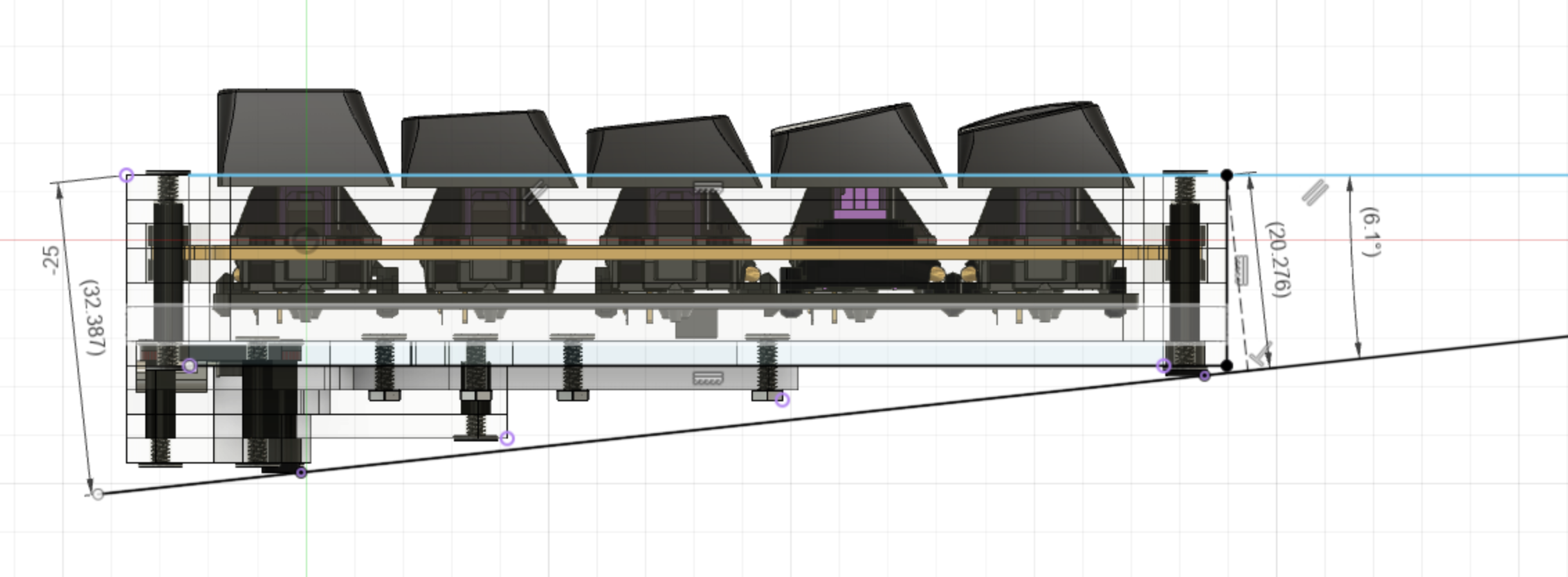

    Case:

    • Talbe Foot-print: 297.7mm, width: 113.2mm
    • Height: Front-height: 20.3mm; Rear-height: 32.4mm
    • Typing angle: 6.1 deg

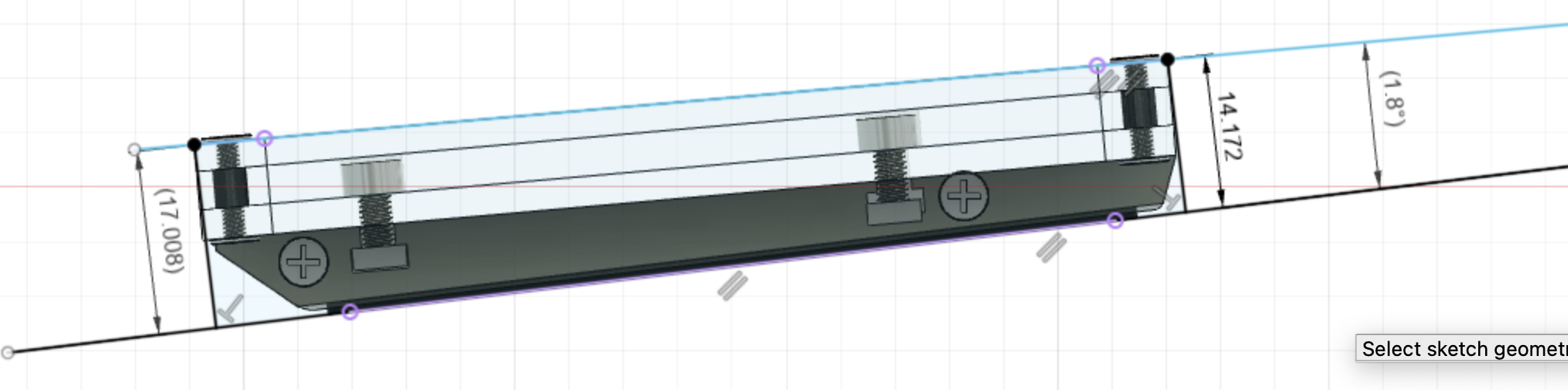

      Arm-rest:

      • Talbe Foot-print: 282.7mm, width: 90mm
      • Height: Front-height: 14.2mm; Rear-height: 17mm
      • Typing angle: 1.8 deg



      Specs:
      • General: (Base-kit)
        • All Normal/Tsangan/HHKB/WKL layout included
        • Arm-rest included
        • C3 daughter board ESD protection
        • Centered USB-C socket


      • Plate:
        • FR4 / CF plates are half-plate transformable
        • 6 leaf-cuts with flex cut
        • FR4 as default, Carbon Fiber optional


      • PCB:
        • Centered Daughter board with ESD protection
        • Solder version with all layouts compatible, including 'split-backspace', 'ISO enter', 'Stepped capslock', 'split-left shift' and 'split-right shift'
        • Hotswap(optional) version1 with ANSI 60% with 7U bottom row
        • Per-Key RGB light


      • Firmware:
        • QMK driven and VIA enabled
        • Right-hand 'shift', 'fn', 'win' and 'ctrl' keys are arrow keys when tapped
      [/list]

      Pricing:$99

      CAP=30pcs
      Lead time: 30-50 days
      GB start time will settle when build and review videos are available
      Leave a comment here if you have any questions, or just tell us if you like it or not. Thanks
