IBM Model F AT Modifications
« on: Fri, 05 July 2019, 16:57:34 »
I finished modifying my Model F AT today, so I figured I would share some pictures. I started taking pictures a lot later in the process, but I assume most of you reading this all know what a dirty IBM Model F AT looks like, and what it looks like on the inside. I'm just sharing some of the things I did that I haven't seen in other posts.

After cleaning the keyboard and spray painting the barrel plate with black rustoleum, I ordered a pro micro controller off ebay, along with some other miscellaneous things.

I took photos with my phone, they aren't the greatest.

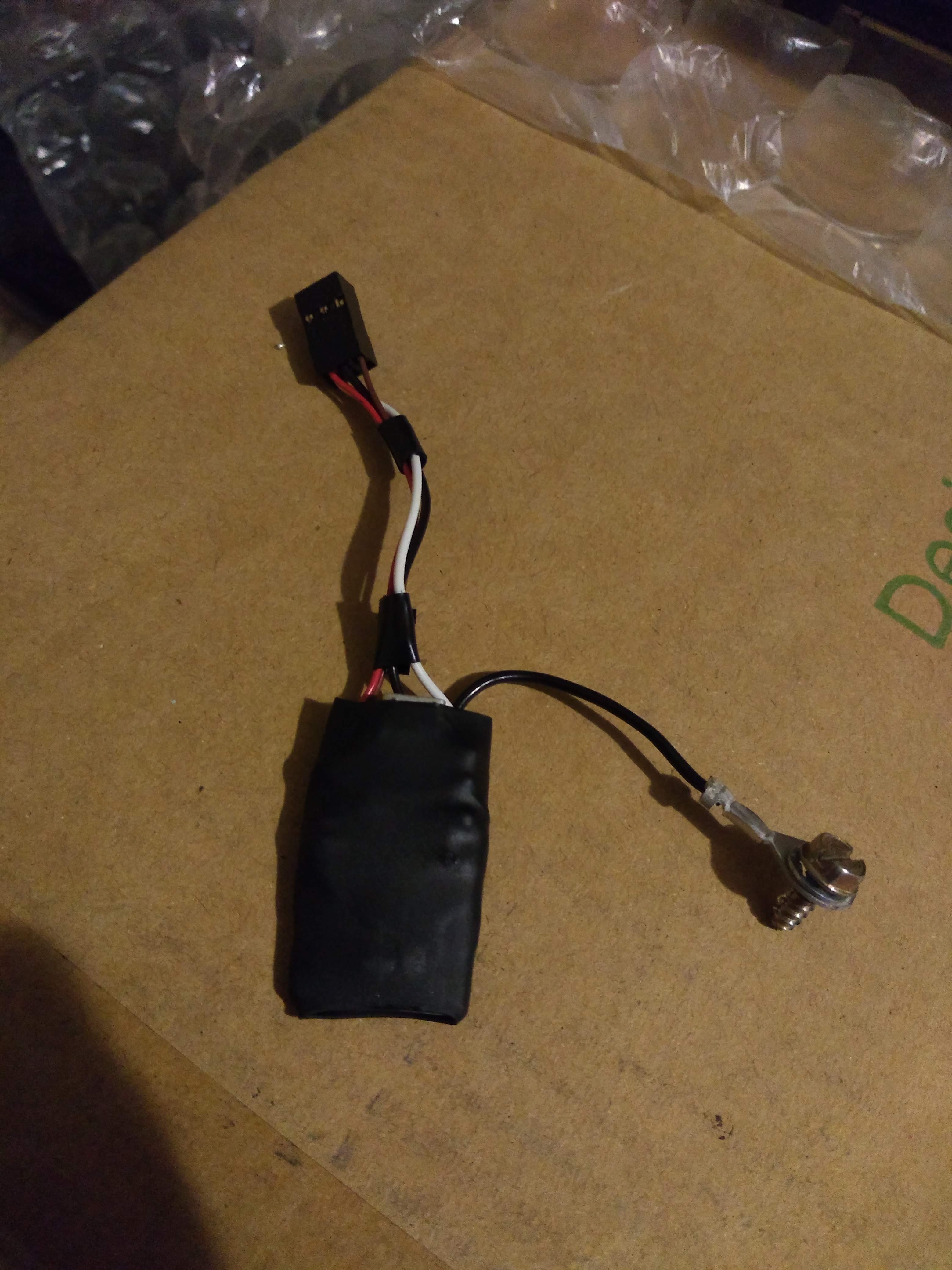

I soldered and shrink wrapped the controller.
222242-0

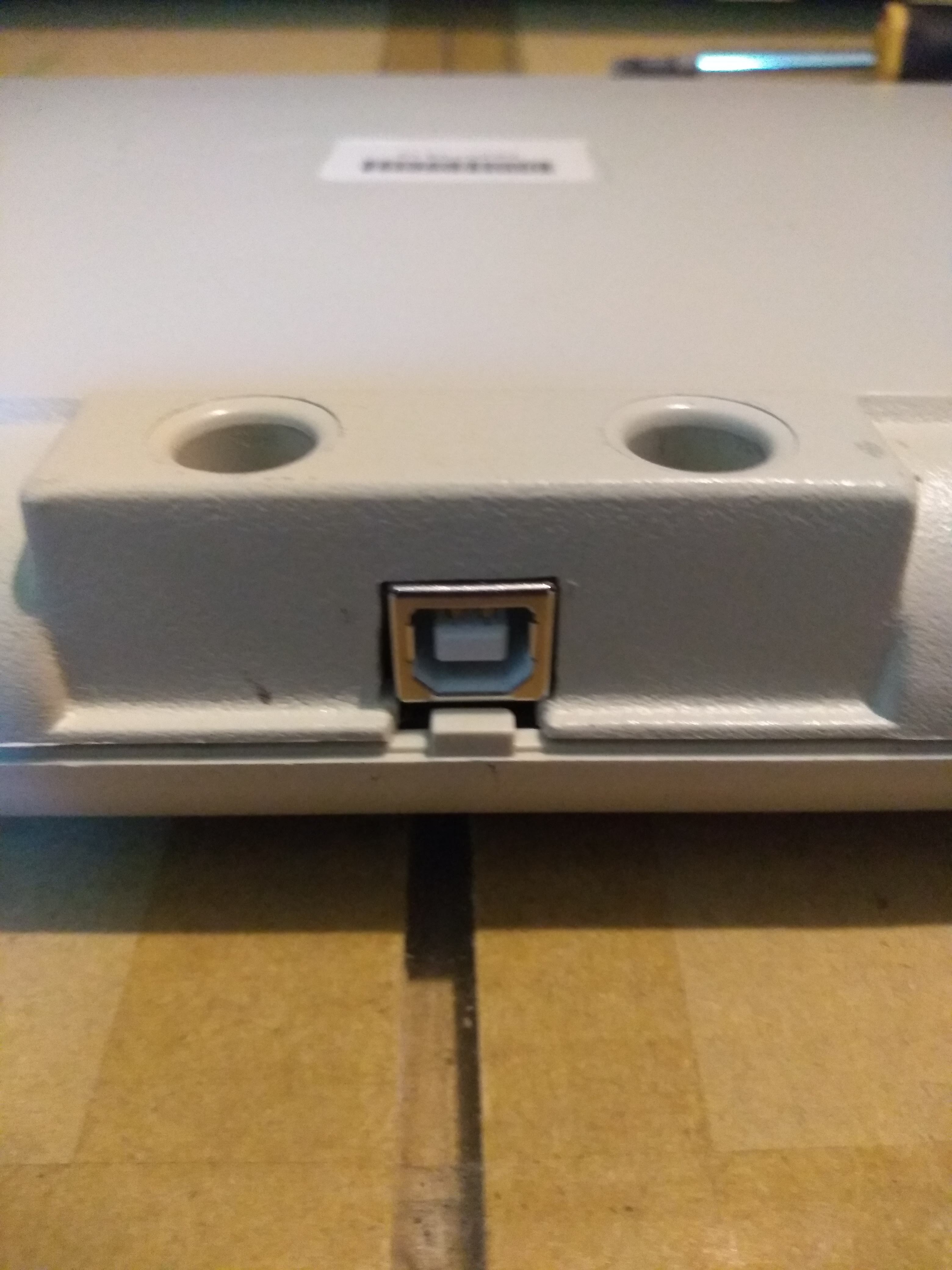

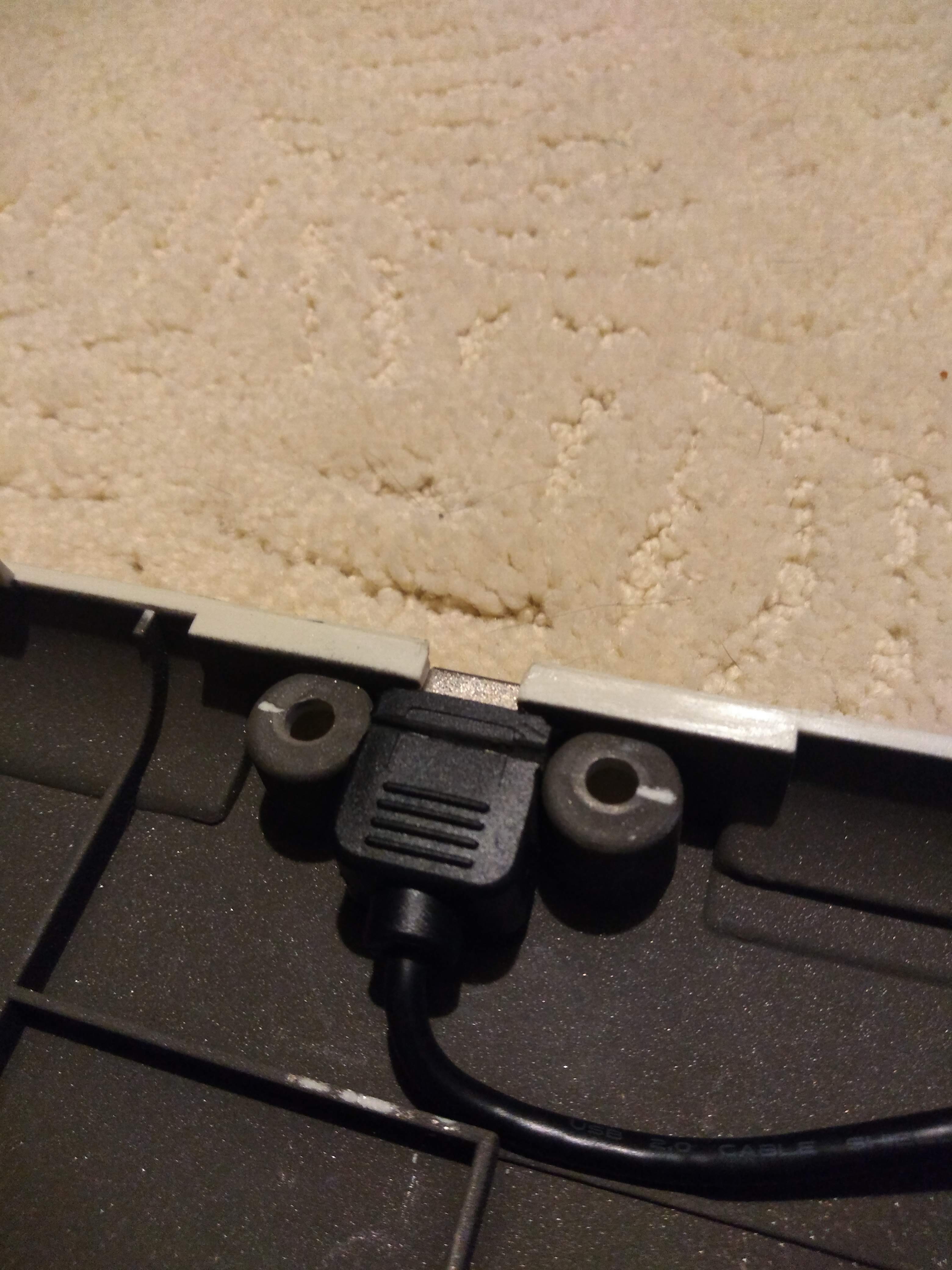

I got and modified a panel mount USB-B to micro USB cable, and got it to fit between the screwholes.
222244-1
222248-2

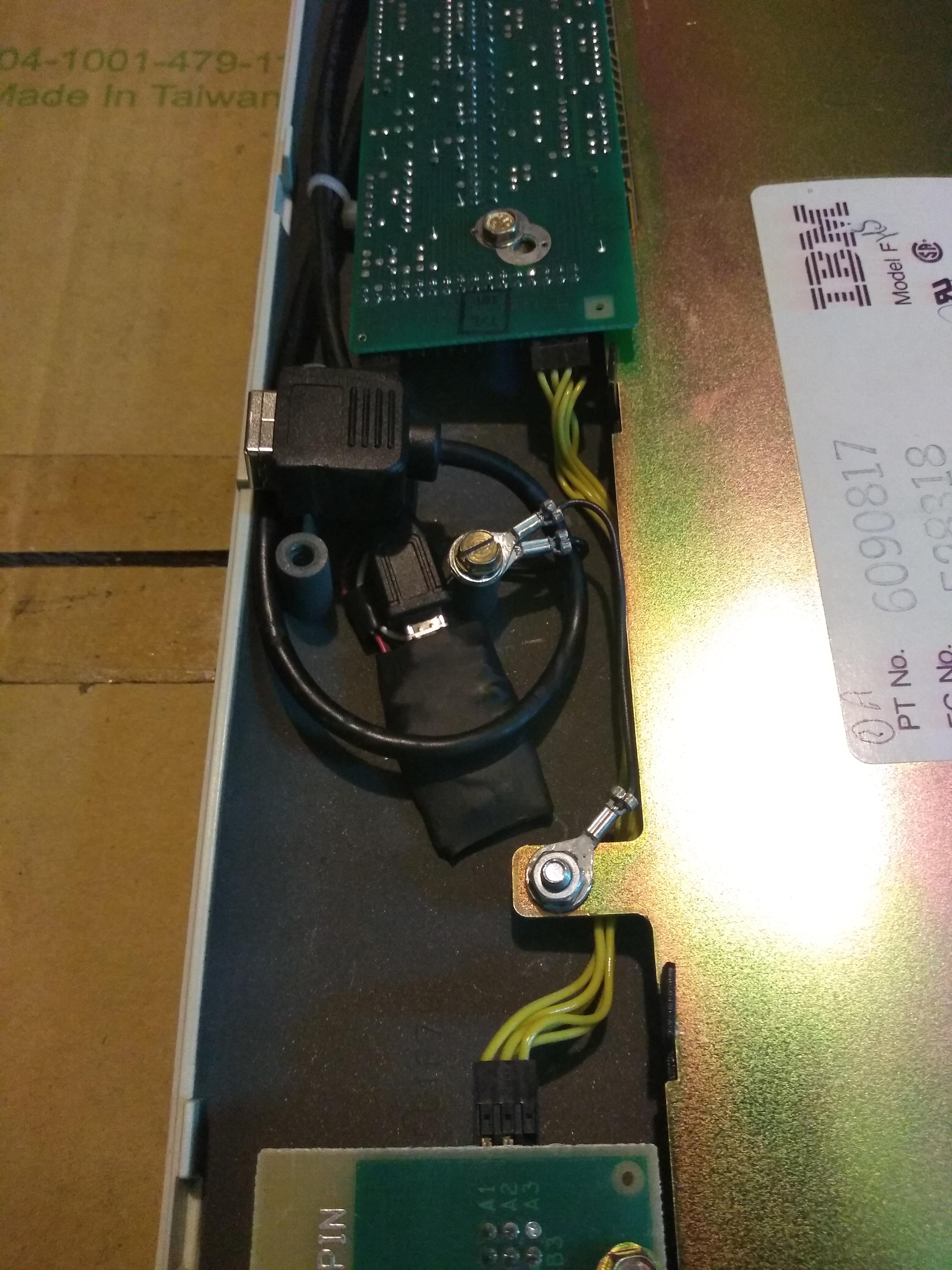

I was able to make the inside area above the keyboard clean and tight fitting.
222246-3

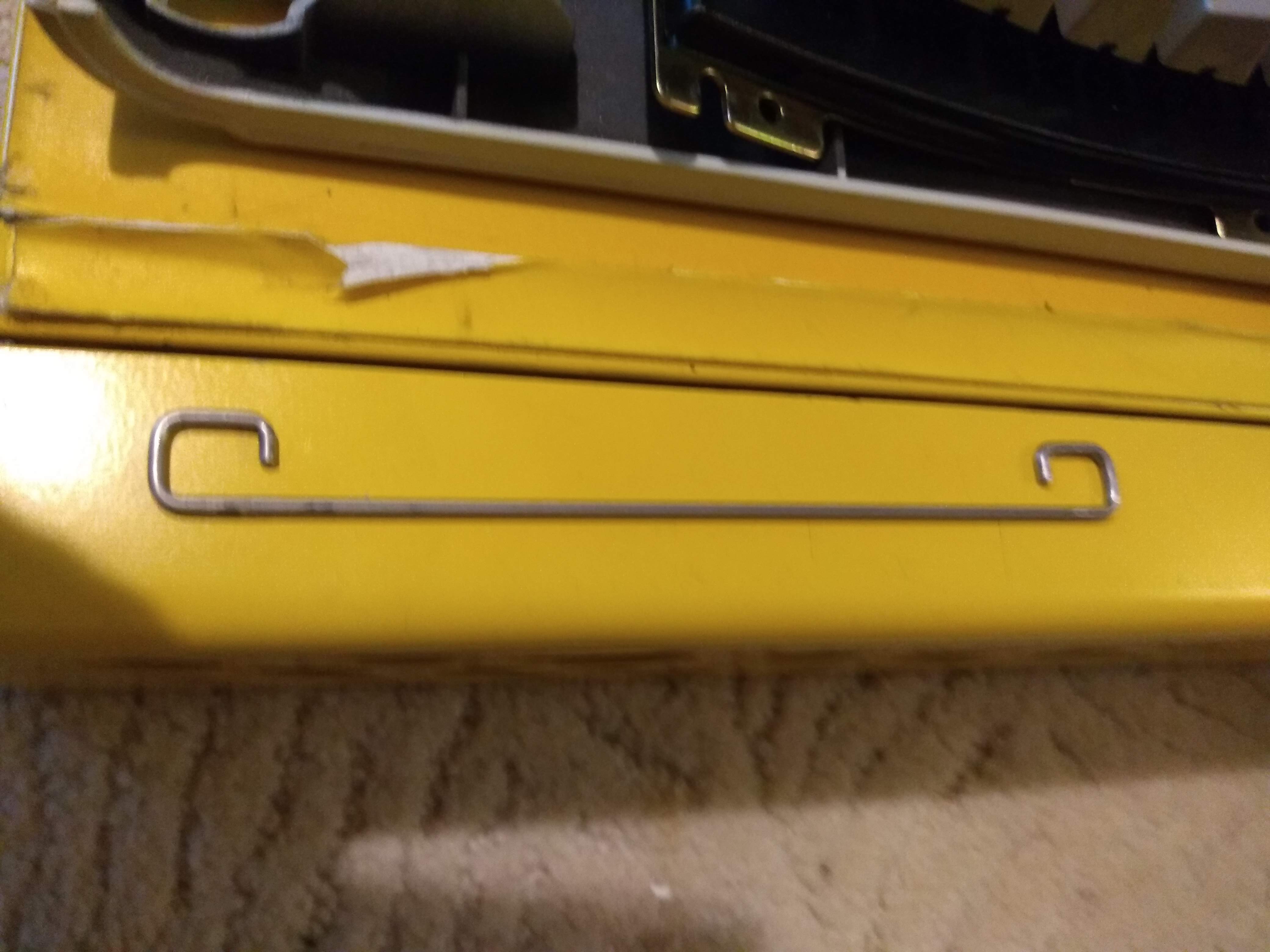

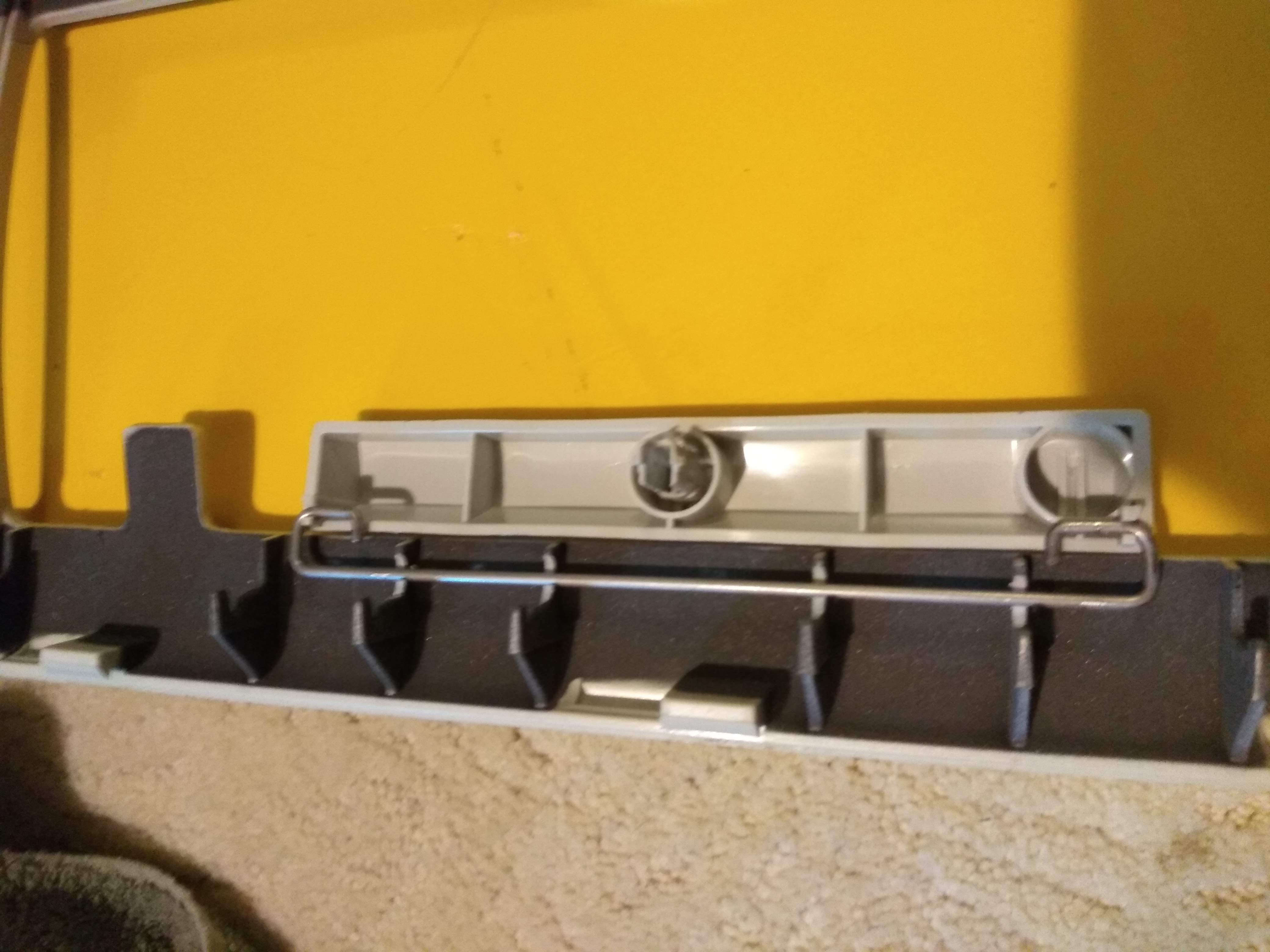

I came up with a cleaner way to stabilize the spacebar.
222252-4
222254-5

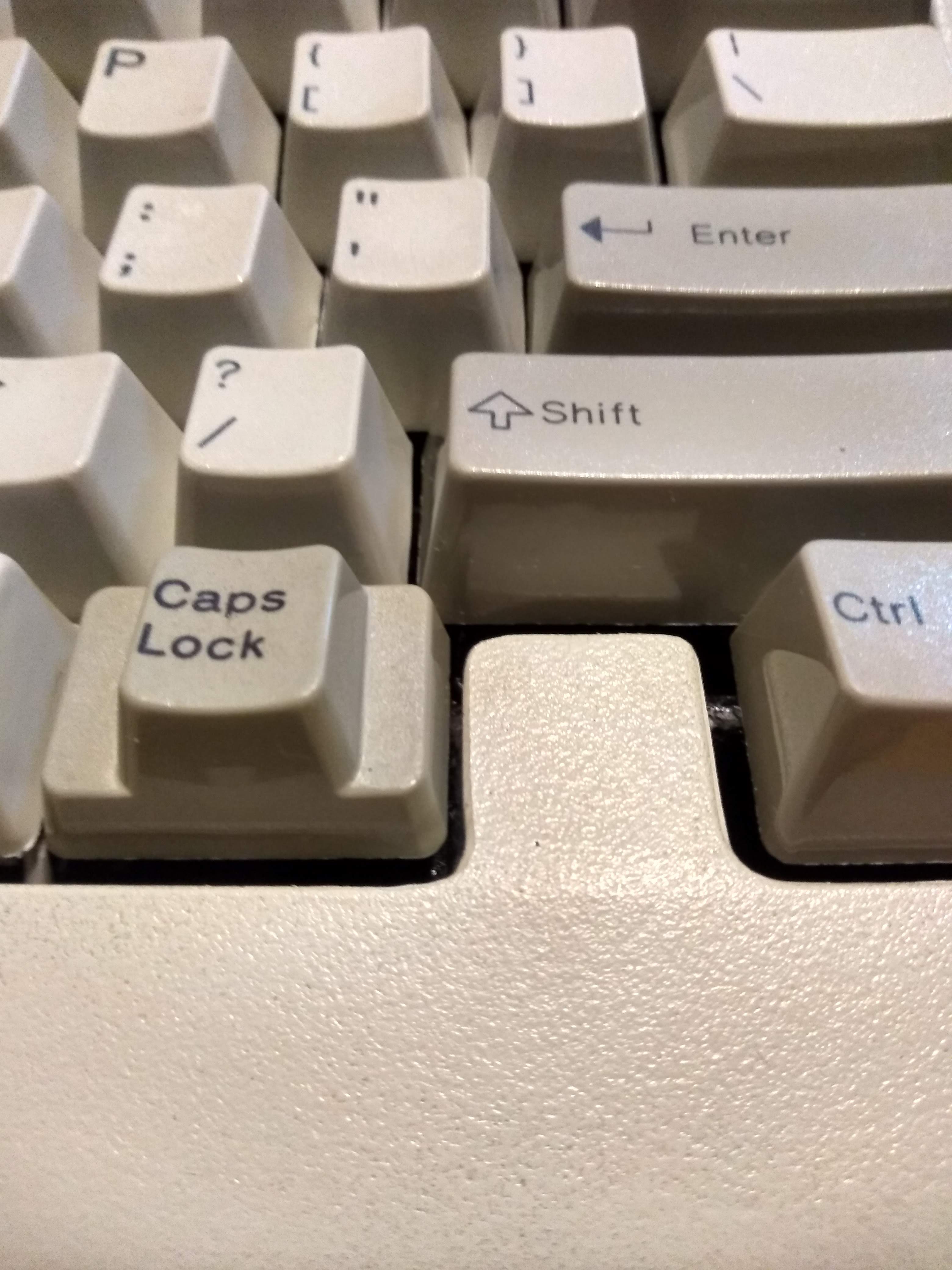

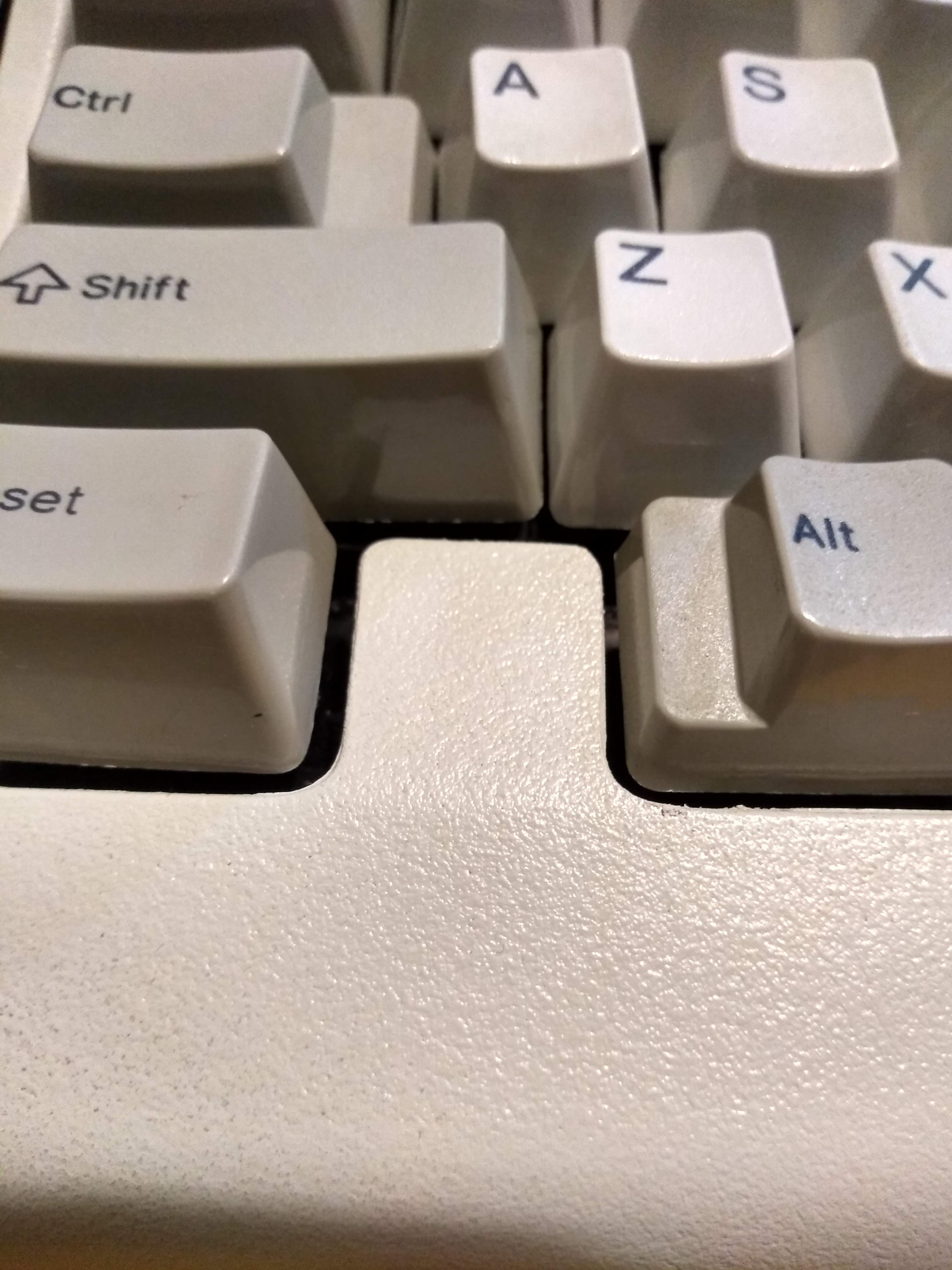

I had to trim the spots between the ctrl and alt key locations.
222256-6
222258-7

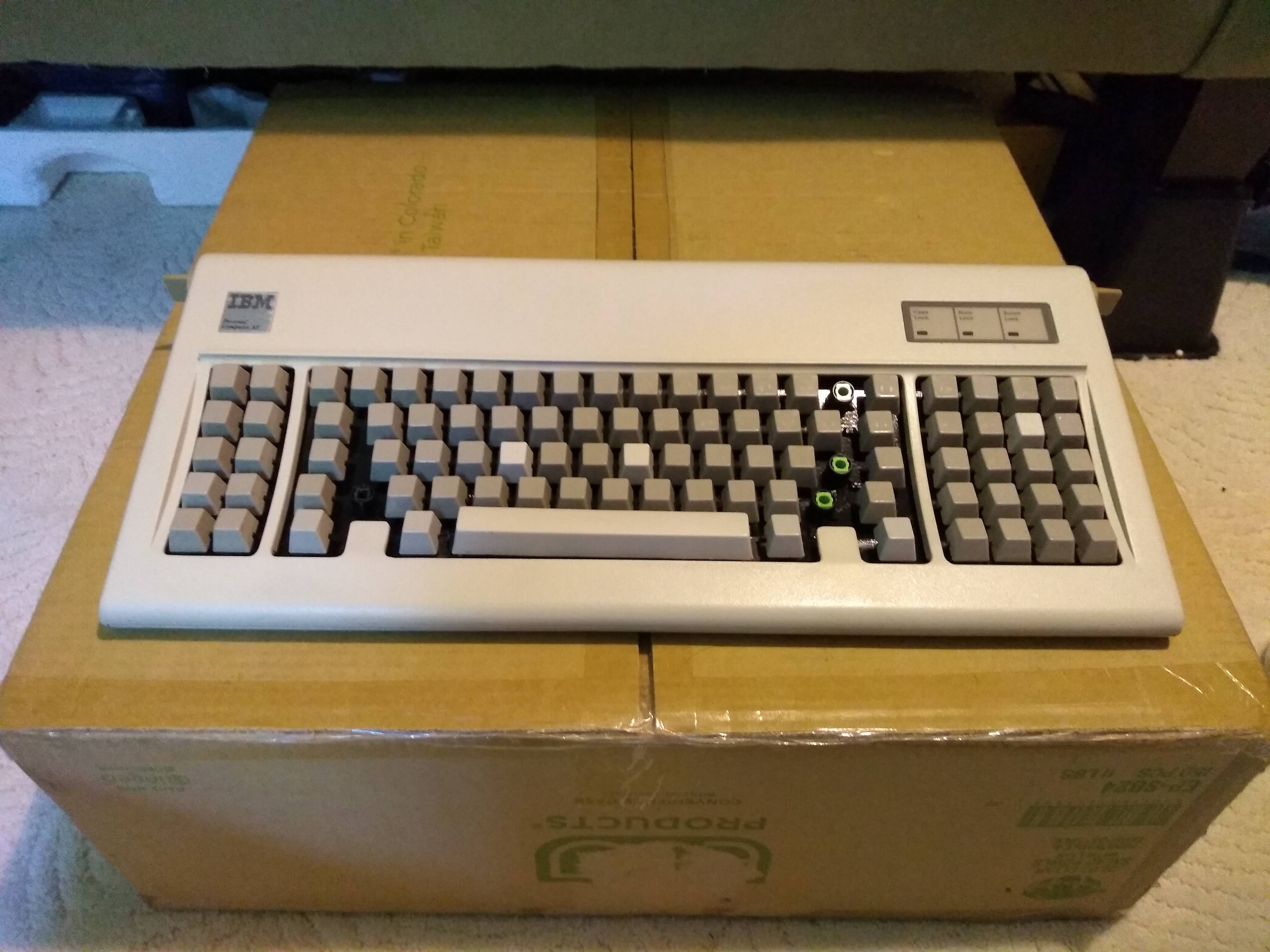

I decided to use model m keys, because they are easier to change around without disturbing the floss I put into each spring.
222250-8

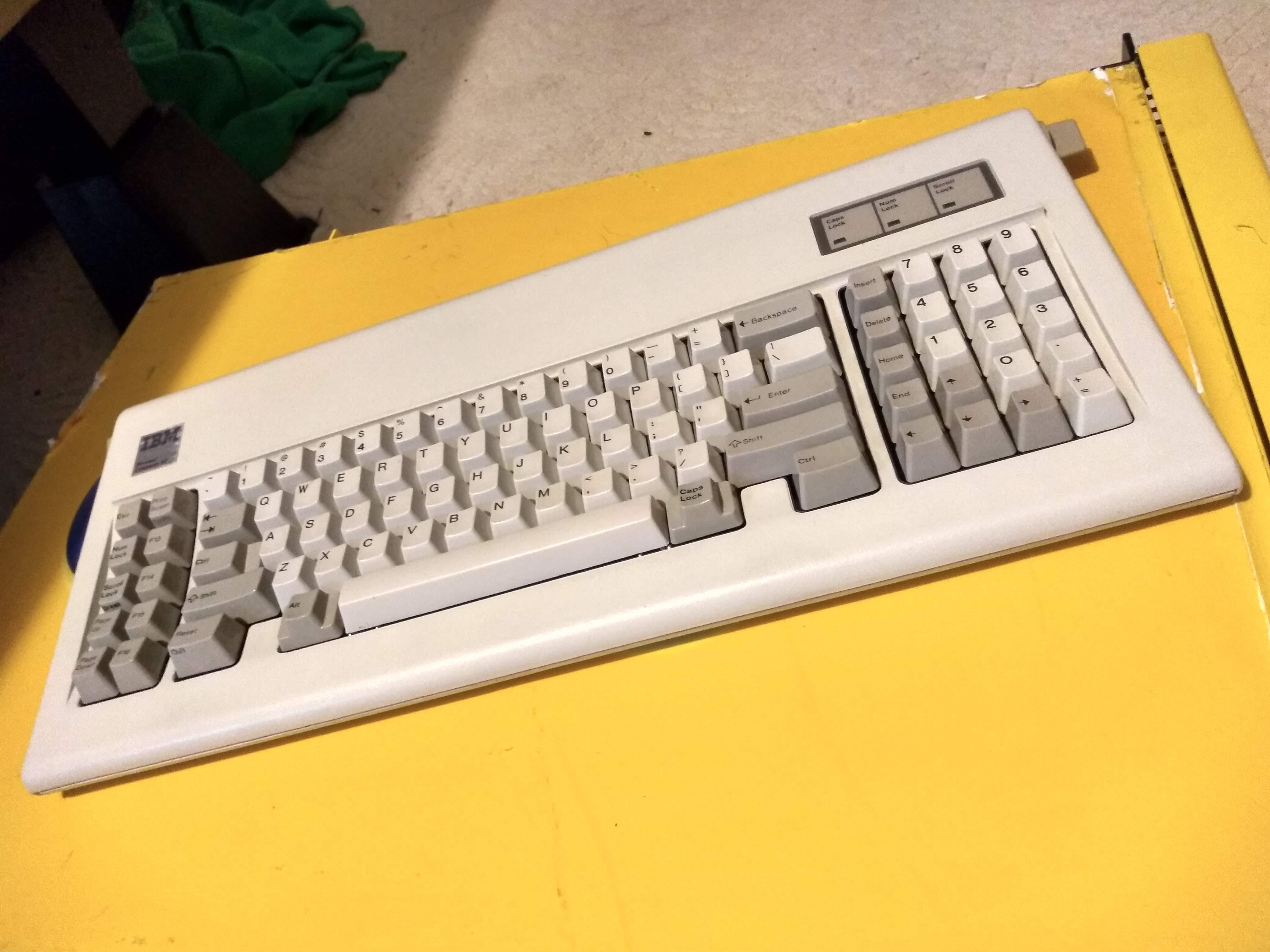

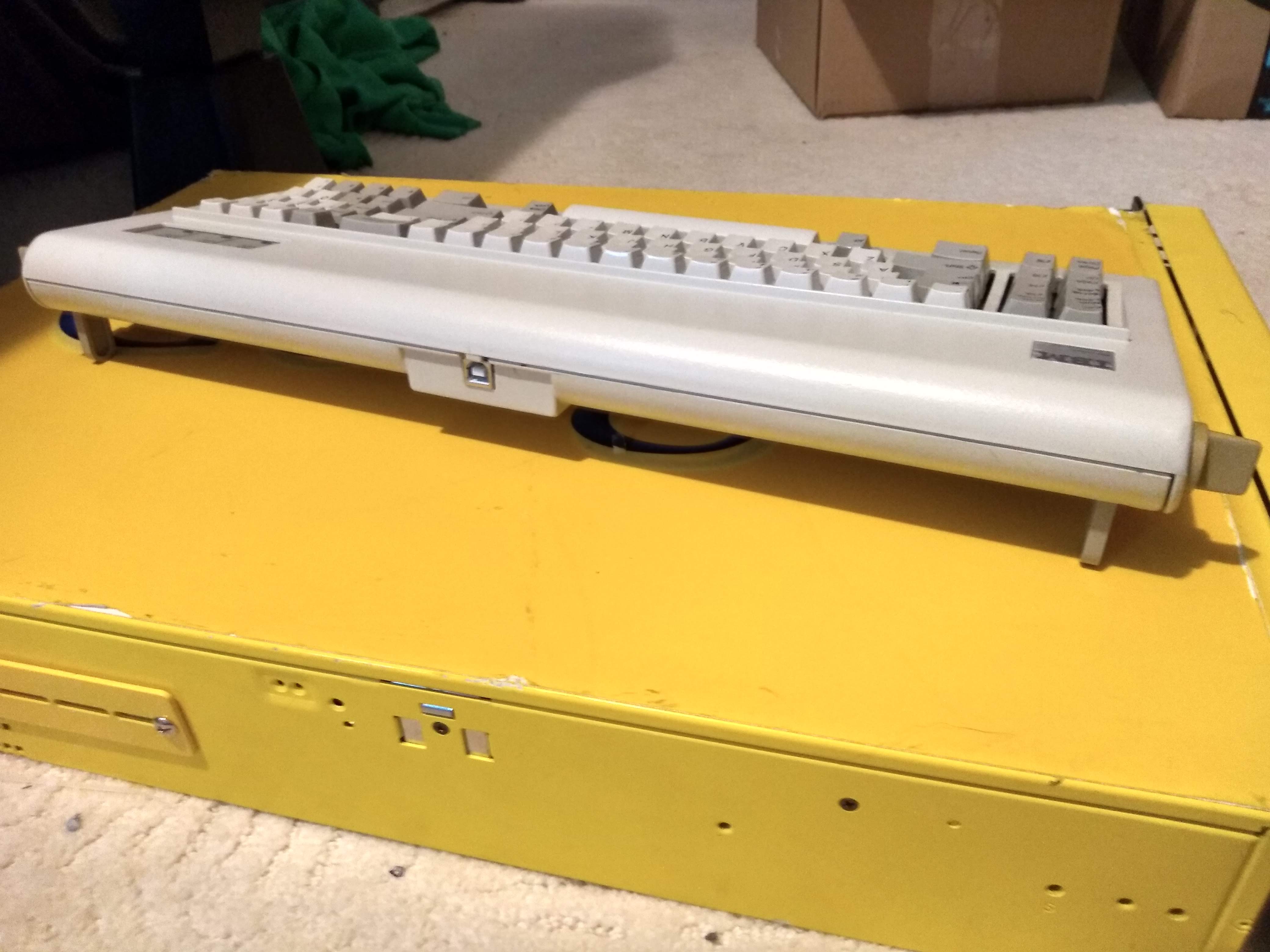

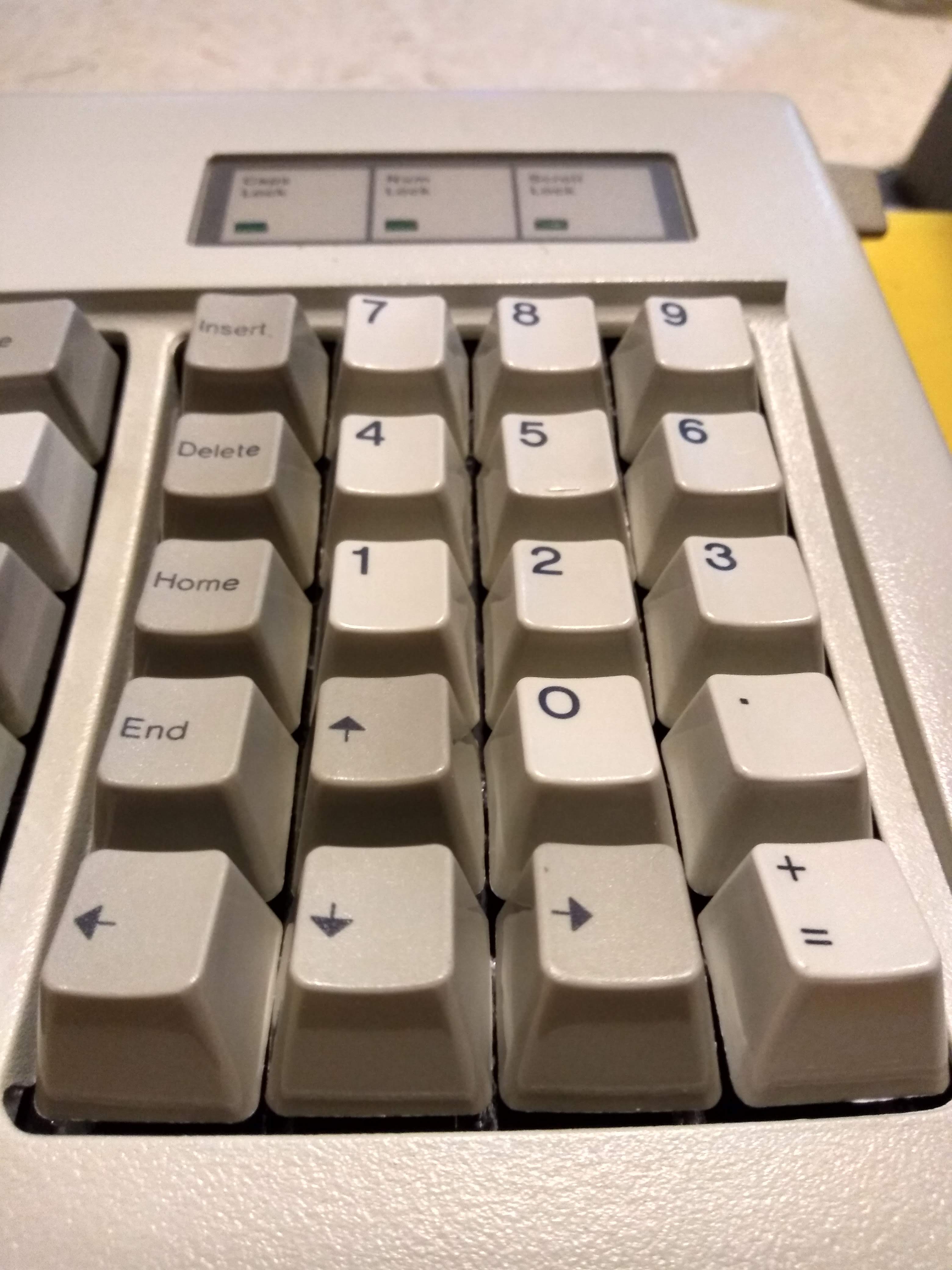

Finished Keyboard
222262-9
222264-10
222260-11
Logged

Offline fohat.digs

  • * Elevated Elder
  • Posts: 6473
  • Location: 35°55'N, 83°53'W
  • weird funny old guy
Re: IBM Model F AT Modifications
« Reply #1 on: Fri, 05 July 2019, 17:11:07 »
Nice work! I personally wouldn't do the numpad that way, but you did a great job.

I will study that space bar stabilizer before I do my next one.
