Need help with soldering new PS/2 cable to HHKB Lite 2
« on: Wed, 09 January 2013, 05:48:41 »
Hi

I need to attach a new PS/2 plug to the cable.
Unfortunately I can't check the old plug to see which cable is what.

Does anybody know which color goes to what pin (as seen on Wikipedia)?

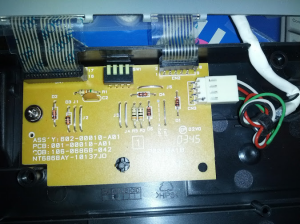

This is how the PCB with the cable looks like:
11484-0

Thanks for the help!
