Author Topic: Keyboard with 3-color LEDs?  (Read 4818 times)

0 Members and 1 Guest are viewing this topic.

Offline FoxWolf1

  • Thread Starter
  • Posts: 850
  • 154
Keyboard with 3-color LEDs?
« on: Thu, 15 November 2012, 22:29:48 »
So it would appear...though I can't read the text, so it's hard to be 100% sure. Seems to have some other interesting features as well, going by the pictures.

Anyone know more? Perhaps not my type of thing, but could be of interest to others, given that the question of multicolor backlighting comes up periodically.
« Last Edit: Thu, 15 November 2012, 22:36:07 by FoxWolf1 »
Logged
Oberhofer Model 1101 | PadTech Hall Effect (Prototype) | RK RC930-104 v2 | IBM Model M | Noppoo TANK | Keycool Hero 104

Offline SmallFry

  • ** Moderator Emeritus
  • Posts: 3887
  • Location: Wisconsin, USA
  • Leaving 6/15; returning 6/22 or so.
Re: Keyboard with 3-color LEDs?
« Reply #1 on: Thu, 15 November 2012, 23:45:38 »
I don't think that they make tricolor  LEDs in 3mm form. Or if they do, I was mistaken. Heh
Logged

Offline wetto

  • Posts: 641
  • Location: Brazil
  • Brazil's Keyboard Enthusiasts Representative
    • Portuguese Mechanical Keyboard Guide
Re: Keyboard with 3-color LEDs?
« Reply #2 on: Fri, 16 November 2012, 00:51:54 »
Quote from: SmallFry on Thu, 15 November 2012, 23:45:38
I don't think that they make tricolor  LEDs in 3mm form. Or if they do, I was mistaken. Heh

Check the picture:

http://img651.imageshack.us/img651/37/e2tisspec.jpg

It's not 3mm LEDs, it's something else, looks like a square...
Logged
My collection:
More
Mice: Logitech G602, CM Storm Recon, CM Storm Spawn, Razer Naga, Ozone Radon Opto, Corsair M60, Tesoro Gandiva, CM Storm Alcor, Mionix Naos 8200.
Keyboards: Matias Secure Pro, Matias Mini Quiet Pro, custom modded Metadot Das Keyboard Model S Professional Silent (MX Brown, Costar), CM Storm Trigger (MX Brown), Noppoo Choc Mini (MX Red), Tesoro Lobera G5NFL Supreme, CM Storm Devastator.
Soon: CM Storm Quick Fire TK (MX Brown), CM Storm Trigger Z.
Boards I don't own anymore: CM Storm Quick Fire Rapid (MX Black), Logitech K800 (Membrane), Logitech G710+ (MX Brown), Thermaltake Meka G-Unit (MX Black), Corsair K70 (MX Red).
Mice I don't own anymore: Logitech G9x MW3, Corsair M65, Logitech G700, Roccat Kone Pure.

Offline TheProfosist

  • Posts: 3671
  • Location: Wisconsin, USA
  • Custom Layouts Only!
Re: Keyboard with 3-color LEDs?
« Reply #3 on: Fri, 16 November 2012, 01:41:41 »
Looks cool they must have found square leds that fit in the 3mm hole...
Logged

Offline WhiteFireDragon

  • Posts: 2276
    • youtube
Re: Keyboard with 3-color LEDs?
« Reply #4 on: Fri, 16 November 2012, 04:04:22 »
Not all LEDs need to have round housings. Poker has tiny SMD LEDs that barely has a housing at all.
Logged

Offline Human

  • Posts: 596
Re: Keyboard with 3-color LEDs?
« Reply #5 on: Sat, 17 November 2012, 16:13:36 »
Hmm, anyone who can read Hangul here mind help to translate? Especially the LED and 2 piece-design keycap parts. Thx.
Logged

Offline dorkvader

  • Posts: 6289
  • Location: Boston area
  • all about the "hack" in "geekhack"
Re: Keyboard with 3-color LEDs?
« Reply #6 on: Sun, 18 November 2012, 22:59:01 »
Quote from: TheProfosist on Fri, 16 November 2012, 01:41:41
Looks cool they must have found square leds that fit in the 3mm hole...
I'm more interested to know how they got the 4 leads of a RGB LED into a cherry keyswitch.

I really want a look at the underside of the PCB.
Logged

Offline FoxWolf1

  • Thread Starter
  • Posts: 850
  • 154
Re: Keyboard with 3-color LEDs?
« Reply #7 on: Mon, 15 July 2013, 16:18:31 »
These seem to be on eBay now (with the ad translated, hooray!).

Also found a video confirming that the backlights do change color, with some keys demonstrating 3 color capability.

Very expensive, but also lots of features. If only it was available with switches besides MX Brown...
Logged
Oberhofer Model 1101 | PadTech Hall Effect (Prototype) | RK RC930-104 v2 | IBM Model M | Noppoo TANK | Keycool Hero 104

Offline bazemk1979

  • Posts: 1625
Re: Keyboard with 3-color LEDs?
« Reply #8 on: Mon, 15 July 2013, 17:19:45 »
To all that think the price is high, lets look at the Gmarket website price first, its $215 and lets say $30 for shipping, around $250 in total.

I'm goinmg to start of with the first impressive things I see

- Double shot keyscaps that shine pretty awesome!!!! Holly....
- LED color options
- nice slim and slick design
- extra goodies, not sure what are they but they look both like some sort of media remote control and adobe remote? the whole board looks impressive

Everything about this board screams quality, Don't matter where is made, as far as I care it can be made in China, but there is no doubt this is a very good quality board.
Logged
Quote from: IvanIvanovich on Wed, 08 January 2014, 18:02:50

When you bottom out dong cap... is it going balls deep?

Offline 0100010

  • Posts: 1127
  • Location: DFW, TX, US
  • Not Sure
Re: Keyboard with 3-color LEDs?
« Reply #9 on: Mon, 15 July 2013, 17:33:51 »
The LEDs changing color based on what modifier or app is running is pretty interesting.

The translated ad is a hoot to read as well.
Logged
  Quoting me causes a posting error that you need to ignore.

Offline Melchior

  • Posts: 37
Re: Keyboard with 3-color LEDs?
« Reply #10 on: Mon, 15 July 2013, 20:55:26 »
Tri-Colour. But not individual keys.

Those are Bi-Colour LEDs!

each has 2-dies, one of blue or green or red or yellow or....

So some keys could be red/blue or red/green or green/blue, ect...
Logged
Ducky ONE    |   CM Recon

Offline alaricljs

  • I be WOT'ing all day...
  • ** Moderator Emeritus
  • Posts: 3715
  • Location: NE US
Re: Keyboard with 3-color LEDs?
« Reply #11 on: Mon, 15 July 2013, 21:09:30 »
ya, those are 2x3x4mm rectangular LEDs.  That package doesn't have space for enough leads for full 3 color support.
Logged
Filco w/ Imsto thick PBT
Ducky 1087XM PCB+Plate, w/ Matias "Quiet Click" spring-swapped w/ XM Greens

Offline Tony

  • Posts: 1189
Re: Keyboard with 3-color LEDs?
« Reply #12 on: Mon, 15 July 2013, 21:13:08 »
Usually modding another color at another row only.

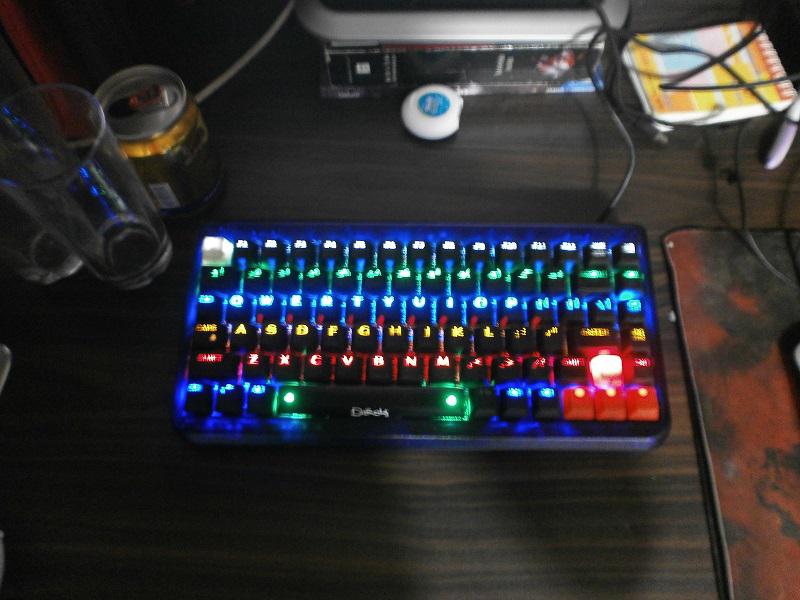

Here a sample of seven colors for different parts of the Deck Ice 82 keyboards

Logged
Keyboard: Filco MJ1 104 brown, Filco MJ2 87 brown, Compaq MX11800, Noppoo Choc Brown/Blue/Red, IBM Model M 1996, CMStorm Quickfire Rapid Black
Layout: Colemak experience, speed of 67wpm

Offline FoxWolf1

  • Thread Starter
  • Posts: 850
  • 154
Re: Keyboard with 3-color LEDs?
« Reply #13 on: Tue, 16 July 2013, 07:17:57 »
Quote from: Melchior on Mon, 15 July 2013, 20:55:26
Tri-Colour. But not individual keys.

Those are Bi-Colour LEDs!

each has 2-dies, one of blue or green or red or yellow or....

So some keys could be red/blue or red/green or green/blue, ect...

W, A, S, and D, at least, show all three colors in the video, as does the number pad.

Logged
Oberhofer Model 1101 | PadTech Hall Effect (Prototype) | RK RC930-104 v2 | IBM Model M | Noppoo TANK | Keycool Hero 104

Offline Human

  • Posts: 596
Re: Keyboard with 3-color LEDs?
« Reply #14 on: Tue, 16 July 2013, 08:13:05 »
This (for the time being known as Noppoo Nano 75) will be a tri-LED board, BUT it is still uncertain if they will keep with Cherry (as I inquired, the person incharge say they are currently finding alternative of Cherry MX and bla bla bla, no conclusion what switch will be used)
http://www.waishehome.cn/forum.php?mod=viewthread&tid=73359&extra=page%3D1
Logged

Offline dorkvader

  • Posts: 6289
  • Location: Boston area
  • all about the "hack" in "geekhack"
Re: Keyboard with 3-color LEDs?
« Reply #15 on: Tue, 16 July 2013, 08:15:23 »
It might be possible to have RGBLED's underneath matias switches since they're clear.
Logged

Offline alaricljs

  • I be WOT'ing all day...
  • ** Moderator Emeritus
  • Posts: 3715
  • Location: NE US
Re: Keyboard with 3-color LEDs?
« Reply #16 on: Tue, 16 July 2013, 08:41:39 »
Quote from: FoxWolf1 on Tue, 16 July 2013, 07:17:57
W, A, S, and D, at least, show all three colors in the video, as does the number pad.

I didn't watch closely enough to figure out what 3 colors... but bi-color LEDs with 2 leads can be made to emit a third color if driven with AC current, basically flashing both colors alternately fast enough that you see a 3rd..
Logged
Filco w/ Imsto thick PBT
Ducky 1087XM PCB+Plate, w/ Matias "Quiet Click" spring-swapped w/ XM Greens

Offline Findecanor

  • Posts: 5081
  • Location: Koriko
Re: Keyboard with 3-color LEDs?
« Reply #17 on: Tue, 16 July 2013, 09:47:16 »
You don't need to flash them to produce a combined colour.
Logged
🍉

Offline alaricljs

  • I be WOT'ing all day...
  • ** Moderator Emeritus
  • Posts: 3715
  • Location: NE US
Re: Keyboard with 3-color LEDs?
« Reply #18 on: Tue, 16 July 2013, 09:55:26 »
Quote from: alaricljs on Tue, 16 July 2013, 08:41:39
... but bi-color LEDs with 2 leads ...

Quote from: Findecanor on Tue, 16 July 2013, 09:47:16
You don't need to flash them to produce a combined colour.

Given my stated constraints there is no other way.
Logged
Filco w/ Imsto thick PBT
Ducky 1087XM PCB+Plate, w/ Matias "Quiet Click" spring-swapped w/ XM Greens
