Author Topic: IBM Model M cord damage question, see picture  (Read 1910 times)

0 Members and 1 Guest are viewing this topic.

Offline Choker

  • Thread Starter
  • Posts: 13
IBM Model M cord damage question, see picture
« on: Sun, 18 January 2015, 23:49:25 »

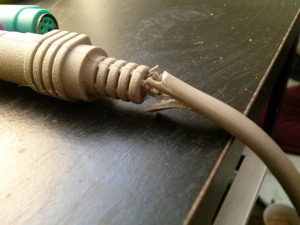

87799-0
I'm considering buying a Model M on eBay. The one I want has this damage on the cord, but otherwise works fine. I want it because it has the "dental floss mod" done.

The seller claims that "there are three layers on the cable: the outside rubber housing, then a metal shield, then the wire. The outside housing is now pulled away from the end connector but the rest is intact completely and there is absolutely no perceivable damage to the actual cable OR the metal shielding. The keyboard works no different and I've never had any issues with keystrokes."

Note this is later model with the non-detachable cord.

I've never had a Model M before so I've no idea whether it's true. Can I trust him? Is there really a metal shield in between the rubber and the wire? What if the "metal shield" is in fact the wire itself?

Thanks very much!!
« Last Edit: Sun, 18 January 2015, 23:51:06 by Choker »
Logged

Offline arakula

  • Posts: 50
Re: IBM Model M cord damage question, see picture
« Reply #1 on: Mon, 19 January 2015, 01:16:26 »
Yes there is a metal shield; it is wired to the metal back plate on the keyboard side and to the metal ring on the PS/2 connector on the other side.
And I've got a cable in a condition much worse than that (seems the plastic deteriorates over time) which still works nicely:
87817-0
A bit of heat-shrink tube or insulating tape should conceal the problem. Preferably both, to add a bit of stability.
« Last Edit: Mon, 19 January 2015, 01:27:13 by arakula »
Logged

Offline 1391406

  • Posts: 1191
  • Posts: 24838
Re: IBM Model M cord damage question, see picture
« Reply #2 on: Mon, 19 January 2015, 07:49:55 »
Model M's are fairly cheap these days. Have you considered buying one with an undamaged cable and floss modding it yourself? It's a pretty simple and straight forward mod.
Logged
Unicomp Classic | Chicony KB-5181 (Monterey Blues) | IBM Model M (1391401) | IBM XT Model F | IBM AT Model F | Dell AT101W | 122-key IBM Model F
IBM Model M13 | Apple Extended Keyboard | Apple Extended Keyboard II | MTEK K104 | NTC KB-6251/2 | Realforce 87U | Realforce 104U | Type Heaven

Offline fohat.digs

  • * Elevated Elder
  • Posts: 6533
  • Location: 35°55'N, 83°53'W
  • weird funny old guy
Re: IBM Model M cord damage question, see picture
« Reply #3 on: Mon, 19 January 2015, 08:18:26 »
Ezrahilyer is selling off his extra cables in the classifieds.

Orihalcon's cables are pricey but really clean and efficient.
Logged
"However, even though I was born in the Mesozoic, I do know what anyone who wants to reach out to young people should say: Billionaires took your money. They took your chance to buy a home. They took your chance at a good education. They stole your opportunities. Billionaires took the things you want in life. If you really want those things, you have to take them back.
That's the message. That's the whole message. Say that every day, not just to reach America's frustrated young white men, but people of every age, race, and gender.
Late-stage capitalism is a wealth-concentration engine, focused on vacuuming up every dollar and putting it in as few hands as possible. Republicans are helping that vacuum suck.
How does a tiny fraction of the population get away with this? They do it by dividing the other 99% of Americans against themselves."
- Marc Sumner 2025-05-30

Offline Snowdog993

  • Grace Under Pressure
  • Posts: 1587
  • Location: Over There! (Pointing)
  • Justifiably Clueless.
Re: IBM Model M cord damage question, see picture
« Reply #4 on: Mon, 19 January 2015, 08:41:04 »
Quote from: Choker on Sun, 18 January 2015, 23:49:25
(Attachment Link)
I'm considering buying a Model M on eBay. The one I want has this damage on the cord, but otherwise works fine. I want it because it has the "dental floss mod" done.

The seller claims that "there are three layers on the cable: the outside rubber housing, then a metal shield, then the wire. The outside housing is now pulled away from the end connector but the rest is intact completely and there is absolutely no perceivable damage to the actual cable OR the metal shielding. The keyboard works no different and I've never had any issues with keystrokes."

Note this is later model with the non-detachable cord.

I've never had a Model M before so I've no idea whether it's true. Can I trust him? Is there really a metal shield in between the rubber and the wire? What if the "metal shield" is in fact the wire itself?

Thanks very much!!

Did the seller tell you the exact model of that keyboard?  It could be one of several that have the cord built in.  My guess is that it could be the 42H1292, but it could be a 52G keyboard too.  The connectors to the controllers are different.  Rowdy did rewire a new cable to his and had to change a couple things.  If you wanted to replace the cable, I don't see a problem, just be sure that the connections are correct.
Logged

Offline 0100010

  • Posts: 1127
  • Location: DFW, TX, US
  • Not Sure
Re: IBM Model M cord damage question, see picture
« Reply #5 on: Mon, 19 January 2015, 08:44:39 »
Will work fine as is, or you can order a replacement cord from Unicomp - I think they are $10 or $15.
Logged
  Quoting me causes a posting error that you need to ignore.

Offline Snowdog993

  • Grace Under Pressure
  • Posts: 1587
  • Location: Over There! (Pointing)
  • Justifiably Clueless.
Re: IBM Model M cord damage question, see picture
« Reply #6 on: Mon, 19 January 2015, 08:49:17 »
Quote from: 0100010 on Mon, 19 January 2015, 08:44:39
Will work fine as is, or you can order a replacement cord from Unicomp - I think they are $10 or $15.

Why pay anything when you can take an old PS/2 connector off an old keyboard and do it for free?  All he has to do is wire up the replacement cord to the controller.  A few minutes of work.  Well worth it.
Logged

Offline rowdy

  • HHKB Hapster
  • * Erudite Elder
  • Posts: 21175
  • Location: melbourne.vic.au
  • Missed another sale.
Re: IBM Model M cord damage question, see picture
« Reply #7 on: Wed, 21 January 2015, 03:42:22 »
I ended up making a replacement cable for one of my Model M out of a cable removed from an old membrane PS/2 keyboard.

Works well!
