Hack...kludge...vivisection....
« on: Fri, 17 October 2014, 03:06:49 »
This is my first post here, so if I somehow stray outside of protocol with this, please guide me!

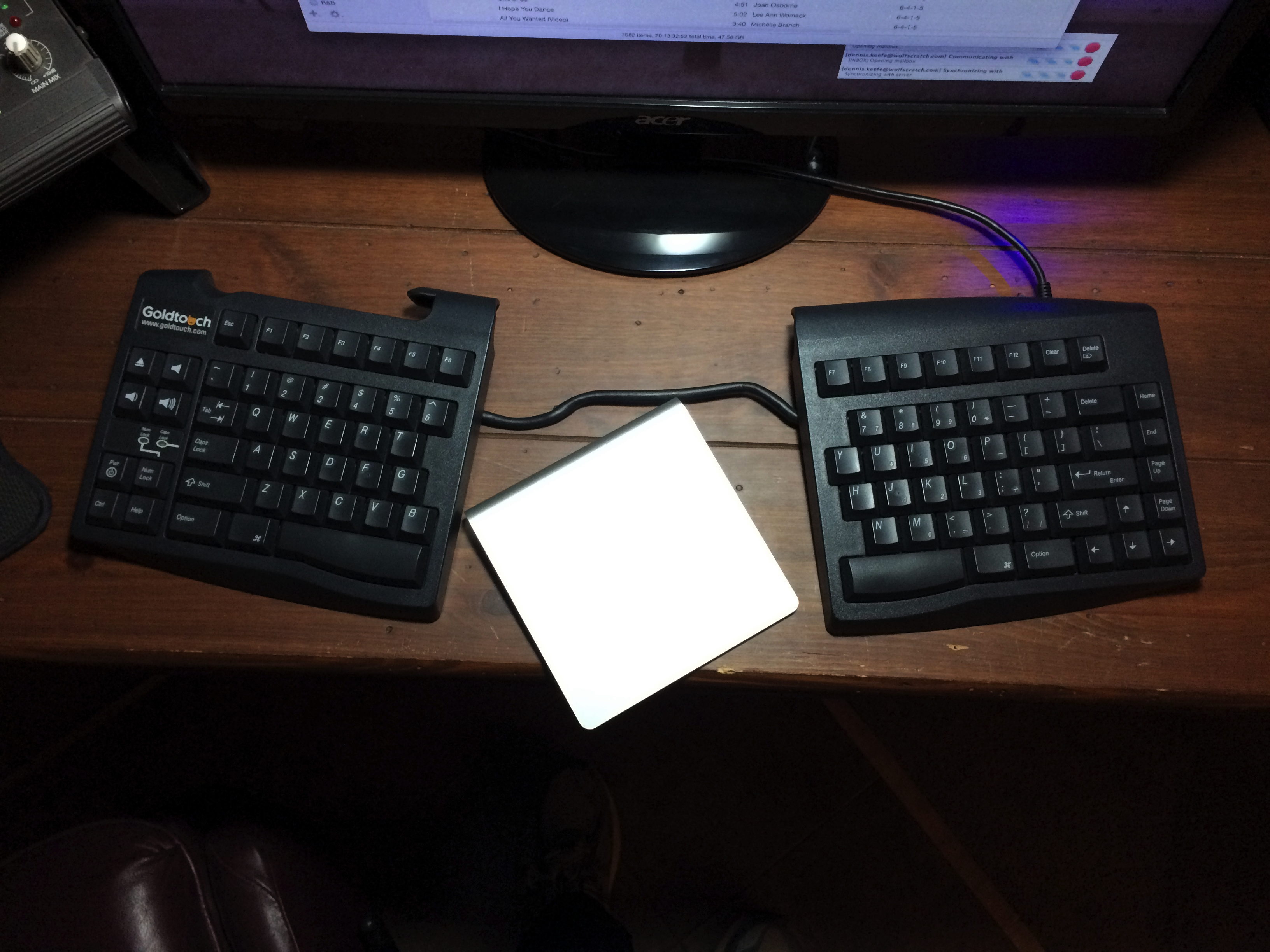

I have long wanted to try wider separation for a keyboard a la Kinesis Freestyle or, if I were ever brave enough, Ergodox. I just happened to have a ratty old Goldtouch around with a broken hinge. In a wicked moment of boredom last night, I took it apart, removed the hinge altogether, and very carefully unwound the rather remarkable stress relief twists and turns inside. I closed the patient up, gave it some current and... “Bwahahahahah...It’s ALIVE!” At least I didn’t break the tiny wires. No blue smoke from keyboard or computer....

My first impression is that my hands instantly smiled! I still would like to get some more outward tilt and raise the touchpad level with the tops of the keys.

Optimally, in a perfect world -- or if I had deeper pockets -- I would really like a matrix layout with Shift, Tab, Return and Delete on the centerline. They are the only things left that feel a little strange and slightly uncomfortable -- reaching further to the side to hit them.

But just clicking along, pouring out text, is really smooth and comfortable!

Enough of my “mad scientist” moment. Thanks for the venue to share this in! Lurking around here the last several weeks, watching some REAL “keyboard wrenches” at work, gave me the impetus to start experimenting.

Offline NeedAFix

  • Posts: 67
  • Location: Aertherwyer
  • Ten Seconds until Midnight
Re: Hack...kludge...vivisection....
« Reply #1 on: Fri, 17 October 2014, 22:39:48 »
Cool, good job.

Interesting little project, don't know if I could ever pull something off like that. :)

Do you think you can mod those keys you were talking about into the location you wanted, yourself? That would be the next big thing with this board, I'd say.
The Bird of the Hermes is my name,
eating my wings to make me tame.

Offline Haevuus

  • Thread Starter
  • Posts: 8
  • Location: Atlanta
Re: Hack...kludge...vivisection....
« Reply #2 on: Sat, 18 October 2014, 02:08:42 »
Thank you, NeedAFix! I appreciate your confidence in me! :D But any more than I did is a little bit above my pay grade. The last time I did any real soldering, I almost burned the house down! As Clint Eastwood said: "A man's got to know his limitations." What this did prove to me is that I really like the shoulder-width placement of my hands and the center location for the trackpad. When this lab-rat of a keyboard flames-out, I think I'll try for a Kinesis Freestyle for a while. And then...maybe I'll go for an Ergodox project, the logical pinnacle of keying technology, it seems!

I sure am glad I found this community! :thumb:

Offline rowdy

  • HHKB Hapster
  • * Erudite Elder
  • Posts: 21175
  • Location: melbourne.vic.au
  • Missed another sale.
Re: Hack...kludge...vivisection....
« Reply #3 on: Sat, 18 October 2014, 20:52:16 »
Welcome to Geekhack!

Very ergonomic!  You know we have a section for that?  You might post a thread there, if you haven't already, as not everyone checks the new members area, and a few people would be very interested in this kind of mod.
"Because keyboards are accessories to PC makers, they focus on minimizing the manufacturing costs. But that’s incorrect. It’s in HHKB’s slogan, but when America’s cowboys were in the middle of a trip and their horse died, they would leave the horse there. But even if they were in the middle of a desert, they would take their saddle with them. The horse was a consumable good, but the saddle was an interface that their bodies had gotten used to. In the same vein, PCs are consumable goods, while keyboards are important interfaces." - Eiiti Wada

NEC APC-H4100E | Ducky DK9008 Shine MX blue LED red | Ducky DK9008 Shine MX blue LED green | Link 900243-08 | CM QFR MX black | KeyCool 87 white MX reds | HHKB 2 Pro | Model M 02-Mar-1993 | Model M 29-Nov-1995 | CM Trigger (broken) | CM QFS MX green | Ducky DK9087 Shine 3 TKL Yellow Edition MX black | Lexmark SSK 21-Apr-1994 | IBM SSK 13-Oct-1987 | CODE TKL MX clear | Model M 122 01-Jun-1988

Ị̸͚̯̲́ͤ̃͑̇̑ͯ̊̂͟ͅs̞͚̩͉̝̪̲͗͊ͪ̽̚̚ ̭̦͖͕̑́͌ͬͩ͟t̷̻͔̙̑͟h̹̠̼͋ͤ͋i̤̜̣̦̱̫͈͔̞ͭ͑ͥ̌̔s̬͔͎̍̈ͥͫ̐̾ͣ̔̇͘ͅ ̩̘̼͆̐̕e̞̰͓̲̺̎͐̏ͬ̓̅̾͠͝ͅv̶̰͕̱̞̥̍ͣ̄̕e͕͙͖̬̜͓͎̤̊ͭ͐͝ṇ̰͎̱̤̟̭ͫ͌̌͢͠ͅ ̳̥̦ͮ̐ͤ̎̊ͣ͡͡n̤̜̙̺̪̒͜e̶̻̦̿ͮ̂̀c̝̘̝͖̠̖͐ͨͪ̈̐͌ͩ̀e̷̥͇̋ͦs̢̡̤ͤͤͯ͜s͈̠̉̑͘a̱͕̗͖̳̥̺ͬͦͧ͆̌̑͡r̶̟̖̈͘ỷ̮̦̩͙͔ͫ̾ͬ̔ͬͮ̌?̵̘͇͔͙ͥͪ͞ͅ

Offline Haevuus

  • Thread Starter
  • Posts: 8
  • Location: Atlanta
Re: Hack...kludge...vivisection....
« Reply #4 on: Sun, 19 October 2014, 01:22:12 »
Rowdy, thanks for the welcome...and the suggestion. If you think others might be interested in my entry-level hack, I'll go over yonder and post it there. Again, thanks to the community for what I have learned so far, and for what I'm sure is left to find out.

Offline rowdy

  • HHKB Hapster
  • * Erudite Elder
  • Posts: 21175
  • Location: melbourne.vic.au
  • Missed another sale.
Re: Hack...kludge...vivisection....
« Reply #5 on: Sun, 19 October 2014, 01:25:37 »
Definitely!

A big part of this community is ergonomics, including modified and resurrected older ergonomic keyboards, and helping other members with problems that might be caused by poor ergonomics.  Your mod might inspire someone else to do something similar.  I think this is the first time I have heard of a mod such as this, not that I frequent the ergonomics section that much :p
