Author Topic: 【GB】Mithril 60% Custom keyboard (Read 24964 times)

Kenton · « **on:** Fri, 22 November 2019, 18:51:26 »

【GB】Mithril 60% Custom keyboard

Hey guys , long time no see, “Mithril is the keyboard have been conceiving in 2018 , the process of conceiving is more difficult as I think, but , Today , finally Mithril is come up , thank for everyone gave us idea to change or fix the problem of our keyboard , this is First time I have been try keyboard layouts like HHKB , hope u guys will like it .(IC LINK ：https://geekhack.org/index.php?topic=102766.msg2817954#msg2817954)
__________________________________________________________________________________________________________________________________

I hope this time “mithril” will get the point in everyone’s mind , Unlike the left hand outlets used in most kits, this time I brought in the middle-outline version, and the keyboard PCB also modularizes the type c interface, this time with a new stainless steel material to make the counterweight, and The metal wire drawing process will be added to the breeding, and our logo will be etched on the counterweight. I will connect the side and the front end of the keyboard together, and the overall appearance consistency will be greatly improved.
__________________________________________________________________________________________________________________________________

[ Specified attachment is not available ]
[ Specified attachment is not available ]
[ Specified attachment is not available ]
[ Specified attachment is not available ]
[ Specified attachment is not available ]
[ Specified attachment is not available ]

Features:

6063 aluminum top case
6063 aluminum bottom case
Stainless steel weight

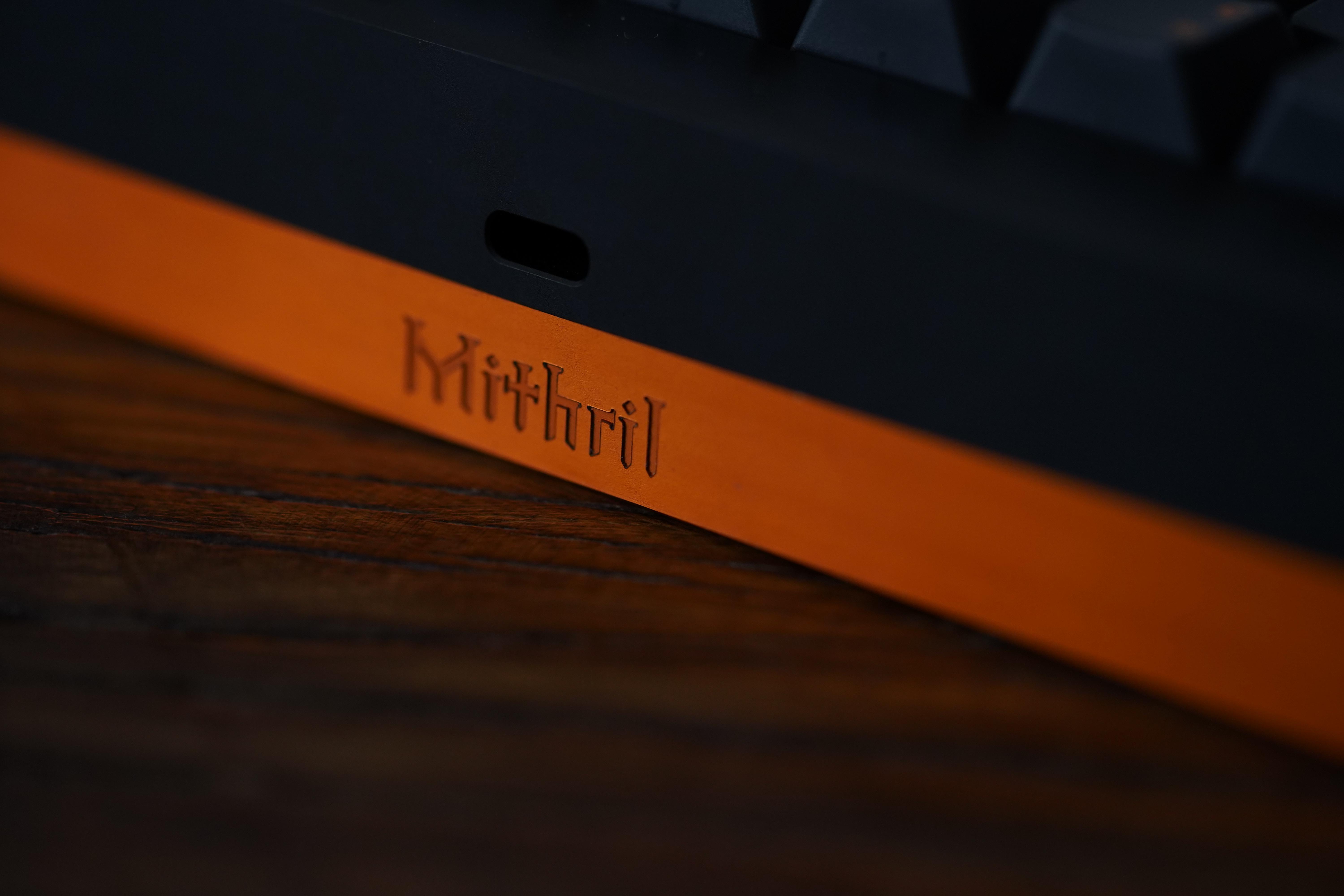

Aluminum logo finished in silver
PCB (QMK with USB Type C connector)
Plate (listening to everyone's opinion, was changed into a separate positioning plate.)

__________________________________________________________________________________________________________________________________
Layout

__________________________________________________________________________________________________________________________________
Colors

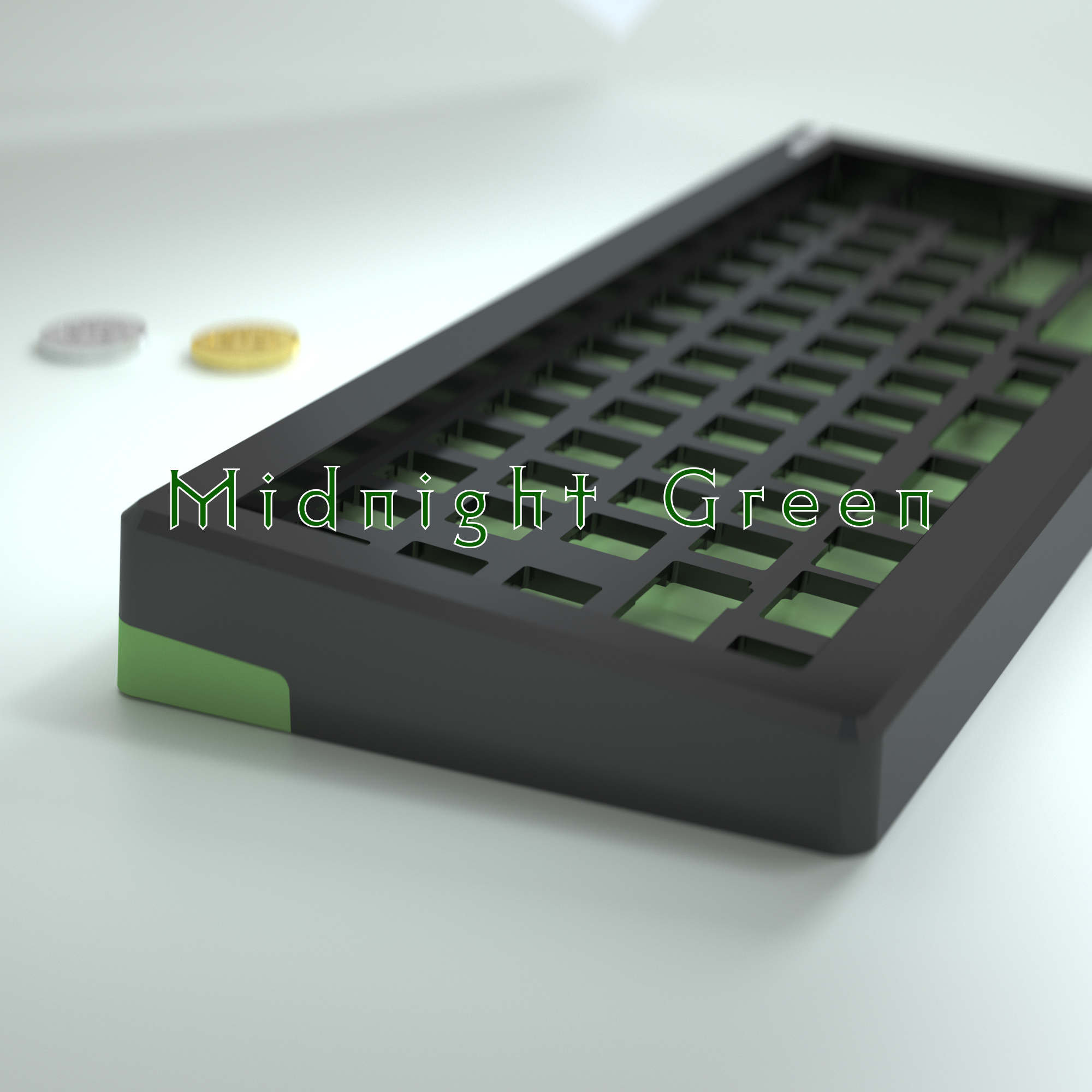

Midnight green (Layout):WK,HHKB Price: 278 USD

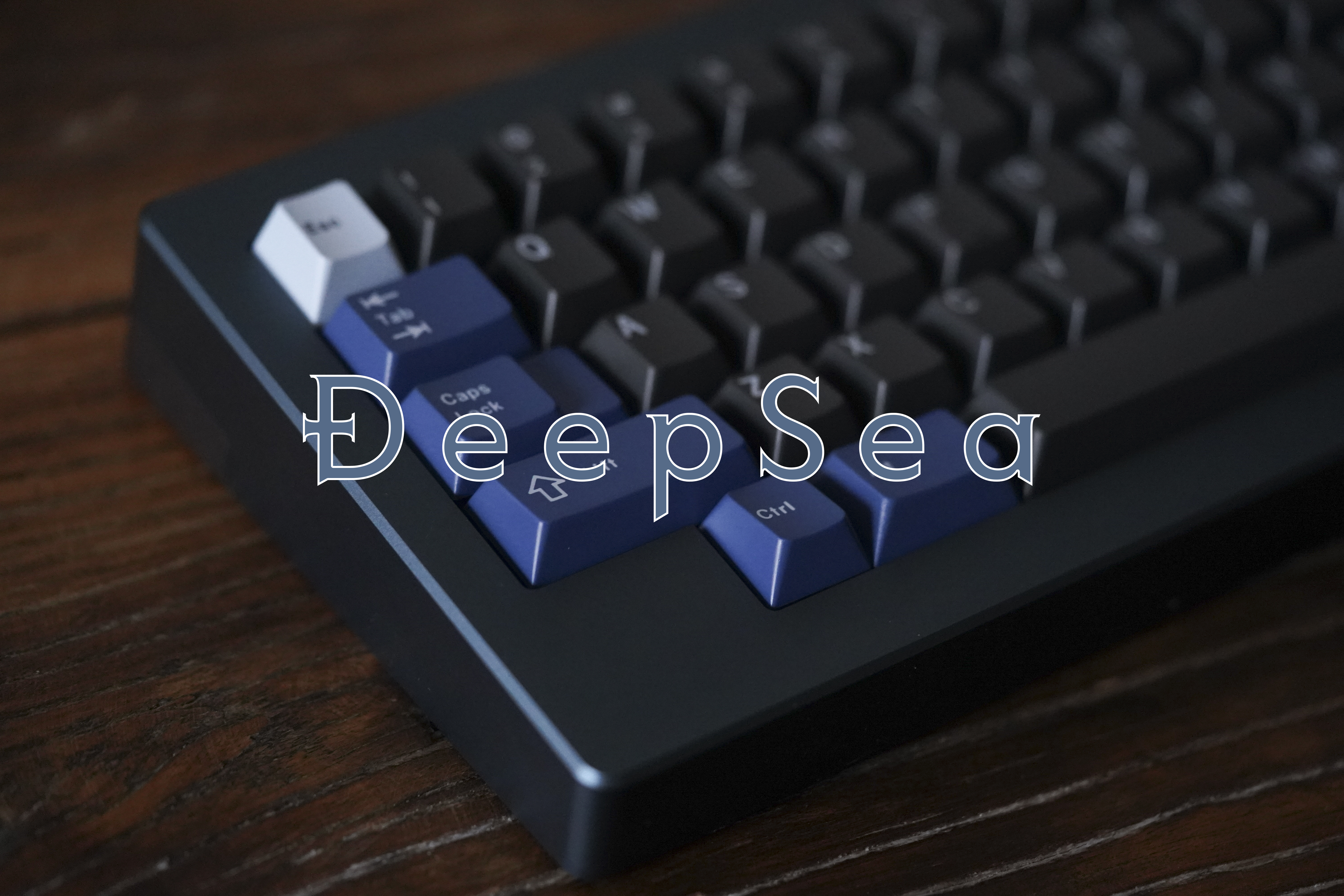

Deepsea blue (Layout):WK,HHKB Price: 278 USD

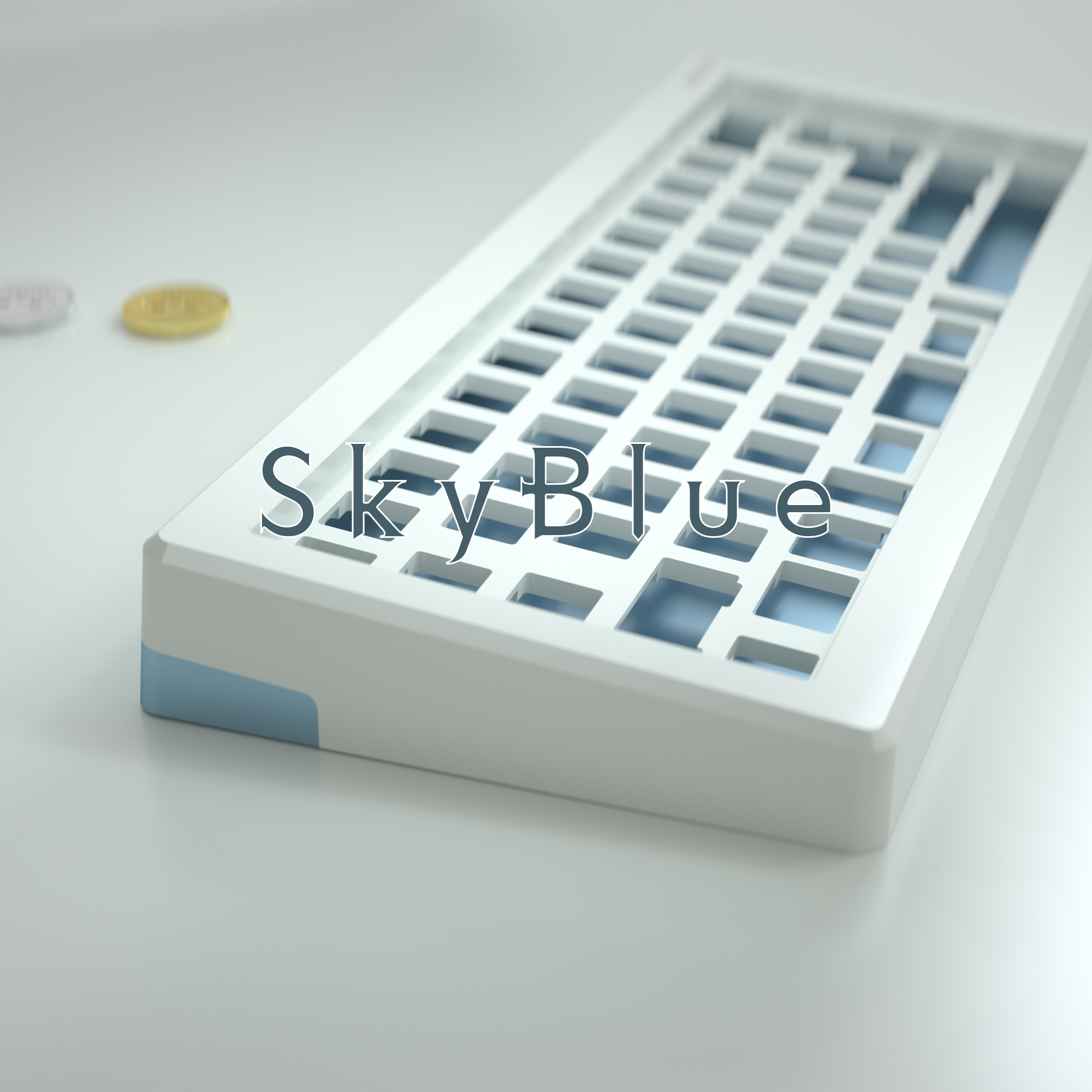

Skye blue (Layout):WK,HHKB Price: 303 USD

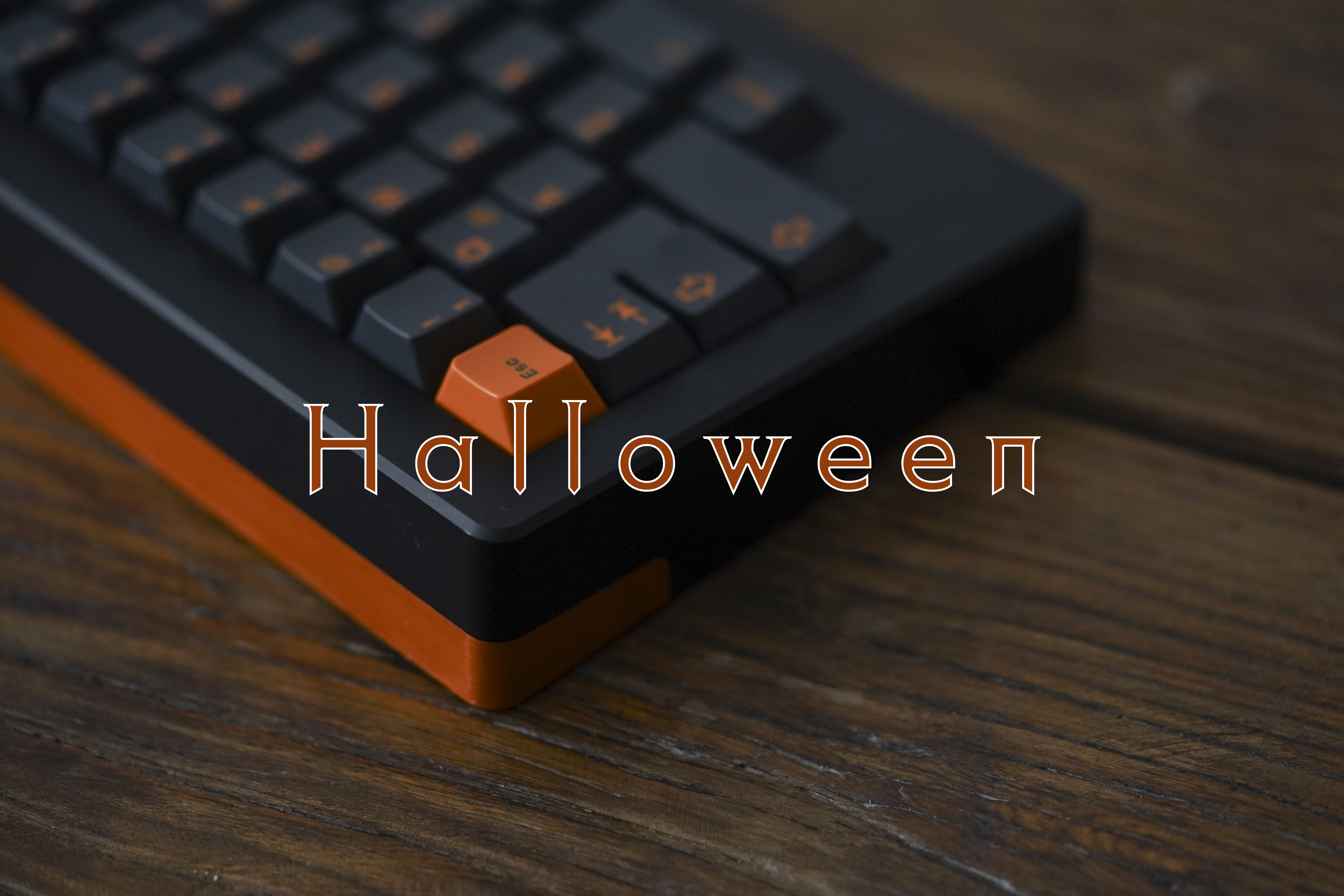

Halloween (Layout):WK,HHKB Price: 278 USD
——————————————————————————————————————————————————————————————————————————————————
extra pcb+plate cost 50 USD Ship nomral cost 50 USD need see what location it is
——————————————————————————————————————————————————————————————————————————————————
[PAY: [url=https://docs.google.com/forms/d/e/1FAIpQLSfM0EWIfJihXBmh1RzqIpJ1lo19wPMiIKgGsNgipboHBQ34vw/viewform
*** Time *** 2019/12/9-2019/12/26
*** Expected delivery date *** BEFORE 2020/4
If you are interested in Mithril or DT.heart Please join us: https://discord.gg/mJZ2QR8

Satatement: i cant make each keyboard be 100% perfect , but this is my traget and i will do best as i can , any problem i will take it and fix it ,thanks ur support
Tp: The nameplate was changed to a silver anode.

Signature · « **Reply #1 on:** Fri, 06 December 2019, 11:54:24 »

Approved

Fnzzy · « **Reply #2 on:** Fri, 06 December 2019, 13:19:18 »

If anyone is wondering why the form is closed, there has been a mini GB in the discord while they were waiting for this thread to be approved. I am sure it will be sorted out later.

Italian_T3ddy_v2 · « **Reply #3 on:** Fri, 06 December 2019, 13:52:34 »

What colour is the deepsea blue bottom part?
Also, I wish there was a panda option like you showed earlier, that was really cool

Kenton · « **Reply #4 on:** Fri, 06 December 2019, 21:30:53 »

Quote from: Italian_T3ddy_v2 on Fri, 06 December 2019, 13:52:34

What colour is the deepsea blue bottom part?
Also, I wish there was a panda option like you showed earlier, that was really cool

ok deepsea blue bottom part is gray

Puddsy · « **Reply #5 on:** Fri, 06 December 2019, 21:50:48 »

all of your images are dead for me

Italian_T3ddy_v2 · « **Reply #6 on:** Sat, 07 December 2019, 00:56:21 »

Quote from: Kenton on Fri, 06 December 2019, 21:30:53

Quote from: Italian_T3ddy_v2 on Fri, 06 December 2019, 13:52:34
What colour is the deepsea blue bottom part?
Also, I wish there was a panda option like you showed earlier, that was really cool

ok deepsea blue bottom part is gray

Ok thank you, I think I'll probably pass this one then, hoping to see other rounds in the future
GL with the GB

Tyler · « **Reply #7 on:** Sat, 07 December 2019, 01:41:49 »

I really like the design but I wish the color options were better. The panda color sounded nice. Wish that there was a light blue one similar to the one in the interest check render.

Olivierko · « **Reply #8 on:** Sat, 07 December 2019, 01:49:48 »

I agree that the color options could be better.

Also no split backspace?

dhb82 · « **Reply #9 on:** Sat, 07 December 2019, 16:54:48 »

Is the iso layout supposed to have split left shift? Or why is the Z marked red?

Kenton · « **Reply #10 on:** Sat, 07 December 2019, 20:22:48 »

Quote from: Olivierko on Sat, 07 December 2019, 01:49:48

I agree that the color options could be better.

Also no split backspace?

yes this keyboard has split backspace

Kenton · « **Reply #11 on:** Sun, 08 December 2019, 21:49:52 »

Quote from: dhb82 on Sat, 07 December 2019, 16:54:48

Is the iso layout supposed to have split left shift? Or why is the Z marked red?

yes ISO LAYOUT has split left shift

Kevinsunbo · « **Reply #12 on:** Thu, 12 December 2019, 01:18:25 »

purchased

ShikiShiki · « **Reply #13 on:** Sat, 14 December 2019, 16:53:08 »

Looking forward to it!

Kenton · « **Reply #14 on:** Tue, 17 December 2019, 18:51:37 »

Quote from: ShikiShiki on Sat, 14 December 2019, 16:53:08

Looking forward to it!

Thank you for your support

dugihk · « **Reply #15 on:** Tue, 17 December 2019, 19:27:40 »

Definitely interested

Voidec · « **Reply #16 on:** Wed, 18 December 2019, 01:16:01 »

definitely interested, where is the link to where I can join in this GB?

Ultimatum · « **Reply #17 on:** Thu, 19 December 2019, 00:35:28 »

Quote from: Voidec on Wed, 18 December 2019, 01:16:01

definitely interested, where is the link to where I can join in this GB?

https://docs.google.com/forms/d/e/1FAIpQLSfM0EWIfJihXBmh1RzqIpJ1lo19wPMiIKgGsNgipboHBQ34vw/viewform

Voidec · « **Reply #18 on:** Sun, 22 December 2019, 00:37:14 »

Kenton · « **Reply #19 on:** Mon, 23 December 2019, 21:48:20 »

Quote from: dugihk on Tue, 17 December 2019, 19:27:40

Definitely interested

If you like, you'll have to hurry.12.26 is the end.

Voidec · « **Reply #20 on:** Tue, 24 December 2019, 01:33:17 »

Quote from: Kenton on Mon, 23 December 2019, 21:48:20

Quote from: dugihk on Tue, 17 December 2019, 19:27:40
Definitely interested

If you like, you'll have to hurry.12.26 is the end.

I was wondering if the form I filled out went through.

Kenton · « **Reply #21 on:** Tue, 24 December 2019, 21:09:53 »

Quote from: Voidec on Tue, 24 December 2019, 01:33:17

Quote from: Kenton on Mon, 23 December 2019, 21:48:20
Quote from: dugihk on Tue, 17 December 2019, 19:27:40
Definitely interested

If you like, you'll have to hurry.12.26 is the end.

I was wondering if the form I filled out went through.

If you follow the form format Then I have received it You can make the payment according to the amount given in the statistics I'll check in here Have sent you the invoice mail at the closing of the group purchase.

Starius · « **Reply #22 on:** Wed, 26 February 2020, 19:25:05 »

Oh man, I'm sorry I missed out on this one. Great looking board!
