Need help with bridging a Ducky Shine 6
« on: Wed, 22 May 2024, 18:30:09 »
Hi!
I'm trying to repair my Ducky Shine 6 keyboard that got damaged after desoldering the switches. I've bridged some keys that weren't working and managed to fix a few, but there are some keys on the left side I can't seem to fix them...

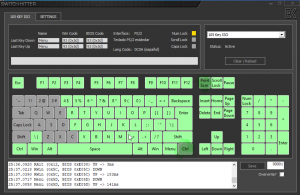

308133-0

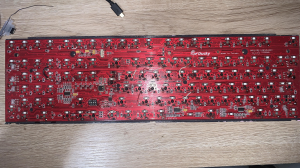

308135-1

Here I tried to bridge "A" to "S" and "D" to "E" because there wasn't any continuity, now if I press for example Caps Lock I get "F" being pressed, or if I press "A" I get "G, and it repeats again, "S" I get "F", this happens to every not working row
From "" to 3 -> 4 and 5
Tab to "E" -> "R" and "T
and Shift to "C" - > "V" and "B"

There is continuity between all right pins in all the columns

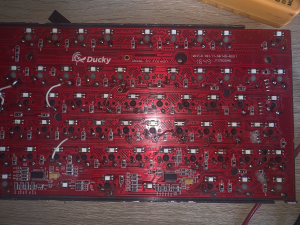

308137-2
