2TU (TuTu) - Custom Korean 60% keyboard.
« on: Wed, 01 May 2013, 10:57:25 »
For the past couple weeks I've been talking with a guy who is named Kailet on GH about his access/relation to the 2TU project.
(Kailet's Blog, http://22gongbang.tistory.com/)

Three orders can still be made from members of Geekhack.  Order deadline May 10th.  Please contact Kailet via e-mail if you need more information awshim@gmail.com

The 2TU also known as Two Thumbs Up or TuTu is a 60% board which is extremely similar in customization to our GH60 project.

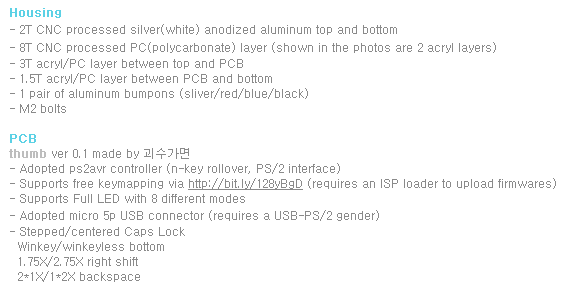

Its design (pcb) is known as "thumb" and supports the following,
  • Full NKRO by ps/2
  • Full LED support with 8 different LED modes
    Quote
    There are 8 LED modes:
    1. Fade in/out
    2. Fade in/out + keypress on
    3. Brightness level - brightness increases on keypresses
    4. Keypress on
    5. Keypress off
    6. Always on
    7. Linked with Caps Lock - full LED on with Caps Lock toggled
    8. Off - except Caps Lock and Number Lock(@backspace), those two are independent
  • Various arrays and custom layout options
  • Micro usb.
  • Customizeable key bindings via http://tinyurl.com/d9je224 for use with ISP Loader.
    Quote
    To change the keymap, first you need to edit and compile the keymap(I can do that for you),
    and then you need a deviced called ISP loader to upload the firmware to the PCB.
    You can google 'USB ISP' to find out how they look like.





Kailet is, from what I can tell, pretty involved in this project and a few of his own.  He is creating custom housings for these PCBs, and he has made full polycarbonate, polycarbonate and aluminum, and full aluminum slim designs.  In addition to designing and fabricating various housing solutions for this project he has also taken into consideration what he can do with the mix of materials.  I don't want to pat myself on the back too much because he may have had the idea already but after explaining that I would love to have a keyboard with interior glow he posted this picture.

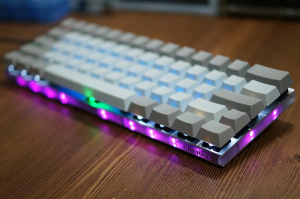

20559-1*

Here's a video of one of the LED modes with the internal LEDs.


I was told by Kailet in other e-mails that he would make some of these keyboards for Geekhack members upon request.
These aren't cheap as most customs are not.  I got confirmation on prices!

Quote
The rough price for PCB+Housing plus shipping would be little less than $250.
And one assembled will be a little less than $400.
Shipping will be $30 to $40 for a safe and quick delivery called EMS with a tracking number.
It normally takes around 4 days.

He has 5 PCBs available for members of our forum.
He can be reached by e-mail at awshim@gmail.com
I only asked for this information in case some serious collectors wanted to know of availability.

A couple other pictures of this project,
20561-2*
The Polycarbonate Case

20563-3*

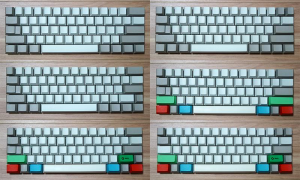

Possible Layout Options

*The source of the photos used in this post are http://22gongbang.tistory.com/

Originally before knowing anything about this Korean custom project I followed a link boost made in this thread.
Big thanks to boost for the heads up!
« Last Edit: Fri, 03 May 2013, 00:08:00 by Binge »
60% keyboards, 100% of the time.

"What the hell Jimmy?!  It was ruined before you even put it up there with your decrepit fingers."

Offline Photekq

  • wheat flour zone
  • Posts: 4651
  • Location: North Wales/Loughborough, UK
  • silver sickle wrecking co.
Re: 2TU (TuTu) - Custom Korean 60% keyboard.
« Reply #1 on: Wed, 01 May 2013, 18:21:18 »
Looks really nice. Any idea why he has these dimples & bumps on the plate?

Offline CPTBadAss

  • Woke up like this
  • Posts: 14305
  • Location: CT, USA
  • Rich Homie Huang.
Re: 2TU (TuTu) - Custom Korean 60% keyboard.
« Reply #2 on: Wed, 01 May 2013, 18:23:47 »
Maybe a more elegant way to solve the solderless switch opening problem?
Please check out TactileZine.com!

Offline osxoep

  • Posts: 212
Re: 2TU (TuTu) - Custom Korean 60% keyboard.
« Reply #3 on: Wed, 01 May 2013, 18:41:43 »
Hnggggggg.

Do want.
HHKB Pro JP with hasu's controller (waiting for MX sliders)

Offline boost

  • BOSTMOBILE
  • * Elevated Elder
  • Posts: 3285
  • NY Giants!!!
Re: Re: 2TU (TuTu) - Custom Korean 60% keyboard.
« Reply #4 on: Wed, 01 May 2013, 18:48:10 »
Looks really nice. Any idea why he has these dimples & bumps on the plate?

Might be laser marks
"Aerodynamics are for people who can't build engines."

-Enzo Ferrari

Offline sth

  • 2 girls 1 cuprubber
  • Posts: 3402
  • ftdoc.nl
    • forthedeclineofcivilisation
Re: 2TU (TuTu) - Custom Korean 60% keyboard.
« Reply #5 on: Wed, 01 May 2013, 18:53:54 »
lololo 300 for this? so dumb so dumb so dumb SO DUMB
11:48 -!- SmallFry [~SmallFry@unaffiliated/smallfry] has quit [Ping timeout: 245 seconds] ... rest in peace

Offline Binge

  • Island of Sandy Beaches
  • * Maker
  • Thread Starter
  • Posts: 3262
  • Location: Binge Has
  • With Gentle Time. I Feel Very Nice.
    • Hunger Work Studio
Re: 2TU (TuTu) - Custom Korean 60% keyboard.
« Reply #6 on: Wed, 01 May 2013, 19:08:01 »
I'm pretty sure the notches are there because of the new plate thickness.  The post that picture came from details how he is increasing plate thickness.
It also looks like it's a way for the plate to be universal for various layouts.

Any switch experts out there have a comment on the design?

20632-0
60% keyboards, 100% of the time.

"What the hell Jimmy?!  It was ruined before you even put it up there with your decrepit fingers."

Offline metalliqaz

  • * Maker
  • Posts: 4911
  • Location: the Making Stuff subforum
  • Leopold fanboy
Re: 2TU (TuTu) - Custom Korean 60% keyboard.
« Reply #7 on: Wed, 01 May 2013, 19:11:09 »
Those are hot.

Offline Michael

  • Formerly Bro Caps
  • * Maker
  • Posts: 4634
  • REEEeeeeEEEEEEEEeeeeeeeeeeeEEEEEEEEEEEEEEEeeeee
Re: 2TU (TuTu) - Custom Korean 60% keyboard.
« Reply #8 on: Wed, 01 May 2013, 19:22:59 »

Offline Dubsgalore

  • Banned
  • Posts: 2849
  • Location: 75% You have received a warning for attempting to circumvent the classifieds rules
    • Dubs - Sneakers, Keyboards, and Life
Re: 2TU (TuTu) - Custom Korean 60% keyboard.
« Reply #9 on: Wed, 01 May 2013, 19:23:41 »
he said he would try to save me a PCB a few weeks ago when i talked to him...this thing is awesome regardless..i don't car eif it's $400 for a 60%...It still awesome

Offline Sifo

  • Swaglord Yolomancer
  • * Exquisite Elder
  • Posts: 6644
  • Location: #GOLDSPRINGS, #LEGITBALLIN
Re: 2TU (TuTu) - Custom Korean 60% keyboard.
« Reply #10 on: Wed, 01 May 2013, 19:26:19 »
Damn this is pretty sick ...
(Forever) Illustrious.

Offline boost

  • BOSTMOBILE
  • * Elevated Elder
  • Posts: 3285
  • NY Giants!!!
Re: Re: 2TU (TuTu) - Custom Korean 60% keyboard.
« Reply #11 on: Wed, 01 May 2013, 19:27:56 »
I'm pretty sure the notches are there because of the new plate thickness.  The post that picture came from details how he is increasing plate thickness.
It also looks like it's a way for the plate to be universal for various layouts.

Any switch experts out there have a comment on the design?

(Attachment Link)

That so you can swap springs/stem without desoldering
"Aerodynamics are for people who can't build engines."

-Enzo Ferrari

Offline okooko

  • Posts: 476
  • Location: Australia
  • afk.
Re: 2TU (TuTu) - Custom Korean 60% keyboard.
« Reply #12 on: Wed, 01 May 2013, 19:32:48 »
Looks nice, although for the first pic, sometimes you shouldn't crank the bokeh every shot. Would have been nice to see the board stopped down a bit...f16 or more

Offline AriesX

  • Posts: 93
Re: 2TU (TuTu) - Custom Korean 60% keyboard.
« Reply #13 on: Wed, 01 May 2013, 20:21:00 »
this type of housing has been popular in korea for a while now
« Last Edit: Wed, 01 May 2013, 20:22:48 by AriesX »

Offline Kaliet

  • Posts: 89
  • Location: Seoul, Korea
  • Better every day
    • Apollos' Custom Keyboard Gallery
Re: 2TU (TuTu) - Custom Korean 60% keyboard.
« Reply #14 on: Wed, 01 May 2013, 20:21:43 »
I'm pretty sure the notches are there because of the new plate thickness.  The post that picture came from details how he is increasing plate thickness.
It also looks like it's a way for the plate to be universal for various layouts.

Any switch experts out there have a comment on the design?

(Attachment Link)

That so you can swap springs/stem without desoldering

Well, actually, those have nothing to do with swapping springs and stems without desoldering. :)
Binge explained well about that.
Those dimples/notches are there to firmly hold the switches at 1.5mm from the top of the plate since it's 2mm now.
There are latches on the top and bottom sides of cherry switches that are locked on the plate, the thickness of which is normally 1.5mm.
It's easy to design plates of 1.5mm thickness but I wanted to make it thicker for some reasons.

All housing parts are CNC processed, not laser-cut. :)
« Last Edit: Wed, 01 May 2013, 21:24:52 by Kaliet »
Custom Keyboard Craftsman

Offline Kaliet

  • Posts: 89
  • Location: Seoul, Korea
  • Better every day
    • Apollos' Custom Keyboard Gallery
Re: 2TU (TuTu) - Custom Korean 60% keyboard.
« Reply #15 on: Wed, 01 May 2013, 20:24:18 »
Looks nice, although for the first pic, sometimes you shouldn't crank the bokeh every shot. Would have been nice to see the board stopped down a bit...f16 or more

Thanks for your advice. I'm a beginner in photography. :)
I'll try that next time when I buy a tripod.
Custom Keyboard Craftsman

Offline metalliqaz

  • * Maker
  • Posts: 4911
  • Location: the Making Stuff subforum
  • Leopold fanboy
Re: 2TU (TuTu) - Custom Korean 60% keyboard.
« Reply #16 on: Wed, 01 May 2013, 20:49:48 »
Are those LEDs on the sides?  Intense.

Offline Binge

  • Island of Sandy Beaches
  • * Maker
  • Thread Starter
  • Posts: 3262
  • Location: Binge Has
  • With Gentle Time. I Feel Very Nice.
    • Hunger Work Studio
Re: 2TU (TuTu) - Custom Korean 60% keyboard.
« Reply #17 on: Wed, 01 May 2013, 21:41:42 »
Are those LEDs on the sides?  Intense.

Those LEDs are actually INSIDE (caps for brimming with excitement) the case.  The (polycarbonate) middle allows the light to shine out!

Updated post 1 with more clarification on specs.
« Last Edit: Thu, 02 May 2013, 02:19:30 by Binge »
60% keyboards, 100% of the time.

"What the hell Jimmy?!  It was ruined before you even put it up there with your decrepit fingers."

Offline Photekq

  • wheat flour zone
  • Posts: 4651
  • Location: North Wales/Loughborough, UK
  • silver sickle wrecking co.
Re: 2TU (TuTu) - Custom Korean 60% keyboard.
« Reply #18 on: Thu, 02 May 2013, 15:40:47 »

Well, actually, those have nothing to do with swapping springs and stems without desoldering. :)
Binge explained well about that.
Those dimples/notches are there to firmly hold the switches at 1.5mm from the top of the plate since it's 2mm now.
There are latches on the top and bottom sides of cherry switches that are locked on the plate, the thickness of which is normally 1.5mm.
It's easy to design plates of 1.5mm thickness but I wanted to make it thicker for some reasons.

All housing parts are CNC processed, not laser-cut. :)

Thanks for the info!

Offline patchworks

  • Posts: 170
Re: 2TU (TuTu) - Custom Korean 60% keyboard.
« Reply #19 on: Thu, 02 May 2013, 19:50:26 »
I'd take one
(・ω・`)denko-chan~~~내 스레드

Offline Binge

  • Island of Sandy Beaches
  • * Maker
  • Thread Starter
  • Posts: 3262
  • Location: Binge Has
  • With Gentle Time. I Feel Very Nice.
    • Hunger Work Studio
Re: 2TU (TuTu) - Custom Korean 60% keyboard.
« Reply #20 on: Fri, 03 May 2013, 00:04:19 »
Alright happy hackers!

Important post and an update for the OP

Kailet has 3 PCBs remaining for GH members.  Deadline for an order is May 10th.
60% keyboards, 100% of the time.

"What the hell Jimmy?!  It was ruined before you even put it up there with your decrepit fingers."

Offline evolveS

  • Posts: 166
  • Location: Midwestern US
  • ಠ_ಠ
Re: 2TU (TuTu) - Custom Korean 60% keyboard.
« Reply #21 on: Fri, 03 May 2013, 12:08:25 »
Gorgeous housings, do want
"money comes and goes, but doubleshots are forever"
-a petty thief

Offline whiskerBox

  • Posts: 1037
Re: 2TU (TuTu) - Custom Korean 60% keyboard.
« Reply #22 on: Sat, 04 May 2013, 09:26:54 »
pretty sharp looking! I like how the middle layer of the case lights up, but I don't know how I feel about there not being sides on the case. I guess it wouldn't be an issue if you don't travel with it frequently.
"I'm on a mission to bring down GH's anarchy of moderators" -RIPSTER jr.

Offline Kaliet

  • Posts: 89
  • Location: Seoul, Korea
  • Better every day
    • Apollos' Custom Keyboard Gallery
Re: 2TU (TuTu) - Custom Korean 60% keyboard.
« Reply #23 on: Sat, 04 May 2013, 09:32:22 »
pretty sharp looking! I like how the middle layer of the case lights up, but I don't know how I feel about there not being sides on the case. I guess it wouldn't be an issue if you don't travel with it frequently.

You don't need to worry about the mid-layer.
That's made of polycarbonate, which is known to be 150 times stronger than tempered glass and elastic at the same time.
So I can say it is more reliable than the aluminum layer especially for traveling. :)
Custom Keyboard Craftsman

Offline Rendom

  • Posts: 362
  • Location: Australia
Re: 2TU (TuTu) - Custom Korean 60% keyboard.
« Reply #24 on: Sat, 04 May 2013, 10:13:56 »
Looks great, but another 60% keyboard? No thanks.  : /
QFR - MX Blue

Offline Aranair

  • Posts: 215
  • Location: Singapore
  • Software Engineer @ PocketMath
    • Tech blog
2TU (TuTu) - Custom Korean 60% keyboard.
« Reply #25 on: Mon, 06 May 2013, 19:35:17 »
Binge, was just wondering~ did you order it assembled or?  I am negotiating for a partial assembly(he mentioned diodes/resisters, of which I have no idea what to do)

Present  : HHKB Pro 2 Type-S White | HHKB Pro 2 White Blank | Ergodox EZ
Past      :  Poker 2 Brown | Black Widow Ultimate Blue | Filco TKL Brown

Offline Binge

  • Island of Sandy Beaches
  • * Maker
  • Thread Starter
  • Posts: 3262
  • Location: Binge Has
  • With Gentle Time. I Feel Very Nice.
    • Hunger Work Studio
Re: 2TU (TuTu) - Custom Korean 60% keyboard.
« Reply #26 on: Mon, 06 May 2013, 22:24:56 »
Binge, was just wondering~ did you order it assembled or?  I am negotiating for a partial assembly(he mentioned diodes/resisters, of which I have no idea what to do)

I ordered mine fully assembled.  What do you want to know?  Getting all of the diodes installed is a lot of work.
60% keyboards, 100% of the time.

"What the hell Jimmy?!  It was ruined before you even put it up there with your decrepit fingers."

Offline Binge

  • Island of Sandy Beaches
  • * Maker
  • Thread Starter
  • Posts: 3262
  • Location: Binge Has
  • With Gentle Time. I Feel Very Nice.
    • Hunger Work Studio
Re: 2TU (TuTu) - Custom Korean 60% keyboard.
« Reply #27 on: Fri, 10 May 2013, 21:35:01 »
Update from Kailet!  He has an opportunity to get more PCBs and therefore make more keyboards!

He also alerted me to a new version of the MX Mini being made with full LED support.

If there's any interest I'd be happy to relay questions!
60% keyboards, 100% of the time.

"What the hell Jimmy?!  It was ruined before you even put it up there with your decrepit fingers."

Offline tjcaustin

  • King Klaxon
  • * Maker
  • Posts: 3555
  • Location: Dallas-ish
  • King of All Klaxon Sciences and Cable Makery
    • Buy stuff
Re: 2TU (TuTu) - Custom Korean 60% keyboard.
« Reply #28 on: Fri, 10 May 2013, 21:44:27 »
mmmmmx mini

Offline ApocalypseMaow

  • Kitteh Overlord
  • Posts: 1867
  • Location: Arkansas
  • Say WHAAT...
Re: 2TU (TuTu) - Custom Korean 60% keyboard.
« Reply #29 on: Fri, 10 May 2013, 22:01:39 »
When would payment be due?
{WTT}HoffNudes(WTS)BLK LightSaverV2          SteamProfile
"#baby****fangerz" -Vesper 2015

Offline metalliqaz

  • * Maker
  • Posts: 4911
  • Location: the Making Stuff subforum
  • Leopold fanboy
Re: 2TU (TuTu) - Custom Korean 60% keyboard.
« Reply #30 on: Fri, 10 May 2013, 22:57:19 »
This thing shows incredible craftsmanship.  I'm in awe.  But dat price!

Offline Binge

  • Island of Sandy Beaches
  • * Maker
  • Thread Starter
  • Posts: 3262
  • Location: Binge Has
  • With Gentle Time. I Feel Very Nice.
    • Hunger Work Studio
Re: 2TU (TuTu) - Custom Korean 60% keyboard.
« Reply #31 on: Sat, 11 May 2013, 00:47:05 »
When would payment be due?

Apoc, I think you should totally shoot Kailet an e-mail using the info I have in my OP. :)  I paid as soon as it was clear what I wanted so that I could reserve a spot in the queue so to speak.

His previous date was May 10th for orders.  He has access to some more boards now, so I think he will be extending the time he will take orders.
60% keyboards, 100% of the time.

"What the hell Jimmy?!  It was ruined before you even put it up there with your decrepit fingers."

Offline Aranair

  • Posts: 215
  • Location: Singapore
  • Software Engineer @ PocketMath
    • Tech blog
Re: 2TU (TuTu) - Custom Korean 60% keyboard.
« Reply #32 on: Sat, 11 May 2013, 01:39:25 »
Yeah, I got him to help me do everything except switches and led. Figured I got too many custom keyboards coming and it's time I get some soldering equip to save money in the long run I guess.

Present  : HHKB Pro 2 Type-S White | HHKB Pro 2 White Blank | Ergodox EZ
Past      :  Poker 2 Brown | Black Widow Ultimate Blue | Filco TKL Brown

Offline Aranair

  • Posts: 215
  • Location: Singapore
  • Software Engineer @ PocketMath
    • Tech blog
Re: 2TU (TuTu) - Custom Korean 60% keyboard.
« Reply #33 on: Sat, 11 May 2013, 01:41:05 »

This thing shows incredible craftsmanship.  I'm in awe.  But dat price!

Mm is it more than what it is normally? Not too sure of the prices of custom keyboards lol.

Present  : HHKB Pro 2 Type-S White | HHKB Pro 2 White Blank | Ergodox EZ
Past      :  Poker 2 Brown | Black Widow Ultimate Blue | Filco TKL Brown

Offline metalliqaz

  • * Maker
  • Posts: 4911
  • Location: the Making Stuff subforum
  • Leopold fanboy
Re: 2TU (TuTu) - Custom Korean 60% keyboard.
« Reply #34 on: Sat, 11 May 2013, 01:45:48 »
Customs have no normal price.

Offline Aranair

  • Posts: 215
  • Location: Singapore
  • Software Engineer @ PocketMath
    • Tech blog
Re: 2TU (TuTu) - Custom Korean 60% keyboard.
« Reply #35 on: Sat, 11 May 2013, 02:44:56 »
Yeah well, your post seemed to suggest that it was too expensive for that, hence my question:p

Present  : HHKB Pro 2 Type-S White | HHKB Pro 2 White Blank | Ergodox EZ
Past      :  Poker 2 Brown | Black Widow Ultimate Blue | Filco TKL Brown

Offline Binge

  • Island of Sandy Beaches
  • * Maker
  • Thread Starter
  • Posts: 3262
  • Location: Binge Has
  • With Gentle Time. I Feel Very Nice.
    • Hunger Work Studio
Re: 2TU (TuTu) - Custom Korean 60% keyboard.
« Reply #36 on: Sat, 11 May 2013, 02:49:39 »
I thought it was more of a dat price, kinda like dat ass, or dem clacks if you know what I'm sayin?

60% keyboards, 100% of the time.

"What the hell Jimmy?!  It was ruined before you even put it up there with your decrepit fingers."

Offline Aranair

  • Posts: 215
  • Location: Singapore
  • Software Engineer @ PocketMath
    • Tech blog
Re: 2TU (TuTu) - Custom Korean 60% keyboard.
« Reply #37 on: Sat, 11 May 2013, 02:58:41 »
Either way, I'm sorry if I misunderstood you metallique ;)

Present  : HHKB Pro 2 Type-S White | HHKB Pro 2 White Blank | Ergodox EZ
Past      :  Poker 2 Brown | Black Widow Ultimate Blue | Filco TKL Brown

Offline PixelScript

  • Posts: 60
  • Location: UK
Re: 2TU (TuTu) - Custom Korean 60% keyboard.
« Reply #38 on: Sat, 11 May 2013, 04:37:48 »
Wow i'v never seen this before, it looks awesome! I'm actually designing something very similar for my GH60. Shame its a bit pricey :(

Offline hasu

  • Posts: 2904
  • Location: Tokyo, Japan
  • @tmk
    • tmk keyboard firmware project
Re: 2TU (TuTu) - Custom Korean 60% keyboard.
« Reply #39 on: Sat, 11 May 2013, 05:06:41 »
Looks great and nicely designed.

Kaliet,
I'm curious about ps2avr, I think some Korean boards use this firmware including yours.  Your version or latest version of ps2avr is publicly available somewhere else?
I don't suppose this is latest ps2avr: http://sourceforge.net/projects/ps2avr/
TMK products:HHKB Alt  ⌨ConvertersAlps64FC660C AltFC980C Alt

Offline ApocalypseMaow

  • Kitteh Overlord
  • Posts: 1867
  • Location: Arkansas
  • Say WHAAT...
Re: 2TU (TuTu) - Custom Korean 60% keyboard.
« Reply #40 on: Sat, 11 May 2013, 05:26:49 »
When would payment be due?

Apoc, I think you should totally shoot Kailet an e-mail using the info I have in my OP. :)  I paid as soon as it was clear what I wanted so that I could reserve a spot in the queue so to speak.

His previous date was May 10th for orders.  He has access to some more boards now, so I think he will be extending the time he will take orders.
Ugh, I was worried I'd miss it. I'll chat him up about it. Thanks Binge!
{WTT}HoffNudes(WTS)BLK LightSaverV2          SteamProfile
"#baby****fangerz" -Vesper 2015

Offline zoolzoo

  • Posts: 642
  • Location: CT
Re: 2TU (TuTu) - Custom Korean 60% keyboard.
« Reply #41 on: Sat, 11 May 2013, 09:28:59 »
its cool...but... meh
Leopold FC660C, Topre 45g | CM QFR, MX Blue | Rosewill RK-9000v2, MX Red | Cherry Slimline G84-4100, ML

Offline Dubsgalore

  • Banned
  • Posts: 2849
  • Location: 75% You have received a warning for attempting to circumvent the classifieds rules
    • Dubs - Sneakers, Keyboards, and Life
Re: 2TU (TuTu) - Custom Korean 60% keyboard.
« Reply #42 on: Sat, 11 May 2013, 09:51:49 »
Binge i have an update if you'd like :)

Offline Binge

  • Island of Sandy Beaches
  • * Maker
  • Thread Starter
  • Posts: 3262
  • Location: Binge Has
  • With Gentle Time. I Feel Very Nice.
    • Hunger Work Studio
Re: 2TU (TuTu) - Custom Korean 60% keyboard.
« Reply #43 on: Tue, 14 May 2013, 15:25:38 »
update us dubs!

I've also finished some key-bindings and I would love some feedback

Base
22403-0
FN1
22405-1
FN2 (also known as FN lock layer)
22407-2
« Last Edit: Fri, 17 May 2013, 16:41:32 by Binge »
60% keyboards, 100% of the time.

"What the hell Jimmy?!  It was ruined before you even put it up there with your decrepit fingers."

Offline Kaliet

  • Posts: 89
  • Location: Seoul, Korea
  • Better every day
    • Apollos' Custom Keyboard Gallery
Re: 2TU (TuTu) - Custom Korean 60% keyboard.
« Reply #44 on: Mon, 20 May 2013, 21:45:56 »
Hey folks! Enjoy some recent pics of my 2TU. :)









Have a good one.
http://22gongbang.tistory.com/
« Last Edit: Mon, 20 May 2013, 21:48:02 by Kaliet »
Custom Keyboard Craftsman

Offline dadgh

  • Posts: 136
  • Location: Seattle, WA
Re: 2TU (TuTu) - Custom Korean 60% keyboard.
« Reply #45 on: Mon, 20 May 2013, 22:11:39 »
Hey folks! Enjoy some recent pics of my 2TU. :)

Show Image


Have a good one.
http://22gongbang.tistory.com/

holy crap, awesomeeeeeeee

Offline bigx333

  • Posts: 82
  • Location: South Africa (but Brazillian :D)
Re: 2TU (TuTu) - Custom Korean 60% keyboard.
« Reply #46 on: Tue, 21 May 2013, 04:55:26 »
That dolch with red leds is just sexy ;D

Can't wait for my 2TU :D
2TU | LZ-GH

Offline Aranair

  • Posts: 215
  • Location: Singapore
  • Software Engineer @ PocketMath
    • Tech blog
Re: 2TU (TuTu) - Custom Korean 60% keyboard.
« Reply #47 on: Tue, 21 May 2013, 06:01:21 »
Maybe I should get another set of red LEDs D; those look so awesome heh.

Present  : HHKB Pro 2 Type-S White | HHKB Pro 2 White Blank | Ergodox EZ
Past      :  Poker 2 Brown | Black Widow Ultimate Blue | Filco TKL Brown

Offline Binge

  • Island of Sandy Beaches
  • * Maker
  • Thread Starter
  • Posts: 3262
  • Location: Binge Has
  • With Gentle Time. I Feel Very Nice.
    • Hunger Work Studio
Re: 2TU (TuTu) - Custom Korean 60% keyboard.
« Reply #48 on: Thu, 13 June 2013, 13:59:05 »
Kailet is the absolute greatest and most awesome guy alive!  :p

I was notified three days ago that an entire series of his plates were machined incorrectly.  Good Guy Kailet still delivers!

He just sent me some pictures of the finished product!

Enjoy,





60% keyboards, 100% of the time.

"What the hell Jimmy?!  It was ruined before you even put it up there with your decrepit fingers."

Offline Dubsgalore

  • Banned
  • Posts: 2849
  • Location: 75% You have received a warning for attempting to circumvent the classifieds rules
    • Dubs - Sneakers, Keyboards, and Life
Re: 2TU (TuTu) - Custom Korean 60% keyboard.
« Reply #49 on: Thu, 13 June 2013, 21:45:20 »
absolutely stunning kaliet, you make works of art

I'm very happy for you Binge! can't wait for pics of when it arrives at your own doorstep!
