Author Topic: Lifted a single solder pad, how to repair?  (Read 2570 times)

0 Members and 1 Guest are viewing this topic.

Offline Naweo

  • Thread Starter
  • Posts: 199
Lifted a single solder pad, how to repair?
« on: Mon, 27 June 2016, 07:00:48 »
Heya!

I lifted a single solder pad entirely from my escape key, and I am not sure how to repair it. I read online that I have to scrape the trace free from the solder mask, but it sounds dangerous and I would like to avoid that if possible.

What would be the best repair?

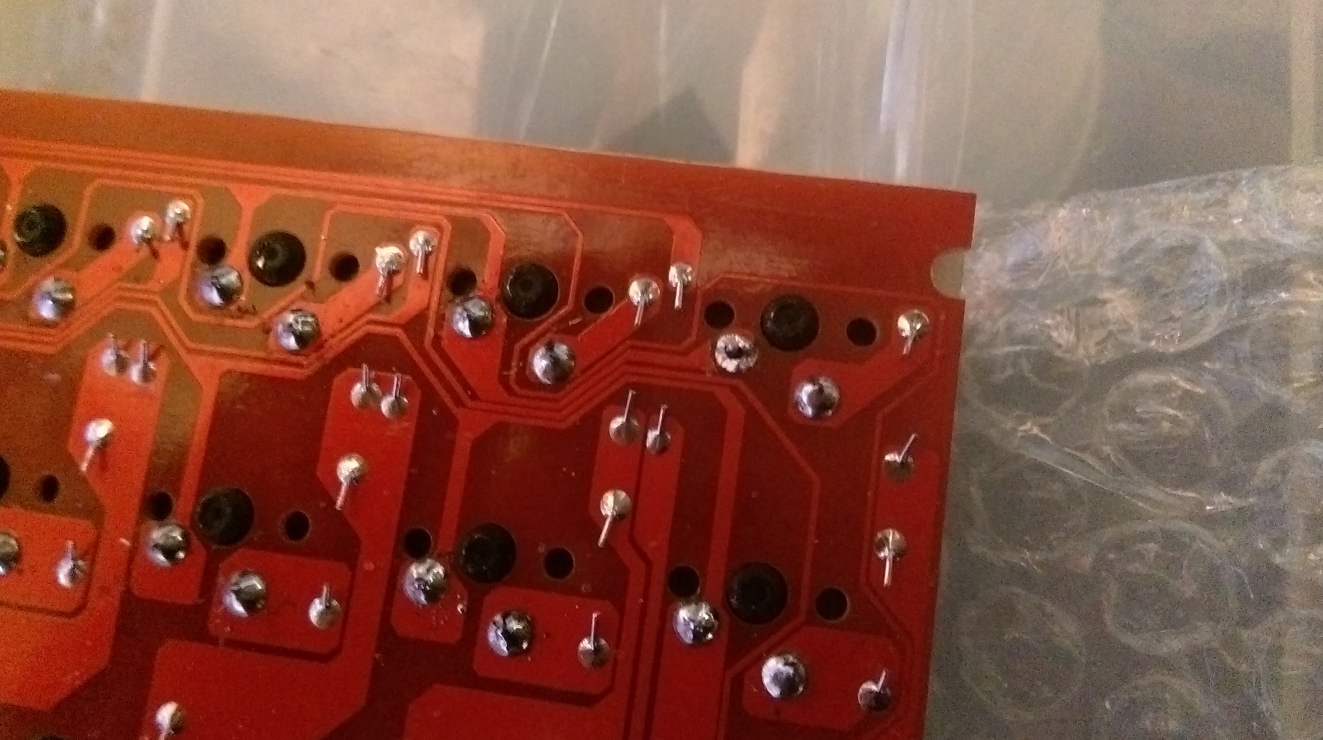

https://i.gyazo.com/a0164e1048a83dc1ac09aa4871b32afd.png (The solder pad to the left on the escape key in the very corner is fully lifted, it is just sitting on top of the pin unattached.)

Thanks guys!

EDIT:

So apparently I need AWG 22 or 24 cable to connect the Escape key to the key next to it.

Does thickness or type of AWG 22/24 cable matter? Do I just expose some of the copper/wire inside and just solder it on the pins?

Can I just use any copper wire, and how important is insulation, like would I be able to cut an use an old ethernet or usb cable etc for the job?

Thanks!
« Last Edit: Mon, 27 June 2016, 07:54:33 by Naweo »

Offline Badwrench

  • * Destiny Supporter
  • Posts: 1986
  • Location: So. Cal.
  • ummmm.....I forgot
Re: Lifted a single solder pad, how to repair?
« Reply #1 on: Mon, 27 June 2016, 07:06:09 »
Easiest fix is to run a jumper wire.  Just follow the trace to the next open spot (looks like the left pin of the 1 key).

Sent from my LG-H811 using Tapatalk

wut. i'd buy a ****ty IBM board for that green V2

Offline Naweo

  • Thread Starter
  • Posts: 199
Re: Lifted a single solder pad, how to repair?
« Reply #2 on: Mon, 27 June 2016, 07:13:29 »
http://imgur.com/a/eLtWd

So kinda like running a copper wire from each pin, like shown in the bottom here?

Offline Badwrench

  • * Destiny Supporter
  • Posts: 1986
  • Location: So. Cal.
  • ummmm.....I forgot
Re: Lifted a single solder pad, how to repair?
« Reply #3 on: Mon, 27 June 2016, 08:58:35 »
http://imgur.com/a/eLtWd

So kinda like running a copper wire from each pin, like shown in the bottom here?

That is way overkill.  This is plenty:
wut. i'd buy a ****ty IBM board for that green V2

Offline Naweo

  • Thread Starter
  • Posts: 199
Re: Lifted a single solder pad, how to repair?
« Reply #4 on: Mon, 27 June 2016, 09:09:47 »
http://imgur.com/a/eLtWd

So kinda like running a copper wire from each pin, like shown in the bottom here?

That is way overkill.  This is plenty:
Show Image


Alright, I cut an ethernet cable and now it works. Thanks!
