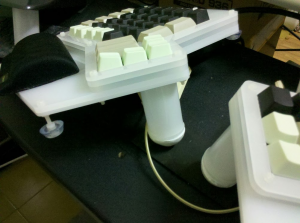

I like my ergodox pretty much, and got it a new tenting yesterday..
![ErgoDox thumb cluster mod 55032-0](https://geekhack.org/index.php?PHPSESSID=0v14d15s9daoomo8fd73kcants3rlklb&action=dlattach;topic=55043.0;attach=55033;image)

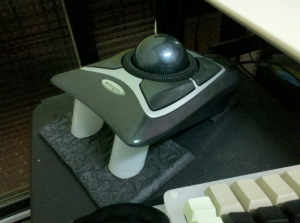

Along with my Kensington Trackball Expert
![ErgoDox thumb cluster mod 55034-1](https://geekhack.org/index.php?PHPSESSID=0v14d15s9daoomo8fd73kcants3rlklb&action=dlattach;topic=55043.0;attach=55035;image)
Yet it has something to be improved, especially the flat thumb cluster.

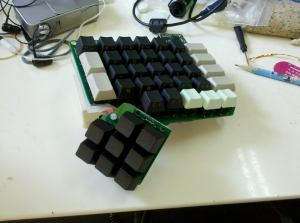

Thus I have spent the last couple months working on the thumb cluster mod. It is not finished yet, because I only got the right hand side built, but I am so excited, I got to share its current (ugly) working form. And here it is
![ErgoDox thumb cluster mod 55028-2](https://geekhack.org/index.php?PHPSESSID=0v14d15s9daoomo8fd73kcants3rlklb&action=dlattach;topic=55043.0;attach=55029;image)
With my hand on it.
I have pull the thumb cluster closer and higher, thus more keys are readily accessible now.
It might take a few more months and more polishing before completion.
This is a work-in-progress mod. Comments and suggestions are welcome...
===========================================================
Update: Here is how I did the mod

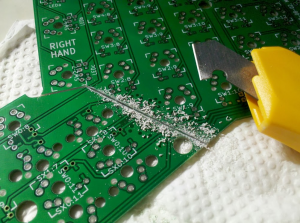

1. Cutting the PCB
![ErgoDox thumb cluster mod 55425-4](https://geekhack.org/index.php?PHPSESSID=0v14d15s9daoomo8fd73kcants3rlklb&action=dlattach;topic=55043.0;attach=55426;image)

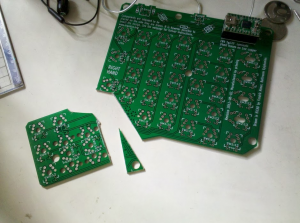

2. modify the shape of the thumb cluster PCB
![ErgoDox thumb cluster mod 55427-5](https://geekhack.org/index.php?PHPSESSID=0v14d15s9daoomo8fd73kcants3rlklb&action=dlattach;topic=55043.0;attach=55428;image)

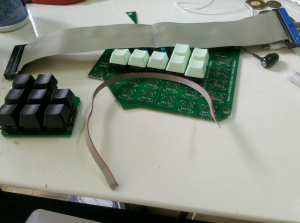

3. Connecting the two pieces using a IDE cable
![ErgoDox thumb cluster mod 55429-6](https://geekhack.org/index.php?PHPSESSID=0v14d15s9daoomo8fd73kcants3rlklb&action=dlattach;topic=55043.0;attach=55430;image)

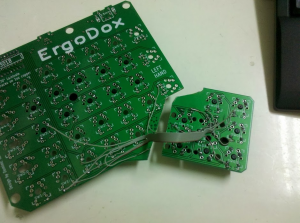

4. wiring and soldering
![ErgoDox thumb cluster mod 55431-7](https://geekhack.org/index.php?PHPSESSID=0v14d15s9daoomo8fd73kcants3rlklb&action=dlattach;topic=55043.0;attach=55432;image)

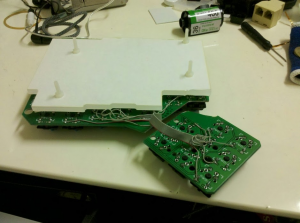

5. drilling holes on the PCB and attached a plate to it
![ErgoDox thumb cluster mod 55433-8](https://geekhack.org/index.php?PHPSESSID=0v14d15s9daoomo8fd73kcants3rlklb&action=dlattach;topic=55043.0;attach=55434;image)

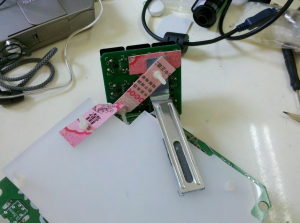

6. attach the two pieces together
![ErgoDox thumb cluster mod 55435-9](https://geekhack.org/index.php?PHPSESSID=0v14d15s9daoomo8fd73kcants3rlklb&action=dlattach;topic=55043.0;attach=55436;image)
If anyone is interested, I will post more detailed pictures.
