Just wanted to share my USB Type-C mod for a KC60.
http://imgur.com/a/RtM45

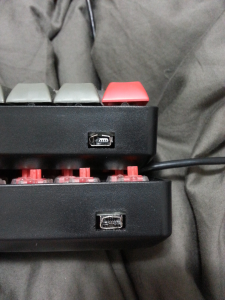

The problem: dropped my KC60 keyboard off the side of my bed too many times and the connector got all mangled up.
![My USB Type-C mod for KC60 175477-1](https://geekhack.org/index.php?PHPSESSID=up34jobeb2fhokjcgktqr2jvjompb0mq&action=dlattach;topic=90988.0;attach=175478;image)
![My USB Type-C mod for KC60 175479-2](https://geekhack.org/index.php?PHPSESSID=up34jobeb2fhokjcgktqr2jvjompb0mq&action=dlattach;topic=90988.0;attach=175480;image)

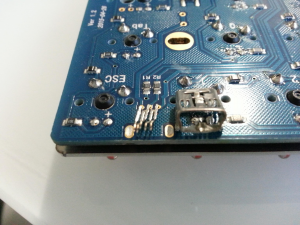

Here is the housing disconnected from the board with the pins exposed.
![My USB Type-C mod for KC60 175467-3](https://geekhack.org/index.php?PHPSESSID=up34jobeb2fhokjcgktqr2jvjompb0mq&action=dlattach;topic=90988.0;attach=175468;image)

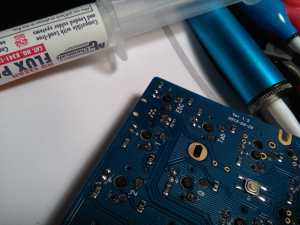

Desoldered the pins from the board.
![My USB Type-C mod for KC60 175469-4](https://geekhack.org/index.php?PHPSESSID=up34jobeb2fhokjcgktqr2jvjompb0mq&action=dlattach;topic=90988.0;attach=175470;image)

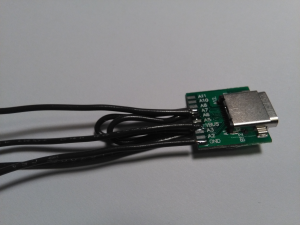

Soldering wires onto the USB Type-C breakout board.
![My USB Type-C mod for KC60 175471-5](https://geekhack.org/index.php?PHPSESSID=up34jobeb2fhokjcgktqr2jvjompb0mq&action=dlattach;topic=90988.0;attach=175472;image)

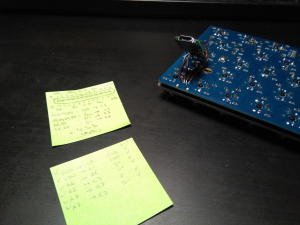

Soldered the breakout board onto the main PCB board and put a little electric tape to insulate the housing. I used the post-its to keep track of which pins solder where, and testing results.
![My USB Type-C mod for KC60 175473-6](https://geekhack.org/index.php?PHPSESSID=up34jobeb2fhokjcgktqr2jvjompb0mq&action=dlattach;topic=90988.0;attach=175474;image)

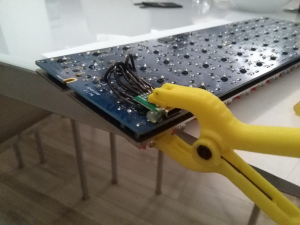

Hot glue and clamp.
![My USB Type-C mod for KC60 175475-7](https://geekhack.org/index.php?PHPSESSID=up34jobeb2fhokjcgktqr2jvjompb0mq&action=dlattach;topic=90988.0;attach=175476;image)

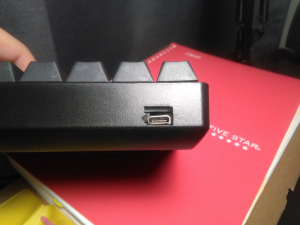

The connector didn't lie flush so I had to file the hole a little larger.
