Model M LED Panel help.
« on: Sun, 22 February 2015, 17:17:41 »
Does anyone have a spare Model M LED panel they don't need?  I could really use one.  It will connect to a 1993 1391401 controller.  I found a topic on it on here from March 2012, but didn't want to pull up that thread and necro everyone on it.
https://geekhack.org/index.php?topic=55556.0
I don't know where to get them.
I believe I may need the ribbon too, but I suppose I could use cat5 wire if I need to.
« Last Edit: Sun, 22 February 2015, 17:31:04 by Snowdog993 »
Logged

Offline 0100010

  • Posts: 1127
  • Location: DFW, TX, US
  • Not Sure
Re: Model M LED Panel help.
« Reply #1 on: Sun, 22 February 2015, 17:49:01 »
Order one from Unicomp.  They aren't listed on the site, but you can open a support ticket with them to get one.
Logged
  Quoting me causes a posting error that you need to ignore.

Offline Snowdog993

  • Grace Under Pressure
  • Thread Starter
  • Posts: 1587
  • Location: Over There! (Pointing)
  • Justifiably Clueless.
Re: Model M LED Panel help.
« Reply #2 on: Sun, 22 February 2015, 17:54:11 »
Quote from: 0100010 on Sun, 22 February 2015, 17:49:01
Order one from Unicomp.  They aren't listed on the site, but you can open a support ticket with them to get one.
That's interesting.  I just don't want them to mess up and give me one of those 42H controllers or something.  I'd probably have to send them a picture of what I need, and hope they have it.  You may be right.  I just don't understand why they wouldn't have them to order directly on their site to begin with.
Logged

Offline Snowdog993

  • Grace Under Pressure
  • Thread Starter
  • Posts: 1587
  • Location: Over There! (Pointing)
  • Justifiably Clueless.
Re: Model M LED Panel help.
« Reply #3 on: Sun, 22 February 2015, 17:57:05 »
UGH Double post.
« Last Edit: Sun, 22 February 2015, 18:05:40 by Snowdog993 »
Logged

Offline 0100010

  • Posts: 1127
  • Location: DFW, TX, US
  • Not Sure
Re: Model M LED Panel help.
« Reply #4 on: Sun, 22 February 2015, 18:03:28 »
I think the part number for that LED PCB is 1393296.
Logged
  Quoting me causes a posting error that you need to ignore.

Offline fohat.digs

  • * Elevated Elder
  • Posts: 6533
  • Location: 35°55'N, 83°53'W
  • weird funny old guy
Re: Model M LED Panel help.
« Reply #5 on: Sun, 22 February 2015, 18:04:12 »
Quote from: Snowdog993 on Sun, 22 February 2015, 17:54:11
mess up and give me one of those 42H controllers or something.

Ha Ha Ha Ha

42H controllers are the only ones that I have ever experienced failing!
Logged
"However, even though I was born in the Mesozoic, I do know what anyone who wants to reach out to young people should say: Billionaires took your money. They took your chance to buy a home. They took your chance at a good education. They stole your opportunities. Billionaires took the things you want in life. If you really want those things, you have to take them back.
That's the message. That's the whole message. Say that every day, not just to reach America's frustrated young white men, but people of every age, race, and gender.
Late-stage capitalism is a wealth-concentration engine, focused on vacuuming up every dollar and putting it in as few hands as possible. Republicans are helping that vacuum suck.
How does a tiny fraction of the population get away with this? They do it by dividing the other 99% of Americans against themselves."
- Marc Sumner 2025-05-30

Offline Snowdog993

  • Grace Under Pressure
  • Thread Starter
  • Posts: 1587
  • Location: Over There! (Pointing)
  • Justifiably Clueless.
Re: Model M LED Panel help.
« Reply #6 on: Sun, 22 February 2015, 18:07:35 »
I guess I could just make one if I have to.  It doesn't look too hard to do.  I was hoping someone just had one lying around.
Logged

Offline 0100010

  • Posts: 1127
  • Location: DFW, TX, US
  • Not Sure
Re: Model M LED Panel help.
« Reply #7 on: Sun, 22 February 2015, 18:14:20 »
This thread has good images of the traces : https://geekhack.org/index.php?topic=55556.0
Logged
  Quoting me causes a posting error that you need to ignore.

Offline Snowdog993

  • Grace Under Pressure
  • Thread Starter
  • Posts: 1587
  • Location: Over There! (Pointing)
  • Justifiably Clueless.
Re: Model M LED Panel help.
« Reply #8 on: Sun, 22 February 2015, 18:29:00 »
Quote from: Binary 0100010 on Sun, 22 February 2015, 18:14:20
This thread has good images of the traces : https://geekhack.org/index.php?topic=55556.0
Yes I found it there.  If you read my first post, that's the thread I was referencing.
Logged

Offline keyhopper

  • Posts: 81
  • Fun is Key.
Re: Model M LED Panel help.
« Reply #9 on: Sun, 22 February 2015, 20:45:48 »
The Model M that I bought didn't have working LEDs either, and I fixed it jumping the ribbon connector with wires. It seems that the ribbon was somehow disolved or fried with overcurrent , maybe because of water ingress at some point in its lifetime.

The wires I used were telephone extension wires, which had the advantage of being single filament wires, easy to push through both connectors.

Luckily I kept the pictures:

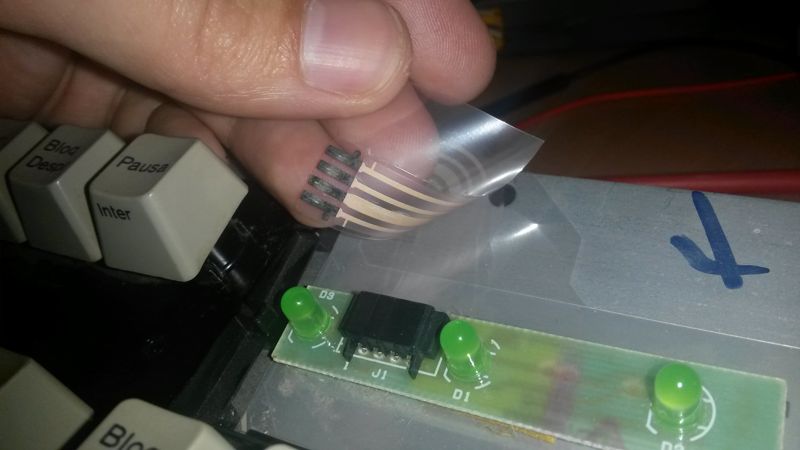

91652-0

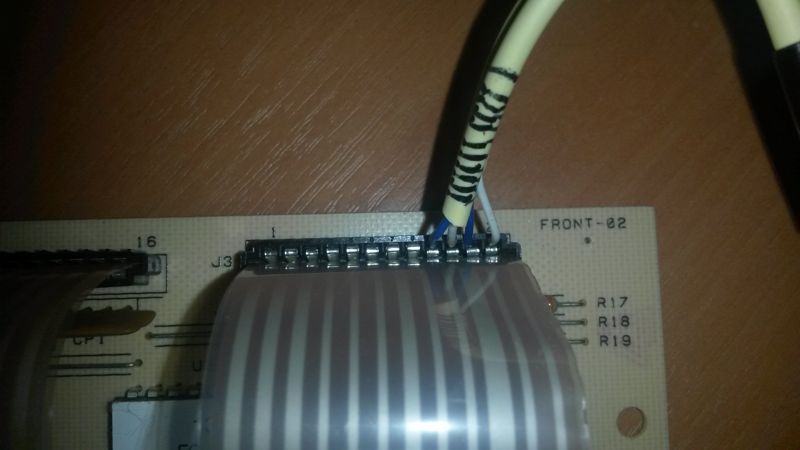

91654-1

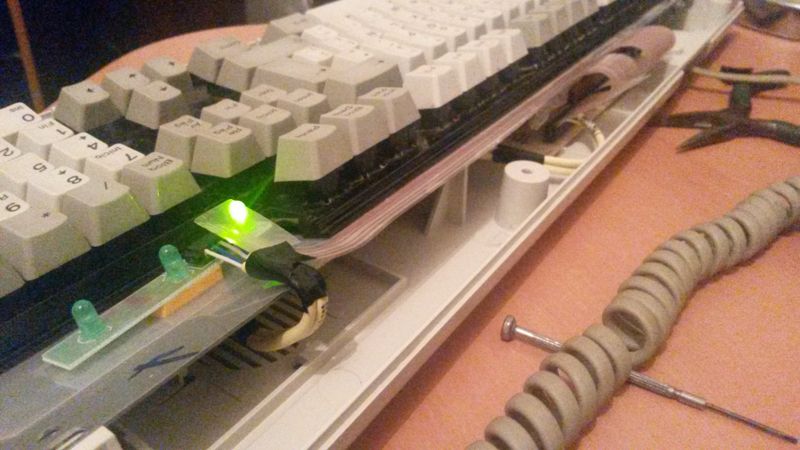

91656-2

It would be very rare for the small LED pcb to be damaged, it has no logic in it, all it has are LEDs and a connector.
If the LED were damaged, you could solder new LEDs with your favorite color (blue, red, etc). There is a current limiting resistor in series with the LEDs on the main board, so you don't have to worry about the mainboard.

Cheers!
.KeyHopper.
Logged
RealForce 87UB 55gr    |    IBM Model M (1995)    |    Razer B.W.T.E. Stealth (w Razer oranges)

Offline keyhopper

  • Posts: 81
  • Fun is Key.
Re: Model M LED Panel help.
« Reply #10 on: Sun, 22 February 2015, 20:50:41 »
Also, in my case, I had tested conductivity between the ribbon cable extremes, and there was like 1Mohm there, so the ribbon was no good anymore, not even after careful cleaning.
Logged
RealForce 87UB 55gr    |    IBM Model M (1995)    |    Razer B.W.T.E. Stealth (w Razer oranges)

Offline Snowdog993

  • Grace Under Pressure
  • Thread Starter
  • Posts: 1587
  • Location: Over There! (Pointing)
  • Justifiably Clueless.
Re: Model M LED Panel help.
« Reply #11 on: Sun, 22 February 2015, 21:02:20 »
I need a LED PCB.  Does anyone have one at all?
Logged

Offline keyhopper

  • Posts: 81
  • Fun is Key.
Re: Model M LED Panel help.
« Reply #12 on: Sun, 22 February 2015, 21:14:08 »
If I were you, I'd make my own out of a cut piece of solderable breadboard PCB, just a bit of soldering required:

       http://www.amazon.com/Solderable-BreadBoard-matches-tie-point-breadboards/dp/B0040Z3012/ref=sr_1_1?ie=UTF8&qid=1424660769&sr=8-1&keywords=bread+pcb

       http://www.amazon.com/Solderable-BreadBoard-matches-tie-point-breadboards/dp/B0040Z6OK6/ref=sr_1_10?ie=UTF8&qid=1424660769&sr=8-10&keywords=bread+pcb

but they should be available for cheaper at a local shop or elsewhere.

The model M LED pcb is extremely simple. A common wire and three individual wires to the LEDs. Mind the polarity, I think VCC was common and gnd was sinked individually for each LED.

Cheers!
Logged
RealForce 87UB 55gr    |    IBM Model M (1995)    |    Razer B.W.T.E. Stealth (w Razer oranges)

Offline Snowdog993

  • Grace Under Pressure
  • Thread Starter
  • Posts: 1587
  • Location: Over There! (Pointing)
  • Justifiably Clueless.
Re: Model M LED Panel help.
« Reply #13 on: Sun, 22 February 2015, 21:17:17 »
Quote from: keyhopper on Sun, 22 February 2015, 21:14:08
If I were you, I'd make my own out of a cut piece of solderable breadboard PCB, just a bit of soldering required:

       http://www.amazon.com/Solderable-BreadBoard-matches-tie-point-breadboards/dp/B0040Z3012/ref=sr_1_1?ie=UTF8&qid=1424660769&sr=8-1&keywords=bread+pcb

       http://www.amazon.com/Solderable-BreadBoard-matches-tie-point-breadboards/dp/B0040Z6OK6/ref=sr_1_10?ie=UTF8&qid=1424660769&sr=8-10&keywords=bread+pcb

but they should be available for cheaper at a local shop or elsewhere.

The model M LED pcb is extremely simple. A common wire and three individual wires to the LEDs. Mind the polarity, I think VCC was common and gnd was sinked individually for each LED.

Cheers!

Yeah thanks, I may just go to my local Radio Shack or something and find one.  Maybe get a few LED's while I am at it too.
Logged

Offline rowdy

  • HHKB Hapster
  • * Erudite Elder
  • Posts: 21175
  • Location: melbourne.vic.au
  • Missed another sale.
Re: Model M LED Panel help.
« Reply #14 on: Tue, 24 February 2015, 04:02:07 »
I'd just like to say that this is the best way of handling very old threads.

Don't necro them - start a new thread and post a link to the original one :)
