3d printed clones
« on: Sat, 02 May 2020, 14:10:30 »
I've got lots of spare PCBs and plates from past group buys and a ton of spare time on my hands of late so my 3d printer has been earning it's keep.
Files are in my sig.

VE.A (To fit the original PCB and plates)
241331-0

Alice (Reworked the alternative case so it will fit on my print bed)
241333-1

Dollinger (Tray mount 60% with a huge cutout for a battery)
241335-2


Online LightningXI

  • * Elevated Elder
  • Posts: 3225
  • Location: New York
  • PPD
    • ArtisanMacro
Re: 3d printed clones
« Reply #1 on: Sat, 02 May 2020, 14:18:36 »
Oh wow, this is pretty cool! How do you like the 60% tray mount with that thin plate that just seems to hold the switches?
WANTED: Clacks, Artisans, Keysets, Vintage Cherry and Other Goodies

More
Quickfire Pro | TADA 68 | Novatouch | Whitefox | Duck Octagon v1 | Duck Blackbird | HHKB Pro 2 | KBD75 | VE.A | X60 | Canoe | HHKB Pro 1 | FJELL | Revo One | ALPS64 | Lightsaver v3 | IBM 5140 WKL | Realforce 87u | MIRA SE | Duck Poker | Canoe | Moon | Triumvitek Weaven | M65-A | TARO EXENT | Wooden Planck | Tokyo60 | Duck Viper v1 | E6-v2 | IBM SSK | CA66 | TX-CP | SINGA | TGR Alice | FJELL R2 | Klippe | JER-A06 | GSKT-00 | M60-A | Realforce 84 | AL1 | Keycult No. 1 | SaiB-CP | G81-3077SAU | DC60 | Realforce 84b | TMO50 | G80-1800 | Leaf 80 | LZ GH-v2 | T60 | LZ MP | KMAC Happy | TGR-910RE (Al) | TGR-910RE (PC) | SKB60 | TGR x SINGA UNIKORN | IBM 3278 (pending restoration) | KFE | TGR Jane v2 | TGR Jane v2 CE | Koala | iS0 | Norbatouch | KPad | Xeno | F62 Kishsaver | Polaris | Montage |


Offline MajorKoos

  • Thread Starter
  • Posts: 777
  • Location: Bay Area
  • 1 life please. Extra large.
Re: 3d printed clones
« Reply #2 on: Sat, 02 May 2020, 14:47:28 »
The PCB is hot-swap so the plate is pretty much a failure.
At least it will be easy to swap when I find something better.
If it were soldered it would be OK.

Offline MajorKoos

  • Thread Starter
  • Posts: 777
  • Location: Bay Area
  • 1 life please. Extra large.
Re: 3d printed clones
« Reply #3 on: Sat, 02 May 2020, 15:24:57 »

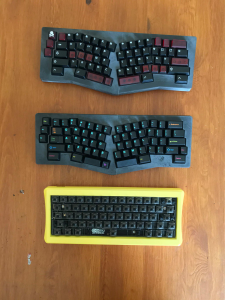

I printed myself 2 of the Alice clones.
