Element 60 - Open Source Multi-Mount Keyboard
« on: Thu, 01 October 2020, 13:41:27 »
The Element 60 is a keyboard inspired by other open source projects such as the BMEK and Bakeneko 60. As I recently got into keyboards, which can be seen through my subpar geekhack post count, I wanted to explore the sound and feel of different mounting styles. That is why I attempted to develop a multi-mount system.

The goal was to have a largely uni-body design alongside small mounting bracket with the the ability to try out top, bottom, and gummy gasket mounting. I have also left enough space to accomodate a 4mm plate which can be bottom mounted. Technically by using a gasket in between the case, plate, and mounting bracket you can also try out a terrible isolation mount.

The case features a place for a unified daughterboard and is compatible with other 60% PCBs that have a JST connection such as the H60 or Plain 60 (Flex).

I will be uploading the files to an open source github repo: https://github.com/Paragon-OpenSource/Element-MM-60

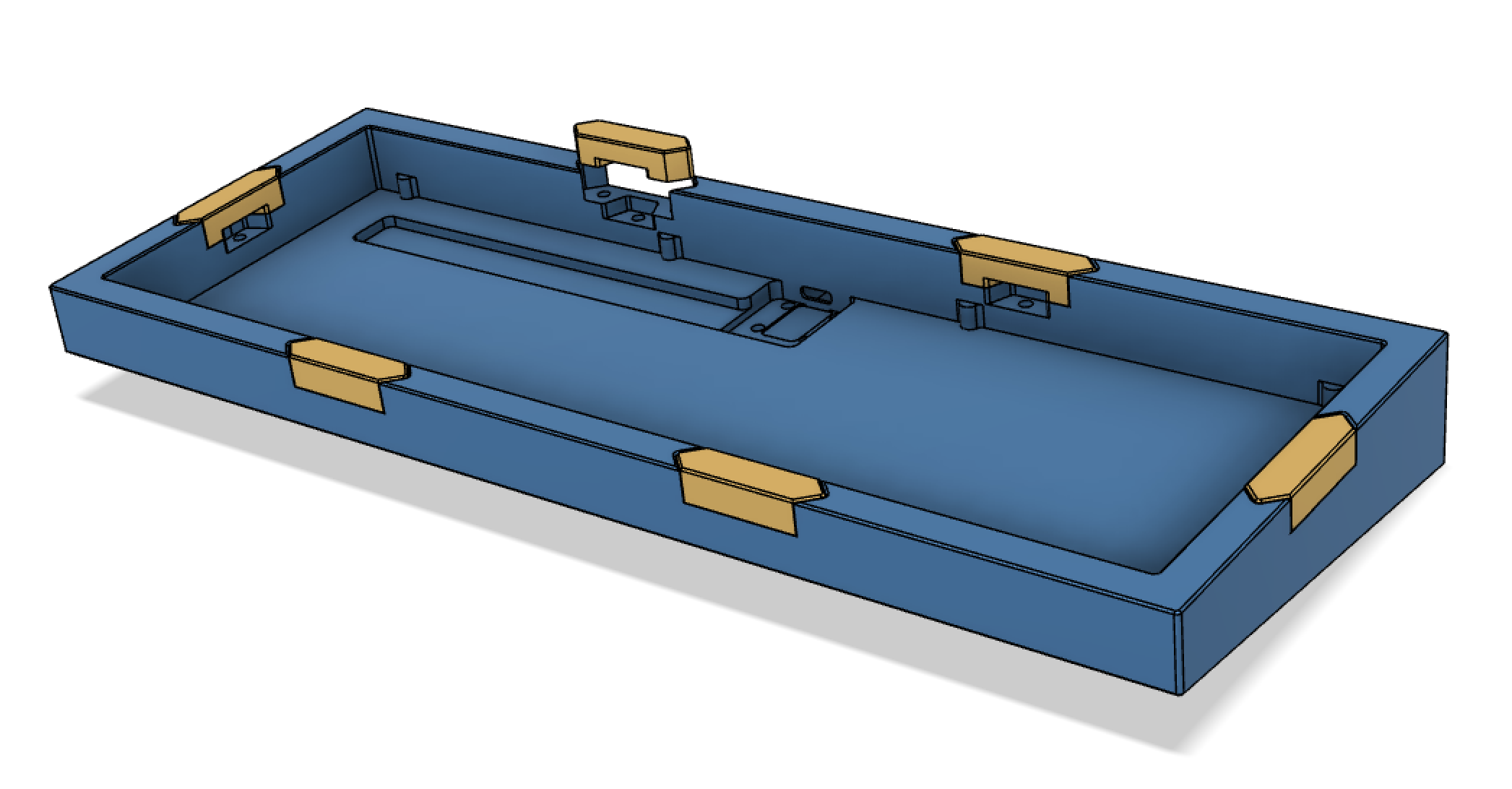

252835-0

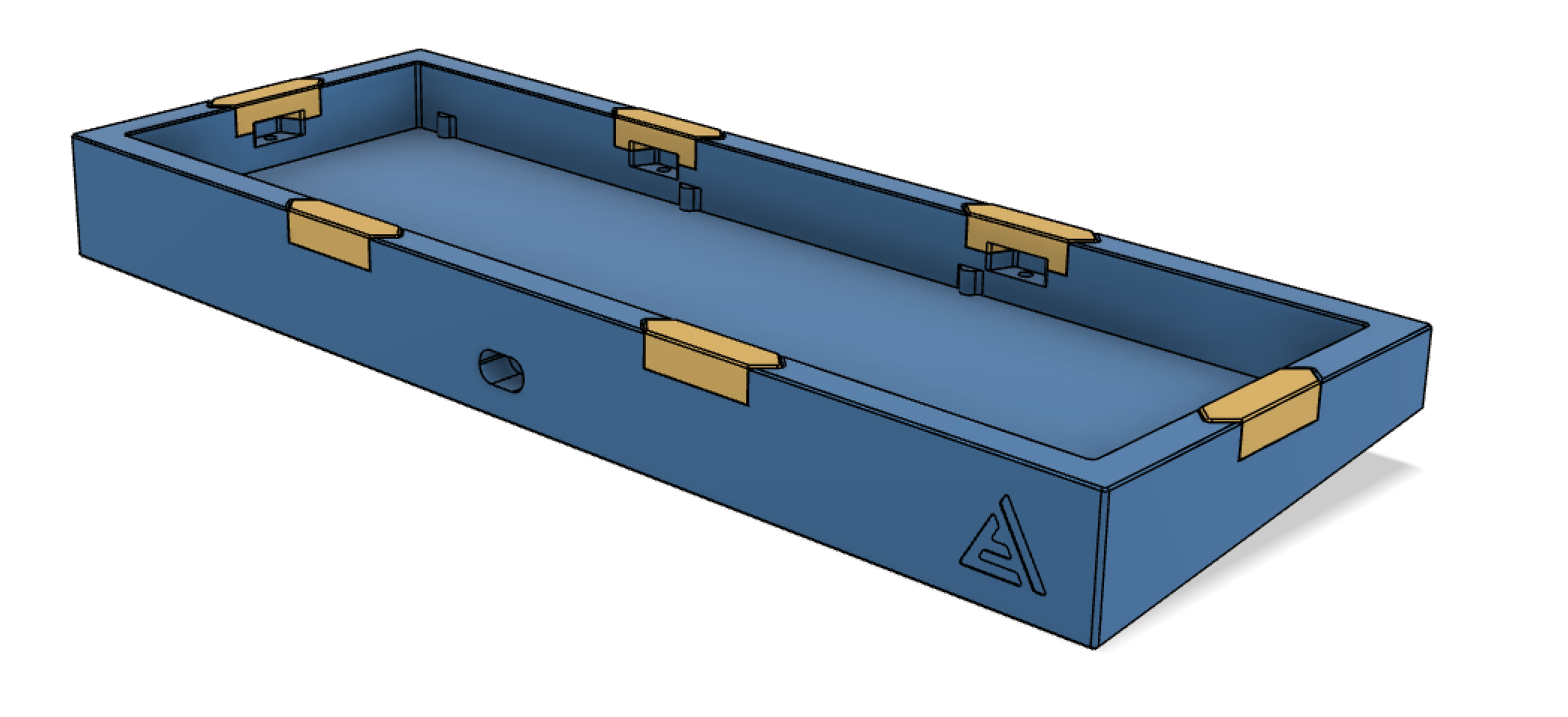

252837-1

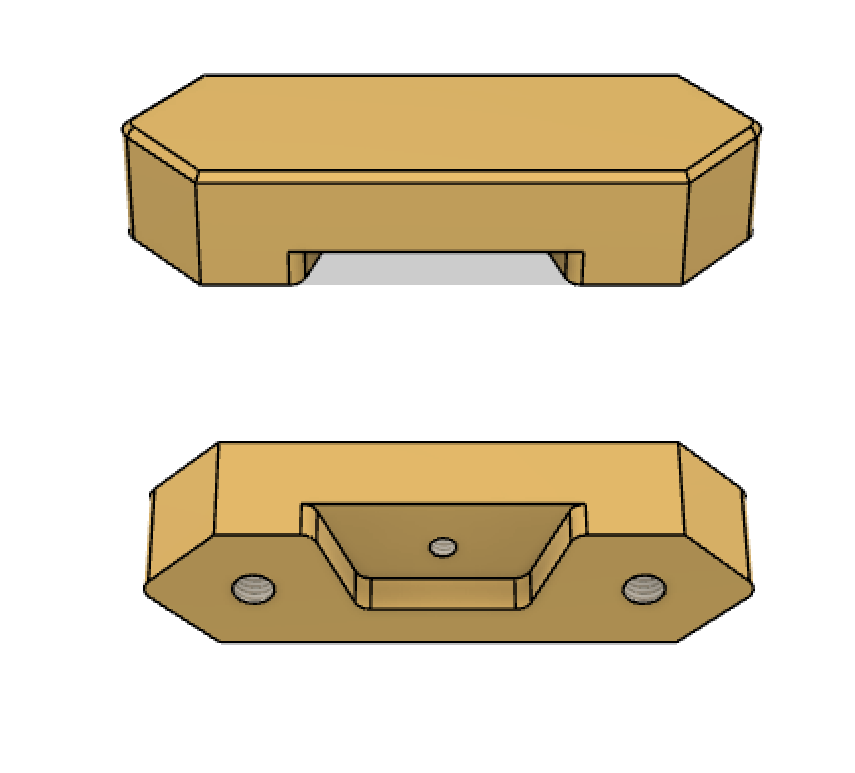

A close up of the mounting bracket can be seen here

252839-2

I hope to get a prototype and itterate on the design the the future. I will be documenting my progress here for other to see. I am open to discussion and duggestions!








Offline nevin

  • Posts: 926
  • Location: US
Re: Element 60 - Open Source Multi-Mount Keyboard
« Reply #1 on: Thu, 01 October 2020, 13:44:38 »
what are the planned case materials?
Keeb.io Viterbi, Apple m0110, Apple m0120, Apple m0110a, Apple 658-4081, Apple M1242, Apple AEK II, MK96, GH60/Pure, Cherry g84-4100, Adesso AKP-220B, Magicforce 68

Offline Paragon

  • Thread Starter
  • Posts: 15
Re: Element 60 - Open Source Multi-Mount Keyboard
« Reply #2 on: Thu, 01 October 2020, 13:47:08 »
what are the planned case materials?

I think the prototype will be 3D printed for now but I hope that the next iteration will be an aluminium case and brass mounting brackets.
