Author Topic: Pixelpad  (Read 2932 times)

0 Members and 1 Guest are viewing this topic.

Offline Artemie

  • Thread Starter
  • Posts: 93
  • Location: Singapore
  • Don't Let Memes Be Dreams
Pixelpad
« on: Sun, 04 October 2020, 20:37:13 »
Hello world,

After the “success” of the Pinnacle 65, I reckon it’s time to “debut” what I’ve been working on for a long time.

This is a macro/numpad that I’ve been working with Fusion 360 since late 2018 since I had the idea. The main design idea is to fit a screen, as well as numpad support in the form of a Gameboy cartridge.
Along the way, it has undergone a numerous changes in design, and now I’ve finally (mostly) settled on a design that I’m happy with.

Updated render 19 October 2020

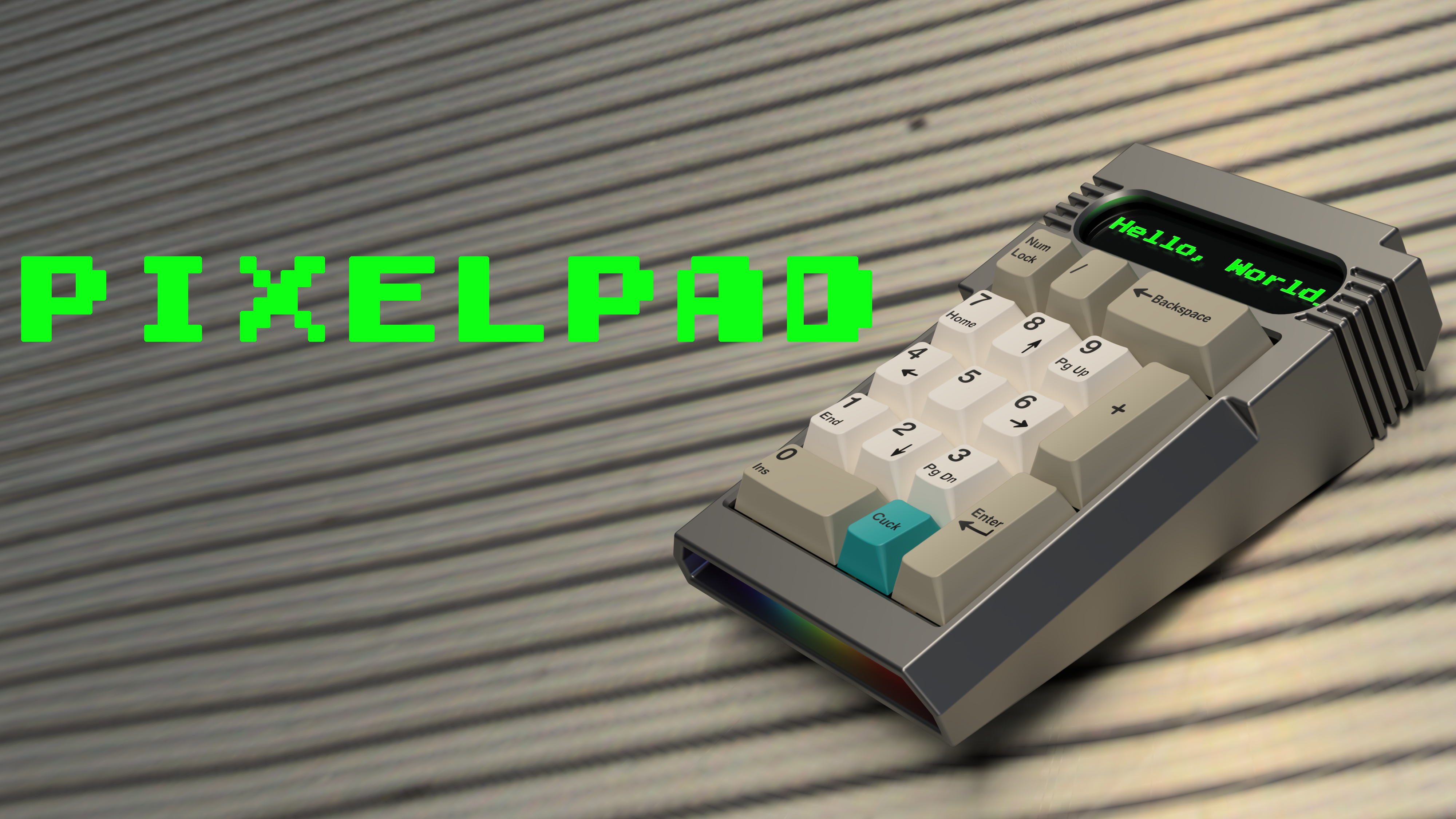

253847-0

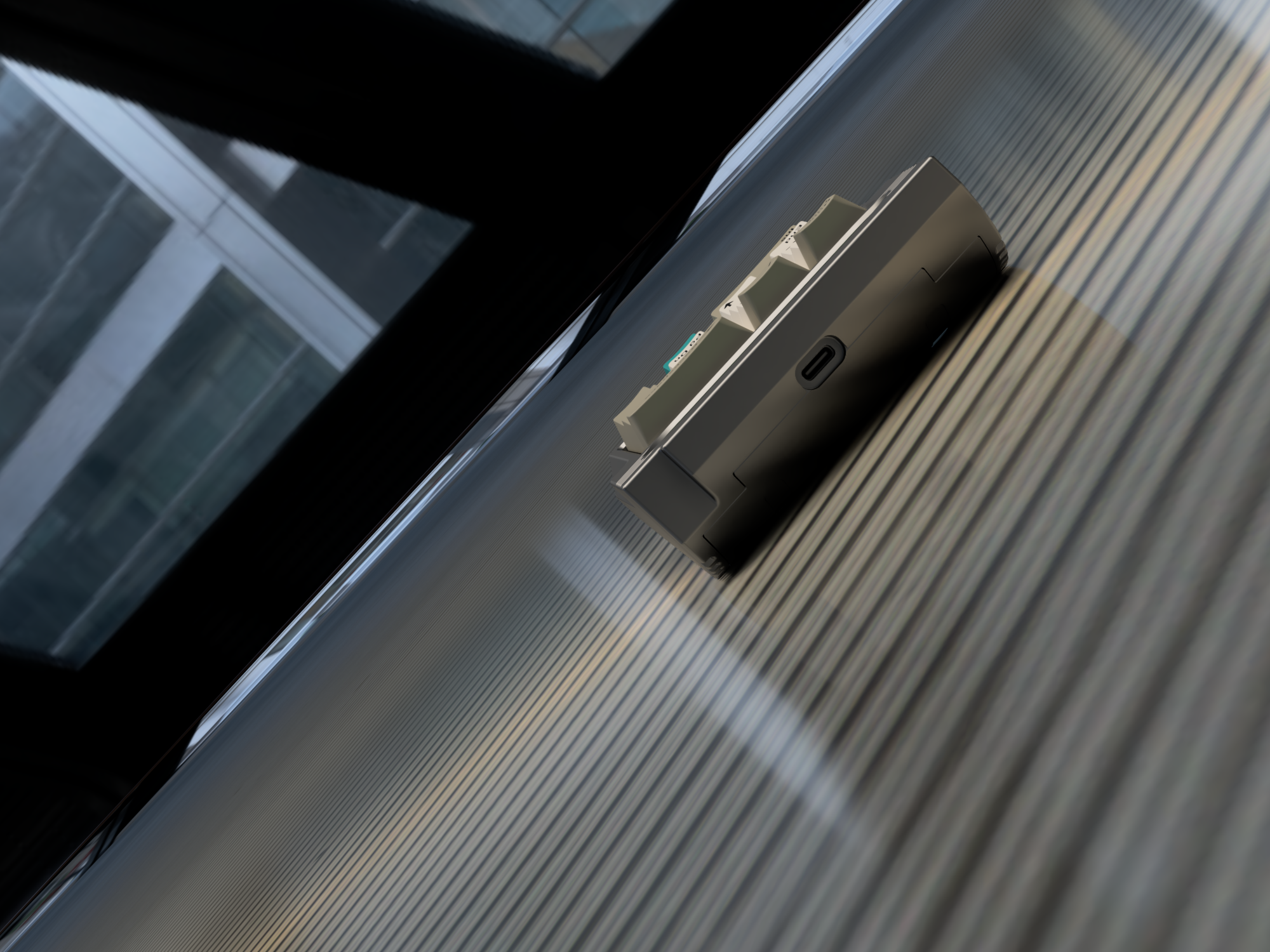

253849-1
253851-2

The features in this board are:
3.12” OLED screen
Uses Ai03 Unified USBC daughterboard
Hotswap / solderable PCB
Top mount
No external screws visible when assembled
RGB strip at bottom

To do list:
Brain storm for a better name, as “GBApad” technically means Gameboy Advance Pad. But this is a Gameboy cartridge. Name suggestions welcome!    Pixelpad.
3D print the design to test for fitment    Fits!
Outsource PCB design and firmware writing
Firmware writing for SPI (OLED screen) to interface with QMK

Old renders
More

Render provided by Bunny#5085 who made SA Night Light.

More pictures down below (rendered using Fusion 360). Switch LEDs will also be south facing as opposed to what is shown in render.







I can also be contacted on discord at Artemie#3490

Credits:
#kb-kustom community from Mechkeys discord who made spend ludicrous amounts of money in this hobby and still feel that it ain’t enough
Caleb (beamingrobot) from Monokei.co who urged me on to finishing the design
Yiancar for helping to work on PCB and firmware
« Last Edit: Sun, 18 October 2020, 11:48:43 by Artemie »
| 420CL | Fanoe | TGR Jane v2 CE| Porpoise | KFE R1 Silver| MxSS |  is0 Pink & Silver | HBCP Polycarbonate | Matrix 2.0 Additional Purple | TGR Police | Jaguar Green | KFE R2 Blue | RS so lit
More
| Jelly 60 | Dolch CR | Sekrit Borb | Dalco 959 Mini | Aripeko |

Online LightningXI

  • * Elevated Elder
  • Posts: 3698
  • Location: New York
  • PPD
    • ArtisanMacro
Re: GBApad (working title)
« Reply #1 on: Sun, 04 October 2020, 20:43:05 »
Huge fan of the original Game Boy, so color me interested (no pun intended :dafoe5:)

Offline SirShakes

  • Posts: 46
  • Location: SoCal
Re: GBApad (working title)
« Reply #2 on: Sun, 04 October 2020, 20:48:50 »
lit

Online of_sam

  • Posts: 137
  • Location: United States
Re: GBApad (working title)
« Reply #3 on: Sun, 04 October 2020, 21:10:35 »
Looks great  :) Interested!

Offline Zeeejay

  • Posts: 6
Re: GBApad (working title)
« Reply #4 on: Sun, 04 October 2020, 22:31:45 »
Really nailed the look for this. Just spitballing but maybe something like "ROMpad" would sound more specific to a cartridge.

Offline Artemie

  • Thread Starter
  • Posts: 93
  • Location: Singapore
  • Don't Let Memes Be Dreams
Re: GBApad (working title)
« Reply #5 on: Mon, 05 October 2020, 19:23:21 »
Updated with some fusion renders, since I got the emissive LED option working yesterday night.

253066-0

253068-1
| 420CL | Fanoe | TGR Jane v2 CE| Porpoise | KFE R1 Silver| MxSS |  is0 Pink & Silver | HBCP Polycarbonate | Matrix 2.0 Additional Purple | TGR Police | Jaguar Green | KFE R2 Blue | RS so lit
More
| Jelly 60 | Dolch CR | Sekrit Borb | Dalco 959 Mini | Aripeko |

Offline jstein91

  • Posts: 29
Re: GBApad (working title)
« Reply #6 on: Tue, 06 October 2020, 14:38:06 »
Love the design.

Will the screen be able to show calculations input on the pad? That would be killer.

Offline yui

  • Posts: 749
  • Location: 127.0.0.1 (in azerty)
Re: GBApad (working title)
« Reply #7 on: Fri, 09 October 2020, 04:27:18 »
there was on thingiverse a model of a GB cartridge macropad i think, could have been a bit easier for you than making it from scratch, and it does not really look like a GBA cart... if that was not obvious. maybe something like numboy? or gamepad?
vi vi vi - the roman number of the beast (Plan9 fortune)

Offline Artemie

  • Thread Starter
  • Posts: 93
  • Location: Singapore
  • Don't Let Memes Be Dreams
Re: GBApad (working title)
« Reply #8 on: Fri, 09 October 2020, 23:38:50 »
RGB Bottom
253334-0
253336-1
253338-2
253340-3
253342-4
| 420CL | Fanoe | TGR Jane v2 CE| Porpoise | KFE R1 Silver| MxSS |  is0 Pink & Silver | HBCP Polycarbonate | Matrix 2.0 Additional Purple | TGR Police | Jaguar Green | KFE R2 Blue | RS so lit
More
| Jelly 60 | Dolch CR | Sekrit Borb | Dalco 959 Mini | Aripeko |

Offline Rotwitt

  • Posts: 53
  • Location: Denmark
  • I'm trying to have fun designing keyboards
Re: GBApad (working title)
« Reply #9 on: Sat, 10 October 2020, 01:31:57 »
Really neat design! What resolution do you have the display to have?

Sendt fra min G8441 med Tapatalk


Offline Artemie

  • Thread Starter
  • Posts: 93
  • Location: Singapore
  • Don't Let Memes Be Dreams
Re: GBApad (working title)
« Reply #10 on: Sat, 10 October 2020, 23:49:10 »
Really neat design! What resolution do you have the display to have?

Sendt fra min G8441 med Tapatalk

256x64, 3.12" OLED screen
| 420CL | Fanoe | TGR Jane v2 CE| Porpoise | KFE R1 Silver| MxSS |  is0 Pink & Silver | HBCP Polycarbonate | Matrix 2.0 Additional Purple | TGR Police | Jaguar Green | KFE R2 Blue | RS so lit
More
| Jelly 60 | Dolch CR | Sekrit Borb | Dalco 959 Mini | Aripeko |

Offline Artemie

  • Thread Starter
  • Posts: 93
  • Location: Singapore
  • Don't Let Memes Be Dreams
Re: GBApad (working title)
« Reply #11 on: Thu, 15 October 2020, 18:28:18 »
Made 3D print proto.
Everything surprisingly fits.

| 420CL | Fanoe | TGR Jane v2 CE| Porpoise | KFE R1 Silver| MxSS |  is0 Pink & Silver | HBCP Polycarbonate | Matrix 2.0 Additional Purple | TGR Police | Jaguar Green | KFE R2 Blue | RS so lit
More
| Jelly 60 | Dolch CR | Sekrit Borb | Dalco 959 Mini | Aripeko |

Offline Onnimar

  • Posts: 34
Re: GBApad (working title)
« Reply #12 on: Sat, 17 October 2020, 17:36:01 »
Really like the design and the prototype is beautiful. The curved bottom throws me off a little though, everything else is chamfered so I think it looks out of place. That is just my opinion though and others might like it.

Offline Artemie

  • Thread Starter
  • Posts: 93
  • Location: Singapore
  • Don't Let Memes Be Dreams
Re: Pixelpad
« Reply #13 on: Wed, 21 October 2020, 08:25:57 »
So I was able to fiddle around more with Fusion 360 renders settings.

Frosted Polycarbonate
254179-0
254181-1

Ewhite
254183-2
254185-3

Nidorino vs. Gengar display
254187-4
254189-5
| 420CL | Fanoe | TGR Jane v2 CE| Porpoise | KFE R1 Silver| MxSS |  is0 Pink & Silver | HBCP Polycarbonate | Matrix 2.0 Additional Purple | TGR Police | Jaguar Green | KFE R2 Blue | RS so lit
More
| Jelly 60 | Dolch CR | Sekrit Borb | Dalco 959 Mini | Aripeko |

Offline jstein91

  • Posts: 29
Re: Pixelpad
« Reply #14 on: Wed, 21 October 2020, 09:17:12 »
Love the polycarb renders.

Gives me some serious nostalgia for the old see-through purple game boy colors. Is that color a possibility? Cause that would be sick.

Offline Afteryou

  • Posts: 12
Re: Pixelpad
« Reply #15 on: Wed, 21 October 2020, 09:19:14 »
Frosted PC bringing back some SERIOUS nostalgia.. Watching this with great interest!
The roof is not my son but I will raise it.

Offline Prelim

  • Posts: 622
  • Location: Portugal
Re: Pixelpad
« Reply #16 on: Wed, 21 October 2020, 09:40:40 »
very like!! the RGB bottom is gay though :P
2x GH60 revC - lubed Linjärs 65g / lubed H1s 65g with SPRIT 5mm acrylic plate | Dolch PAC - Cherry housing / Gateron sliders 65g and QMK clips | Raptor K1 G80-1890 stock
Floating on Cherry/GMK caps - White on Black, Classic Beige, Dolch, Olivetti, Alcatel MMK, Hellgrau

Offline KeebOnMe

  • Posts: 45
  • Location: Nevada
Re: Pixelpad
« Reply #17 on: Wed, 21 October 2020, 22:59:56 »
I like the look! It'd be cool to put a raspberry pi in it and load an emulator and play it on the screen if possible.

Or use the pad as a controller for a computer monitor.

Offline Artemie

  • Thread Starter
  • Posts: 93
  • Location: Singapore
  • Don't Let Memes Be Dreams
Re: Pixelpad
« Reply #18 on: Thu, 22 October 2020, 05:31:44 »
The idea is to have the alu prototype first. However, I am definitely interested in getting frosted PC to test IRL.

For the screen, actual implementation will still be up to Yiancar on how he would write the firmware. With any luck, GIF and input support will be able to be displayed.
| 420CL | Fanoe | TGR Jane v2 CE| Porpoise | KFE R1 Silver| MxSS |  is0 Pink & Silver | HBCP Polycarbonate | Matrix 2.0 Additional Purple | TGR Police | Jaguar Green | KFE R2 Blue | RS so lit
More
| Jelly 60 | Dolch CR | Sekrit Borb | Dalco 959 Mini | Aripeko |

Offline Bitdrive

  • Posts: 25
  • Location: Germany
  • Sup I’m new and takin a look around
    • bitdrive.mk
Re: Pixelpad
« Reply #19 on: Mon, 01 February 2021, 18:20:03 »
Daaang this is just hits hard with the retro vibes, interesting that it started as a Gameboy cartridge looks really dope , going to keep my eye on this one

+rep

Offline FoC_Tow

  • * Destiny Supporter
  • Posts: 1141
  • Location: Germany
  • Brokehlicious
Re: Pixelpad
« Reply #20 on: Mon, 08 February 2021, 08:59:54 »
Frosted pc looks amazing!

Kinda hard to judge tho.
I imagine anything looks great af on that deskmat...

Offline Xeryn

  • Posts: 16
  • Location: Canada
Re: Pixelpad
« Reply #21 on: Mon, 08 February 2021, 12:30:48 »
This is beautiful, I'm interested. Definitely hoping you keep the curved backside to maintain that Gameboy color look.

Offline ZyBeR

  • Posts: 135
Re: Pixelpad
« Reply #22 on: Fri, 12 February 2021, 04:30:25 »
Sick!
