[IC]NEO Palette Carbon G67 - Gasket, Full Carbon Fiber 65% kit
« on: Sun, 27 December 2020, 01:30:56 »
Ladies and gentlemen, this is Patrick. I’m here to present you the second project of NEO Keys, Palette Carbon G67. Join discord (https://discord.gg/2MCKpQQ) for more updates and details.

The idea of building a full carbon fiber keyboard started from some random discussions in my discord server. Somebody suggested that I should build a carbon board just for fun, I did and it turned out to be pretty awesome.

Design is based off the last NEO Keys board Palette G67(IC: https://geekhack.org/index.php?topic=108630.msg2958210#msg2958210; GB: https://geekhack.org/index.php?topic=109107.msg2968989#msg2968989), an acrylic sandwich gasket mount keyboard.
Palette Carbon and Palette acrylic share the same:
1.   Switch plate
2.   PCB
3.   General dimension and typing angle
So if you already ordered a Palette, you can switch the plate/pcb between these two cases.

Different
1.   Much less color options, only 3k twill weave carbon fiber available.
2.   No top color display tab design, just a simple, clean and slim bezel frame.
3.   Chamfered corners and angled bottom.
4.   Gasket material, authentic Rogers Poron in stead of silicone + EVA

Palette Carbon G67 kit will include:
1.   Full carbon fiber case (4 layers of case body, 2 layers of feet), 1 extra acrylic bottom layer in the color of your choice.
2.   1.5mm carbon fiber or 1.5mm brass plate
3.   Hotswap or soldered PCB
4.   Poron Gasket strips
5.   Plate/PCB foam and PCB/case foam
6.   Silicone Feet
7.   Mounting hard wares and tools
8.   USB-C Cable
9.   Microfabric cloth

Hotswap PCB features:
ANSI only layout
per key RGB light
Underglow RGB lights
Center mounted USB port
North facing switches



Soldered PCB features:
ANSI/ISO compatible layout, split backspace and 7u spacebar supported
Ultra bright underglow RGB lights, 18xLEDs!
Center mounted USB port
South facing switches


Estimated price: $210-$220

Quantity: MOQ = 50, no maximum order limit.

Lead time: 60-90 days

Groupbuy starting in 14-20 days.

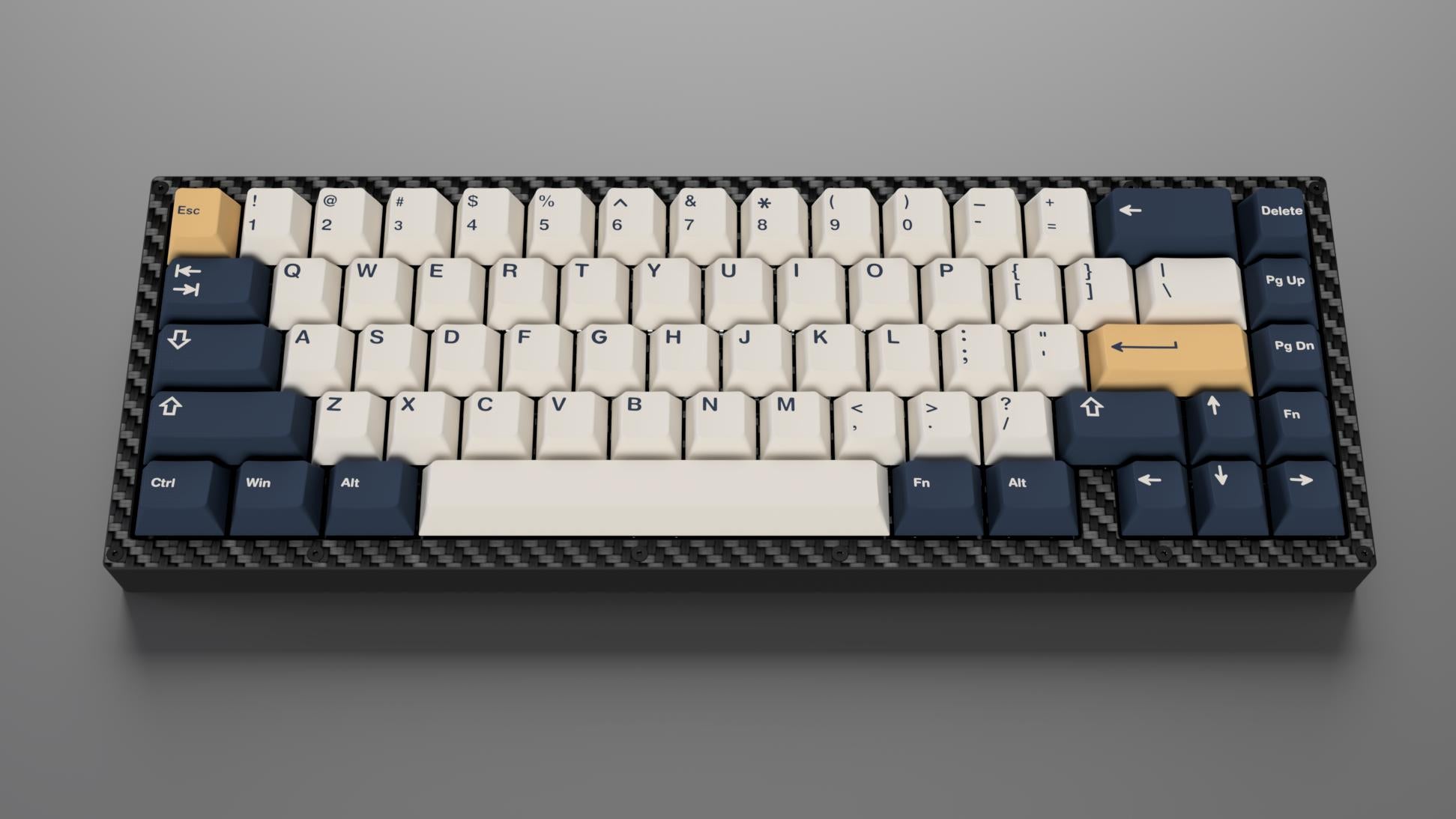

Full Carbon with GMK Rudy


Full Carbon with GMK Cyan

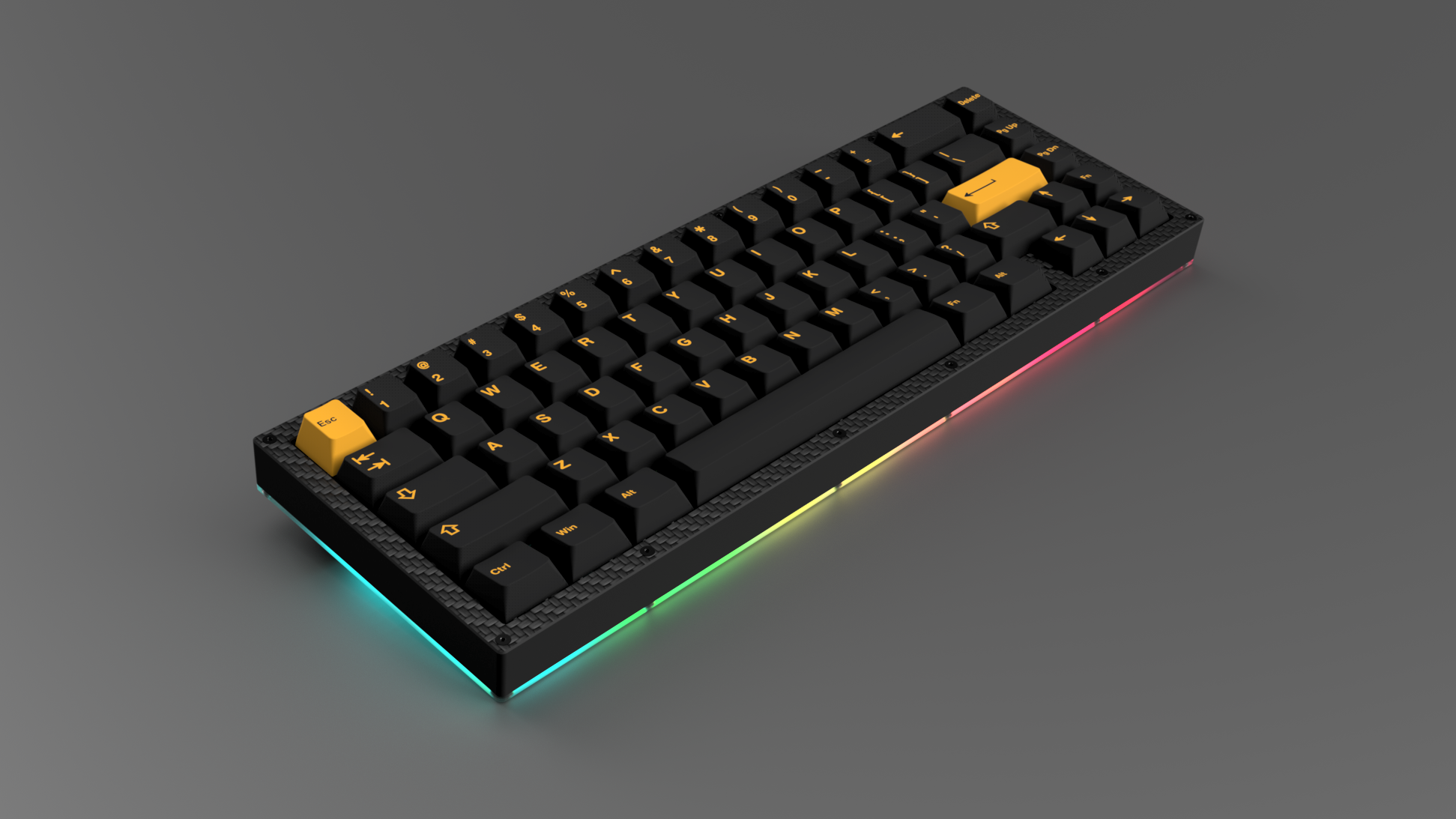

Carbon + Acrylic bottom with GMK Spirit

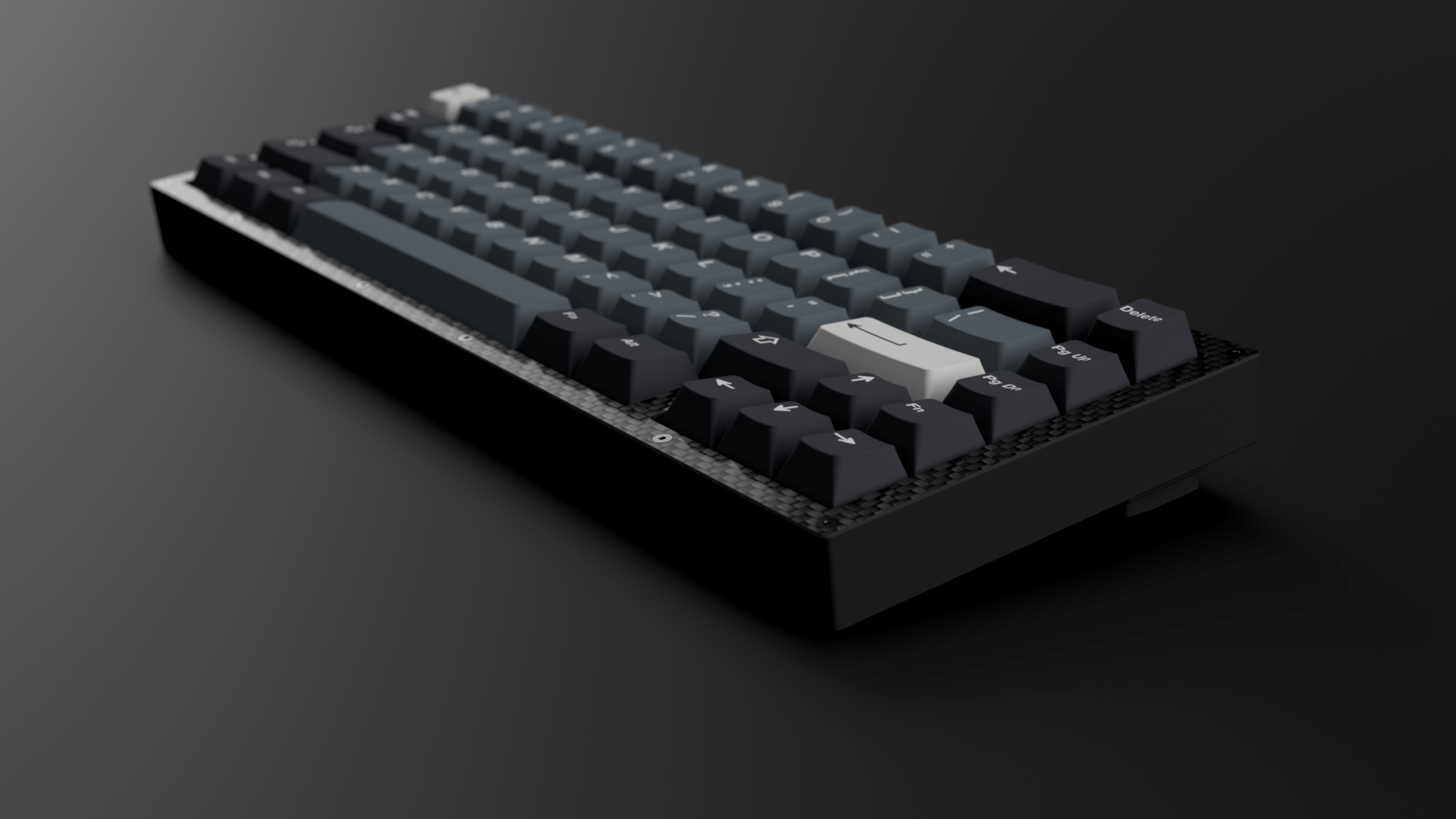

Full Carbon with GMK Apollo


Carbon + Acrylic bottom with GMK Stealth

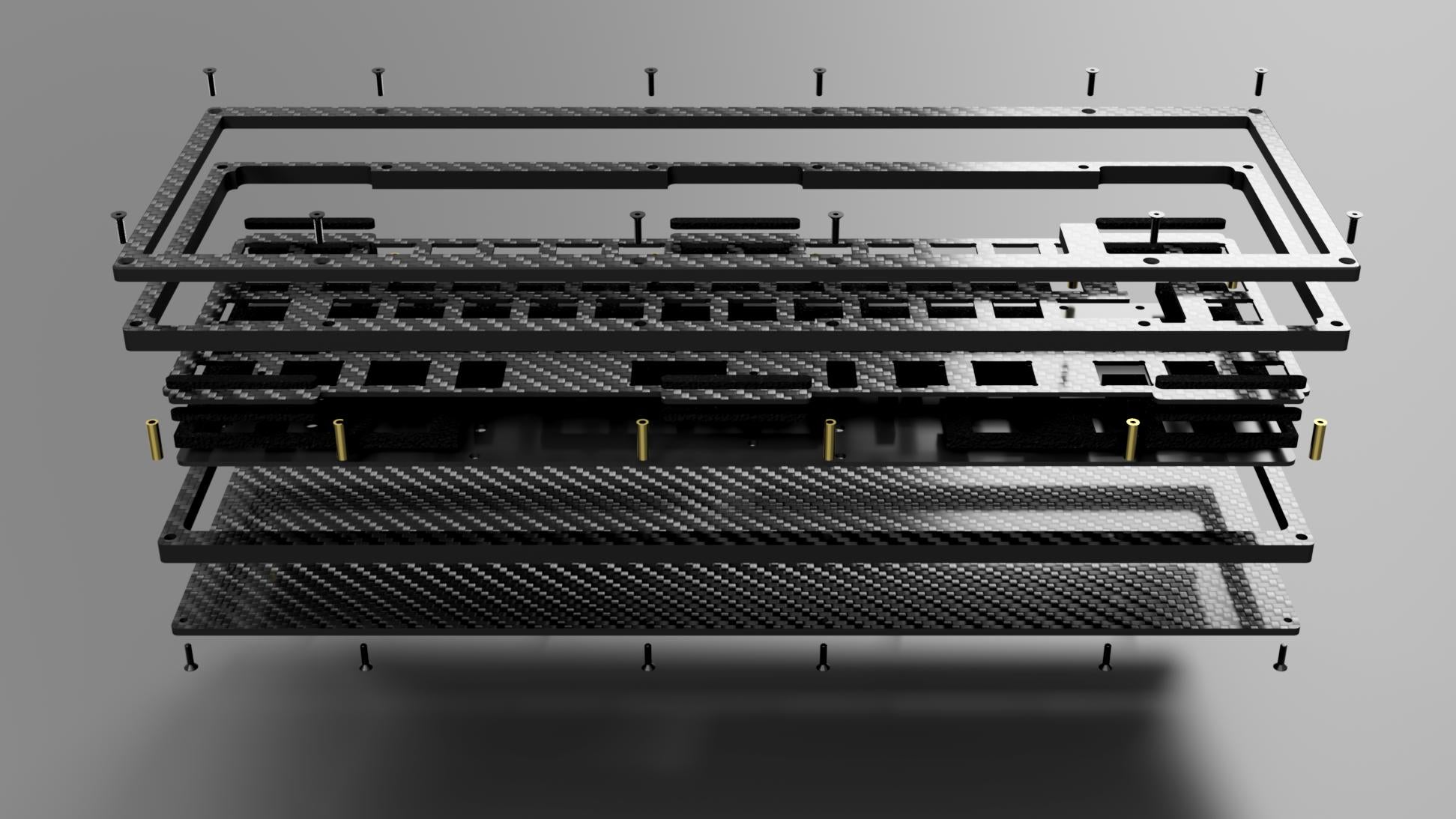

Exploded view

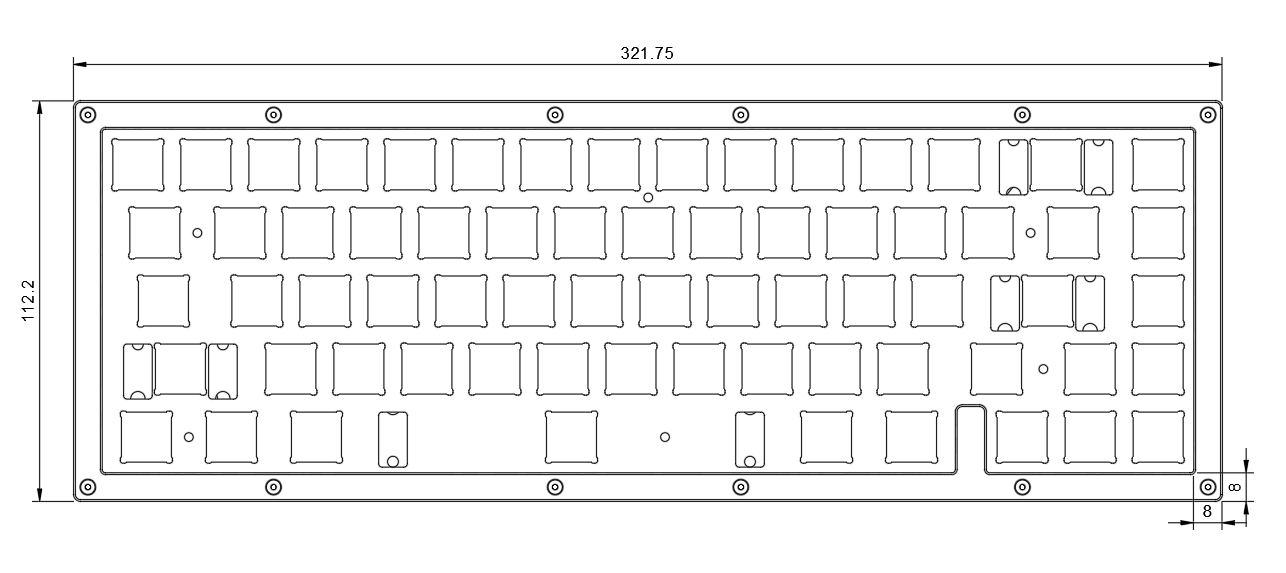

Dimensions

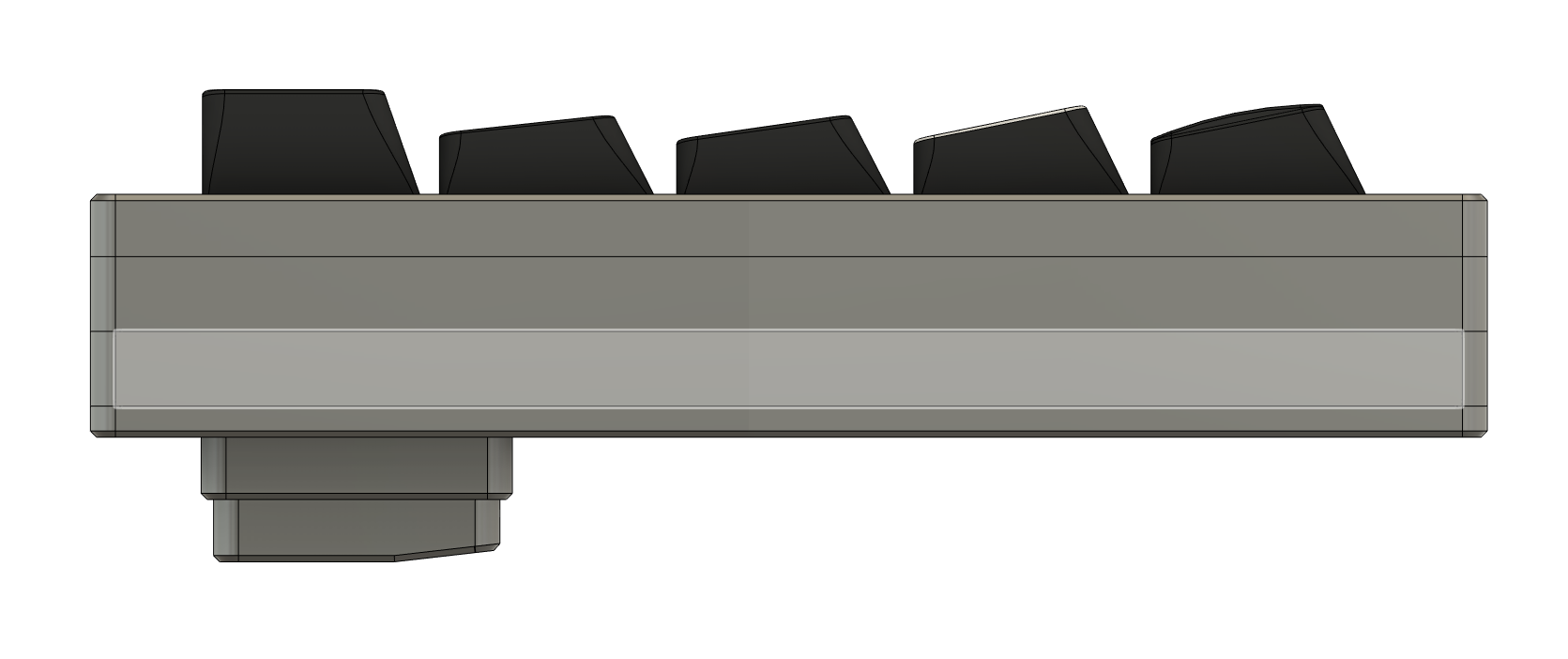

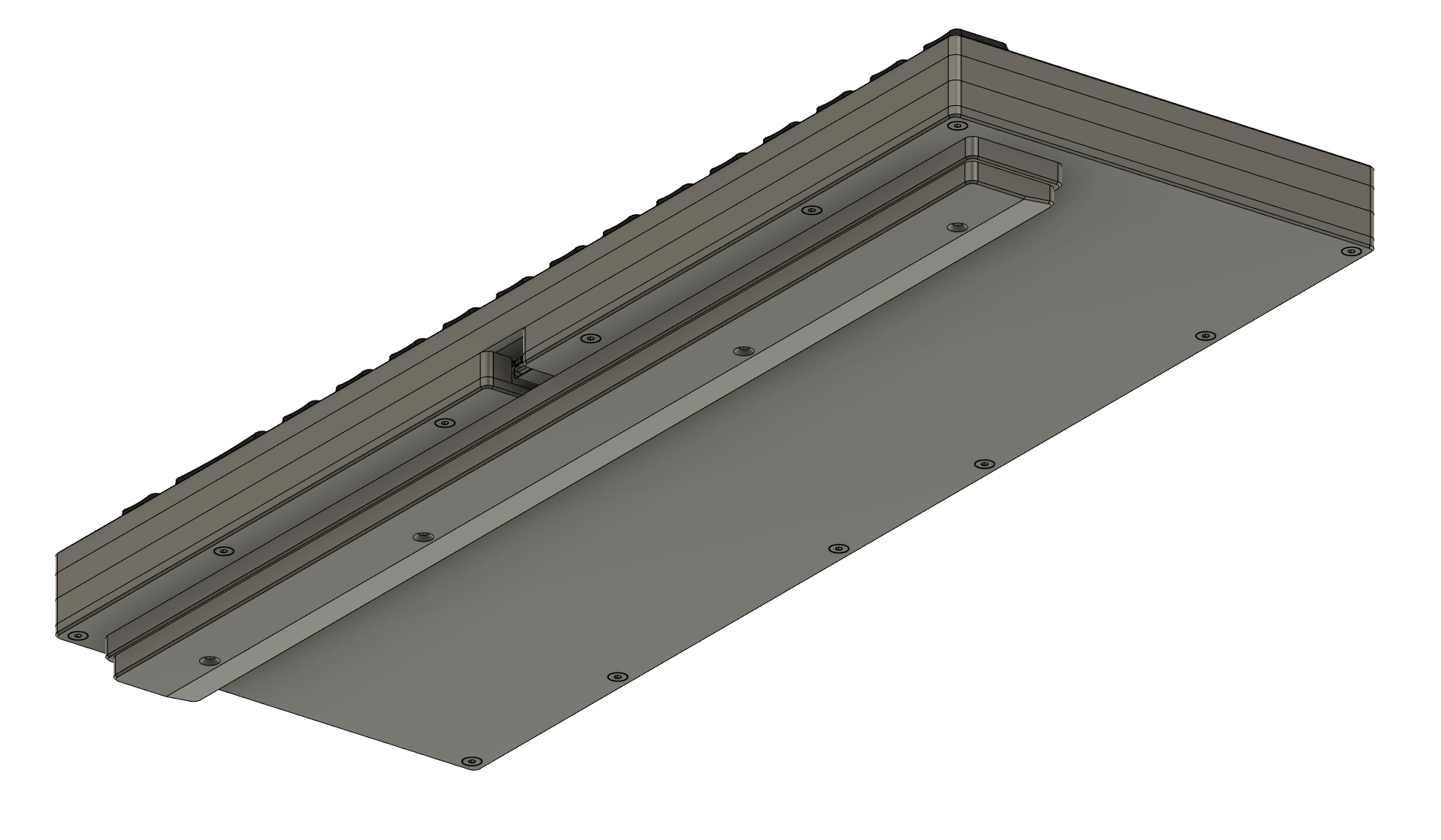

Angled Feet



Sample arrived, dimensions, clearance, assembly, performance are all good. Groupbuy will start soon.
