[GB]Nooir N1 GB start at 28th June
« on: Tue, 25 June 2024, 22:22:18 »

Noland N1
by Nooir
Post edited by Click Clack

Index
- GB Information
- Price and Vendors
- Design Details
- Colorway Editions
- Specifications
- What's included

GB Information
GB Date: 28th June 20:00EST to 28th July 23:59EST
Estimated shipping time: Q4 2024
Format: Unlimited GB


Price and Vendors
Colorway & Price:
Space Edition(Deep Space Island): $549
Winter Edition(Polar Ice Floe): $1239
Extra Add-ons:
Ice Crack Keycap Set: $72
90Pcs N-Switch: $72
Wrist Rest: $125
Win shop Cable: $65


Vendor List:
ClickClack

Design Details

Front:


Back:

Lucas Suspension System
This completely new structural form consists of six sets of suspensions and two sets of magnets. When viewed from the top, its structural characteristics closely resemble a spider, much like the animated character 'Lucas the Spider' created by illustrator Joshua Slice. Hence, it is named the "Lucas Suspension System."

For more information, please see the IC post.

Colorway Editions
Space:
The bottom case surface features a black electrophoretic coating with a sprayed finish, ensuring a smooth touch. The top cover utilizes a reliable and durable anodization process, bringing out the simplicity and efficiency reminiscent of space equipment.

The inner structure top case features a space-themed design with Anodized Gray.

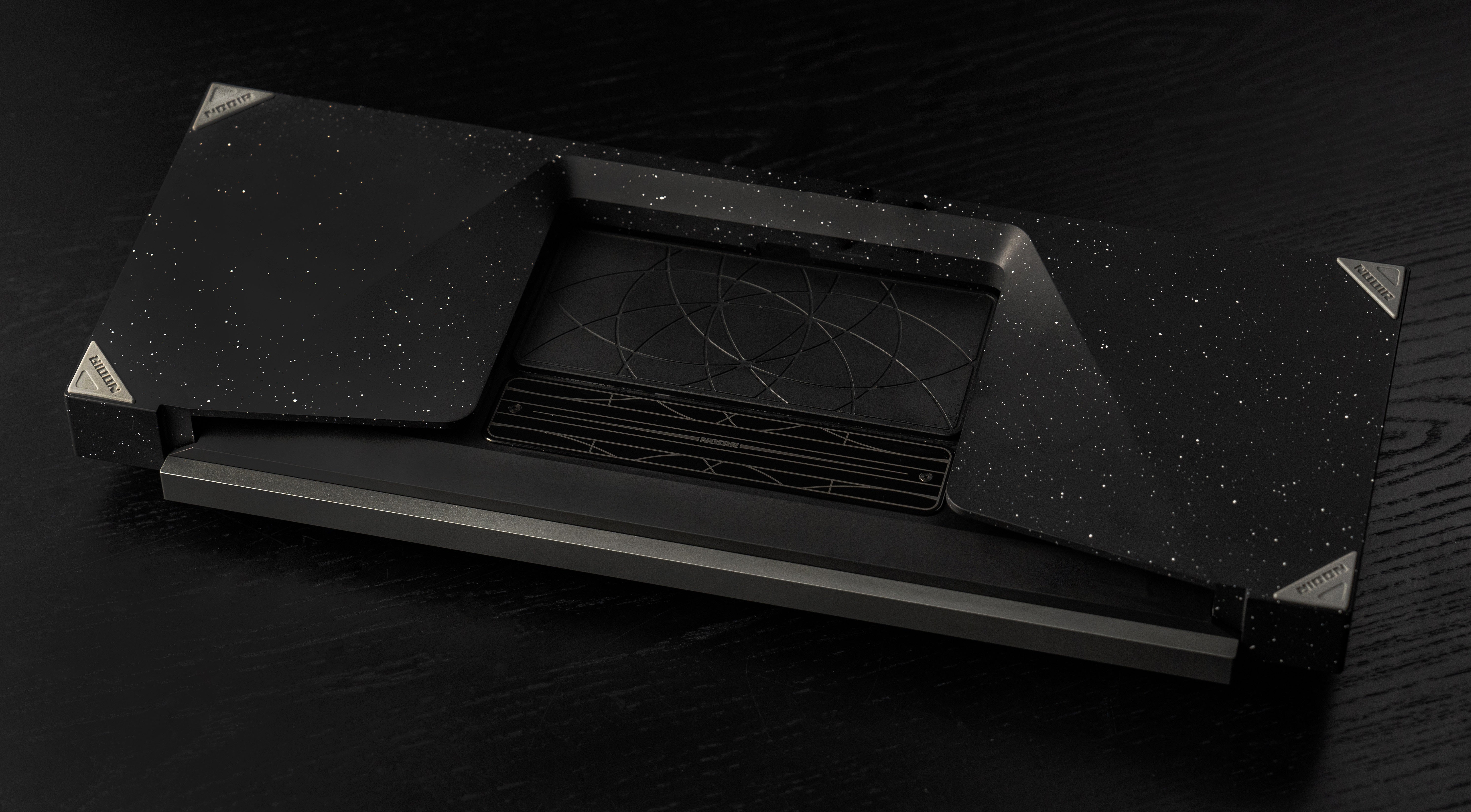

The bottom case has a deep-space design with electrophoretic Black and coating Starry.



The bottom badge showcases a space-themed design and is made of stainless steel with a PVD finish.
Winter:
The metal top case is coated with a refined white electrophoretic surface, ensuring a smooth touch where the hand makes contact. Compared to the Space edition, this design presents a higher level of complexity in surface treatment and includes more stylistic details.

The inner structure of the top case features a Winter-themed design with E-White.




The bottom case incorporates a design with three surrounding curved cutouts and uses Stainless Steel with deep blue Mirror PVD.

Specifications

•        Layout: 75%(83 keys)
•        Material: Aluminum (Badge: Stainless Steel)
•        Default Plate: FR4
•        Connection: Tri-mode (Wired, Bluetooth, 2.4G)
•        Indicator Lights: Different light effects for battery status in Wired, Bluetooth, and 2.4G modes
•        Structure: Proprietary (Lucas Suspension System)
•        Driver: Supporting VIA
•        Battery: 4000mAh
•        PCB Thickness: 1.2mm
•        Typing Angle: 8°, Front height 30mm
•        Editions: Winter / Space
•        Surface Treatment: Electrophoresis/Stainless Steel PVD/Anodized/Coating
•        Weight: ~4kg


What's Included?
•        Case x1
•        Default Badge x1
•        Mixed sound board x1
•        Lucas magnetic levitation structure inner frame x1
•        Foam set x1
•        Teflon structure anti-wear pad x2
•        Custom black CD pattern screws x1
•        Magnetic levitation magnets x8
•        75% layout 1.2mm uncut PCB & DB & battery x1
•        75% layout FR4 plate x1
•        Custom metal storage box x1
•        Bumpons x4


Excludes: switches, keycaps, stabilizers.
Join ClickClack’s Discord for latest update, discussion, questions:

Follow ClickClack's IG for other new projects:
« Last Edit: Wed, 26 June 2024, 05:15:26 by ClickClack.io »

Offline hzh0525

  • Posts: 95
  • Location: New York, USA
Re: [GB]Nooir N1 GB start at 28th June
« Reply #1 on: Fri, 28 June 2024, 19:18:35 »
Amazing design!

Offline ClickClack.io

  • Thread Starter
  • Posts: 245
  • Find us on clickclack.io
    • clickclack.io
Re: [GB]Nooir N1 GB start at 28th June
« Reply #2 on: Sat, 29 June 2024, 23:41:14 »
Amazing design!

 :))Thank you. It also sounds very good.
