DRK-601R
Designed by Design Roost Studio
Description
The DRK-601R is a vintage-styled aluminum alloy case kit designed for 60% keyboard layouts. It offers good compatibility and customizability. The designer has uniquely interpreted classic retro elements, providing users with a keyboard with a distinctive personality.

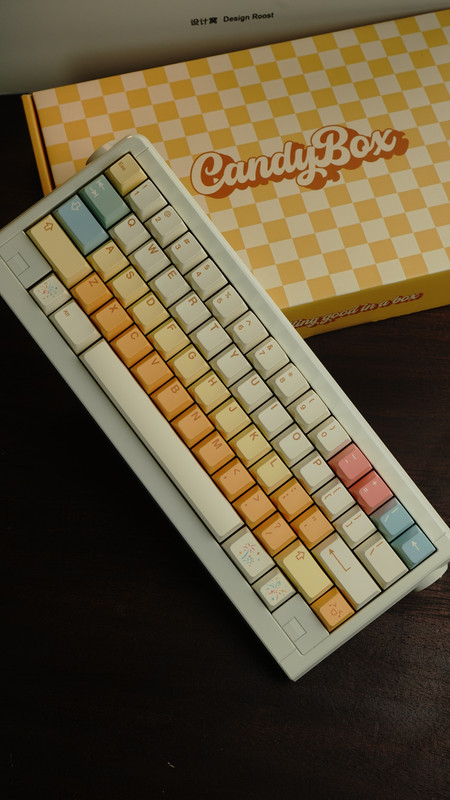

Color OptionsCoconut Milk
Carmine
Ice Blue
Pale Green
Layout
1. Suitable for 60% keyboard layouts, such as 64-key, 60-key, 63-key, HHKB, WKL, etc.
2. The case size is within 286*96mm, compatible with various 60% PCBs.
3. As long as the type-C port position of the 60% PCB is consistent with the type-C port position of the wooting60 HE PCB, it can be adapted to the DRK-601R. Or it will not work.
Examples of some compatible PCBs:
ISO64, m6lite+, M6U, Pure64, Rakka64, wooting60
Switch Support1. Compatible with both magnetic and mechanical switch PCBs.
2. Optimized design for magnetic switches.
Case Material and Design
1. Dual-layer aluminum alloy case design.
2. Design inspiration drawn from vintage Santana sedans, game consoles, and cassette tapes.
3. Maintains a minimalist style while incorporating a touch of technology.
Accessories and Customizability
1. Built-in Type-C interface.
2. Comes with HHKB and WKL baffle, which can be installed by screws.
3. Enhances the keyboard's customizability and personalization.
VideosSpecifications
Case Material: 6063 CNC Aluminum
Process: Anodizing(Wine) and sandblasting (Coconut Milk, Ice Blue, Pale Green )
Layout: 60% (The case is compatible with GH60 standard PCB)
PCB: Support WK, WKL, HHKB, 64% Layout, Capsled, Split spacebar, Split backspace, ISO Enter, stepped capslock
PCB Thickness: 1.2mm
Support VIA: Yes
1.5mm FR4 Plate *5: 64% Layout *1, HHKB*1, WKL*1, 60% layout common *1, 64% Layout+split spacebar+ISO enter*1
Poron Foam: 3.5mm Poron Pad, 0.5mm IXPE Pad, 2mm Switch Pad, Poron bottom Pad, EVA Battery Compartment Filling Pad
Stabilizers: Factory Lubed
Battery: 3000 mAh
Typing Angle: 6.5°
Front Height: 18.45mm
Weight: 1.3kg (Case only)
Connectivity: Tri-mode
Polling rate: Wire/2.4G (1000hz), Bluetooth (125hz)
Delay: 8-10ms (2.4G), 22ms (BT)
IncludingKeyboard case
Mechanical PCB
FR4 Plate *5
Case Foam *5
Gasket Silicone
Stabilizers
3000 mAh Battery
Silicone feet
Type C USB Cable
Screwdriver and Allen key, spare screws, washers
Switches/Keycaps Puller
Gift: HHKB, WKL removable baffle
Assembly Instructions
Price InfoPrice: 169USD
