Geometry 70

Designed by Mek Studio

Discord | Instagram | TikTok | YouTube

Inspiration

The Geometry 70 Kit truly embodies the elegance and simplicity found in geometric design, showcasing strong and clean lines that serve to enhance its distinctive and unique charm. Each element of the kit is thoughtfully crafted to reinforce this aesthetic, making it an appealing choice for those who appreciate the artistry of geometric forms.

Color Options

Frost Silver + Gold PVD Weight


Dark Night Black + Silver PVD Weight


Coral Red + Gold PVD Weight


Grape Purple + Black PVD Weight

Design

The designer used lines to outline geometric shapes, including single-sided (double-sided) trapezoids, parallelograms, triangles, polygons and other common shapes to fit the design theme.

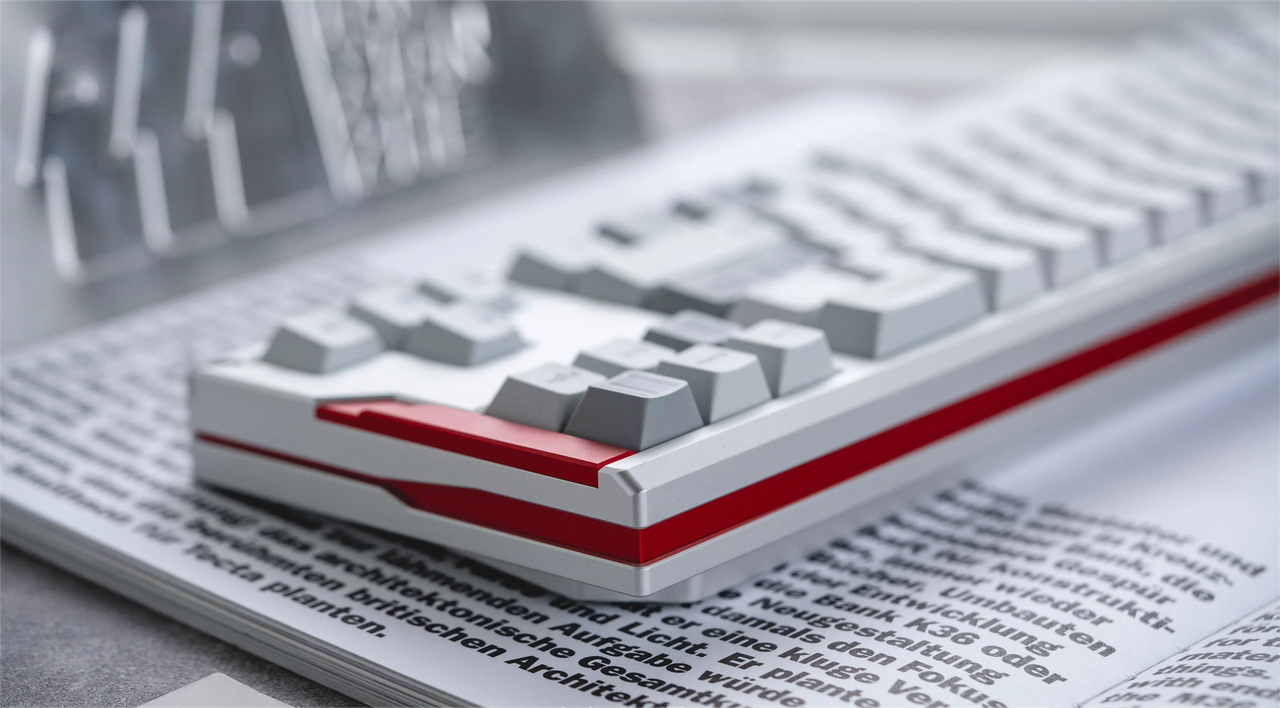

BADGE
On the right side of the kit is a badge with a height difference to highlight the sense of hierarchy, so that the front of the entire keyboard will not be too "flat". In order to interpret the minimalist theme of geometry, no fonts or content are designed.


INTERIOR
The interior of the kit uses a sandblasted brass cover to cover the battery and small board, making the interior more refreshing and simple. Several geometric figures are lightly outlined on the cover to fit the theme, making it more spacious and visually impactful.

Note:
It is normal for unpolished brass to have surface oxidation after several months of use and is not covered by after-sales service.


SIDE
Because of the existence of the middle frame, after assembly, part of the middle frame will be exposed on the side, so the middle frame is designed to be the same color as the badge, so that the overall color of the kit will have a better sense of hierarchy, and the contrasting colors on the side will also enhance the appearance of the kit.

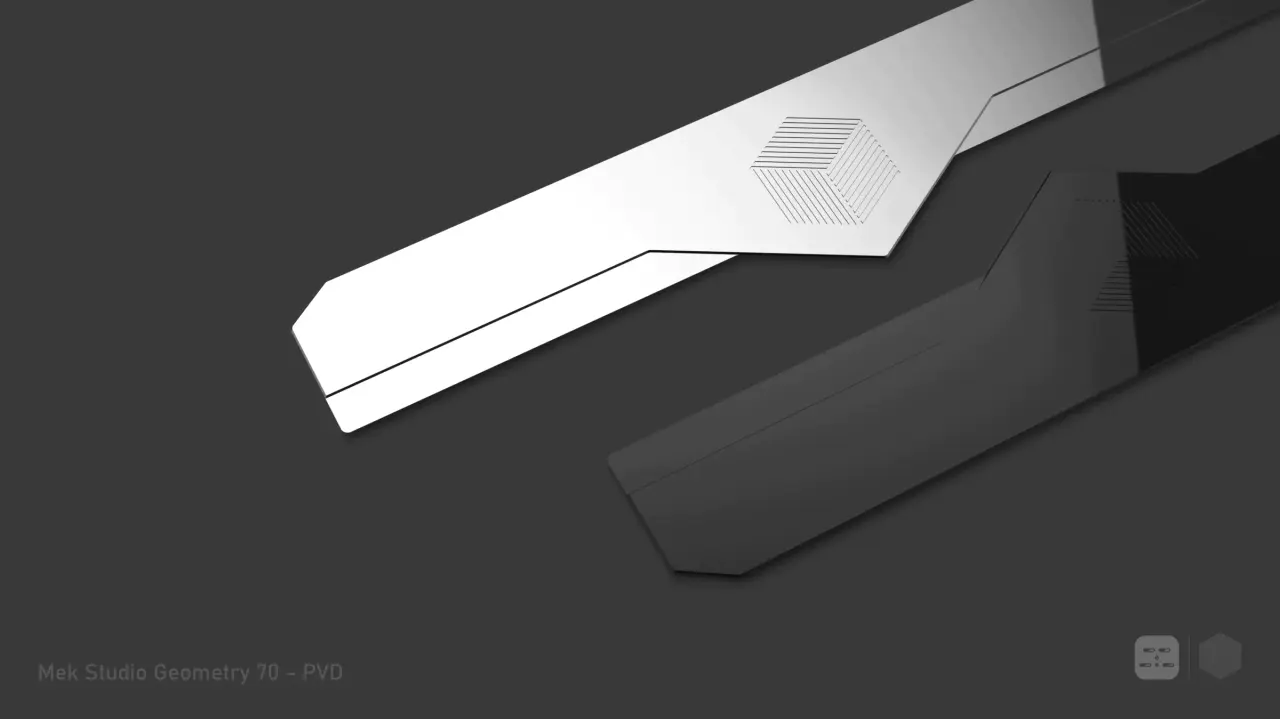

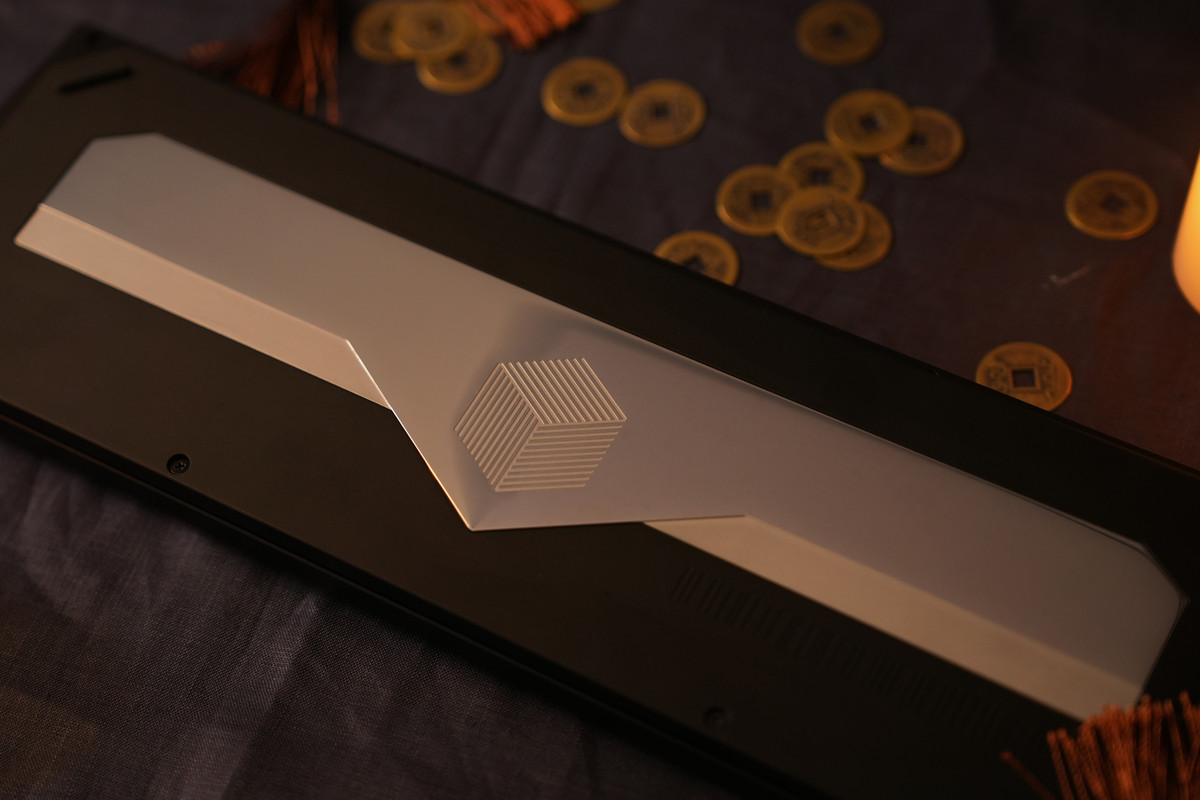

WEIGHT
The bottom of the Geometry 70% uses a piece of PVD stainless steel, with a more complex geometric figure in the middle. This figure is the theme logo of the kit, indicating geometry. The protruding inverted triangle below is matched with the mirror trapezoids on both sides, and the trapezoids are sunken to increase the level.

There is a row of barcodes on the lower right side of the weight. If you use Baidu to scan, you can find the Geometry 70% keyboard on Baidu. This is also a more interesting design point, and it also makes the back not so monotonous.

Features

2 Mounts Support
The Geometry 70% supports dual structure switching between Top mount and Gasket mount. It is the best choice for those who want to experience multiple structures.

2 Layouts Support
Geometry 70% can support WK or WKL layout. You can choose the layout you like when you purchase.

2 Types Of Connections
Support Bluetooth and Type-C wired 2 connection modes. The dual-mode connection meets users’ different usage requirements, and there are 3 devices can be freely switched in Bluetooth mode.

Long-Lasting Battery Life
The Geometry 70% offers a 4000mAh battery, delivering up to 1-2 weeks of usage. Long battery life ensures uninterrupted work and entertainment, allowing you to stay productive and stay connected wirelessly for longer, without the need for frequent charging. What's more, it allows you to charge and use at the same time in wired mode.

VIA Support
VIA is a tool that enables keyboard configuration. With the VIA configurator, you can map keys to the physical layout of your keyboard.

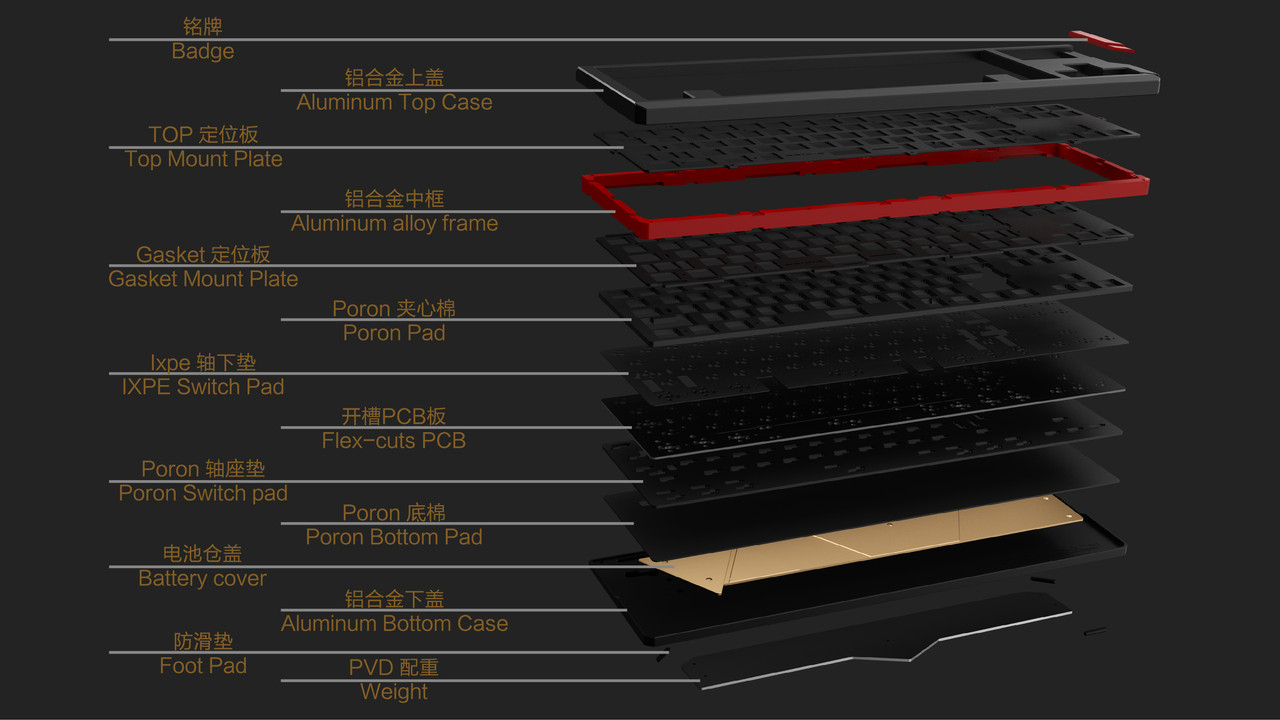

Explosion Diagram
The multi-layer structure design greatly improves the typing experience of Geometry 70%. It meets the needs of ordinary users and avid typists.

PCB Features

Support ANSI and ISO Layout
Support Stepped Capslock
Support 7u, 6.25u spacebar
Support VIA
With Flex-cuts
No Per-key RGB

Reviews

Specifications

Mount: Gasket mount, Top mount
Connectivity: Wired, Bluetooth
Material: 6063 CNC Aluminum
Surfacing: Anodized, PVD
Acoustic: 0.5mm IXPE pad, 3.5mm Poron pad, 1mm bottom pad, 1mm switch bottom pad
Weight: Stainless steel PVD+  Frosted geometric weight (4 colors optional: Black, Silver, Gold, Chroma)
PCB: Hotswappable(1.2 mm thickness, With Flex-cuts, Only PCB mounted stabs compatible, Support ANSI & ISO layout , Support WK/WKL, Support VIA, Does not support QMK, Support stepped caps lock, Support 7U, 6.25U spacebar
Net Weight: 1.5kg
Weight With Package: 2.45kg
Size: 373*115*32mm

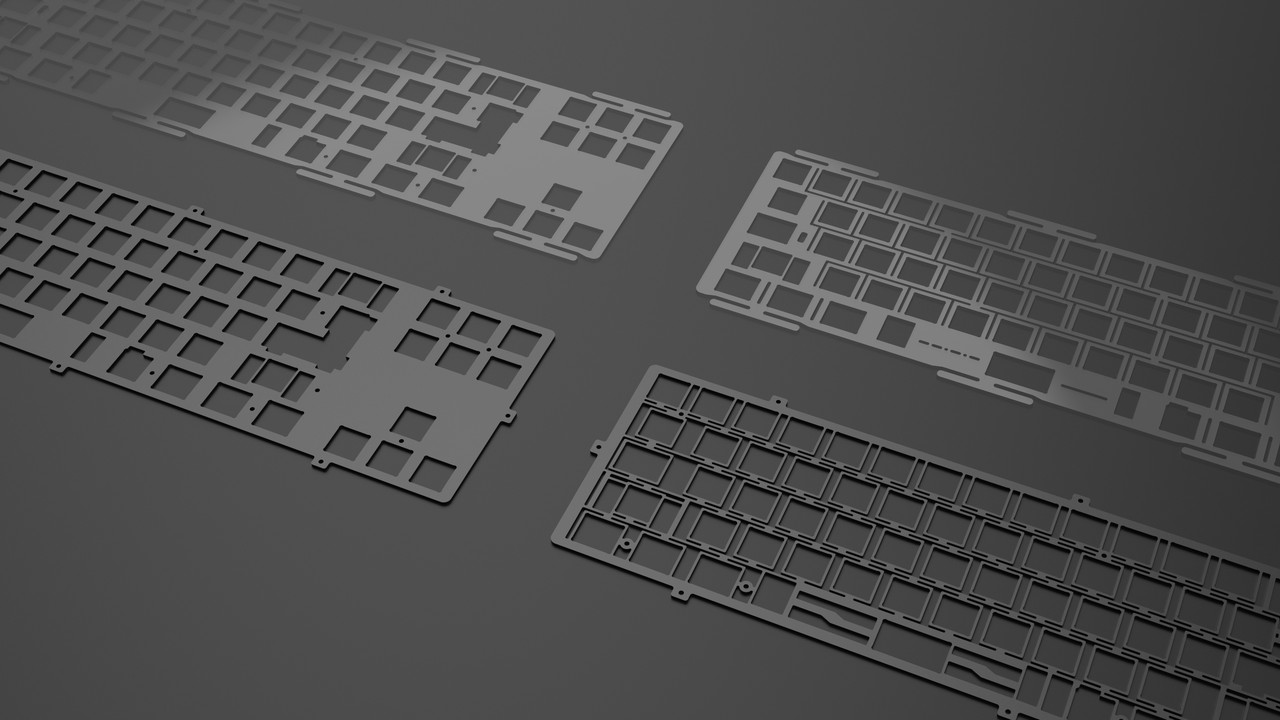

Plate: Top mount support plate, Gasket Mount support plate, 1.5 mm thickness, Without flex-cuts, PC material, Support ANSI &ISO layout, Support stepped caps lock, Support 7U, 6.25U spacebar
Typing Angle: 7°
Compatible System: Support Windows & Mac
Battery: 4000mAh (2000mAh*2)
Rolling rate: 1000Hz (Wired), 125Hz (Bluetooth)
Including: Aluminum top case * 1, Aluminum bottom case * 1, Aluminum dual structure conversion middle frame * 1, Aluminum badge * 1, Brass sandblasted battery cover * 1, Stainless steel PVD + frosted, geometric weight * 1, Black PC plate (Gasket) * 1, Black PC plate (Top) * 1, Type-C daughterboard + silicone cable * 1, Bluetooth dual-mode hot-swappable PCB * 1, 0.5mm IXPE pad * 1, 3.5mm Poron pad * 1, 1mm bottom pad * 1, 1mm switch bottom pad * 1, Screw bag * 1, Foot pad * 4, Mek geometric packaging box * 1, Front Height: 20.5mm
Back Height: 32mm
Caps indicator light: Yes
Latency: 3ms(Wired),  8ms(Bluetooth)
Add on: Alu plate with flex-cuts (Including one Top mount plate and one Gasket mount plate), PVD Weight(Black/Silver/Gold/Chroma)
Manual: Instruction
Software: VIA .json file

Price Info

Price: 246 USD (Original price: 259 USD)

Purchase Now

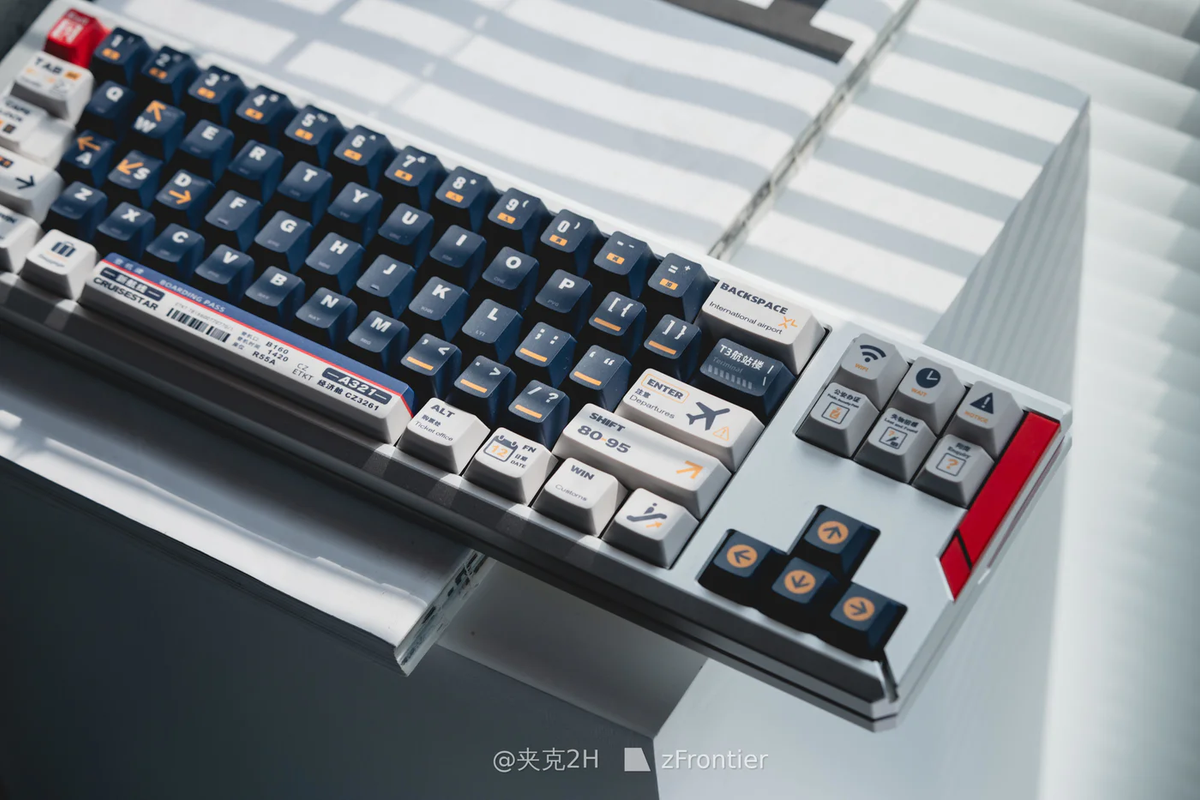

More Photos IRL
