Author Topic: can you identify these switches? (Read 1650 times)

HPOT · « **on:** Tue, 03 January 2012, 18:48:33 »

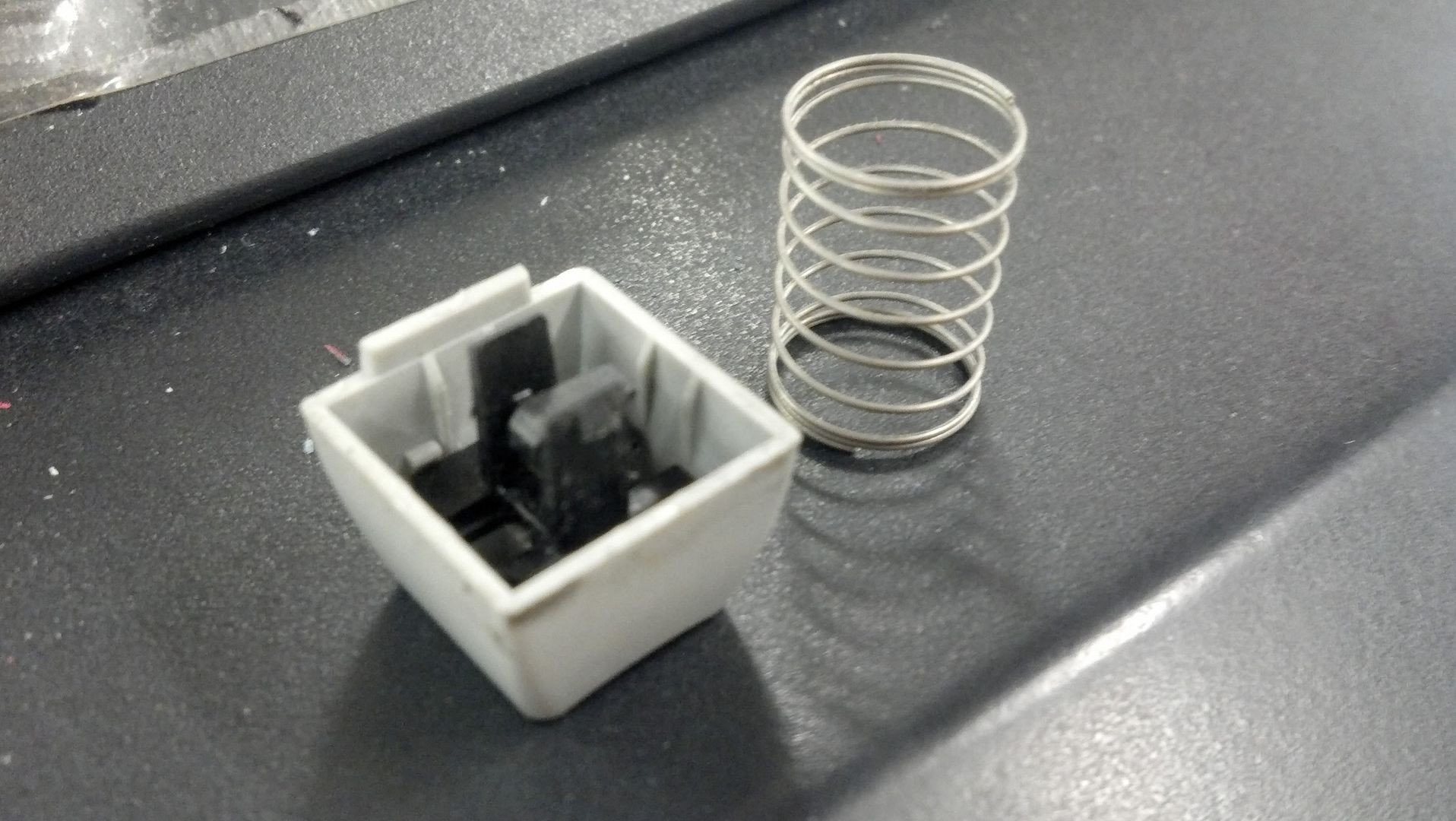

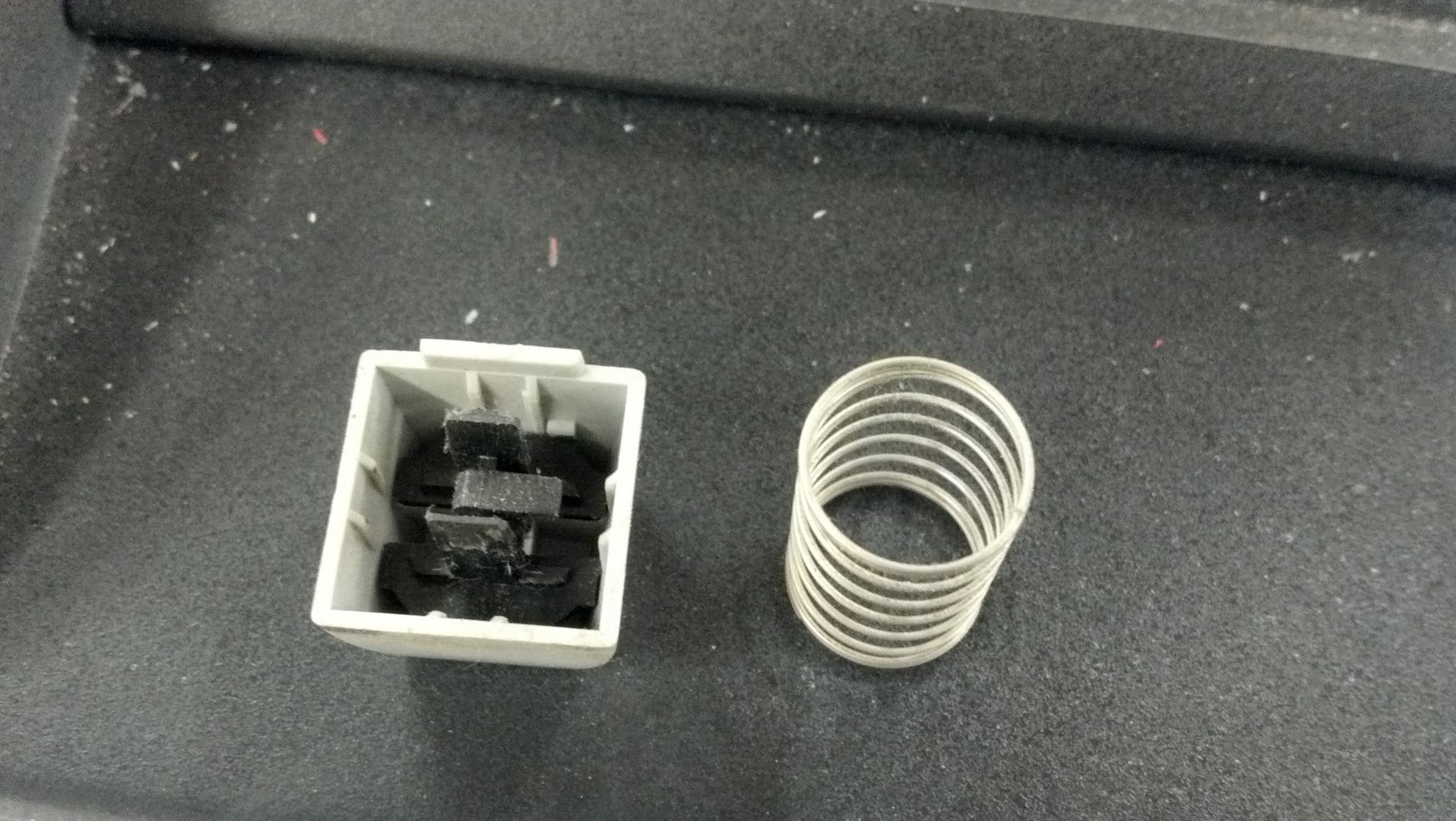

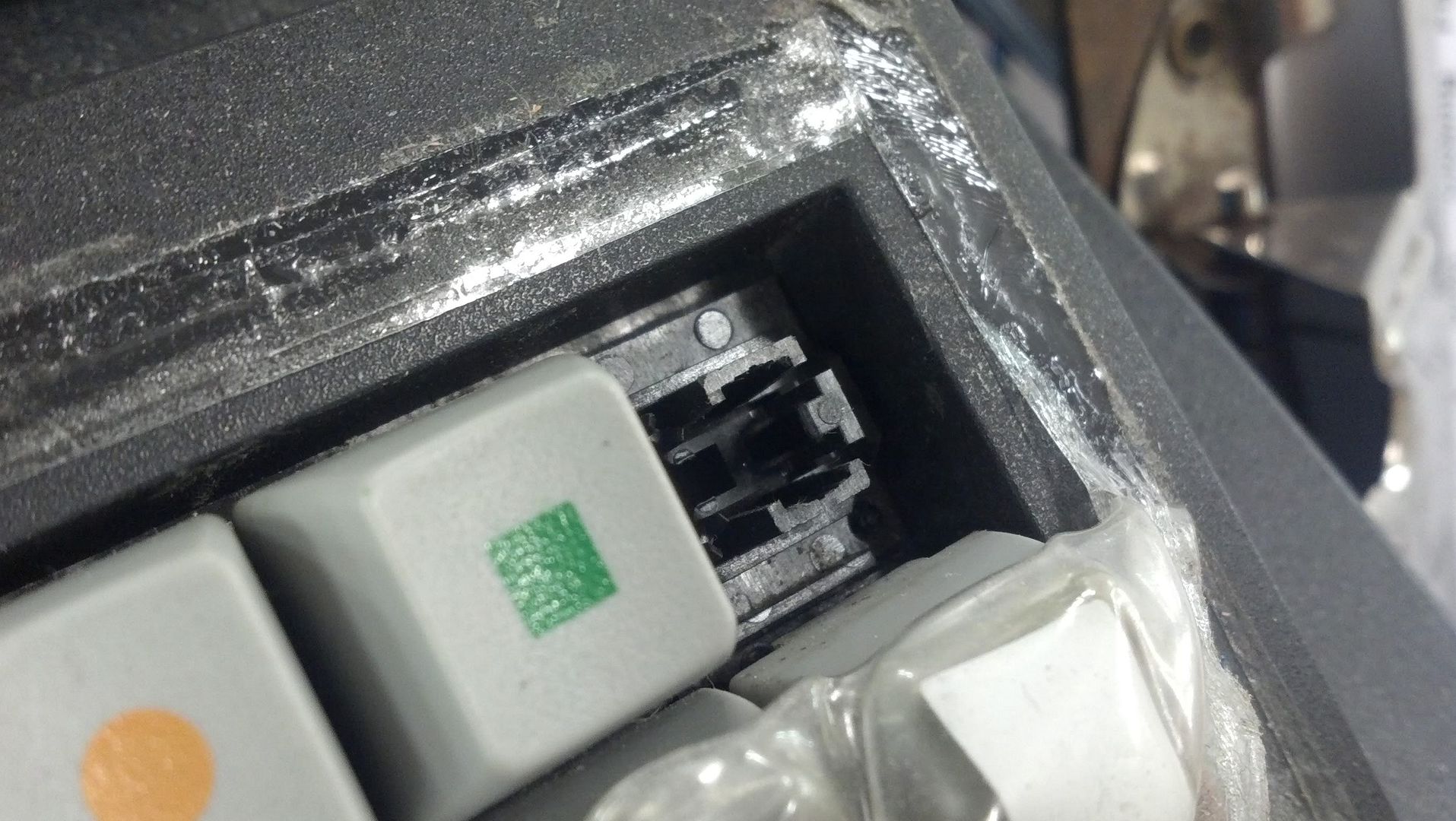

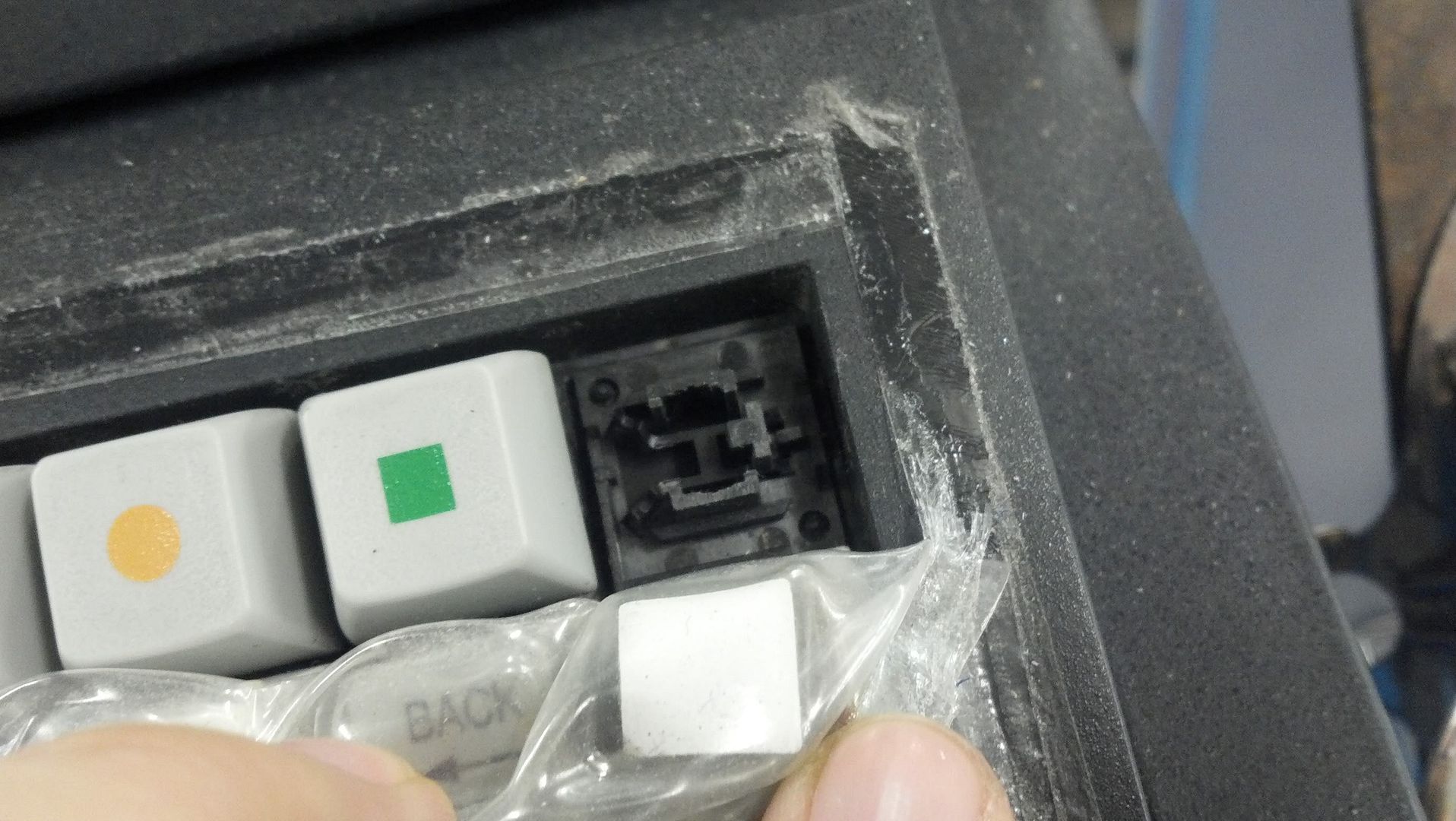

hi guys. since i began lurking these forums I have become curious to know what kinds of switches are used in the machines I use at work. So today I pulled off a keycap and snapped some pics. Can anyone identify the type of switch pictured here?

DaemonRaccoon · « **Reply #1 on:** Tue, 03 January 2012, 18:56:37 »

What picture?

SmallFry · « **Reply #2 on:** Tue, 03 January 2012, 18:57:21 »

Ripster will be here soon with a meme saying RTFW. This stands for Ripster's Theory of the Forum Wikis or something like that. On a side note, you pictures do not work. Try looking in the Wikis first.

DaemonRaccoon · « **Reply #3 on:** Tue, 03 January 2012, 18:58:20 »

Looks linear.

HPOT · « **Reply #4 on:** Tue, 03 January 2012, 19:01:41 »

I forgot to mention they have a linear feel with approximately 1mm travel to actuation and another 2 or 3mm to bottom out. They are heavier to depress than my Leopold with browns as well. No tactility whatsoever.

Anyone? Bueller? Anyone?

HPOT · « **Reply #5 on:** Tue, 03 January 2012, 19:05:58 »

Oops! Sorry about the broken images. I will fix them when I get home. Posting from my phone right now and editing a URL is close to imposs ible with a touchscreen

DaemonRaccoon · « **Reply #6 on:** Tue, 03 January 2012, 19:08:58 »

I have a fixed link in my post, it's highly probable that it's a Hall effect or magnetic reed switch.

Findecanor · « **Reply #7 on:** Tue, 03 January 2012, 19:32:55 »

To me it looks like it is based on conductive rubber. It looks like two metal pads at the bottom of the switch.

jkercado · « **Reply #8 on:** Wed, 04 January 2012, 09:43:20 »

I thought RTFW meant Read The F****ng Wiki.

SmallFry · « **Reply #9 on:** Wed, 04 January 2012, 19:44:12 »

I thought it was too Jkercado... I was swiftly mistaken...LoL
