Hi,
I'm currently trying to build my own full size keyboard with a custom layout. After reading through the whole thread (I actually just made an account so subscribe to this thread  ^-^) I still have some questions:

  • I've read that you should not place traces below the oscillator and surround it by a ground plane. Is that only specific to that layer or should I keep the traces on all layers away from the crystal?
  • I want to use a ceramic resonator. Do these even have the same issues with interference as crystals?
  • Originally I wanted to add LED backlighting but now I'm unsure: At >100 LEDs in parallel, drawing 20mA each, thats more than 2A (and therefore more than the 500/900mA USB provides and way more than the 20/100mA the Atmega32u4 can drain). What are the tricks to get low power LED backlighting?

Thanks a lot.

1. The surrounding ground would be to shield off the crystal. Preferably a plane underneath it, and a ring off GND around it.
2. Ceramic oscillators may not be stable enough to work properly with USB.
3. You don't want 100 LEDs driven at 20mA each continuously at the same time. You would be blind. A few mA probably is enough, but you would still need to be careful in the design to meet the current limits.

Offline kuerb

  • Posts: 4
Re: The Living PCB Design Thread
« Reply #801 on: Fri, 04 January 2019, 08:53:10 »
 Thank you for the response.

@1&2) I designed the PCB around the Adafruit Feather 32u4 Bluefruit LE because that already works with QMK. I guess I'll think about switching to a quartz. But then I'd have to retrace a lot of wires for the extra caps and bigger component :eek:

@3) Now I feel stupid about the LEDs ;D I only thought about reducing the duty cycle to keep the overall power consumption low and didn't even think about what would happen if I connected the LEDs to a low current power supply (resembling the pin).

I just tried a setup of 25 parallel green* LEDs. With 5 mA on the power supply (that should be equal to 100LEDs@20mA) each LED still gets to around 180 uA but the power supply is also lowering the voltage to 2.2V. But at least the LEDs stay visible with artificial lighting. With keycaps on the LEDs, they're only visible in the dark but that might be just enough for a very subtle backlight. Powering the LEDs through a Teensy (LC) was also possible but with a bit of flickering.
*or rather the green parts of RGB LEDs

I might hold back on adding per-key backlighting and just add a few dedicated LEDs instead. I can always upscale for later projects :))

Offline bpiphany

  • Posts: 1022
  • Location: Stockholm, Sweden
  • bpiph is a special type of crazy. //mkawa
Re: The Living PCB Design Thread
« Reply #802 on: Sat, 05 January 2019, 14:35:51 »
1&2. I haven't looked too hard but I couldn't find out what the part used actually is. According to the datasheet the 32u4 should have an internal oscillator that's supposedly possible to trim to make it good enough for USB But there's very much not a promise in there that a resonator will be good enough in general.

3. It's not a fantastic idea to just parallel up LEDs, google for thermal runaway. And you'd probably want to drive them through something else than the micro, a dedicated LED driver or simply with transistors.

3++. Using a switching regulator to lower the voltage for the LEDs can save a lot of the power consumption. You should probably still really have a current limiting resistor in series with the LED. but you can shift more of the power to be dropped actually producing light.

Offline kuerb

  • Posts: 4
Re: The Living PCB Design Thread
« Reply #803 on: Wed, 09 January 2019, 08:14:32 »
@3) I know that parallel LEDs weren't the best idea, I just wanted to test the output before scrapping the idea of LED backlighting. But in the end I removed all of the backlight LEDs from my PCB and opted for four dedicated LEDs instead.


I want to add support for multiple layouts. But then I'll get holes overlapping pads (as well as overlapping holes) like in the picture. Can someone recommend a manufacturer who will produce it that way?
I asked support at JLCPCB (the people behind EasyEDA) and they told me that they can't produce it (although I'm not 100% sure that my question was understood correctly).

Offline bpiphany

  • Posts: 1022
  • Location: Stockholm, Sweden
  • bpiph is a special type of crazy. //mkawa
Re: The Living PCB Design Thread
« Reply #804 on: Thu, 10 January 2019, 14:44:49 »
It's probaby going to depend on their process and tooling, if they are willing to do it at all or at the price point. I think you'd generally not want to overlap holes by too much when drilling. A bottom cutting end mill may be able to do more awkward cuts, but be more expansive and not doing it as fast as a drill bit. You want to have enough wall for the bit not to snap into the previous hole and break.

I've had this made https://geekhack.org/index.php?topic=67713 with overlapping holes just like your design.

Another option is to actually make the overlapping holes into a single slot, which will be milled instead. Like on the phantom https://deskthority.net/w/images/3/3e/Phantom_PCB-Small.jpg

The manufacturer may also be reluctant milling into copper pads, especially plated through holes. It can tear the copper and cause shorts, and they may still do it at your risk.

3+++) There are different (probably more than you can count) LED drivers that will drive any number of LEDs you'd ask for through any serial interface you'd ask for (probably). They can often do constant current delivery to simplify your BOM, and life in general.
« Last Edit: Thu, 10 January 2019, 14:50:45 by bpiphany »

Offline kuerb

  • Posts: 4
Re: The Living PCB Design Thread
« Reply #805 on: Fri, 08 February 2019, 02:29:35 »
I ended up ordering at JLC and have received a board with overlapping holes/pads without any extra fees.

Unfortunately the USB connector doesn't fit. I guess I should have created a smaller test PCB with a single key to test all the components and software first, but well, at least I'm learning. Everything else was soldered and running a simple program to blink one of the LEDs (uploaded via ISP) so I've tried soldering a cable directly to the USB lines but can't get the chip to be recognised.

My guess was that this had something to do with the resonator so after trying different fuses (mainly switching CKSEL and CKDIV8) and uploading the dfu-bootloader again and again I still have no idea how to fix this. So I resoldered the resonator and ended up frying my 32u4. I guess I'm going to make that test PCB after all :D.

I know this isn't directly "PCB Design" but what are the correct steps in order to get USB working out of a blank 32u4?
Is it just supposed to work out of box (the datasheet mentions USB will work with the internal resonator when powered >3.4V)?
Do I have to disable CKDIV8 (as it would give me 8 MHz/8 = 1 MHz, which is lower than the 1.5 MHz in Low Speed USB) or does that not matter for the communication part?




Offline bpiphany

  • Posts: 1022
  • Location: Stockholm, Sweden
  • bpiph is a special type of crazy. //mkawa
Re: The Living PCB Design Thread
« Reply #806 on: Fri, 15 February 2019, 13:51:47 »
If you didn't get the 32U4RC it should pop up as a USB device, _if_ you have a 16MHz crystal hooked up the correct way. And use a crystal. Also this is only true as long as you didn't already erase the bootloader with your ISP programmer.

Changing fuses you can set the chip to run from the internal oscillator, without any need of an external clock signal. It's not guaranteed to work out of the box though. It may be a good way to reach the blinky level with a minimum number of parameters.

Here's the app note on using USB with the built in resonator
https://www.google.com/url?sa=t&rct=j&q=&esrc=s&source=web&cd=1&cad=rja&uact=8&ved=2ahUKEwjIvazFwL7gAhWgwMQBHfwLBtIQFjAAegQIChAC&url=http%3A%2F%2Fww1.microchip.com%2Fdownloads%2Fen%2FAppNotes%2Fdoc8384.pdf&usg=AOvVaw1nqlVSHuKhP1LCT5U4thL6

Offline rickylago2

  • Posts: 1
Re: The Living PCB Design Thread
« Reply #807 on: Wed, 20 February 2019, 15:42:16 »
I've just stumbled on this thread via google search, and I've got to say reading through it has been massively helpful. Lots of good information here!

I'd like to get some verification from anyone who might be more knowlegable than myself. I've got a lot of experience in hardware modification, but as far as designing my own goes, this is basically my first project. My main goal here is to make a 25 key macro keyboard with an analog joystick on the thumb and per-key RGB lighting using APA102-2020 mounted under RGB cherry switches all connected via Type-C. I've pieced together information from about a million sources online, and I think (or hope  :p) I've set everything up correctly in my schematic. A few specific questions I have about my design so far though:

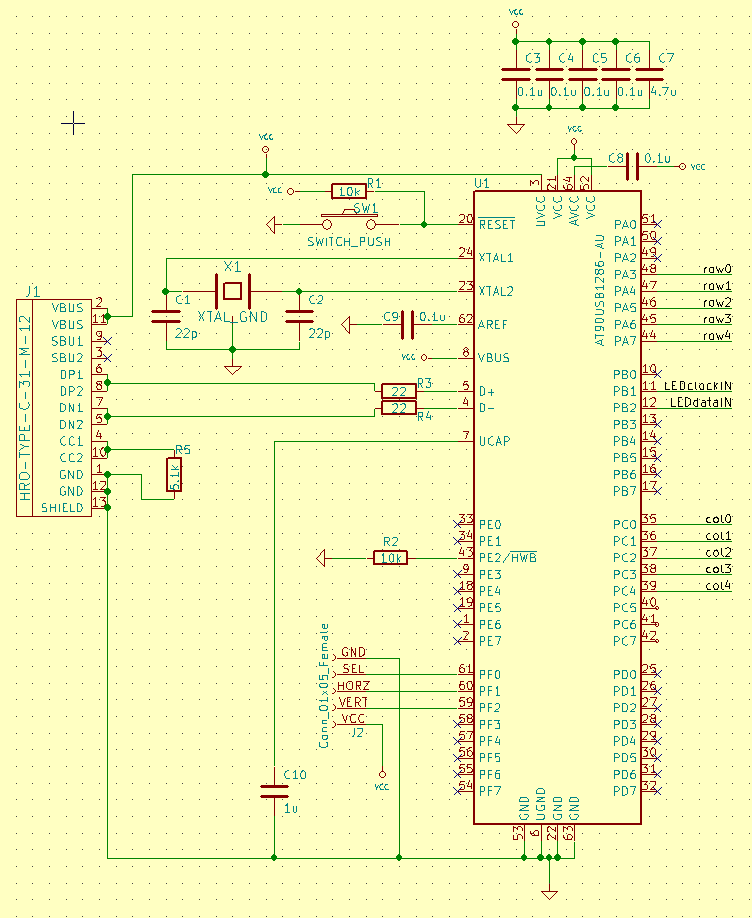

1) Am I correct in assuming that to use analog signal with the AT90USB1286 I need to have a capacitor on both the AVCC and AREF pins? The datasheet seems to have said this, I mainly just want to make sure I understood it correctly.
2) I know that power over USB can be a concern with the addressable LED like I've chosen. It looks like each runs at 20mA at full brightness, which would max out the 500mA available over USB. If I simply run them at half brightness or so, would this cause power issues still?
3) I've set up my decoupling separate from the chip, similarly to how it is done in the github tutorial that a lot of people reference. I've seen this done a few different ways in this thread and other projects. Should I be setting this up differently to make things easier?
4) In my Type-C wiring, I've connected the CC1 and CC2 pins via 5.1k resistor to ground. I've seen it done this way and with both pins having their own resistors. Is how I currently have it set up sufficient? 213365-0

Thanks in advance for any help. like I said, I have some experience physically modifying existing things, and I have plenty of CAD experience, but PCB design is still pretty fresh to me.

Offline No_joke

  • Posts: 12
Re: The Living PCB Design Thread
« Reply #808 on: Sat, 30 March 2019, 11:20:48 »
Hey everyone!

Would love to get some critique on a new (actually, the first) design I'm working on.
It's meant to be a small, two octave digital synthesizer, based on mechanical switches and a Teensy 3.2 with the audio shield.

The connectors labeled as "controls" will be hooked up to linear potentiometers, and those labeled as "LED" to ws2812b LED strips.
On the right of the board you can see a micro USB connector and an audio jack (both connected via cable to the Teensy/audio shield respectively).

Are there any problems with the design?
Do you have any tips/ideas for improvements (both logical and visual)?
Are the via sizes (1mm), trace widths (0.4mm), and clearances (0.2mm) suitable for manufacturing?

216306-0

The KiCad project is available here https://github.com/m4ntis/teensynth-pcb.

Thanks! :)

Offline bpiphany

  • Posts: 1022
  • Location: Stockholm, Sweden
  • bpiph is a special type of crazy. //mkawa
Re: The Living PCB Design Thread
« Reply #809 on: Wed, 10 April 2019, 15:35:55 »
Hey everyone!

I can't help to think you should be able to get away with wiring the matrix directly to the Teensy, and do away with the IO-expander. It looks like you have plenty of pins free. You could do some simpler multiplexing for the matrix as well. If you want to keep the 15 column layout you could use a 4-16 decoder to activate one at a time, and 2 inputs to the Teensy for the rows. That's only 6 pins, and no serial protocol.

It looks like you will be connecting the Teensy with a short USB cable soldered to J5. Is J8 on the bottom of the board? I think it's probably going to collide with the USB connector going into the Teensy otherwise.

Your diode footprint looks wrong. I guess it is possible to put an axial part in a vertical position, but there's no reason not to spread out to a 0.4" pitch.

In general with low speed stuff, if it passes the DRC it's going to be fine.

Edit: Perhaps pull-ups on the data channels to the IO-expander? I'm not familiar with using them, but I understand they are sometimes needed, or handy for even more pull-up even if there already are resistors on the Teensy itself.

And the obvious unconnected pins on the expander and multiplexer of course... But the DRC should catch that.
« Last Edit: Wed, 10 April 2019, 15:55:54 by bpiphany »
