Author Topic: Need help choosing IBM Model M  (Read 2315 times)

0 Members and 1 Guest are viewing this topic.

Offline edragy

  • Thread Starter
  • Posts: 6
Need help choosing IBM Model M
« on: Wed, 04 December 2013, 22:59:54 »
I am planning on purchasing a a IBM model M. I need it to work with a PS2/USB connector. The two keyboards that I can purchase are:

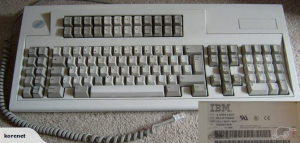

IBM 1394167 (5 wire RJ11 connector, 122 keys)
46870-0

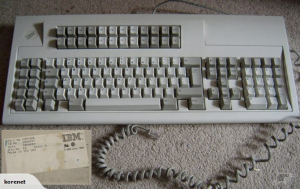

IBM 1394308  (RJ45 connector, apparently fits IBM 3476 or IBM 3477 terminals)
46868-1

If one of these can work with a modern PC, what sort of connector do I need?

Sorry if this is posted in wrong area, first post here
Logged

Offline dorkvader

  • Posts: 6289
  • Location: Boston area
  • all about the "hack" in "geekhack"
Re: Need help choosing IBM Model M
« Reply #1 on: Wed, 04 December 2013, 23:26:33 »
Hi and welcome to geekhack!

Both of those terminal model Ms will not work with a modern PC

The protocols, however, have been converted. The "soarer" code running on a teensy will do the trick for you.

here's the topic:
http://geekhack.org/index.php?topic=17458.0
Logged

Offline edragy

  • Thread Starter
  • Posts: 6
Re: Need help choosing IBM Model M
« Reply #2 on: Wed, 04 December 2013, 23:37:18 »
Thanks for the info. Would this work with a modern PC?
46884-0
Logged

Offline Tony

  • Posts: 1189
Re: Need help choosing IBM Model M
« Reply #3 on: Wed, 04 December 2013, 23:41:12 »
Logged
Keyboard: Filco MJ1 104 brown, Filco MJ2 87 brown, Compaq MX11800, Noppoo Choc Brown/Blue/Red, IBM Model M 1996, CMStorm Quickfire Rapid Black
Layout: Colemak experience, speed of 67wpm

Offline spremino

  • Posts: 362
  • Location: Italy
Re: Need help choosing IBM Model M
« Reply #4 on: Thu, 05 December 2013, 07:52:34 »
Look out for Model Ms with rubber domes.
Logged
A long space bar... what a waste of space!

Offline berserkfan

  • Posts: 2135
  • Location: Not CONUS Not CONUS Not CONUS Not CONUS
  • changing diapers is more fun than model f assembly
Re: Need help choosing IBM Model M
« Reply #5 on: Thu, 05 December 2013, 08:06:48 »
My friend, as a happy Model M user, I can reassure you that they all work with a Soarer. Really recommend you get one. That way, the Model M will become USB plug and play, and all the extra function keys (Which normally don't work in Windows) will be programmable and you can use them to execute macros or control sound volume.

Really, Soarer is like God around here. I can't imagine how much good he has done for us by creating that converter of his (And he's great with tech help as well!)

Quote from: edragy on Wed, 04 December 2013, 22:59:54
I am planning on purchasing a a IBM model M. I need it to work with a PS2/USB connector. The two keyboards that I can purchase are:
IBM 1394167 (5 wire RJ11 connector, 122 keys)
(Attachment Link)
IBM 1394308  (RJ45 connector, apparently fits IBM 3476 or IBM 3477 terminals)
(Attachment Link)

If one of these can work with a modern PC, what sort of connector do I need?

Sorry if this is posted in wrong area, first post here
Logged
Most of the modding can be done on your own once you break through the psychological barriers.

Offline terran5992

  • Posts: 1485
  • Location: Singapore
  • One With The Cup Rubber
Re: Need help choosing IBM Model M
« Reply #6 on: Thu, 05 December 2013, 08:53:21 »
Are those the only two you can get?
Logged
