Neat surface mount DAC proto with CNC engraving
« on: Wed, 01 January 2014, 14:44:16 »

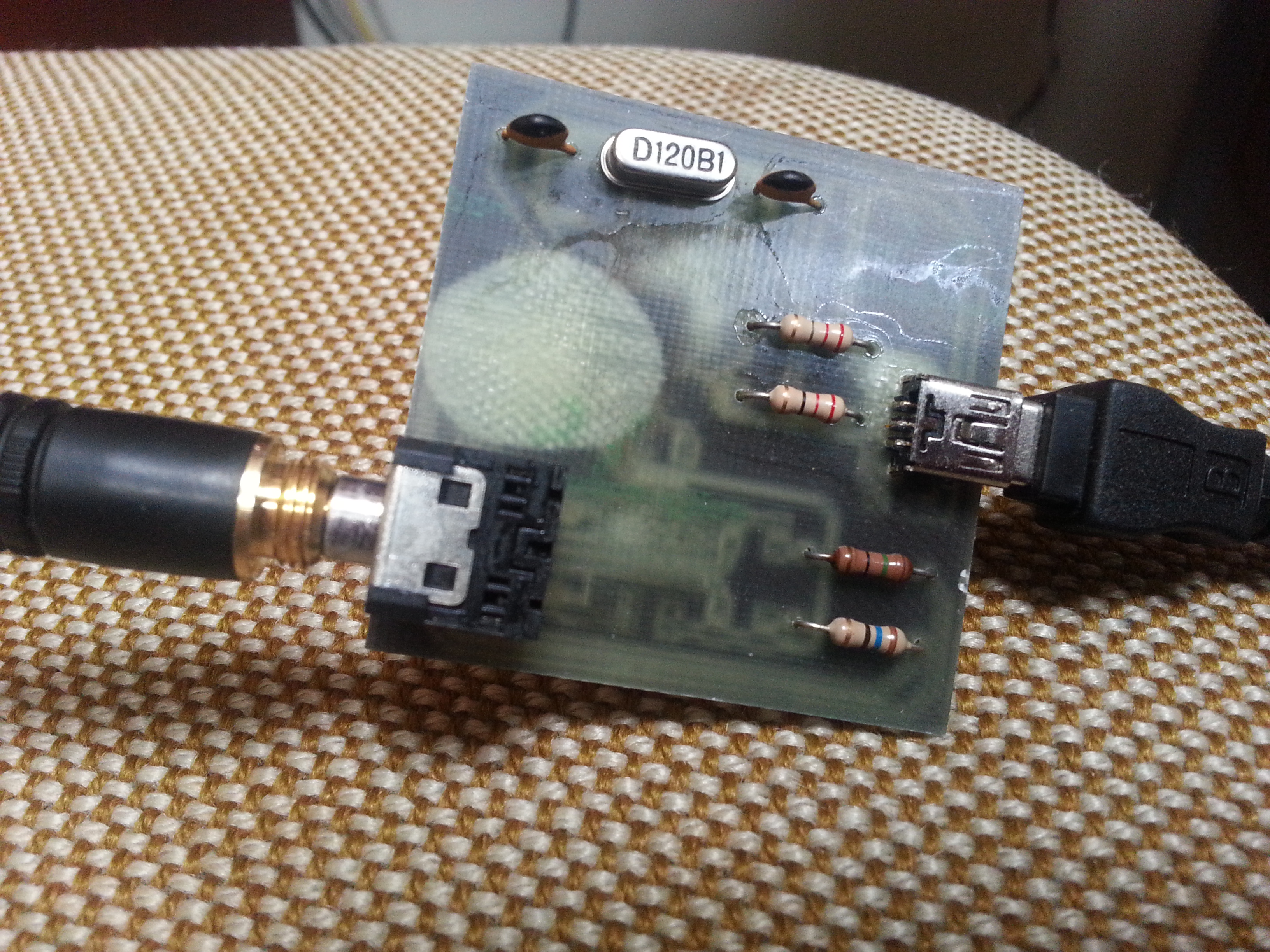

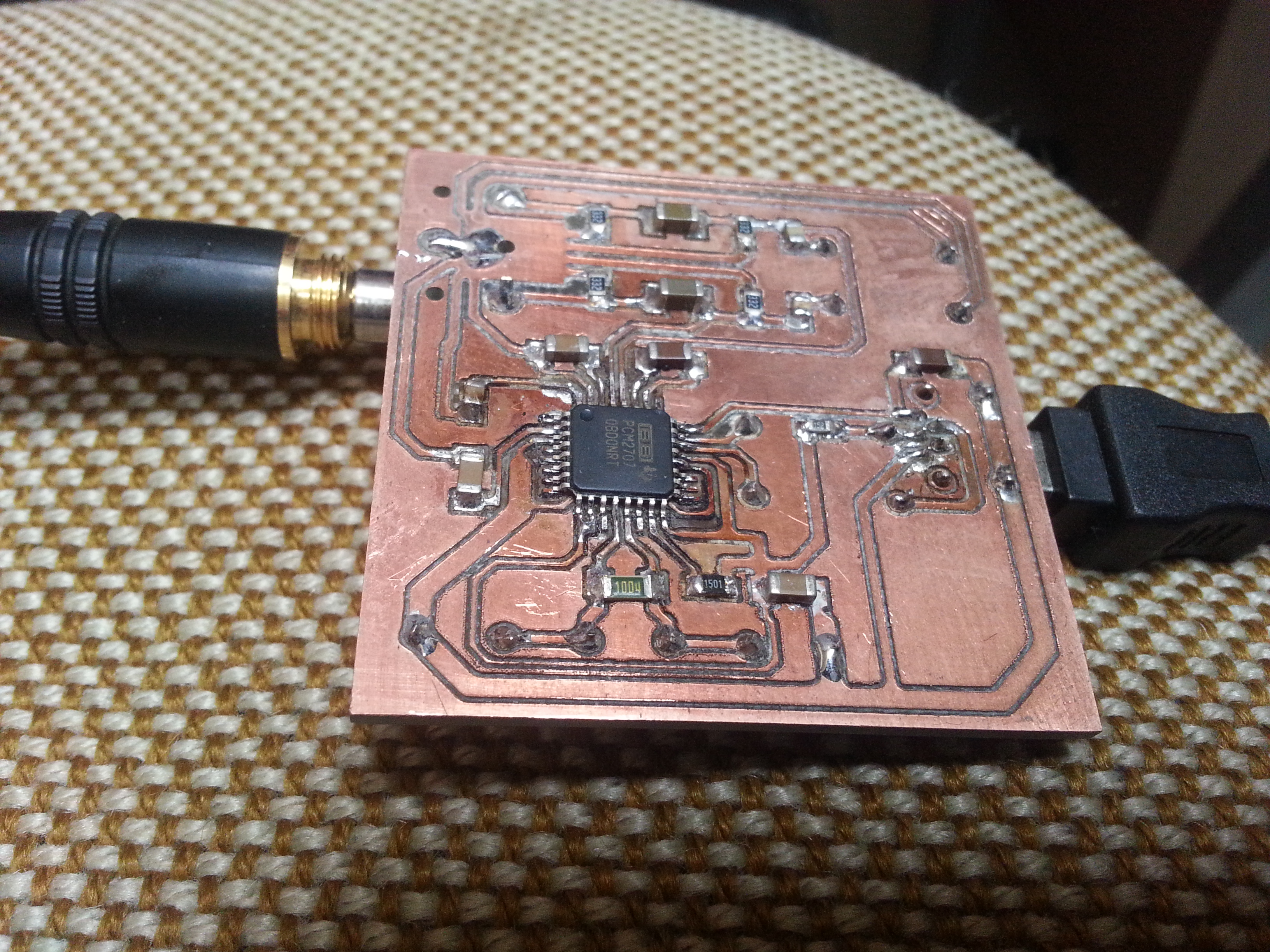

Over the new year my father and I made a prototype surface mount circuit board using a CNC engraving machine.  The assembled DAC works very well and we might turn this into a small product for mobile listening. Here are some pics of the assembled prototype.

49628-0
49630-1

Ask me anything about this project or equipment, and I'll do my best to answer.
Logged
60% keyboards, 100% of the time.

"What the hell Jimmy?!  It was ruined before you even put it up there with your decrepit fingers."

Offline Photekq

  • wheat flour zone
  • Posts: 4794
  • Location: North Wales, UK
  • sorry if i was ever an ******* to you
Re: Neat surface mount DAC proto with CNC engraving
« Reply #1 on: Wed, 01 January 2014, 14:46:07 »
THAT IS SO COOL BINGE
Logged
https://kbdarchive.org/
github
discord: hi mum#5710

Offline SpAmRaY

  • NOT a Moderator
  • * Certified Spammer
  • Posts: 14667
  • Location: ¯\(°_o)/¯
  • because reasons.......
Re: Neat surface mount DAC proto with CNC engraving
« Reply #2 on: Wed, 01 January 2014, 14:46:09 »
Whoa, that's cool!
Logged

Offline Dubsgalore

  • Banned
  • Posts: 2849
  • Location: 75% You have received a warning for attempting to circumvent the classifieds rules
    • Dubs - Sneakers, Keyboards, and Life
Re: Neat surface mount DAC proto with CNC engraving
« Reply #3 on: Wed, 01 January 2014, 14:54:07 »
Sick work bro, that's awesome :)
Logged

Offline HoffmanMyster

  • HOFF, smol MAN OF MYSTERY
  • * Senior Moderator
  • Posts: 11469
  • Location: WI
Re: Neat surface mount DAC proto with CNC engraving
« Reply #4 on: Wed, 01 January 2014, 17:06:48 »
That's awesome.  Looks very neat in addition to being functional.
Logged

Offline Binge

  • Island of Sandy Beaches
  • * Maker
  • Thread Starter
  • Posts: 3269
  • Location: Binge Haüs
  • With Gentle Time. I Feel Very Nice.
    • Hunger Work Studio
Re: Neat surface mount DAC proto with CNC engraving
« Reply #5 on: Wed, 01 January 2014, 17:56:28 »
Just got off the phone with my pops... digipot volume controlled by cherry MX switches in the works. Thumbdrive sized package :|
Logged
60% keyboards, 100% of the time.

"What the hell Jimmy?!  It was ruined before you even put it up there with your decrepit fingers."

Offline Pacifist

  • Report me *again* if there are gifs in my sig
  • * Elevated Elder
  • Posts: 3599
  • Location: Cali
  • on hiatus
Re: Neat surface mount DAC proto with CNC engraving
« Reply #6 on: Wed, 01 January 2014, 17:57:33 »
How much?
Logged

Offline Binge

  • Island of Sandy Beaches
  • * Maker
  • Thread Starter
  • Posts: 3269
  • Location: Binge Haüs
  • With Gentle Time. I Feel Very Nice.
    • Hunger Work Studio
Re: Neat surface mount DAC proto with CNC engraving
« Reply #7 on: Wed, 01 January 2014, 18:00:47 »
Quote from: Pacifist on Wed, 01 January 2014, 17:57:33
How much?

Tough to say at this point.  I would be assembling these myself and we are looking into making cases with the engraver.  How much would you want to spend on something like this?
Logged
60% keyboards, 100% of the time.

"What the hell Jimmy?!  It was ruined before you even put it up there with your decrepit fingers."

Offline Pacifist

  • Report me *again* if there are gifs in my sig
  • * Elevated Elder
  • Posts: 3599
  • Location: Cali
  • on hiatus
Re: Neat surface mount DAC proto with CNC engraving
« Reply #8 on: Wed, 01 January 2014, 19:42:57 »
Quote from: Binge on Wed, 01 January 2014, 18:00:47
Quote from: Pacifist on Wed, 01 January 2014, 17:57:33
How much?

Tough to say at this point.  I would be assembling these myself and we are looking into making cases with the engraver.  How much would you want to spend on something like this?

$30-$40. I don't own a DAC yet so I was thinking this is a good cheap entry level DAC
Logged

Offline Binge

  • Island of Sandy Beaches
  • * Maker
  • Thread Starter
  • Posts: 3269
  • Location: Binge Haüs
  • With Gentle Time. I Feel Very Nice.
    • Hunger Work Studio
Re: Neat surface mount DAC proto with CNC engraving
« Reply #9 on: Wed, 01 January 2014, 22:39:11 »
Quote from: Pacifist on Wed, 01 January 2014, 19:42:57
Quote from: Binge on Wed, 01 January 2014, 18:00:47
Quote from: Pacifist on Wed, 01 January 2014, 17:57:33
How much?

Tough to say at this point.  I would be assembling these myself and we are looking into making cases with the engraver.  How much would you want to spend on something like this?

$30-$40. I don't own a DAC yet so I was thinking this is a good cheap entry level DAC

I still can't comment on a price, but I can tell you it matches up pretty well against the modi.  That's pretty neat considering this device can only operate in the 16 bit domain for the time-being.
Logged
60% keyboards, 100% of the time.

"What the hell Jimmy?!  It was ruined before you even put it up there with your decrepit fingers."

Offline dorkvader

  • Posts: 6288
  • Location: Boston area
  • all about the "hack" in "geekhack"
Re: Neat surface mount DAC proto with CNC engraving
« Reply #10 on: Thu, 02 January 2014, 23:27:12 »
wow looks great! I've been interested in DIY DACs sicne the alien was relevant. I still need to finish making my AMB gamma2's

In terms of size it reminds me a lot of the grubdac / skeletondac projects. Can you comment on the SNR and other features?
Logged

Offline mkawa

  •  No Marketplace Access
  • Posts: 6562
  • (ツ)@@@. crankypants
Re: Neat surface mount DAC proto with CNC engraving
« Reply #11 on: Fri, 03 January 2014, 00:15:18 »
this is very close to an alien actually.
Logged

to all the brilliant friends who have left us, and all the students who climb on their shoulders.
