$40 fullsize RGB board
« on: Wed, 19 October 2016, 10:32:17 »
https://www.amazon.com/MechanicalEagle-Backlit-Mechanical-Keyboard-Switches/dp/B01I1N6J34?th=1

COUPON CODE: XTBNMORJ

Seems that each key is actually individually RGB controllable. Looks like SMD IC LEDs. Curious how they manage power consumption.
Logged
I typed this post on my Slanck. I also developed a stronger, cleaner, easier handwiring method.

Offline adevriesc

  • Posts: 35
Re: $40 fullsize RGB board
« Reply #1 on: Wed, 19 October 2016, 11:19:07 »
Every LED board manages power consumption with PWM. Essentially the LEDs are strobed at a frequency so fast that it's invisible and inaudible (as sometimes lower frequencies make a buzzing noise). 40 kHz+.
Logged

Offline cribbit

  • Thread Starter
  • Posts: 288
Re: $40 fullsize RGB board
« Reply #2 on: Wed, 19 October 2016, 11:30:03 »
Quote from: adevriesc on Wed, 19 October 2016, 11:19:07
Every LED board manages power consumption with PWM. Essentially the LEDs are strobed at a frequency so fast that it's invisible and inaudible (as sometimes lower frequencies make a buzzing noise). 40 kHz+.

More a comment that's it's a $40 keyboard, so if they didn't QC well enough you'll burn out a USB port (or more) running this. You have to use some form of PWM to stay under 500ma but some ports will only provide 100ma which will definitely be an issue. Also, these addressable LEDs which they seem to be using draw more power than your normal 4 pin.
Logged
I typed this post on my Slanck. I also developed a stronger, cleaner, easier handwiring method.

Offline mrboovn

  • Posts: 653
  • Location: Bay Area,CA
Re: $40 fullsize RGB board
« Reply #3 on: Thu, 20 October 2016, 00:14:39 »
Unavailable  :confused:
Logged
OTD 356 mini- 360c-456GT-356CL DGE-DK Saver(ALPS Green) | Duck Eagle V1+V2-Viper V1+V2-Poker-Pad-Orion V2-Octagon V2-Lightsaver V2-Kingsaver | KMAC Happy(60%)-Happy HHKB |LZ GH -LZ MX Mini | 2x TGR-CE-2x TGR 910 | TX CP | Dolphin V2-GH Edition|EM7 GH|ENVKX|M5-92|E8-V1|Exent|Matrix Abel|VNMK MX-Mini | Cherry G80-5000HAMRB |Realforce 108UW Hi Pro-45g 55UW-HHKB
Octagon v2-LSV v2-KMAC 1.2-Blackbird

https://www.flickr.com/gp/97473780@N08/10mLE5

Offline cribbit

  • Thread Starter
  • Posts: 288
Re: $40 fullsize RGB board
« Reply #4 on: Thu, 20 October 2016, 00:51:51 »
Quote from: mrboovn on Thu, 20 October 2016, 00:14:39
Unavailable  :confused:

I'm actually surprised it took this long.
Logged
I typed this post on my Slanck. I also developed a stronger, cleaner, easier handwiring method.

Offline 1391406

  • Posts: 1191
  • Posts: 24838
Re: $40 fullsize RGB board
« Reply #5 on: Thu, 20 October 2016, 12:48:01 »

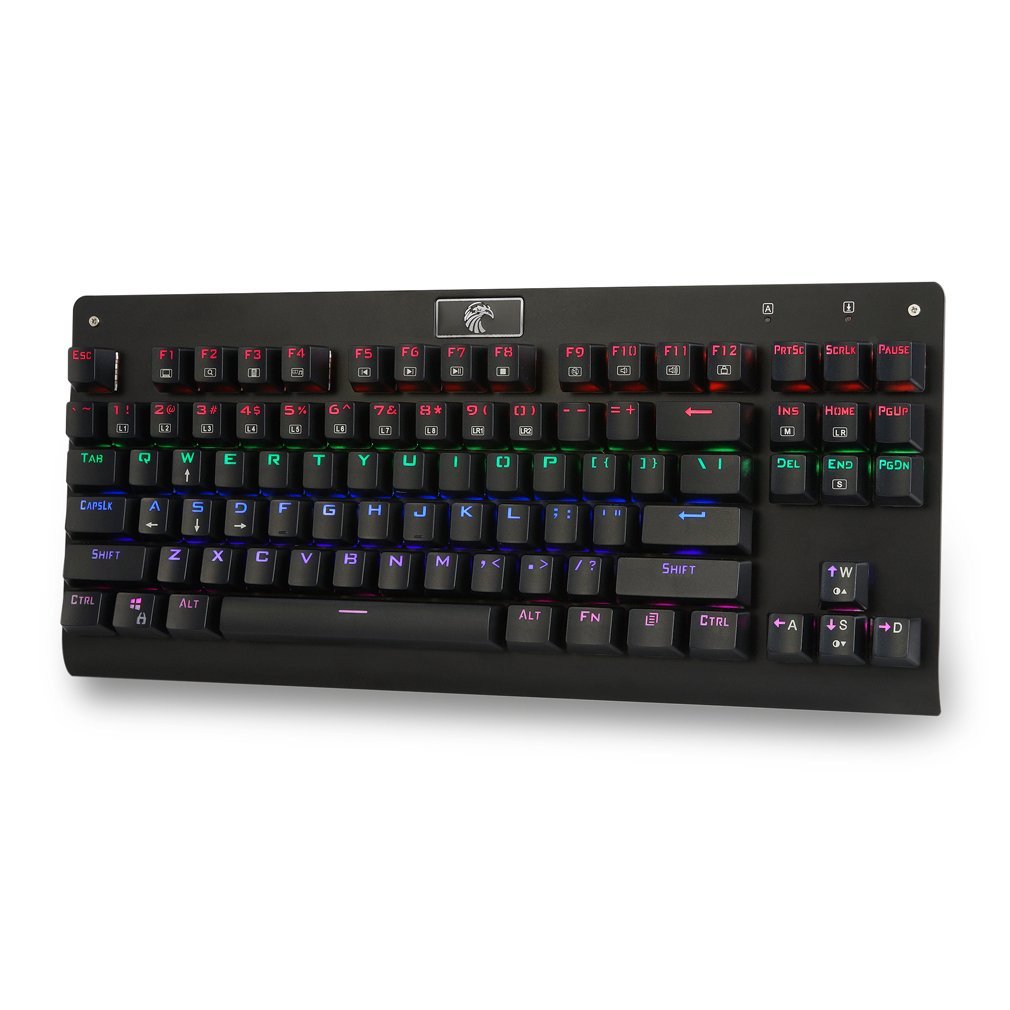

TKL version by the same company for $39.99

Logged
Unicomp Classic | Chicony KB-5181 (Monterey Blues) | IBM Model M (1391401) | IBM XT Model F | IBM AT Model F | Dell AT101W | 122-key IBM Model F
IBM Model M13 | Apple Extended Keyboard | Apple Extended Keyboard II | MTEK K104 | NTC KB-6251/2 | Realforce 87U | Realforce 104U | Type Heaven

Offline BinaryHalibut

  • Posts: 1
Re: $40 fullsize RGB board
« Reply #6 on: Thu, 20 October 2016, 13:18:46 »
Fairly sure that one's just different color backlight per row, and not actually RGB backlighting. The ones that say "multicolor backlit" are usually like this.
Logged

Offline cribbit

  • Thread Starter
  • Posts: 288
Re: $40 fullsize RGB board
« Reply #7 on: Thu, 20 October 2016, 16:57:02 »
Yep, the TKL is weirdly just different colored rows. I would understand if both were RGB or both were just colored rows, but I guess they decided to actually try for the fullsize and not the TKL.
Logged
I typed this post on my Slanck. I also developed a stronger, cleaner, easier handwiring method.
