Layout grabbed from apple m0110 board
« on: Sat, 15 July 2017, 13:08:13 »
Recently when I am ebaying some vintage keyboard, I found the apple M0110 layout somehow became very attractive to me,

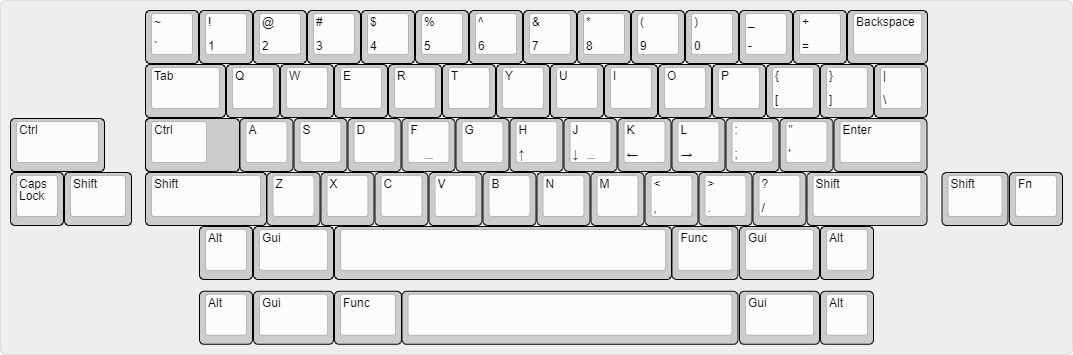

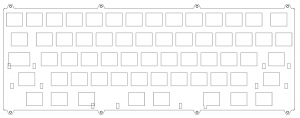

so I tried to scratch up this layout with layout editor, and here is what I got:
173383-0
173385-1

But I got in some trouble with the last row, since it is hard to find a 7.5U space bar nowadays,
I am thinking about splitting this 7.5U space into several keys. and here I am using a 6.25U spacebar and a 1.25U key
But I want some advice in making a split space bar with keys like 2.25U or 2.75U or 4U to increase the functionality
