[In Stock] OE93 Unique Layout Tri-mode Aluminum Mechanical Keyboard

[john08099]

OE93

Designed by NEKEY Studio

Discord | Instagram | TikTok | YouTube

Design

OE-93 is the first product in NE Key Studio's Retro Series. Inspired by IBM's classic MODEL F AT, its layout design incorporates the essence of IBM, combined with the designer's unique insights and modern user needs. After market research and analysis of user habits, the designer shifted the central input area to a 64-key layout on the left side.



The numeric keypad remains intact


The F-area on the left side of the keyboard is separated in the middle to reduce accidental presses. The independent four-key column provides more possibilities for custom shortcut keys.


The designer retained the nostalgic large forehead design of vintage keyboards and added stripe elements on the sides and center. In the middle, six multimedia shortcut keys are placed, which can be customized for different functions. This preserves the retro charm while seamlessly integrating modern elements, achieving a perfect blend of tradition and modernity.


The top-left metal nameplate uses magnetic attachment, allowing it to be easily lifted with a gentle press, and hides a compartment inside for storing the 2.4G receiver.


The keyboard features a sandwich-style design. The designer selected a vibrant color for the mid-frame that contrasts with the cool tones of the top and bottom case, adding depth to the overall look.

Color Options

Zinc Titanium White


Naples Yellow


Phthalocyanine Green


Eggshell Gray

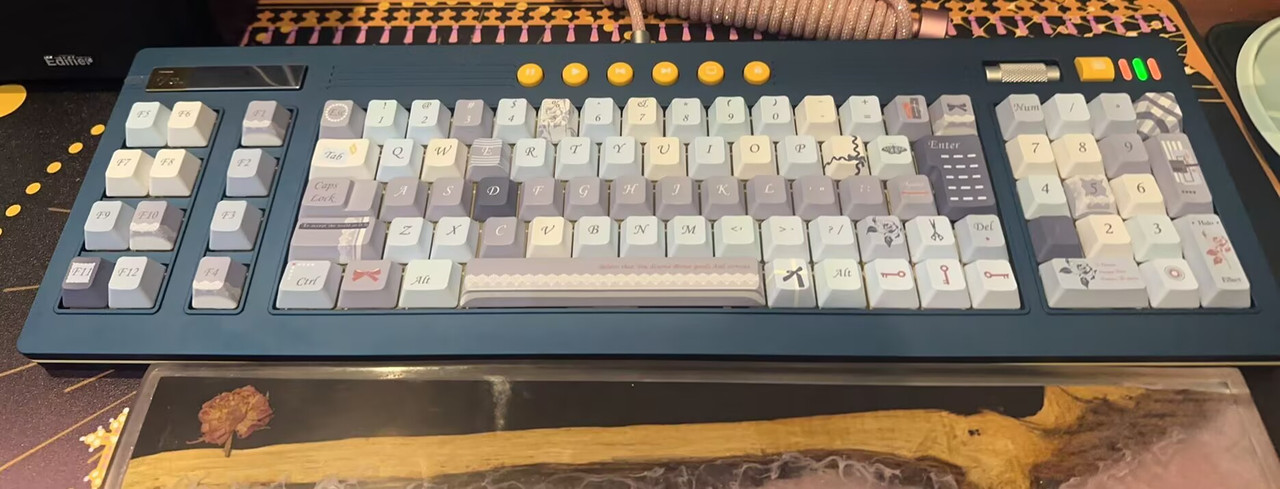

Gallery

Features

3 Mount To Choose
Plate Gasket


PCB Gasket


Top

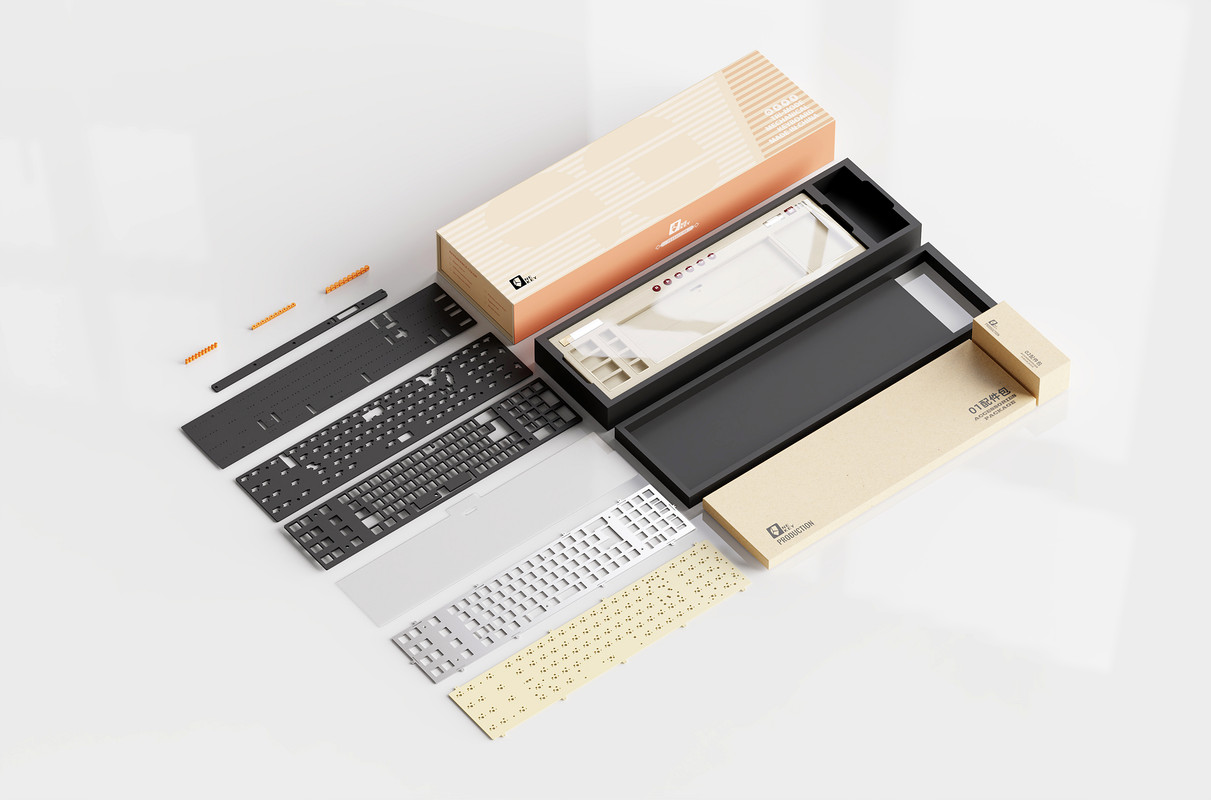

High-End Configuration and Craftsmanship

Material: 6063 aluminum case
Sound Dampening System:
Japanese Inoue poron 3.0mm pad
3.0mm switch socket silencer pad
0.5mm IXPE switch pad PET anti-static film

[/size]

Specifications

Mount: Plate Gasket, PCB Gasket, Top
Connectivity: Tri-mode
Material: 6063 CNC Aluminum
Surfacing: CNC spraying paint, PVD (nameplate)
Acoustic: Japanese Inoue poron 3.0mm pad; 3.0mm switch socket silencer pad; 0.5mm IXPE switch pad; PET anti-static film
Layout: Shift left 64; Left F zone, Pad zone; Stepped Capslock, Split backspace, ISO enter)
PCB: Hotswappable; Support ANSI Layout; Support VIA; 1.6mm; No flex cuts
Battery capacity: 6000mAh
Weight: 2.2kg
Size: 153 * 483 mm
Default Plate: Alu plate
Typing Angle: 7°
Compatible System: Support Windows & Mac
Connectivity: Wired, Bluetooth 5.0, 2.4G
Rolling rate: 1000Hz (Wired, 2.4G), 125Hz (Bluetooth)
Front Height: 19mm
Back light: No

Typing Test Video

Price Info

Price: 399 USD

Purchase Now

Please feel free to ask us any questions about the keyboard below!
