Author Topic: Swiss ISO Layout : what are my options?  (Read 4467 times)

0 Members and 1 Guest are viewing this topic.

Offline heavyzobech

  • Thread Starter
  • Posts: 1
  • Location: Switzerland
Swiss ISO Layout : what are my options?
« on: Thu, 12 June 2014, 11:55:57 »
Hey everybody,

Got my CMStorm QFR for a while, and as anybody who started typing on mech keyboards, I HAVE TO UPGRADE/PIMP IT!

The main issue is... I'm Swiss (french part), and I got used to write with a Swiss Layout. My QFR has a german layout (which is more or less the same layout except for the french accents and for the special signs).
I was wondering if, aside of WASD keyboards and its ABS custom keycaps, there were other options - like, say, someone who makes custom doubleshot PBT keycaps with OEM profile?  ;D

When I ask for options, I mean ANY options, even if it has to cost 200$ for a 88keyset - I'm just trying to understand how hard it is to get swiss layouts for mechanical keyboards... and, well, maybe a more seasoned Swissman will launch a group buy one day ?  :D

And, yes, I'll create a new post later about the layouts I'm drawing to show them and get some condescending comments regarding my tastes about fonts and stuff  :blank:

Offline Photekq

  • wheat flour zone
  • Posts: 4712
  • Location: North Wales/Loughborough, UK
  • sorry if i was ever an ******* to you
Re: Swiss ISO Layout : what are my options?
« Reply #1 on: Thu, 12 June 2014, 12:11:03 »
New doubleshots won't happen. Dyesubs.. maybe, but it'll cost you a lot. The best option, however, is some old doubleshots from a Cherry G80/G81-3000HAC. The C in HAC means Swiss layout.

I think Ascaii over at DT still has one for sale here. You will need to replace the ctrl, alt, windows, menu, spacebar and caps lock keys, since the originals won't fit your QFR. You can get these in the form of a GMK moogle kit, which should be fairly easy to find.

Oh, also, welcome to geekhack!
« Last Edit: Thu, 12 June 2014, 12:12:58 by Photekq »

Offline clickity

  • Posts: 4
Re: Swiss ISO Layout : what are my options?
« Reply #2 on: Fri, 14 August 2015, 02:26:00 »
Hey, Swiss, relatively new, lookig for good keycaps here :)

Sorry to wake up the zombie thread but... did you have any luck with your quest for good CH layout caps ? They are so damn hard to find !

And also, there is this Facebook group... https://www.facebook.com/groups/413271138854299/members/

There's literally *not even* dozens of us ! ;)
Model M, WASD v1, Dell AT102W

Offline IvanIvanovich

  • Mr. Silk Underwear
  • Posts: 8199
  • Location: USA
Re: Swiss ISO Layout : what are my options?
« Reply #3 on: Fri, 14 August 2015, 09:57:48 »
Same thing still holds true for the moment, look for old Cherry models in Swiss.
Now that ISO is available from Gateron, I will be offering some hard to find layout like Swiss as dyesub in the near future.

Offline clickity

  • Posts: 4
Re: Swiss ISO Layout : what are my options?
« Reply #4 on: Fri, 18 September 2015, 08:34:01 »
Hey, Swiss dyesub set would be awesome !

Where should I watch in order not to miss it ?
Model M, WASD v1, Dell AT102W

Offline Giorgio

  • Posts: 1846
  • Location: Italy
Re: Swiss ISO Layout : what are my options?
« Reply #5 on: Sun, 01 November 2015, 10:41:21 »
Right now there are some international DSA sets on sale on massdrop plus ISO kids. They are immediately available because they are left overs. After that, get a standard dsa set from pimp my keyboard.

Offline Red392

  • Posts: 2
Re: Swiss ISO Layout : what are my options?
« Reply #6 on: Tue, 05 May 2020, 12:43:59 »
Hi there! I'm bumping the Ol'zombie thread because I am very VERY eager to know of any development in the matter of swiss layout.

Are old cherry keyboards still the only source of good keycaps?

Any good board recomendation?

Thanks!

Offline Polymer

  • Posts: 1415
Re: Swiss ISO Layout : what are my options?
« Reply #7 on: Tue, 05 May 2020, 20:59:13 »
Hey, Swiss, relatively new, lookig for good keycaps here :)

Sorry to wake up the zombie thread but... did you have any luck with your quest for good CH layout caps ? They are so damn hard to find !

And also, there is this Facebook group... https://www.facebook.com/groups/413271138854299/members/

There's literally *not even* dozens of us ! ;)

Too bad I didn't see that when I was living in Lausanne....

Offline Photekq

  • wheat flour zone
  • Posts: 4712
  • Location: North Wales/Loughborough, UK
  • sorry if i was ever an ******* to you
Re: Swiss ISO Layout : what are my options?
« Reply #8 on: Wed, 06 May 2020, 19:37:34 »
Hi there! I'm bumping the Ol'zombie thread because I am very VERY eager to know of any development in the matter of swiss layout.

Are old cherry keyboards still the only source of good keycaps?

Any good board recomendation?

Thanks!

This isn't a definitive answer by any means, since I don't keep up with every new keycap offering/GB. So please take what I say with a pinch of salt, and hopefully someone will suggest something I'm unaware of.

From what I gather, your only options for 'readily available' Swiss keycaps would be a custom set from WASDkeyboards (just an example - you can design your own) or a backlit set from MAXkeyboard. I don't think anyone here would try and claim these keycaps are great though. They'll do the job, but they're not the best.

In regards to more "high quality" keysets like GMK, MT3, etc. it's very easy to find an ISO set, but I haven't seen a single set with Swiss layout support. It's understandable, since ISO alone gets less attention than ANSI, nevermind specific regional layouts. Swiss, as I'm sure you know, is far more niche than German or French as well. So, as far as high quality keysets go, you're still pretty much limited to original Cherry. I'm going to post a few examples I know of below to give you an idea of the variants. These are incredibly rare in Swiss layout though, so don't expect to find one quickly (or for a cheap price).

Thick, doubleshot ABS (first letter H) :

G80-3036HAC
G80-3036HAMCH (pictured with Russian stickers which are not a part of the original keyboard)
G80-3000HAC

Thick, dyesub PBT, my personal favourite (first letter S) :

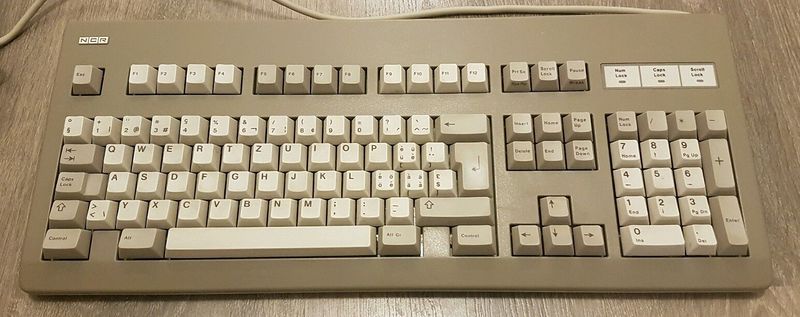

G81-3077SAC
G81-3081SAC

To boil it down to 2 rules :

You're looking for article numbers which contain either G80 or G81 at the start. This corresponds to MX or MY switches respectively. The keycaps used for MY keyboards are MX compatible (winkey layout has non-compatible modifiers, but that's unimportant for the Swiss layout keys).

For article numbers with 3 letters following the 4 digit number, you're looking for the last letter to be C e.g G80-3000HAC. For article numbers with 5 letters following the 4 digit number, you're looking for the last 2 letters to be CH e.g G80-3036HAMCH. These letters dictate the layout, and C/CH specifies Swiss layout.
« Last Edit: Thu, 07 May 2020, 10:39:04 by Photekq »

Offline Red392

  • Posts: 2
Re: Swiss ISO Layout : what are my options?
« Reply #9 on: Sun, 10 May 2020, 14:33:41 »
Thank you SO much for this awesome answer, I'm on the lookout for the S*C versions then!

Awesome help you gave me there,  I'll keep you updated on what I find!

Offline Photekq

  • wheat flour zone
  • Posts: 4712
  • Location: North Wales/Loughborough, UK
  • sorry if i was ever an ******* to you
Re: Swiss ISO Layout : what are my options?
« Reply #10 on: Sun, 10 May 2020, 19:39:55 »
Thank you SO much for this awesome answer, I'm on the lookout for the S*C versions then!

Awesome help you gave me there,  I'll keep you updated on what I find!
Best of luck with your search, I'll try and keep my eye out for you as well.

I've gotta warn you though: really, I can't understate just how rare these Swiss ones are. I'd temper your expectations, there's a chance it'll take you a long time to find a set.

Offline marshskitow

  • Posts: 7
Re: Swiss ISO Layout : what are my options?
« Reply #11 on: Sat, 16 May 2020, 19:14:16 »
Heyyy! I have the exact same problem! Welcome in switzerland  :thumb:

Other tips, Tai hao is about to do an FULL international PBT keyset
Check this out : https://www.instagram.com/p/B_U56miH6Mn/

There is also kprepublic who is doing a CH kit.
You'll find it at : https://kprepublic.com/collections/pbt-dye-sub-keycaps

Haard to be a swiss keyboard builder


Offline tr

  • Posts: 1
  • Location: CH
Re: Swiss ISO Layout : what are my options?
« Reply #12 on: Mon, 18 May 2020, 02:36:31 »
Thanks for sharing, marshskitow!

Really good news.

As a newbie to the scene - let me ask;
What is the best way to get those sets to switzerland, especially the one from tai-hao? massdrop?
Maybe we compatriots could set up some kind of group buy?

Greetings from the bernese oberland

t

Offline ullr

  • Posts: 256
  • Location: Plant City, FL
Re: Swiss ISO Layout : what are my options?
« Reply #13 on: Mon, 18 May 2020, 13:29:16 »
I recommend DSA Granite and DSA HC Granite as well if you don't mind mono legends. You can turn the colon key on its side for an Umlaut. It's just missing the section sign, but since that key is in the Escape position for a smaller keyboard that won't be a problem unless you prefer at least 75%.

Offline marshskitow

  • Posts: 7
Re: Swiss ISO Layout : what are my options?
« Reply #14 on: Tue, 19 May 2020, 10:15:09 »
Thanks for sharing, marshskitow!

Really good news.

As a newbie to the scene - let me ask;
What is the best way to get those sets to switzerland, especially the one from tai-hao? massdrop?
Maybe we compatriots could set up some kind of group buy?

Greetings from the bernese oberland

t

Well from tai hao you can order straight from their store. Shippement fee gonna be low i think.
The CH set is not out, they said to stay tuned. Gonna be release soon i guess.
