Author Topic: Dead LED on WASD Code  (Read 2695 times)

0 Members and 1 Guest are viewing this topic.

Offline Reiep

  • Thread Starter
  • Posts: 9
Dead LED on WASD Code
« on: Wed, 15 June 2016, 04:30:24 »
Hello all,

I've been (or was?) an happy WASD Code TKL user for the last few weeks when this happened:

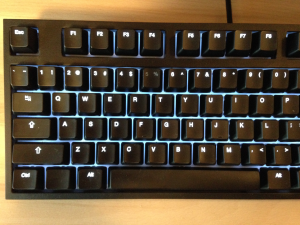

139793-0

The LED being the 5 key is dead. And it just scratches my OCD sooooo much. I would RMA it, if I wasn't in Europe: the costs to send it back to the US are very, very expensive. I've already contacted Massdrop to see if there is another solution.

So my question is: has it already happened to you guys? Is there a DIY solution for solving this? I'm not a genius at electronics stuffs, but at least I can solder things.

Thanks!
Logged

Offline Krustyboomer

  • Posts: 30
  • Location: USA
Re: Dead LED on WASD Code
« Reply #1 on: Wed, 15 June 2016, 06:08:55 »
Appears those are through the switch LEDs so you should be able to desoldering and replace fairly easily.  No idea on size/rating though.  If those were SMDs you'd be hosed and have to desoldering the whole board full of switches.
Logged

Offline QuincyJones

  • Posts: 270
  • Location: The Greatest Of Them All, England
Re: Dead LED on WASD Code
« Reply #2 on: Wed, 15 June 2016, 08:33:22 »
write a letter to wasd pointing out this thread, and how unhappy you are with what's happened. be nice and polite. Best case scenario?Rreplacement sent to you telling you to sed it back using prepiad. Worse case, their name is trashed.
Logged
SENT FROM MY TRKA-100-ULTRA-PRO-1R WITH FLASHY MULTI-COLOURED LEDS FOR MEGA ULTRA COOLNESS
(please like me)



Offline Moistgun

  • Slippery When Wet
  • * Esteemed Elder
  • Posts: 1832
Re: Dead LED on WASD Code
« Reply #3 on: Wed, 15 June 2016, 08:57:32 »
If you can already solder, and already have a soldering iron, you should be able to put in a 2x3x4 led in a couple minutes.
Logged

Offline chuckdee

  • * Destiny Supporter
  • Posts: 1308
Re: Dead LED on WASD Code
« Reply #4 on: Wed, 15 June 2016, 09:40:04 »
Quote from: QuincyJones on Wed, 15 June 2016, 08:33:22
write a letter to wasd pointing out this thread, and how unhappy you are with what's happened. be nice and polite. Best case scenario?Rreplacement sent to you telling you to sed it back using prepiad. Worse case, their name is trashed.

I think this is the correct answer before you take a soldering iron to a month old board.
Logged

Offline jcoffin1981

  • Posts: 861
Re: Dead LED on WASD Code
« Reply #5 on: Thu, 16 June 2016, 22:46:36 »
It may also be worth checking to see if the led is actually dead.  Slide a button battery CR2032 between the two led leads.  If lights it just has had a poor connection.  I've never had an LED die, but it does happen.  Soldering in a new led light is easy, but if you have never done this before it probably makes sense to just contact the company and see if you can get a replacement.  I have dealt with WASD and they are very customer friendly.
Logged
KPB V60 Gateron Browns and Leopold Keycaps.  Poker 3 with Gateron Browns and Poker keycaps.  Poker 3 with Cherry MX Browns, ABS keycaps and white LED's.

Leopold FC660M- my new favorite, right out of the box.

Offline rowdy

  • HHKB Hapster
  • * Erudite Elder
  • Posts: 21175
  • Location: melbourne.vic.au
  • Missed another sale.
Re: Dead LED on WASD Code
« Reply #6 on: Sun, 19 June 2016, 00:21:39 »
Nice letter first (as above).

Opening the case will void your warranty (not that it sounds like you'll be claiming anyway, unless you get the right response from WASD).

At least being white LEDs you won't have to worry much about colour-matching, especially if you do have OCD ;)
Logged
"Because keyboards are accessories to PC makers, they focus on minimizing the manufacturing costs. But that’s incorrect. It’s in HHKB’s slogan, but when America’s cowboys were in the middle of a trip and their horse died, they would leave the horse there. But even if they were in the middle of a desert, they would take their saddle with them. The horse was a consumable good, but the saddle was an interface that their bodies had gotten used to. In the same vein, PCs are consumable goods, while keyboards are important interfaces." - Eiiti Wada

NEC APC-H4100E | Ducky DK9008 Shine MX blue LED red | Ducky DK9008 Shine MX blue LED green | Link 900243-08 | CM QFR MX black | KeyCool 87 white MX reds | HHKB 2 Pro | Model M 02-Mar-1993 | Model M 29-Nov-1995 | CM Trigger (broken) | CM QFS MX green | Ducky DK9087 Shine 3 TKL Yellow Edition MX black | Lexmark SSK 21-Apr-1994 | IBM SSK 13-Oct-1987 | CODE TKL MX clear | Model M 122 01-Jun-1988

Ị̸͚̯̲́ͤ̃͑̇̑ͯ̊̂͟ͅs̞͚̩͉̝̪̲͗͊ͪ̽̚̚ ̭̦͖͕̑́͌ͬͩ͟t̷̻͔̙̑͟h̹̠̼͋ͤ͋i̤̜̣̦̱̫͈͔̞ͭ͑ͥ̌̔s̬͔͎̍̈ͥͫ̐̾ͣ̔̇͘ͅ ̩̘̼͆̐̕e̞̰͓̲̺̎͐̏ͬ̓̅̾͠͝ͅv̶̰͕̱̞̥̍ͣ̄̕e͕͙͖̬̜͓͎̤̊ͭ͐͝ṇ̰͎̱̤̟̭ͫ͌̌͢͠ͅ ̳̥̦ͮ̐ͤ̎̊ͣ͡͡n̤̜̙̺̪̒͜e̶̻̦̿ͮ̂̀c̝̘̝͖̠̖͐ͨͪ̈̐͌ͩ̀e̷̥͇̋ͦs̢̡̤ͤͤͯ͜s͈̠̉̑͘a̱͕̗͖̳̥̺ͬͦͧ͆̌̑͡r̶̟̖̈͘ỷ̮̦̩͙͔ͫ̾ͬ̔ͬͮ̌?̵̘͇͔͙ͥͪ͞ͅ

Offline Reiep

  • Thread Starter
  • Posts: 9
Re: Dead LED on WASD Code
« Reply #7 on: Thu, 23 June 2016, 02:25:08 »
Hi guys,

Thanks for the answers. I've contacted Massdrop (I've bought the keyboard via them), we're currently trying to fix the issue, without involving returning the keyboard to the US... as I'd like to avoid paying 40+ EUR transport for a LED problem.

If I can't find a solution with them, I'll open it and try the battery trick from jcoffin1981, if not I'll replace the LED myself... or I'll just live with it :D
Logged

Offline rowdy

  • HHKB Hapster
  • * Erudite Elder
  • Posts: 21175
  • Location: melbourne.vic.au
  • Missed another sale.
Re: Dead LED on WASD Code
« Reply #8 on: Thu, 23 June 2016, 21:48:57 »
Quote from: Reiep on Thu, 23 June 2016, 02:25:08
Hi guys,

Thanks for the answers. I've contacted Massdrop (I've bought the keyboard via them), we're currently trying to fix the issue, without involving returning the keyboard to the US... as I'd like to avoid paying 40+ EUR transport for a LED problem.

If I can't find a solution with them, I'll open it and try the battery trick from jcoffin1981, if not I'll replace the LED myself... or I'll just live with it :D

Good luck :)
Logged
"Because keyboards are accessories to PC makers, they focus on minimizing the manufacturing costs. But that’s incorrect. It’s in HHKB’s slogan, but when America’s cowboys were in the middle of a trip and their horse died, they would leave the horse there. But even if they were in the middle of a desert, they would take their saddle with them. The horse was a consumable good, but the saddle was an interface that their bodies had gotten used to. In the same vein, PCs are consumable goods, while keyboards are important interfaces." - Eiiti Wada

NEC APC-H4100E | Ducky DK9008 Shine MX blue LED red | Ducky DK9008 Shine MX blue LED green | Link 900243-08 | CM QFR MX black | KeyCool 87 white MX reds | HHKB 2 Pro | Model M 02-Mar-1993 | Model M 29-Nov-1995 | CM Trigger (broken) | CM QFS MX green | Ducky DK9087 Shine 3 TKL Yellow Edition MX black | Lexmark SSK 21-Apr-1994 | IBM SSK 13-Oct-1987 | CODE TKL MX clear | Model M 122 01-Jun-1988

Ị̸͚̯̲́ͤ̃͑̇̑ͯ̊̂͟ͅs̞͚̩͉̝̪̲͗͊ͪ̽̚̚ ̭̦͖͕̑́͌ͬͩ͟t̷̻͔̙̑͟h̹̠̼͋ͤ͋i̤̜̣̦̱̫͈͔̞ͭ͑ͥ̌̔s̬͔͎̍̈ͥͫ̐̾ͣ̔̇͘ͅ ̩̘̼͆̐̕e̞̰͓̲̺̎͐̏ͬ̓̅̾͠͝ͅv̶̰͕̱̞̥̍ͣ̄̕e͕͙͖̬̜͓͎̤̊ͭ͐͝ṇ̰͎̱̤̟̭ͫ͌̌͢͠ͅ ̳̥̦ͮ̐ͤ̎̊ͣ͡͡n̤̜̙̺̪̒͜e̶̻̦̿ͮ̂̀c̝̘̝͖̠̖͐ͨͪ̈̐͌ͩ̀e̷̥͇̋ͦs̢̡̤ͤͤͯ͜s͈̠̉̑͘a̱͕̗͖̳̥̺ͬͦͧ͆̌̑͡r̶̟̖̈͘ỷ̮̦̩͙͔ͫ̾ͬ̔ͬͮ̌?̵̘͇͔͙ͥͪ͞ͅ
