Hiya, peeps. I'm sure it's been documented somewhere else, but I just wanted to tell about my experience with R4 stabilizers. First off... they rock! The quality makes authentic cherry feel super cheap. Thick, rigid plastic, won't pull out when you have tight caps, and no need to clip mod. What's not to like?
I did have an issue with my particular board, a GH60 Satan RevCHN (the cheap clone GH60s on ebay). These boards are built for flexible layout and have a lot of extra holes to account for that. The screw for the right stabilizer post on the enter key makes contact with one of the switch pads on the back, causing they keyboard to register Backspace, / , Enter, Shift, and right Control. It's an easy fix with some tape to stop the contact, but just thought I would leave a note here for anyone experiencing issues.
Not my original photo, but I've circled everywhere you screw in the stabilizers on the Satan board (Green makes contact with leds which shouldn't cause issues, but red shows where trouble could occur)

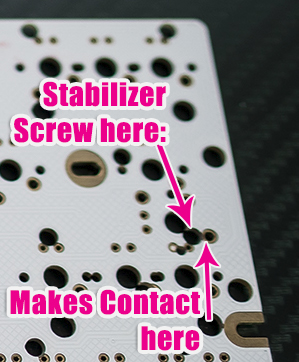

And here is a closeup of where I had issues on the Enter key stabilizer:
I guess that is an ISO hole? Anyway, when the screw made contact here, it caused the board to register a lot of key presses and basically not work. Simple fix was to put some tape over that hole before I screwed in the stabilizer. Worked!
Great work on these, zeal. I plan to order 2 more sets!
