I wasn't sure if I should post this here, in the group buy thread or in both, but I decided to post it just here.
My LZ-GH is an 86 in a black aluminum case with stock clear switches and full RED LEDs. Currently wearing full Red on Gray Klaxon.
Here is the beginning of my LZ-GH adventure. It took a little time because I made a mistake when I first wanted to put it together. I soldered my corner switches before putting in stabs *facepalm.

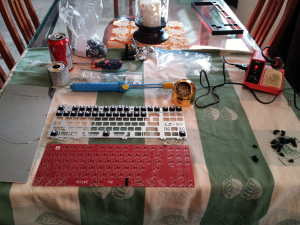

Here I have desoldered the corner switches, and I am ready to go.
![Post Your LZ-GH ! 28465-0](https://geekhack.org/index.php?PHPSESSID=2v91sanaclaj9c9jf1f5np8ctc3nji8q&action=dlattach;topic=44120.0;attach=28466;image)

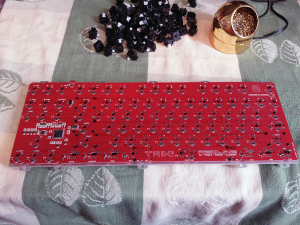

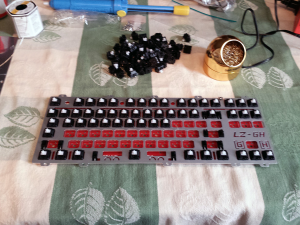

Soldering switches
![Post Your LZ-GH ! 28467-1](https://geekhack.org/index.php?PHPSESSID=2v91sanaclaj9c9jf1f5np8ctc3nji8q&action=dlattach;topic=44120.0;attach=28468;image)
![Post Your LZ-GH ! 28469-2](https://geekhack.org/index.php?PHPSESSID=2v91sanaclaj9c9jf1f5np8ctc3nji8q&action=dlattach;topic=44120.0;attach=28470;image)

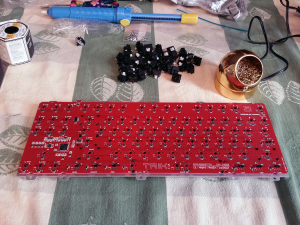

Not all switches are soldered on the bottom of the board.
![Post Your LZ-GH ! 28471-3](https://geekhack.org/index.php?PHPSESSID=2v91sanaclaj9c9jf1f5np8ctc3nji8q&action=dlattach;topic=44120.0;attach=28472;image)

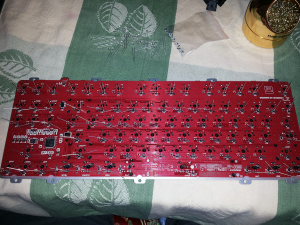

Soldering the LEDS
![Post Your LZ-GH ! 28473-4](https://geekhack.org/index.php?PHPSESSID=2v91sanaclaj9c9jf1f5np8ctc3nji8q&action=dlattach;topic=44120.0;attach=28474;image)

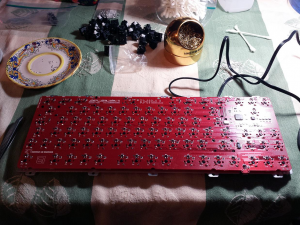

SMD soldering with solder iron isn't hard

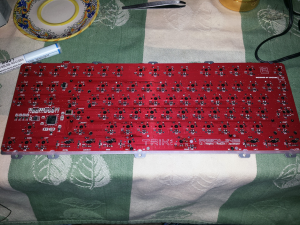

![Post Your LZ-GH ! 28475-5](https://geekhack.org/index.php?PHPSESSID=2v91sanaclaj9c9jf1f5np8ctc3nji8q&action=dlattach;topic=44120.0;attach=28476;image)
![Post Your LZ-GH ! 28477-6](https://geekhack.org/index.php?PHPSESSID=2v91sanaclaj9c9jf1f5np8ctc3nji8q&action=dlattach;topic=44120.0;attach=28478;image)

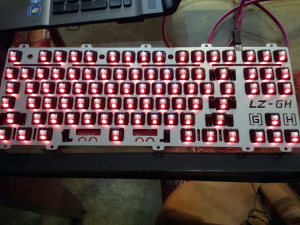

Does everything work?
![Post Your LZ-GH ! 28479-7](https://geekhack.org/index.php?PHPSESSID=2v91sanaclaj9c9jf1f5np8ctc3nji8q&action=dlattach;topic=44120.0;attach=28480;image)

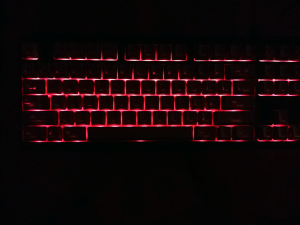

YES! Everything works
![Smiley :)](https://cdn.geekhack.org/Smileys/solosmileys/smiley.gif)
) .
![Post Your LZ-GH ! 28481-8](https://geekhack.org/index.php?PHPSESSID=2v91sanaclaj9c9jf1f5np8ctc3nji8q&action=dlattach;topic=44120.0;attach=28482;image)
![Post Your LZ-GH ! 28483-9](https://geekhack.org/index.php?PHPSESSID=2v91sanaclaj9c9jf1f5np8ctc3nji8q&action=dlattach;topic=44120.0;attach=28484;image)

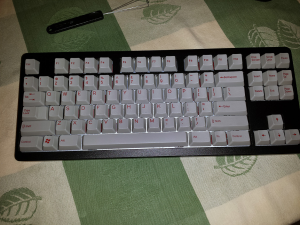

Very happy with the board. Now I just need to figure out if I can toggle the LEDs without the TrIK program xD.
