While looking for a fix for LED state not behaving as per stated in the manual, I came across this firmware on pcwaishe[Chinese Forum].
Original ThreadWARNING:
ISO USERS HAS REPORTED MIX RESULTS AFTER FLASHING.
DO NOT FLASH UNLESS YOU HAVE AN WORKING ISO FIRMWARE BACKUP
(WHICH I DON'T HAVE)Remarks:

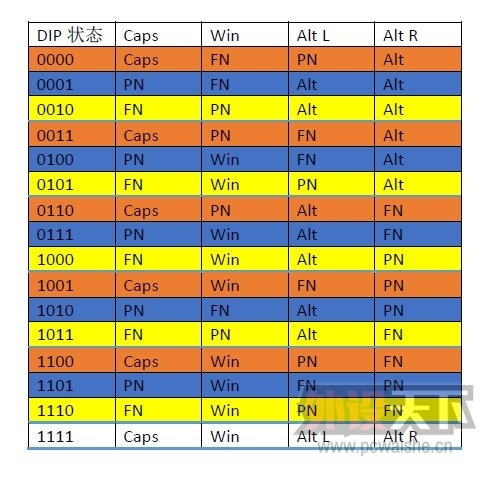

Poker II comes with 4 dip switch, thus allowing 16 different combination.
1) Toggle mode switches shifted from fn+right shift to fn+left shift
2) Pn mode switches sfhited from fn+right ctrl to fn+left ctrl
3)

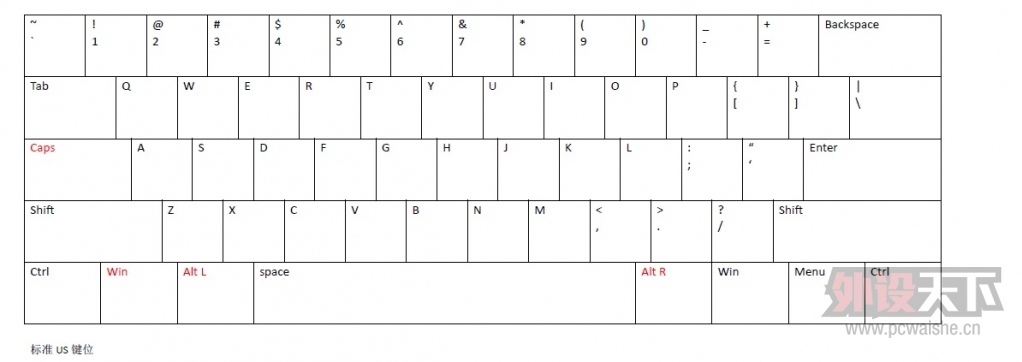

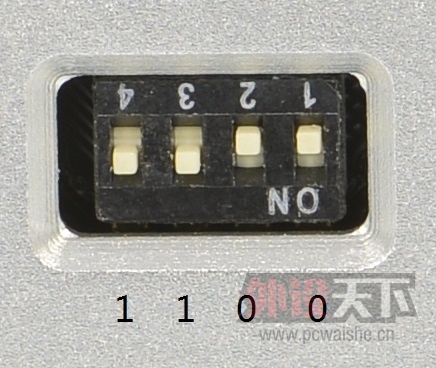

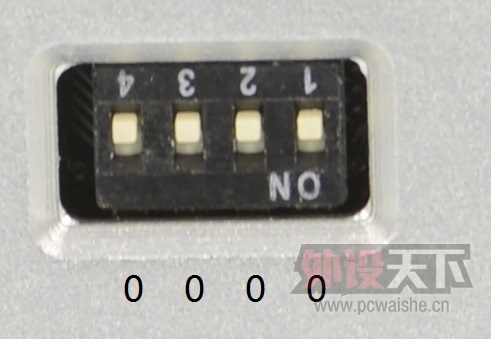

Keys highlighted in RED are the one modifiable by the dip, do note that Win key is Left Win4) DIP order are flipped(see picture)
Download:
Firmware File (The file you want is Poker II 独立方向键 固件v0.5.bin)
English Firmware Flasher and guide from VortexInstructions:
1) Download the firmware file as well as the bundle from Vortext
2) Rename the firmware file a non unicode file name(eg custom_dip_0.5.bin), as the tool does not supports unicode
3) Follow the instructions in the Vortex bundle but use the file you prepared in step 2.
4) On successful flashing, hold fn+r for 12 seconds(or 9 left space bar LED flashes)
5) Do remember your fn and pn are no longer fn and pn anymore, change the DIP settings based on the above chart.
