After typing on my Pure for a couple of years I came to realize there are some things I just wanted to change. I was going to make those some of those changes in the GH60, but, well... moving on. I sort of tried the 40% layout, but it just had too many function/layer changes for everyday use - particularly when it came to passwords. So, after some tinkering, I made my own thing. So far I can just start typing on it without really having to make any changes at all. Function keys are in easy to hit places for me, and I have still have dedicated arrow keys.

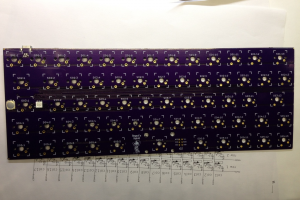

Here we are, getting read to start assembly.

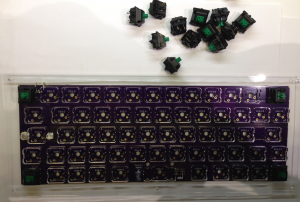

Moving along, MCU checked out, time to install some Greens. That's 3mm acrylic.

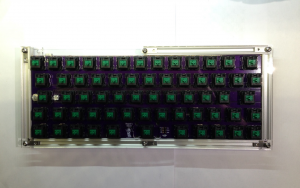

Switches installed, I ran out of the aluminum bits for the frame, so it's not quite done.

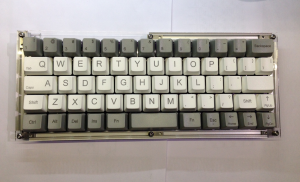

...and keycaps (WASD customs). I might eventually go all blanks, but I thought I might need some hints to get started, especially with the bottom row, and the tab/Q caps/A. Tab and caps are on the momentary function layer, as are the F-keys, home/end/pgup/pgdn, etc.

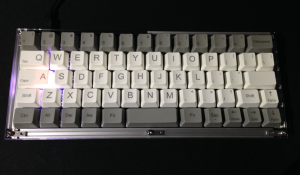

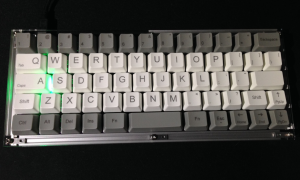

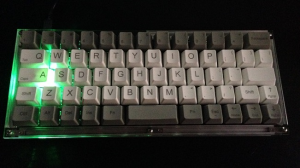

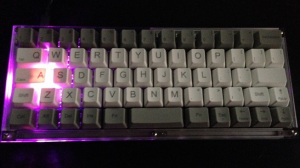

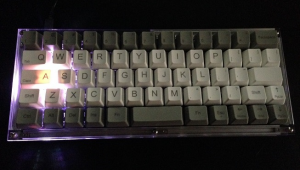

Here are some pretty colors with the indicator LED under the A/caps key:
Slightly better lighting?

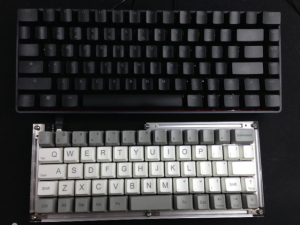

I should have taken some pictures next to the Pure, but I forgot, and my pictures are terrible anyway, but here it is next to the Race.
Anyway, I'm pretty excited about it
.
So, I'd like to take a minute here, before I run off and go play on 10fastfingers for a while... I'd like to say thank you to jdcarpe, for making me a plate design a year or more ago... and swill, for the new online tool, so I could re-check the layout. Hasu, for the firmware that I'm using, and everyone else for the inspiration. Thanks Geekhack!
