MrBishop Builds an ErgoDox mod
« on: Sat, 09 April 2016, 15:18:05 »
So i have kind of had my eye on the ErgoDox for awhile. One day a customer of mine approached me about building one. happy happy happy!

you all know the song and dance. i'll try to include resources as i can. but many can be googled just like i did.
ergodox.org
digikey
mechanicalkeyboards.com
github - ergodox offical case (i started here and modified)

here we go!

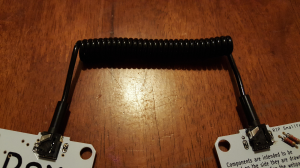

electronics. pretty basic. nothing really fancy here with the exception that i made the USB mini connector by hand soldering the connector i bought from Digikey (pain in the butt let me tell you)

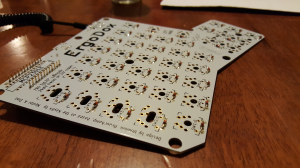

133905-0

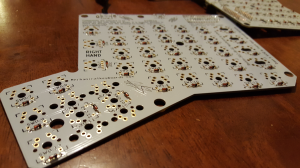

133907-1

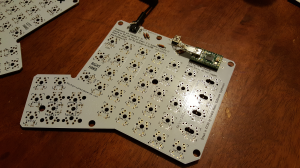

133909-2
133911-3

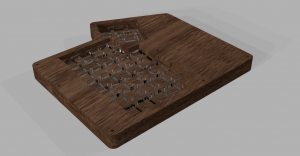

case design is abit different than the standard layered case. 3 pieces instead of 5 with the acrylic mid plate hidden inside the wooden outer frame. optimized for CNC machining.

i'm waiting on the customers final decision but this is the basic design so far.

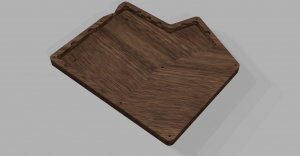

133913-4

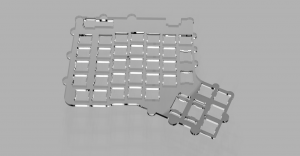

133915-5

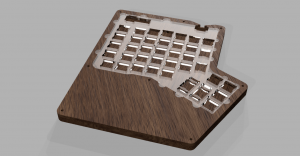

133917-6
133919-7

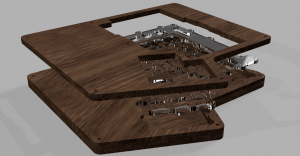

133921-8

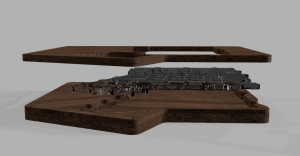

133923-9
Projects
Build to give back, 40% | Alps/Matias Removal ToolUltraHack 67% Hackdura  | ErgoDox case



Offline mrbishop

  • * Maker
  • Thread Starter
  • Posts: 799
  • Location: South Carolina USA
  • Evil Genius
    • Bishop Computer Design web
Re: MrBishop Builds an ErgoDox mod
« Reply #1 on: Sat, 09 April 2016, 15:18:29 »
reserved
Projects
Build to give back, 40% | Alps/Matias Removal ToolUltraHack 67% Hackdura  | ErgoDox case



Offline mrbishop

  • * Maker
  • Thread Starter
  • Posts: 799
  • Location: South Carolina USA
  • Evil Genius
    • Bishop Computer Design web
Re: MrBishop Builds an ErgoDox mod
« Reply #2 on: Tue, 12 April 2016, 17:32:48 »
prototype progress

forgive the cracked material. laminate board is horrible to work with especially the really cheap stuff. but its great for prototyping ;D
Projects
Build to give back, 40% | Alps/Matias Removal ToolUltraHack 67% Hackdura  | ErgoDox case



Offline fohat.digs

  • * Elevated Elder
  • Posts: 5679
  • Location: 3402'N, 8428'W
  • weird funny old guy
Re: MrBishop Builds an ErgoDox mod
« Reply #3 on: Tue, 12 April 2016, 17:48:07 »

One day a customer of mine approached me about building one.


The best!

Now you can build a prototype to ship out and learn all the pitfalls to avoid when you build your own!
"I never understood wind. I know windmills very much, I have studied it better than anybody. I know it is very expensive. They are made in China and Germany mostly, very few made here, almost none, but they are manufactured, tremendous if you are into this tremendous fumes and gases are spewing into the atmosphere. You know we have a world, right? So the world is tiny compared to the universe. So tremendous, tremendous amount of fumes and everything. You talk about the carbon footprint, fumes are spewing into the air, right spewing, whether it is China or Germany, is going into the air. A windmill will kill many bald eagles. After a certain number, they make you turn the windmill off, that is true. By the way, they make you turn it off. And yet, if you killed one, they put you in jail. That is OK. But why is it OK for windmills to destroy the bird population?" - Donald Trump - Turning Point USA speech - 2019-12-22

Offline mrbishop

  • * Maker
  • Thread Starter
  • Posts: 799
  • Location: South Carolina USA
  • Evil Genius
    • Bishop Computer Design web
Re: MrBishop Builds an ErgoDox mod
« Reply #4 on: Tue, 12 April 2016, 18:26:58 »

One day a customer of mine approached me about building one.


The best!

Now you can build a prototype to ship out and learn all the pitfalls to avoid when you build your own!

indeed. and i'll get the opportunity to test drive this thing to see if i even like it.

its also allowing me the opportunity to develop a case i can market.

how pretty would a solid wood ergodox frame be ;)
