MrBishop Builds an ErgoDox mod

[mrbishop]

So i have kind of had my eye on the ErgoDox for awhile. One day a customer of mine approached me about building one. happy happy happy!

you all know the song and dance. i'll try to include resources as i can. but many can be googled just like i did.
ergodox.org
digikey
mechanicalkeyboards.com
github - ergodox offical case (i started here and modified)

here we go!

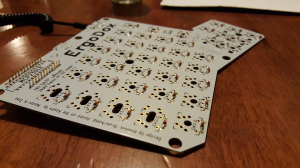

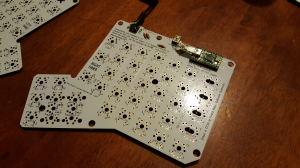

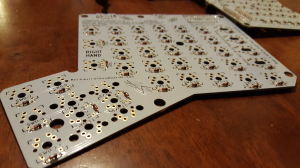

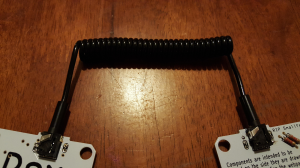

electronics. pretty basic. nothing really fancy here with the exception that i made the USB mini connector by hand soldering the connector i bought from Digikey (pain in the butt let me tell you)

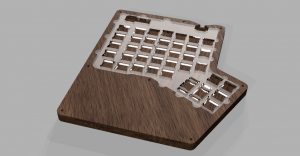

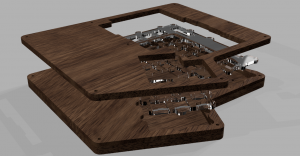

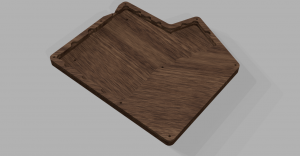

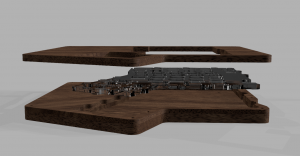

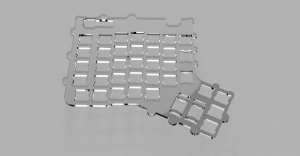

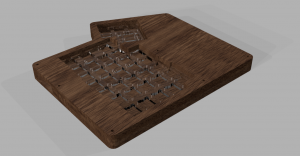

case design is abit different than the standard layered case. 3 pieces instead of 5 with the acrylic mid plate hidden inside the wooden outer frame. optimized for CNC machining.

i'm waiting on the customers final decision but this is the basic design so far.

[mrbishop]

reserved

[mrbishop]

prototype progress

forgive the cracked material. laminate board is horrible to work with especially the really cheap stuff. but its great for prototyping

[fohat.digs]

One day a customer of mine approached me about building one.

The best!

Now you can build a prototype to ship out and learn all the pitfalls to avoid when you build your own!

[mrbishop]

One day a customer of mine approached me about building one.

The best!

Now you can build a prototype to ship out and learn all the pitfalls to avoid when you build your own!

indeed. and i'll get the opportunity to test drive this thing to see if i even like it.

its also allowing me the opportunity to develop a case i can market.

how pretty would a solid wood ergodox frame be
