MrBishop Builds an ErgoDox mod
« on: Sat, 09 April 2016, 15:18:05 »
So i have kind of had my eye on the ErgoDox for awhile. One day a customer of mine approached me about building one. happy happy happy!

you all know the song and dance. i'll try to include resources as i can. but many can be googled just like i did.
ergodox.org
digikey
mechanicalkeyboards.com
github - ergodox offical case (i started here and modified)

here we go!

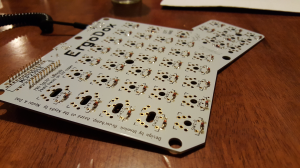

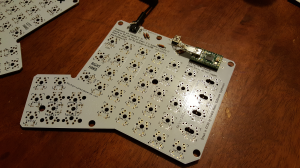

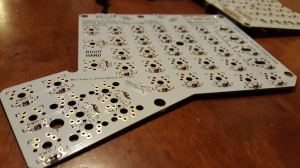

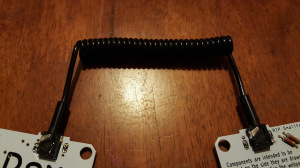

electronics. pretty basic. nothing really fancy here with the exception that i made the USB mini connector by hand soldering the connector i bought from Digikey (pain in the butt let me tell you)
133905-0
133907-1
133909-2
133911-3

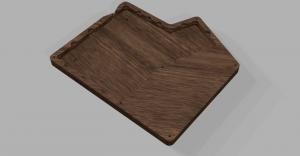

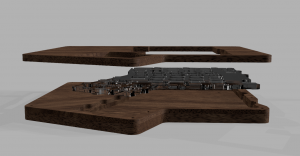

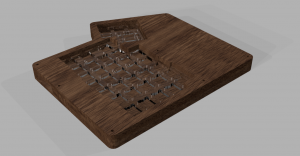

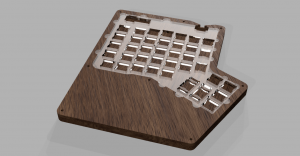

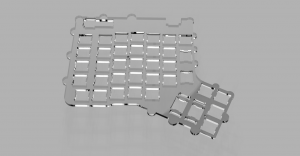

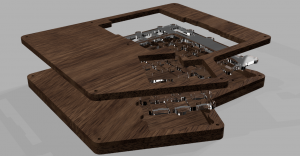

case design is abit different than the standard layered case. 3 pieces instead of 5 with the acrylic mid plate hidden inside the wooden outer frame. optimized for CNC machining.

i'm waiting on the customers final decision but this is the basic design so far.

133913-4
133915-5
133917-6
133919-7
133921-8
133923-9
