[IC] unnamed | a simple TKL (WKL RENDERS ADDED!)
« on: Mon, 19 August 2019, 02:41:40 »
unnamed: a simple tenkeyless designed by im hide

This design is a product of my distaste for flamboyant angles and edgy design, favoring simple angles and subdued looks. Drawing inspiration from multiple sources, unnamed was born to satisfy my wants and needs in a keyboard.

The goal of this interest check is to see whether or not people even share my views on case design, and to receive constructive feedback to put into future designs. A secondary goal would be to attract the interest of prospective vendors for a bit of guidance running a group buy, else I'll be running this one on my own as a small quantity. (10-30)







info
  • 7 degree typing angle
  • Top mount
  • Tenkeyless or WKL layout
  • 6063 Aluminum case
  • Matte Brass weight
  • Matte Brass or polycarbonate plate
  • $500 USD + paypal fee + shipping (Only an estimate as of now, pricing subject to manufacturer quote, and I definitely want to make this as affordable as possible)
  • Kit will include: Case, Plate, PCB, and Hex keys for assembly
  • PCB: Likely the h87a from hineybush



colors

       (As shown on a previous design with a brass plate, new renders pending, colors still tentative)


More








to-do

       sorted by priority (highest to lowest)


  • Bottom redesign/facelift(ver2?)
  • Prototype

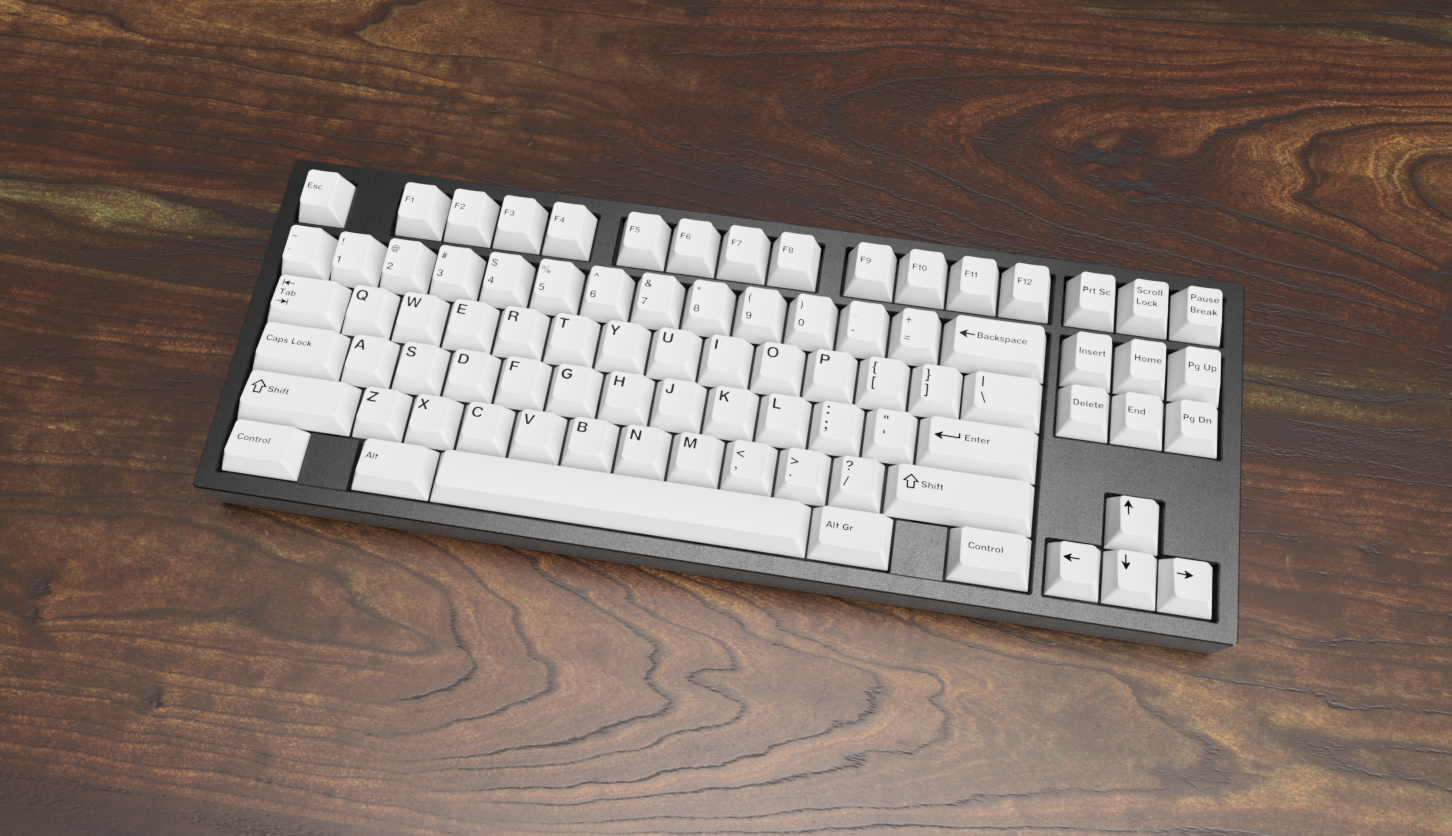

more renders

       More to come! Leave keycap suggestions in a reply for a render and I'll add them to a queue.


More














updates

  • 8/27 | Finished the universal plate layout (Now supports WKL and ISO!) as well as the WKL top. Now on to making summore renders since the old model used a stainless weight.
  • 8/28 | Bottom fascia redesign is done. Only thing left to do is renders, and then order prototype at the end of September.



closing

Thank you all so much for taking the time to check out my IC, I hope people share my enthusiasm for simple looks and I'll be glad to hear all of your feedback! I'm also considering opening up my discord for a more direct line of contact with me if there's any questions.
