Author Topic: 【IC】Graystudio HB85 Customized keyboard.【GB Open - Awaiting Approval】  (Read 12347 times)

0 Members and 1 Guest are viewing this topic.

Offline AIRPOTTER

  • Thread Starter
  • Posts: 291
GB is opening!
https://en.zfrontier.com/collections/keyboards/products/gray-hb85

In March of this year, I released a post about  HB85 and oblivion. :)

More pictures of HB85:http://www.zfrontier.com/post/detail/9815?replyId=157809

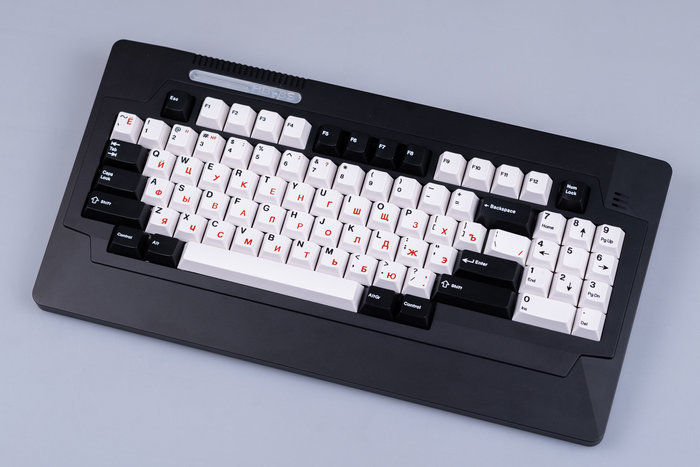

Ex pictuer
205536-0
PCB

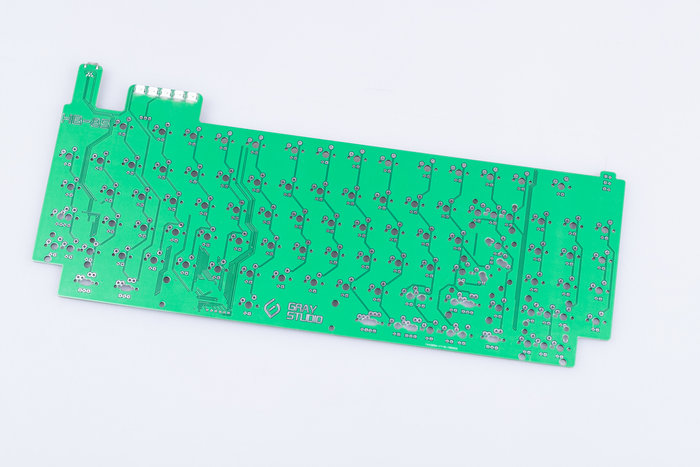

205538-1
Transmission gate:https://geekhack.org/index.php?topic=94753.msg2580101#msg2580101

And this is a separate update of HB85, so I made a separate HB85 post.

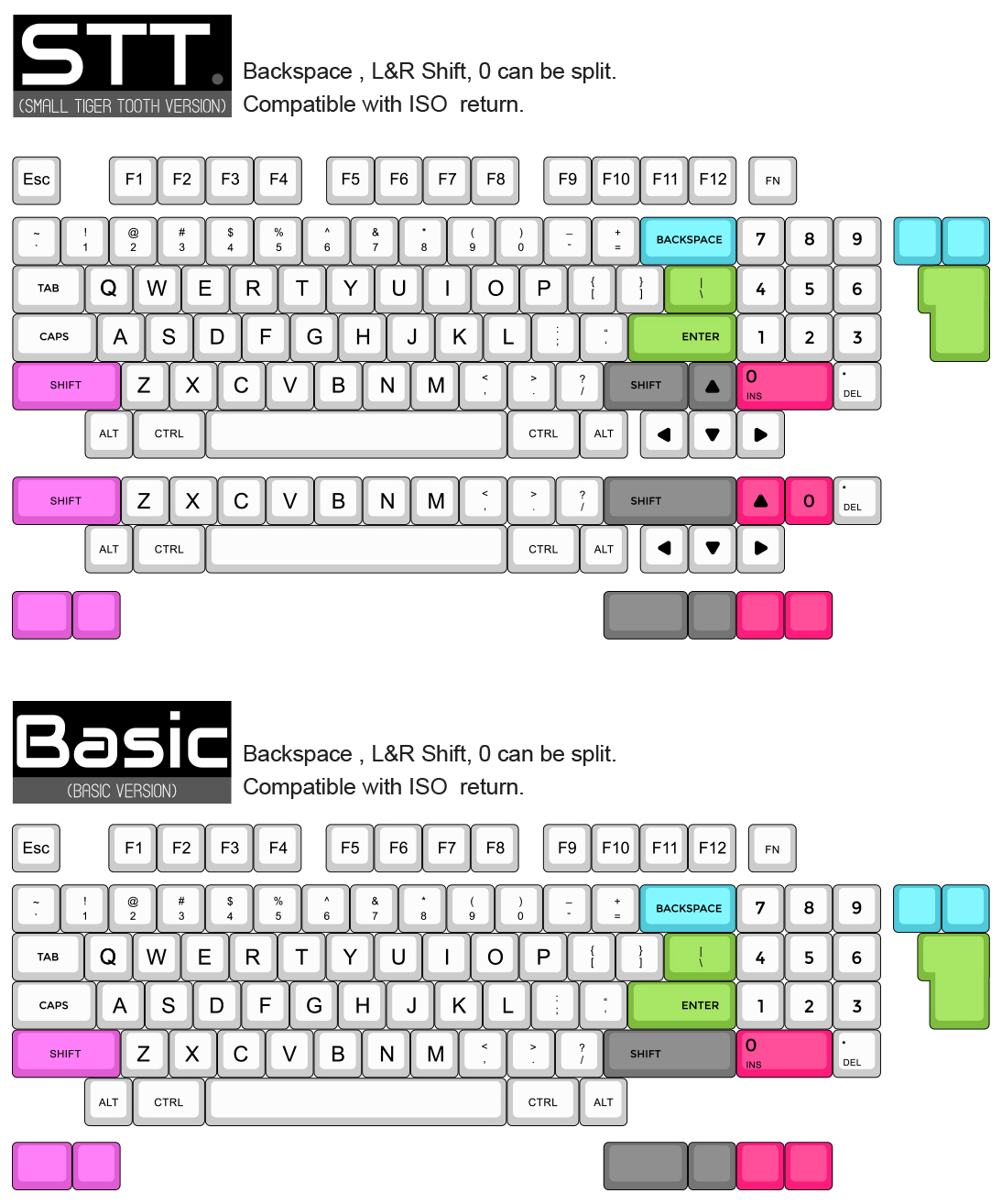

The first is about the layout of HB85.
202886-2
As shown, there are two versions(STT&Basic) to choose from :p.

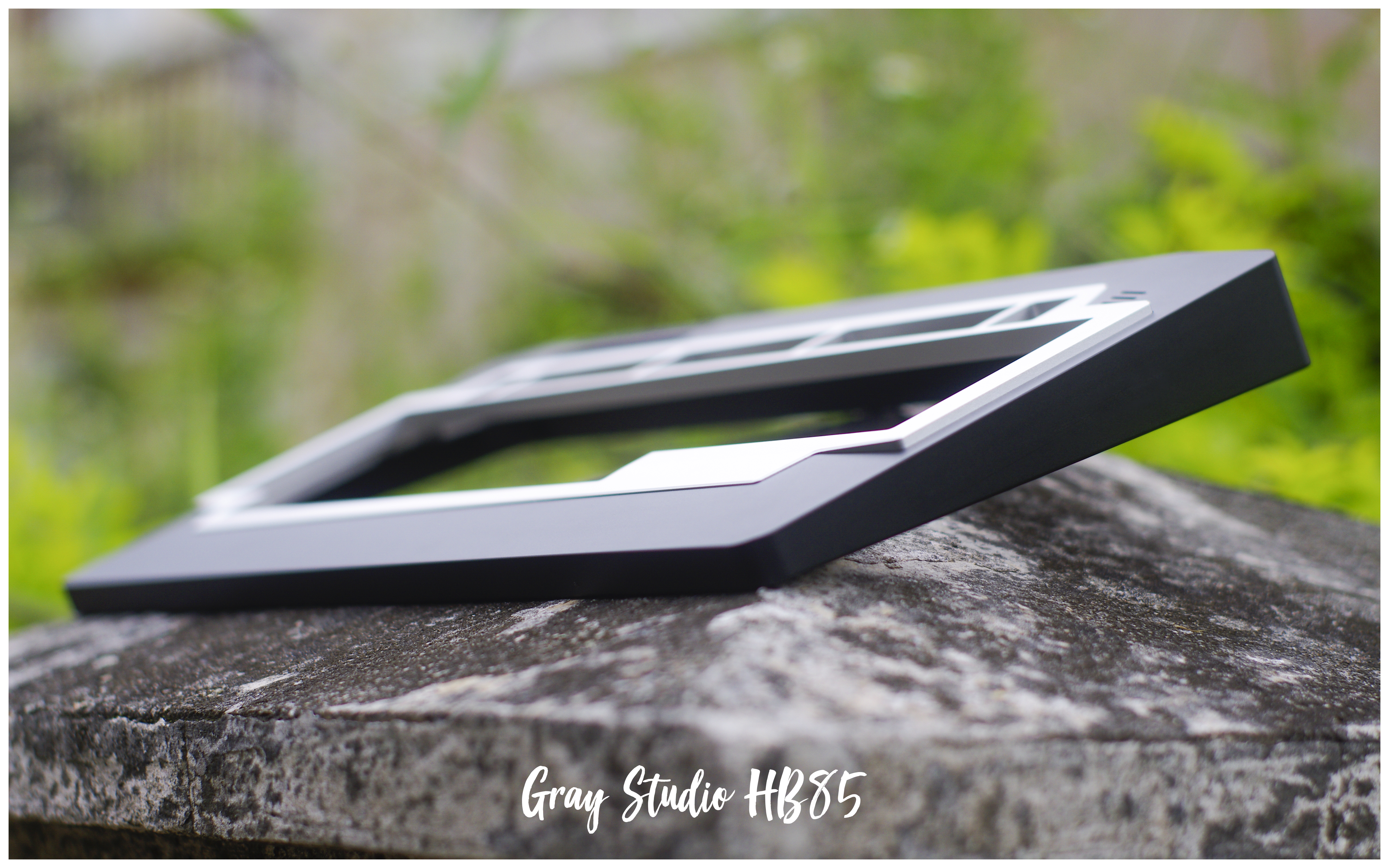

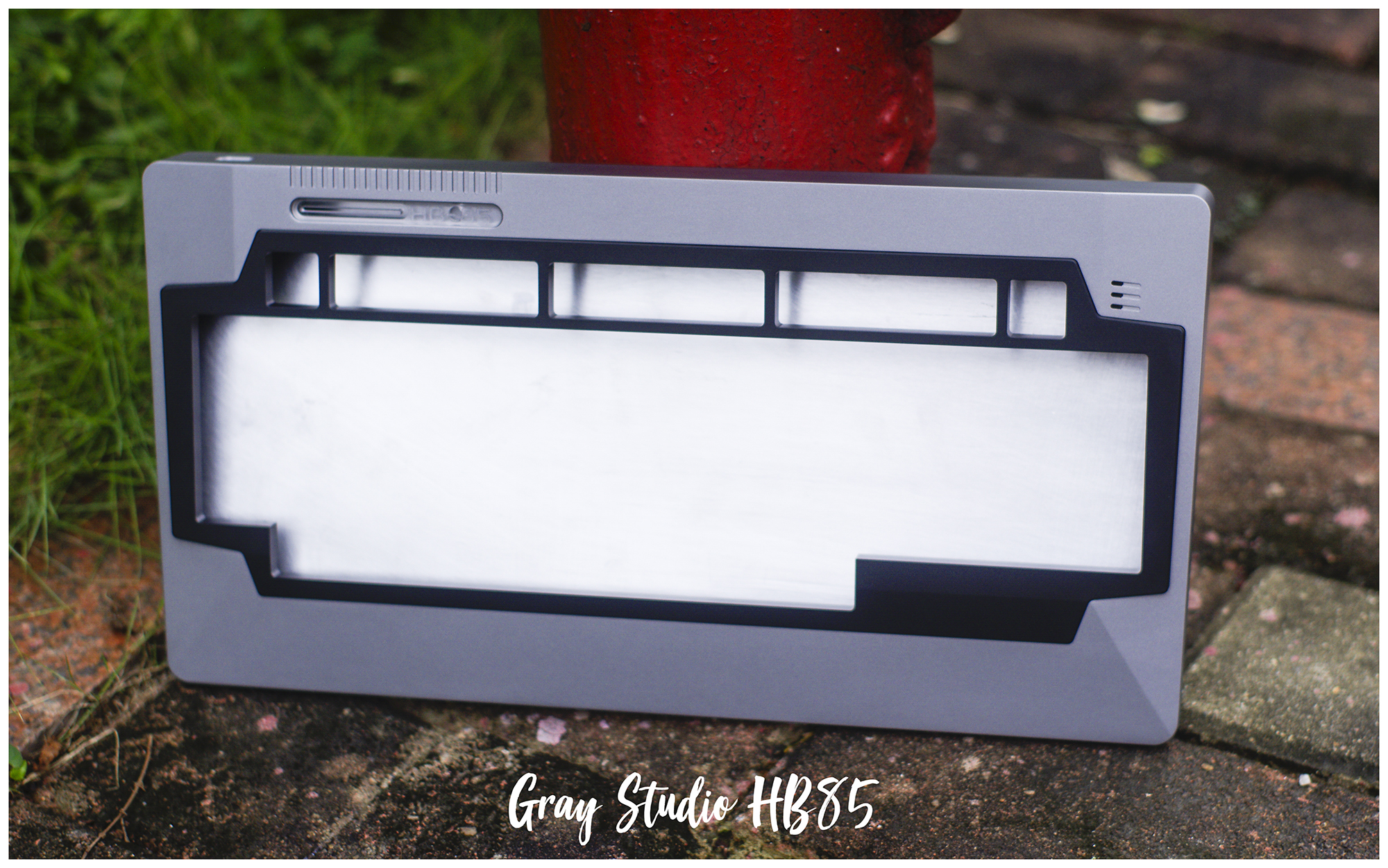

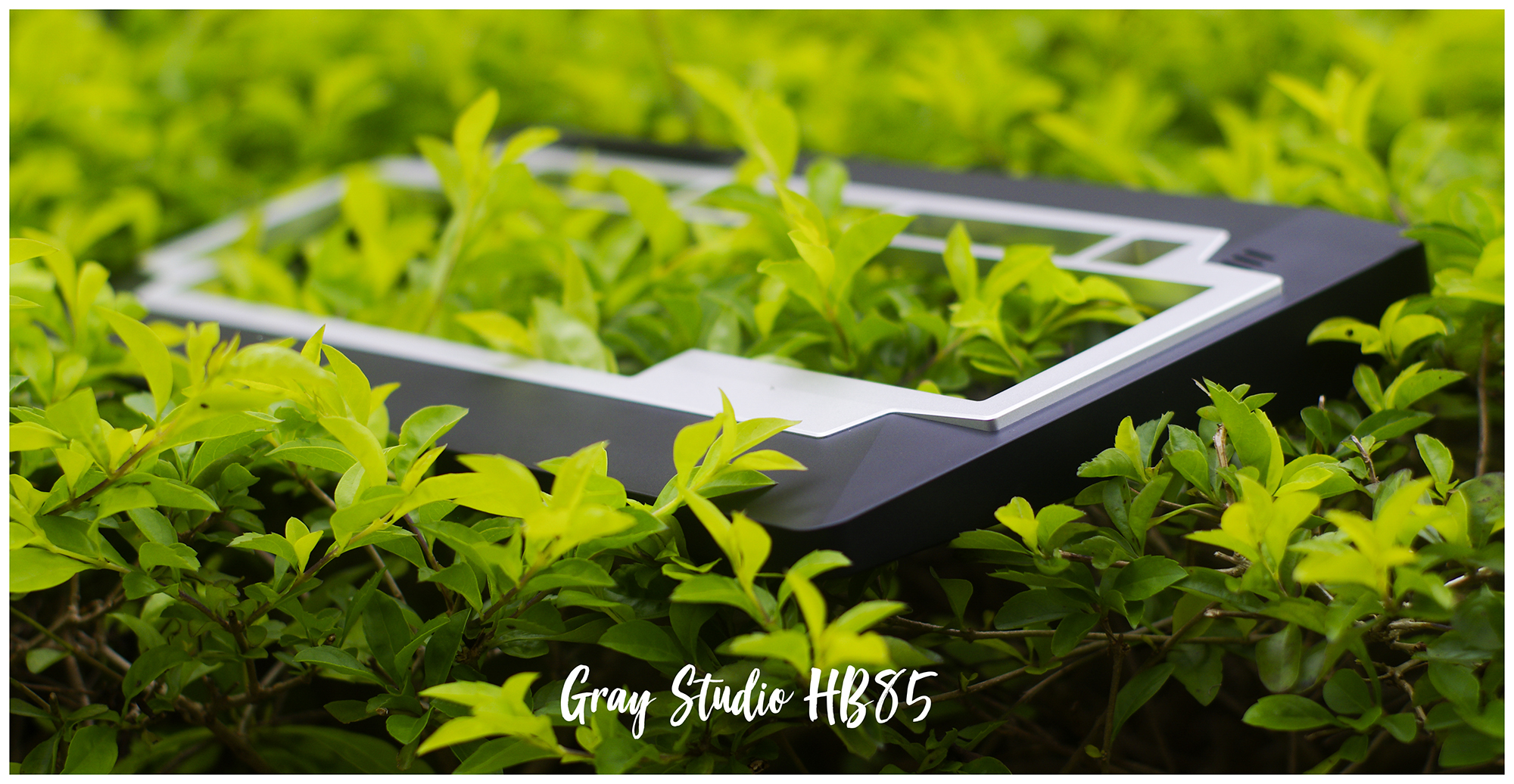

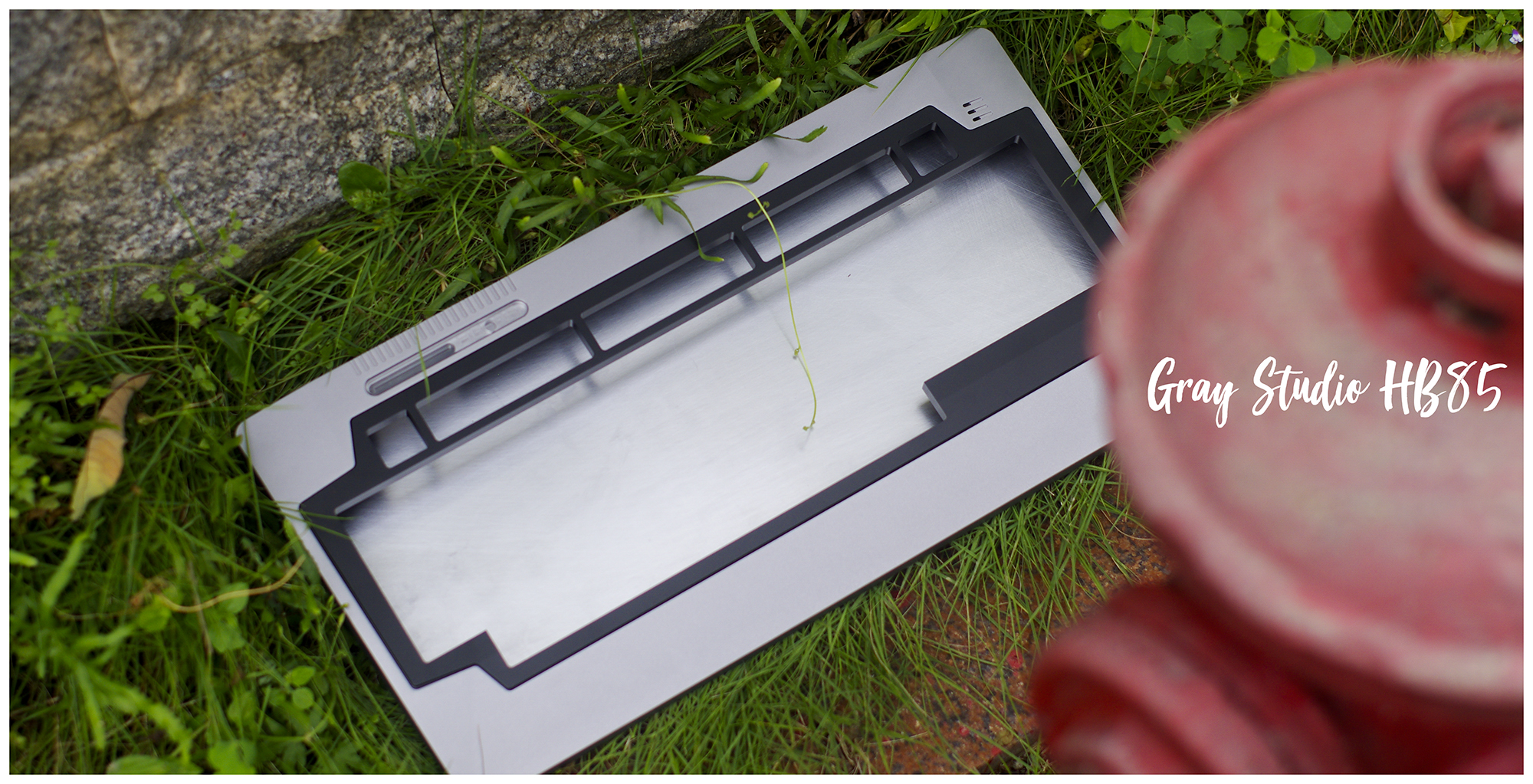

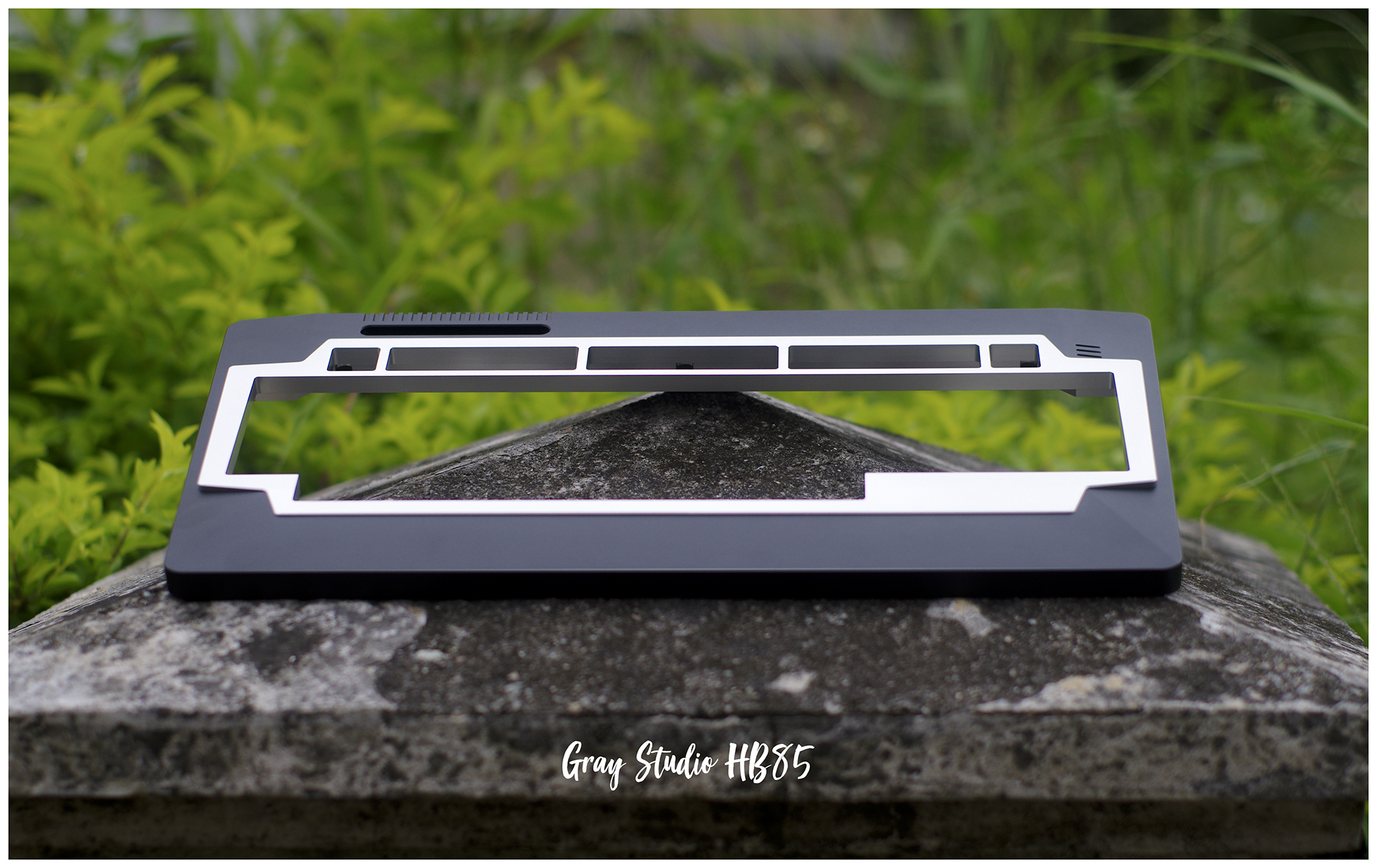

Now,the CNC and anode oxidation proofing work has been completed.So I'll update some photos.

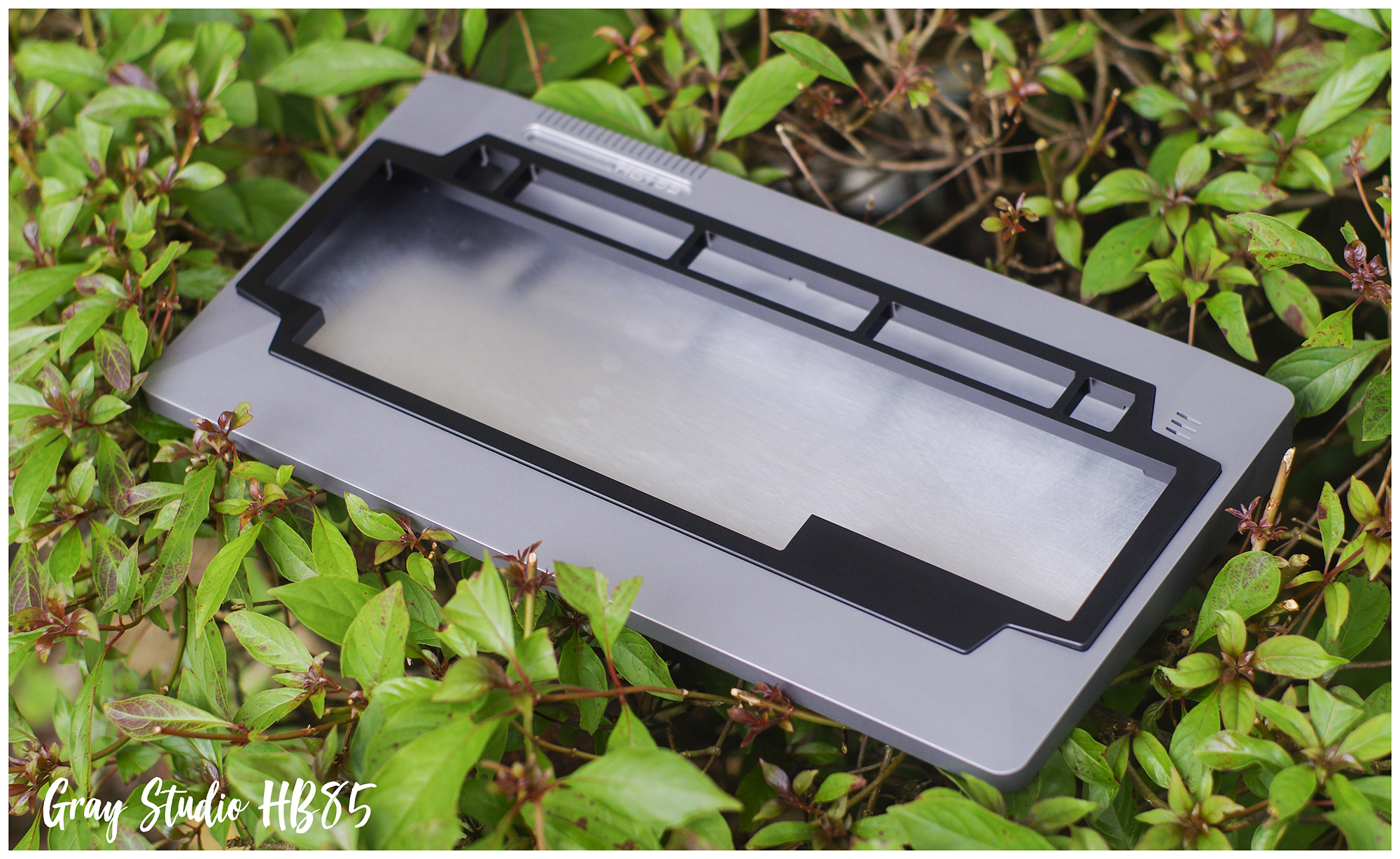

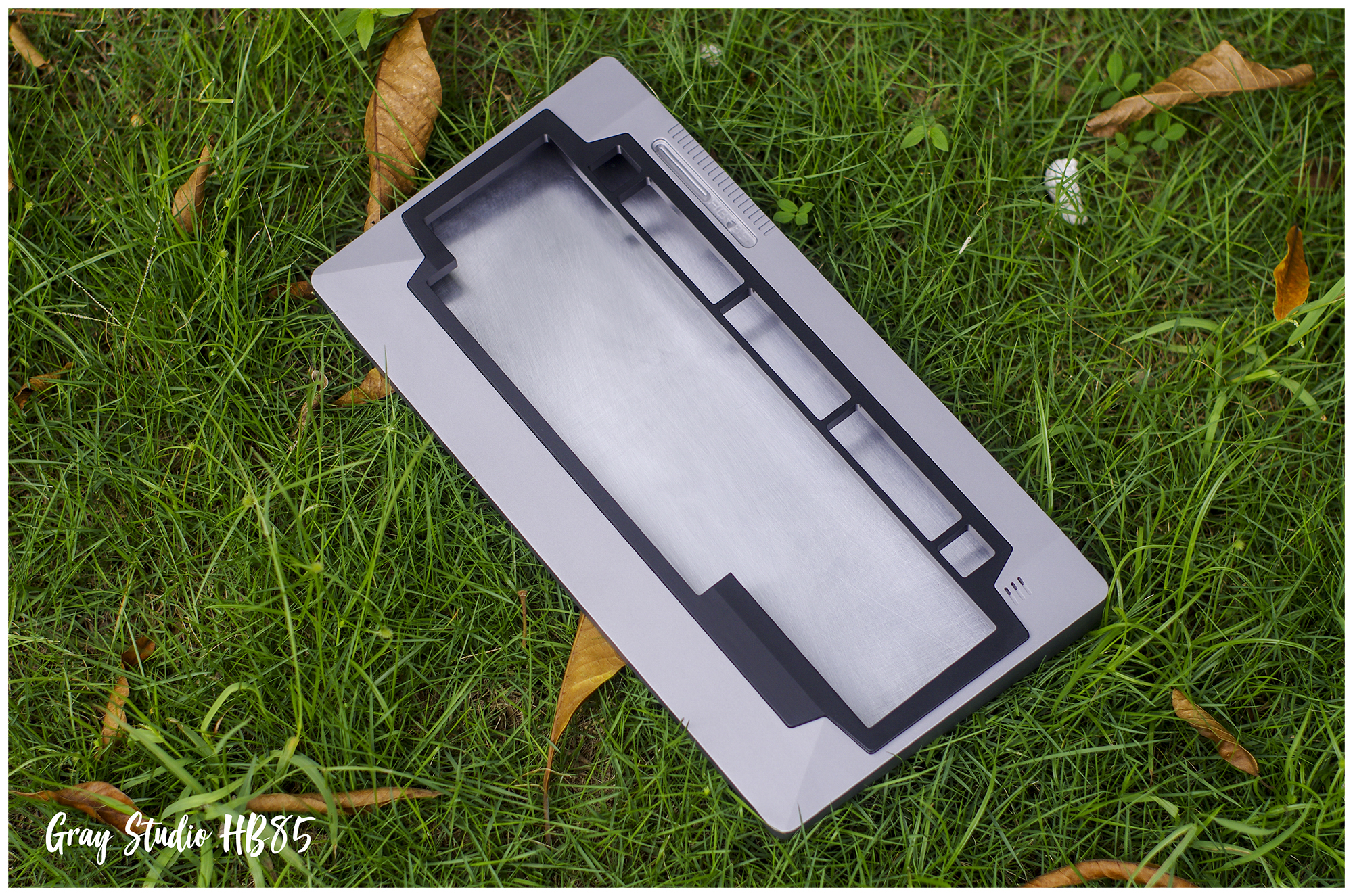

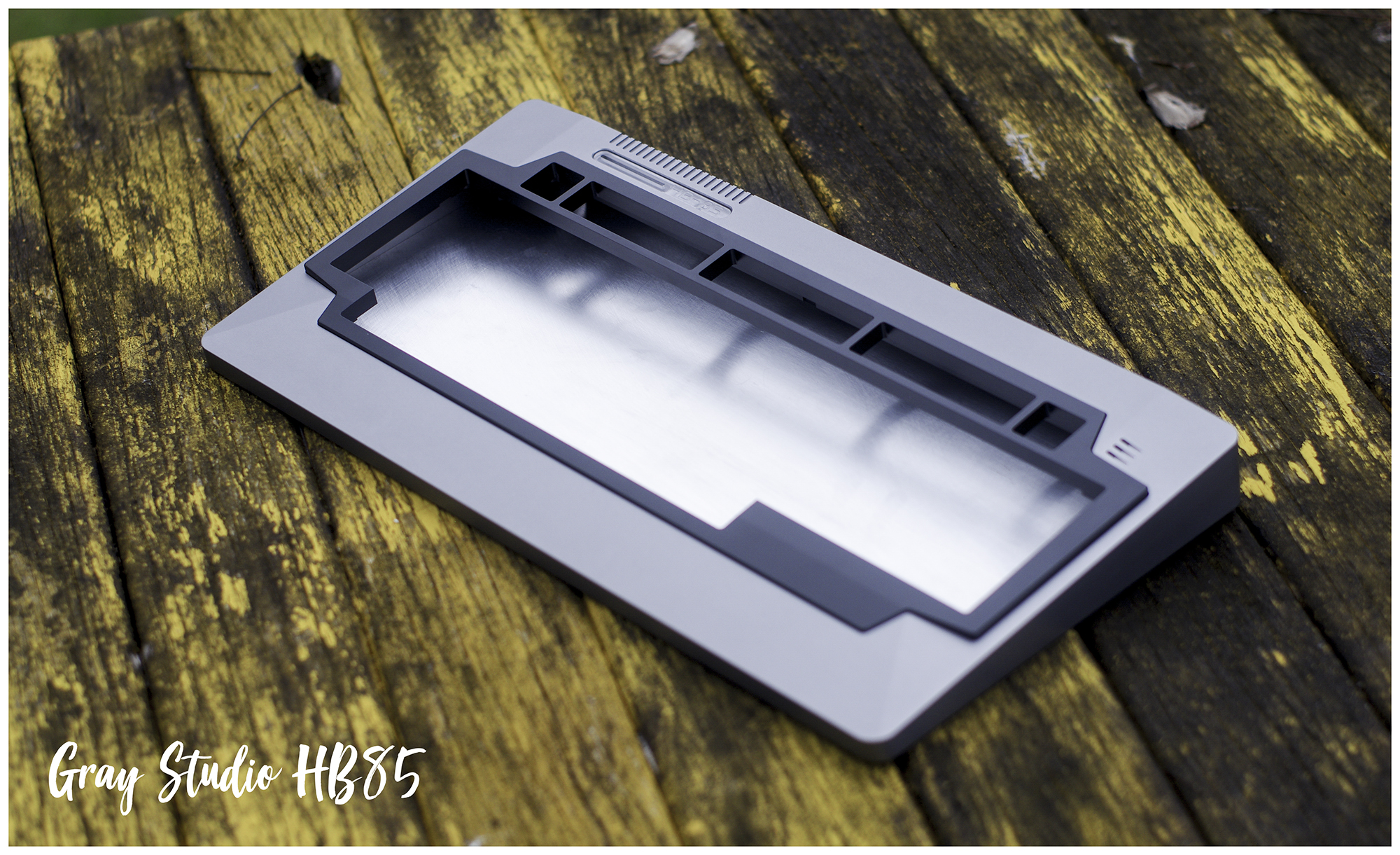

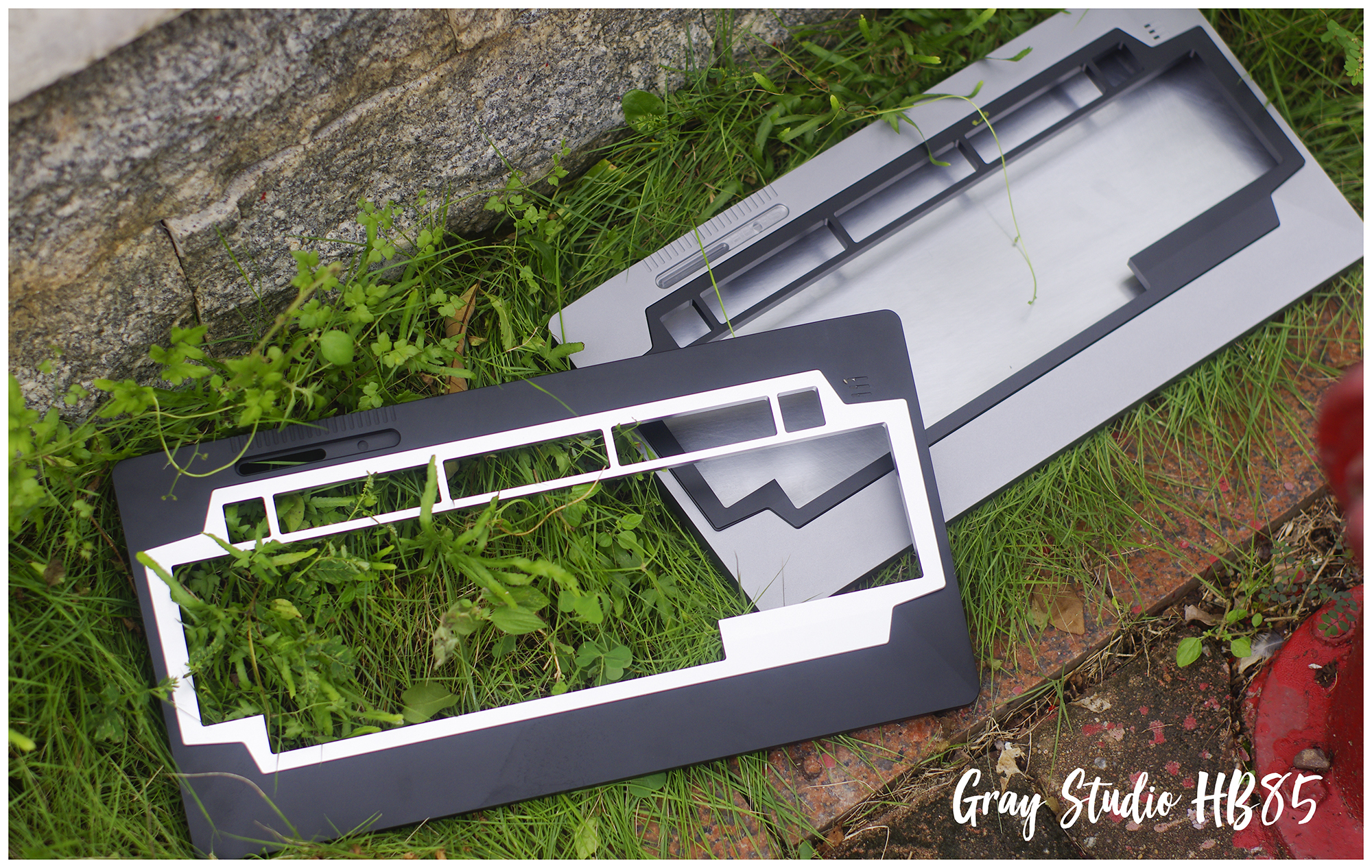

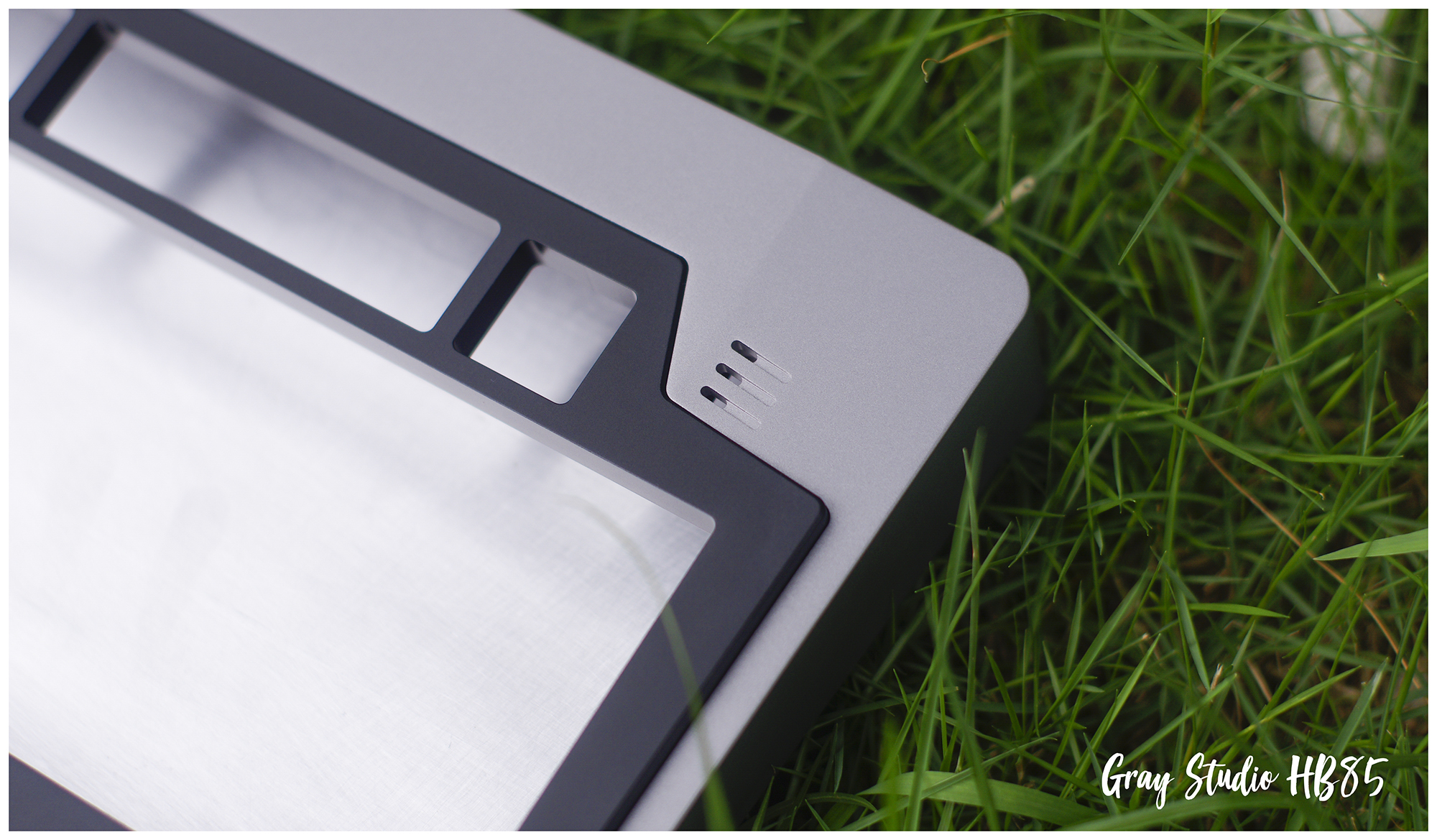

202866-3202868-4202870-5202872-6202874-7202876-8202878-9202880-10202882-11202884-12

The pictures show basic versions,and allnameplates are acrylic .

Finally, each set will be marked with two nameplates of acrylic and aluminum. :p

I will update the latest photos at any time.
Little egg: Sticker for HB85 theme.
202888-13

【Update09.06】
After installing the key cap, I made a  bug. :eek:
On the main keyboard area and the numpadl area, the key cap is stagger in a row.
For instance,QWERTYUIOP is R2,but456 of numpad is R3.

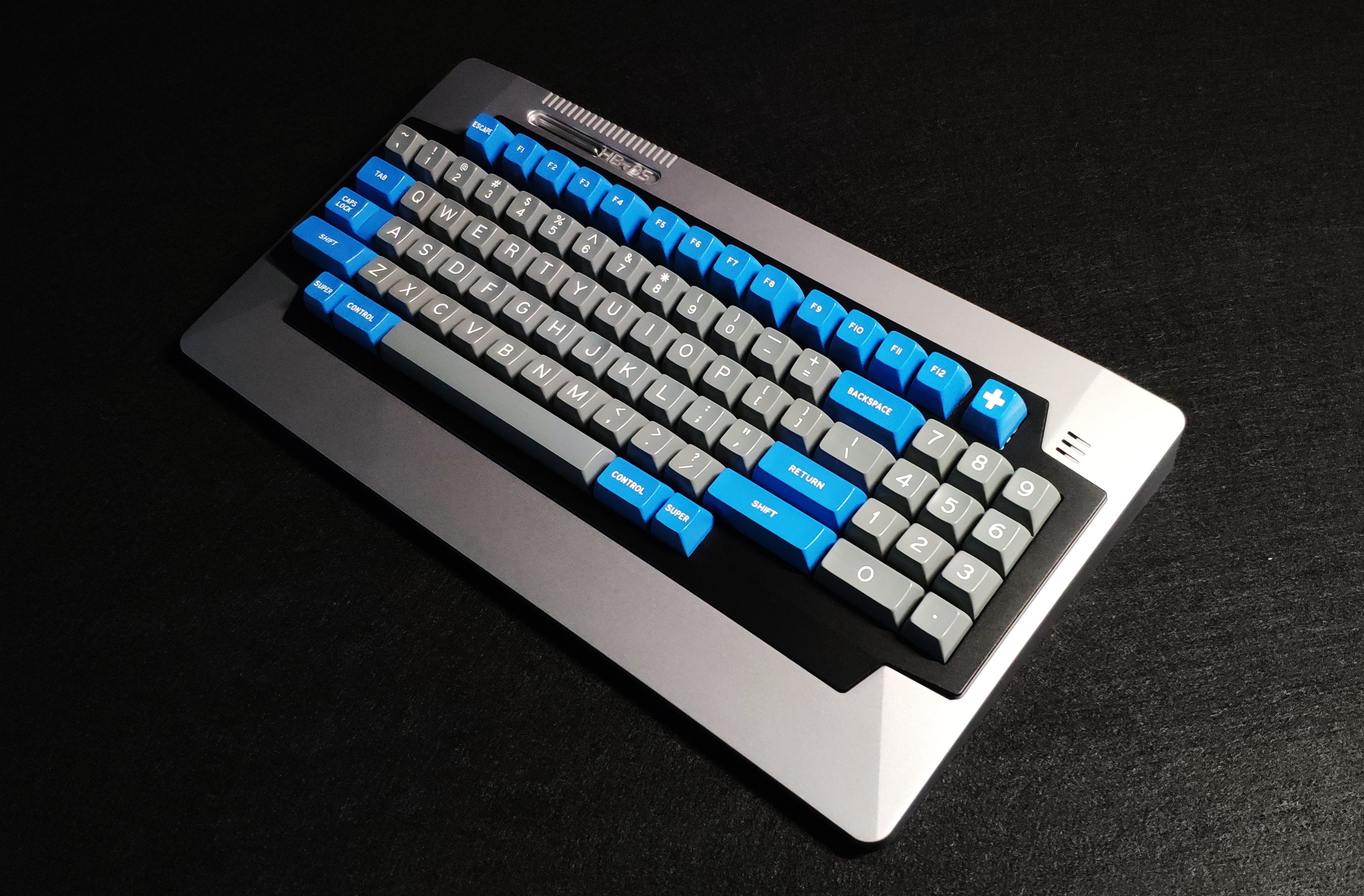

Photos (taken by mix2s)

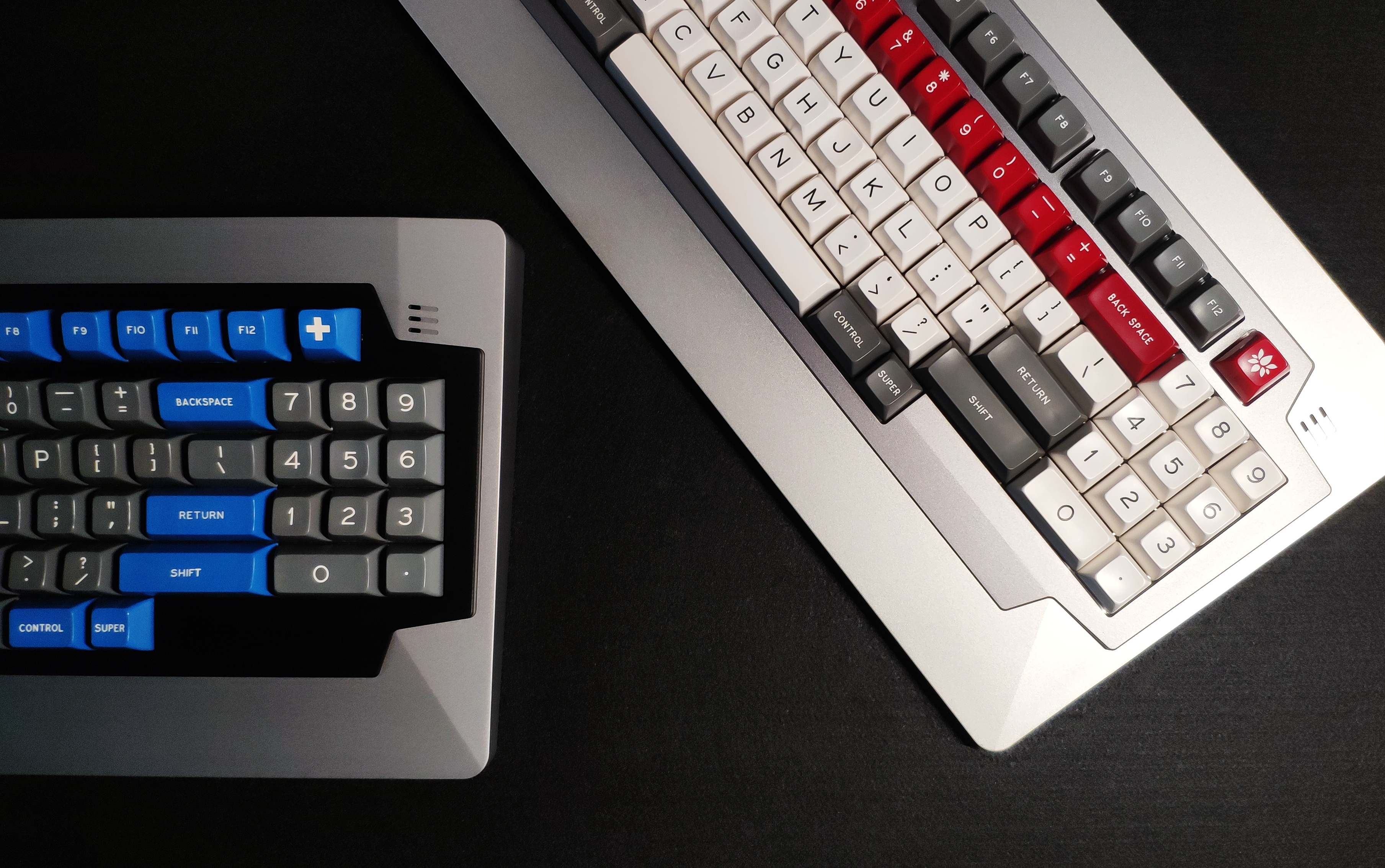

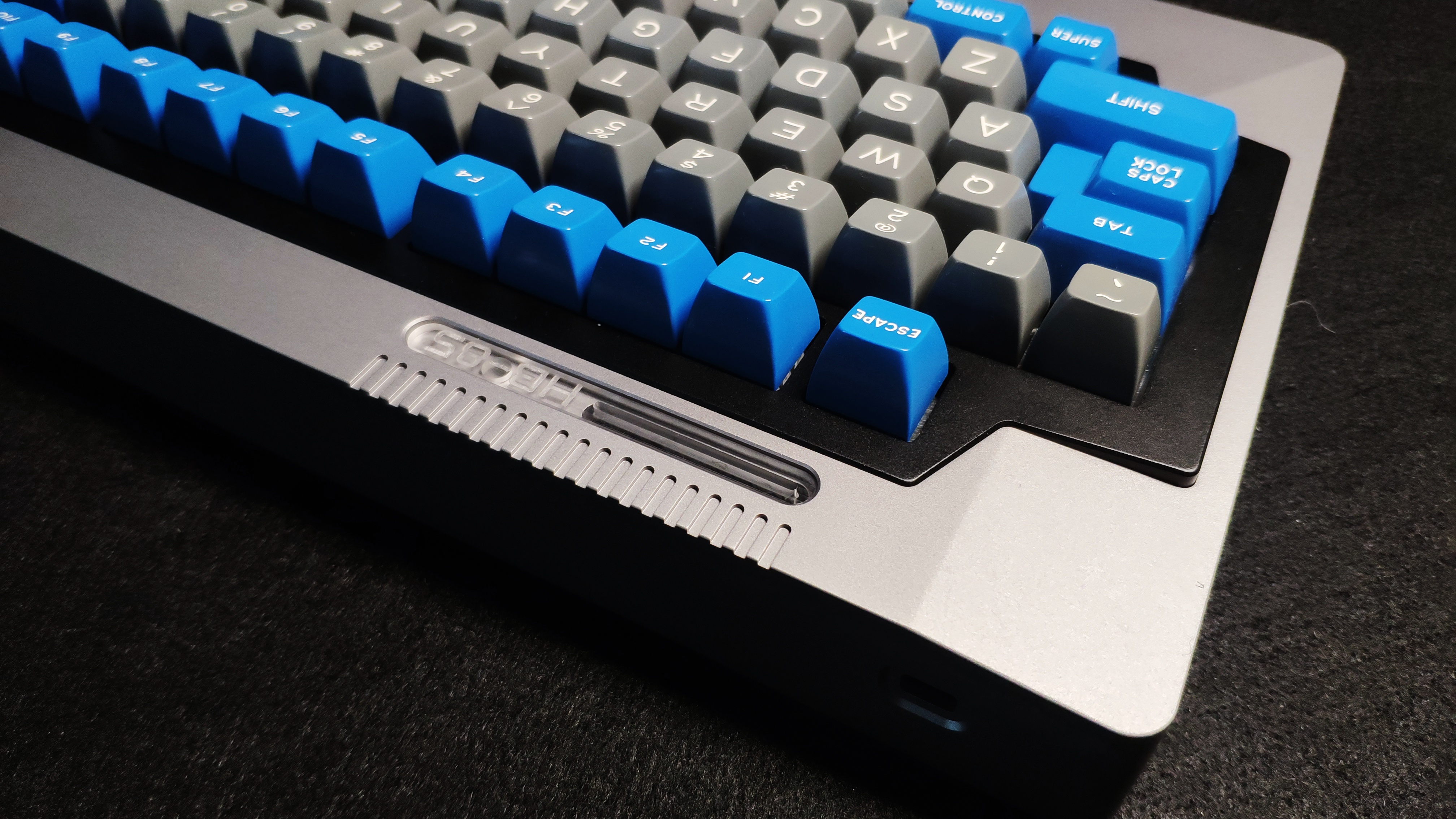

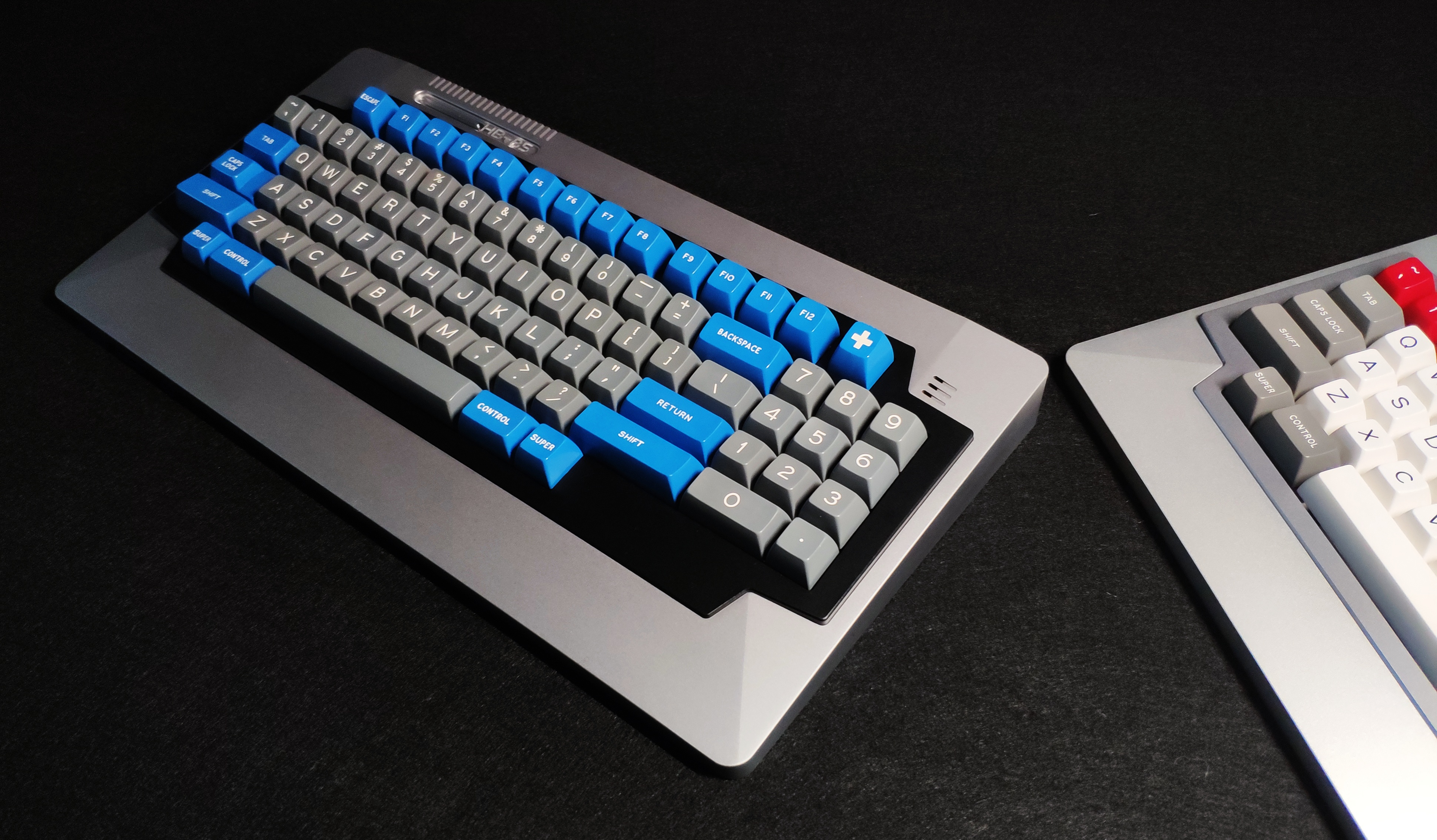

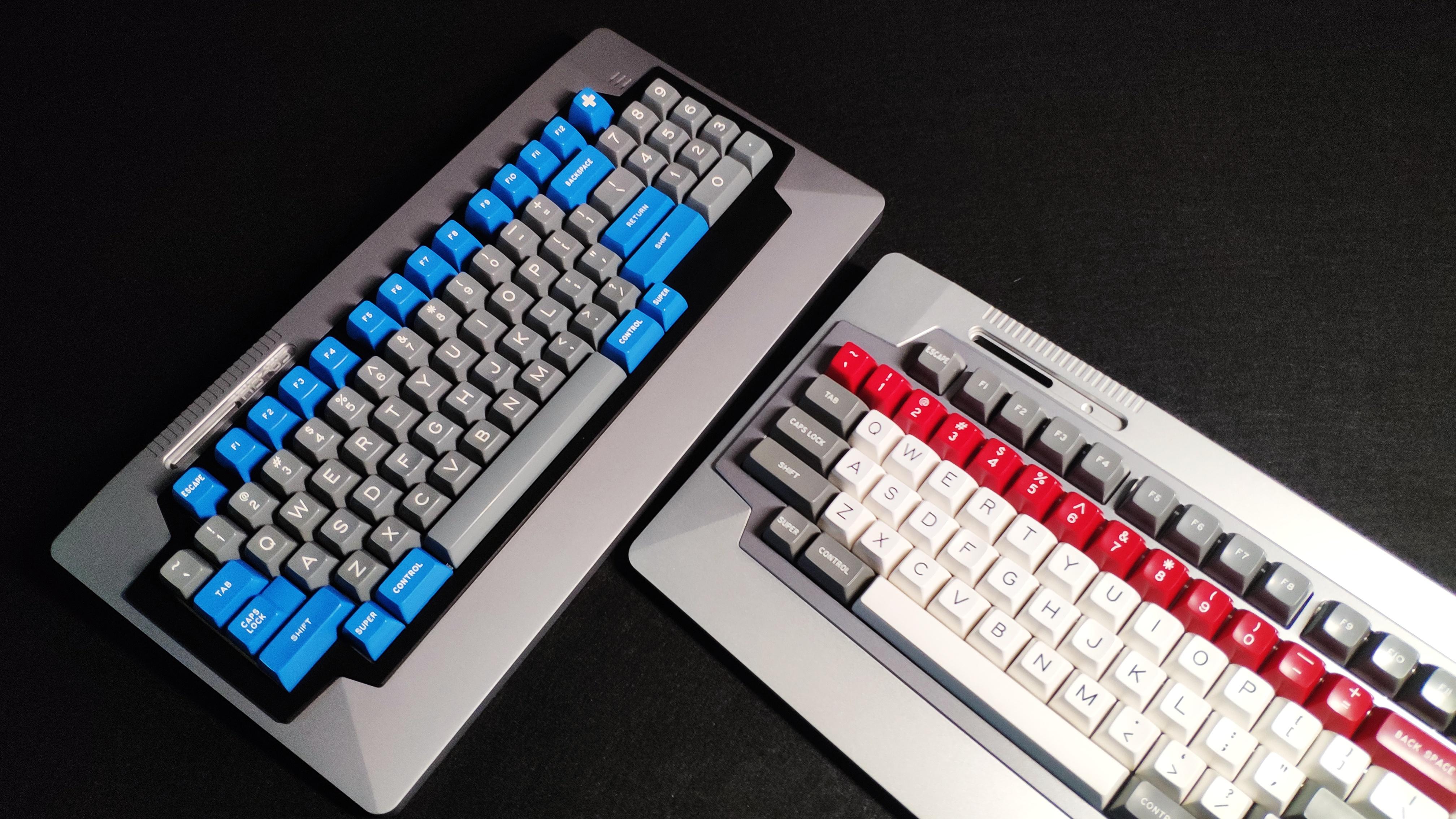

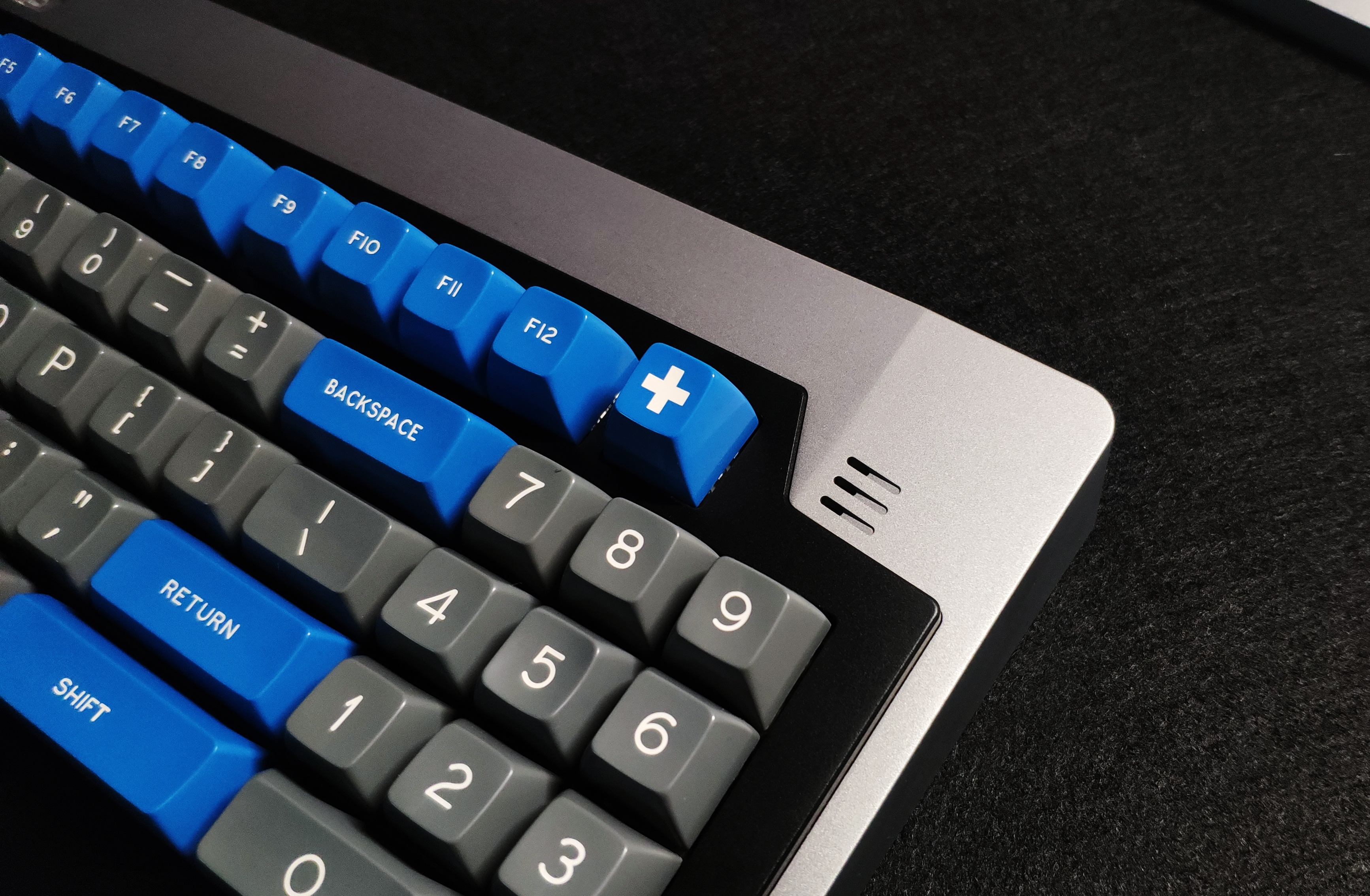

203059-14203061-15203063-16203065-17203067-18203069-19203071-20

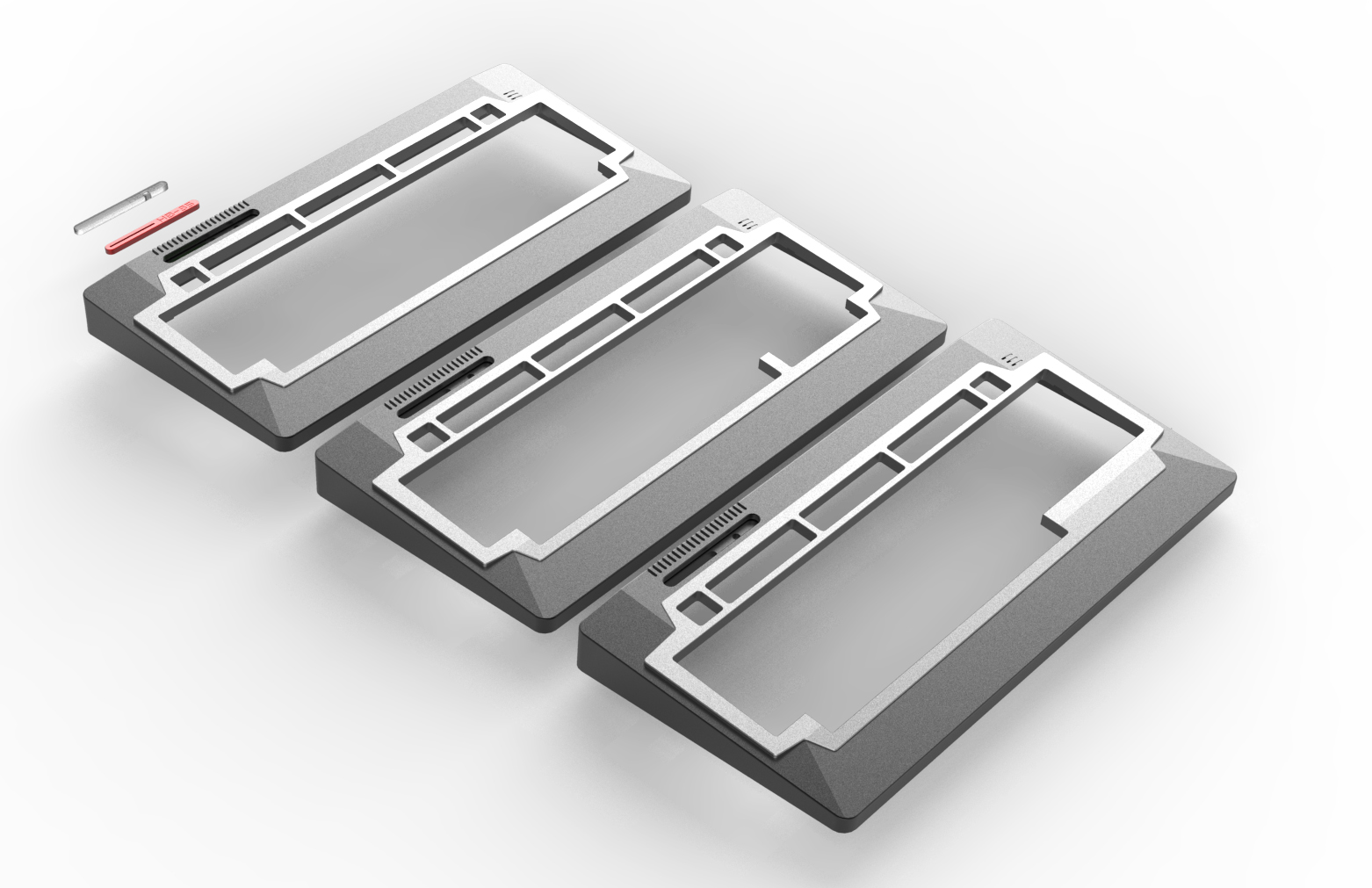

Treatment method,I revised the structure design.Simple rendering

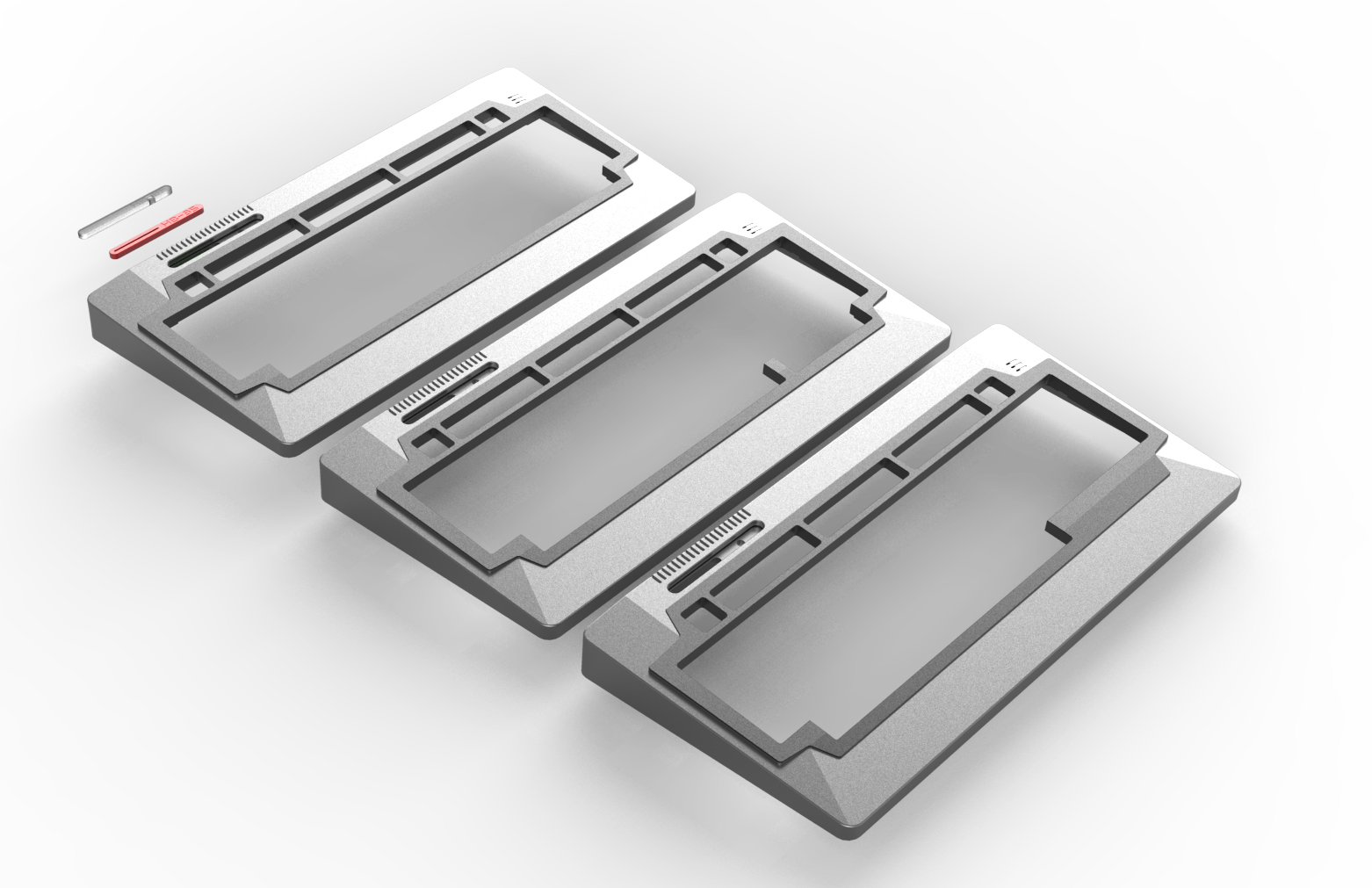

203073-21203075-22
Proofing will be completed as soon as possible, and then updated to here.
【Update09.16】

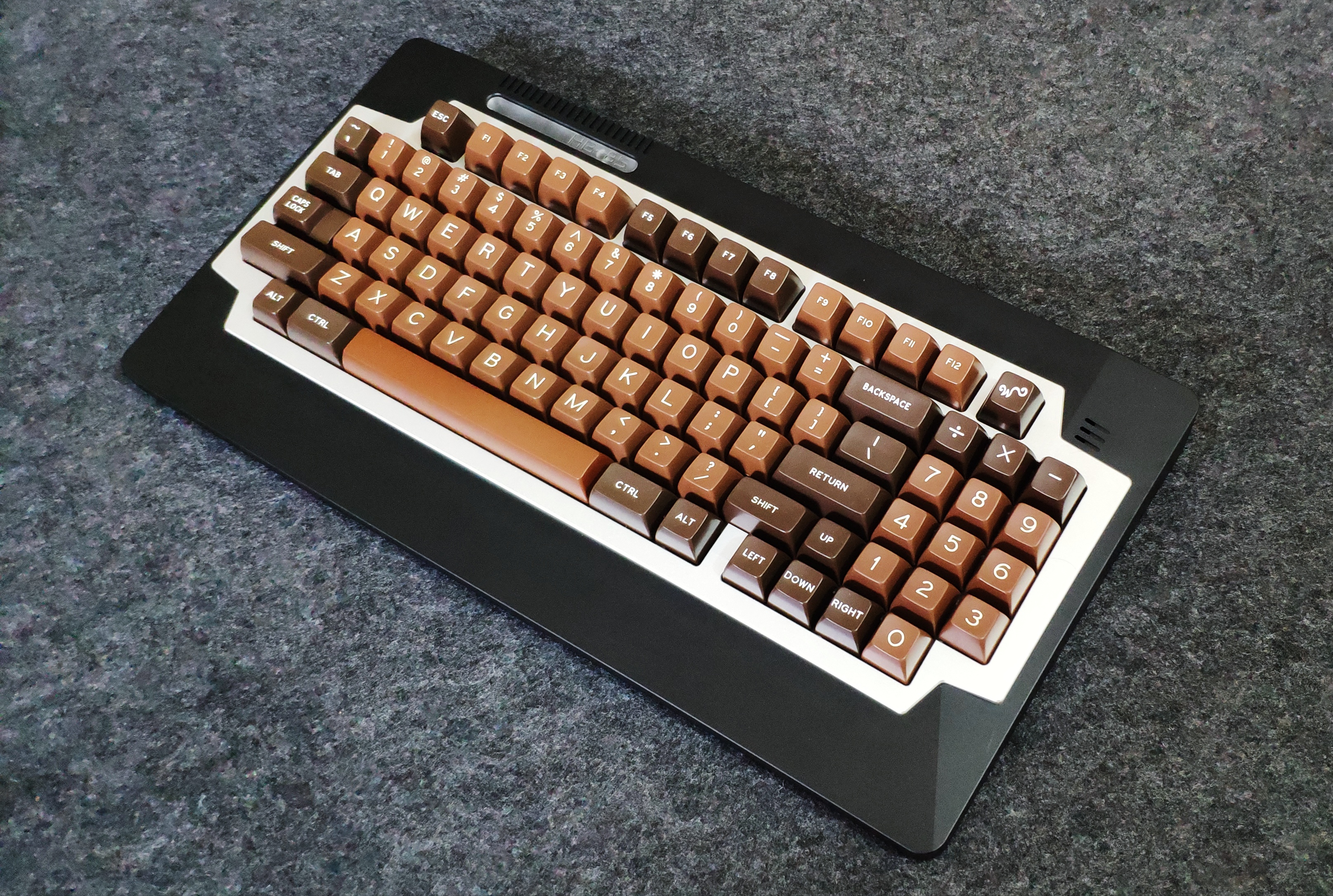

The latest proof case has arrived...

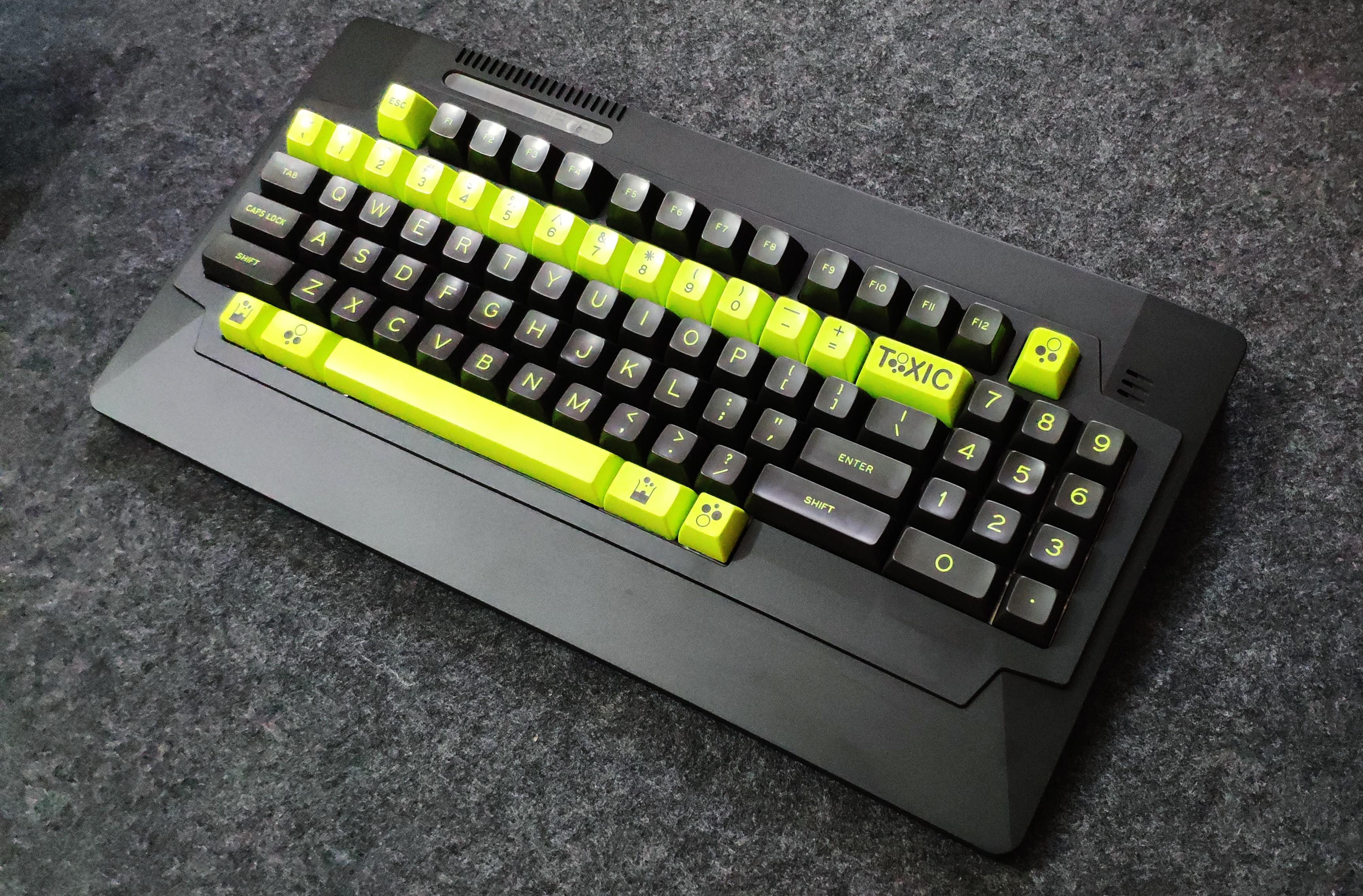

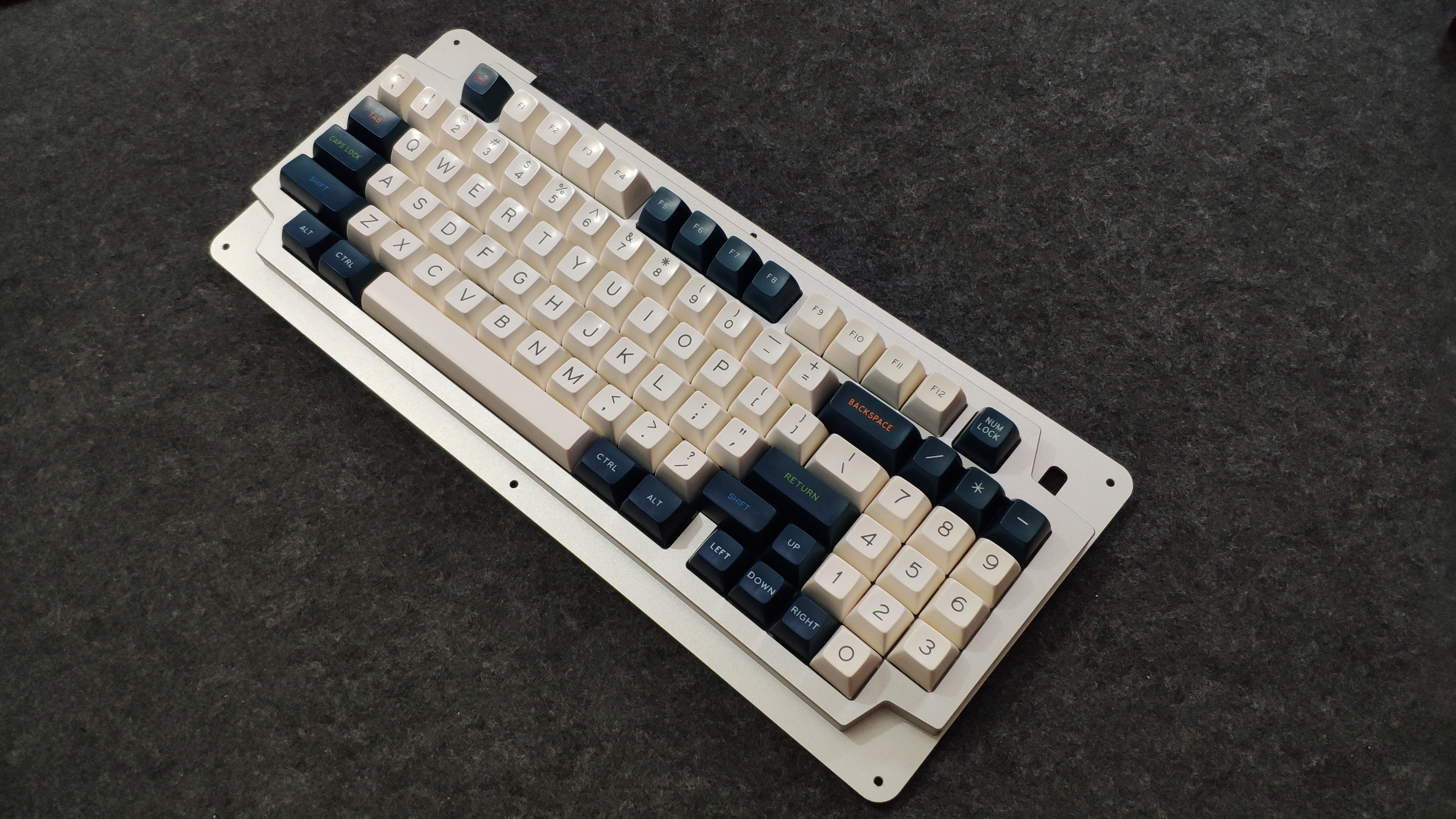

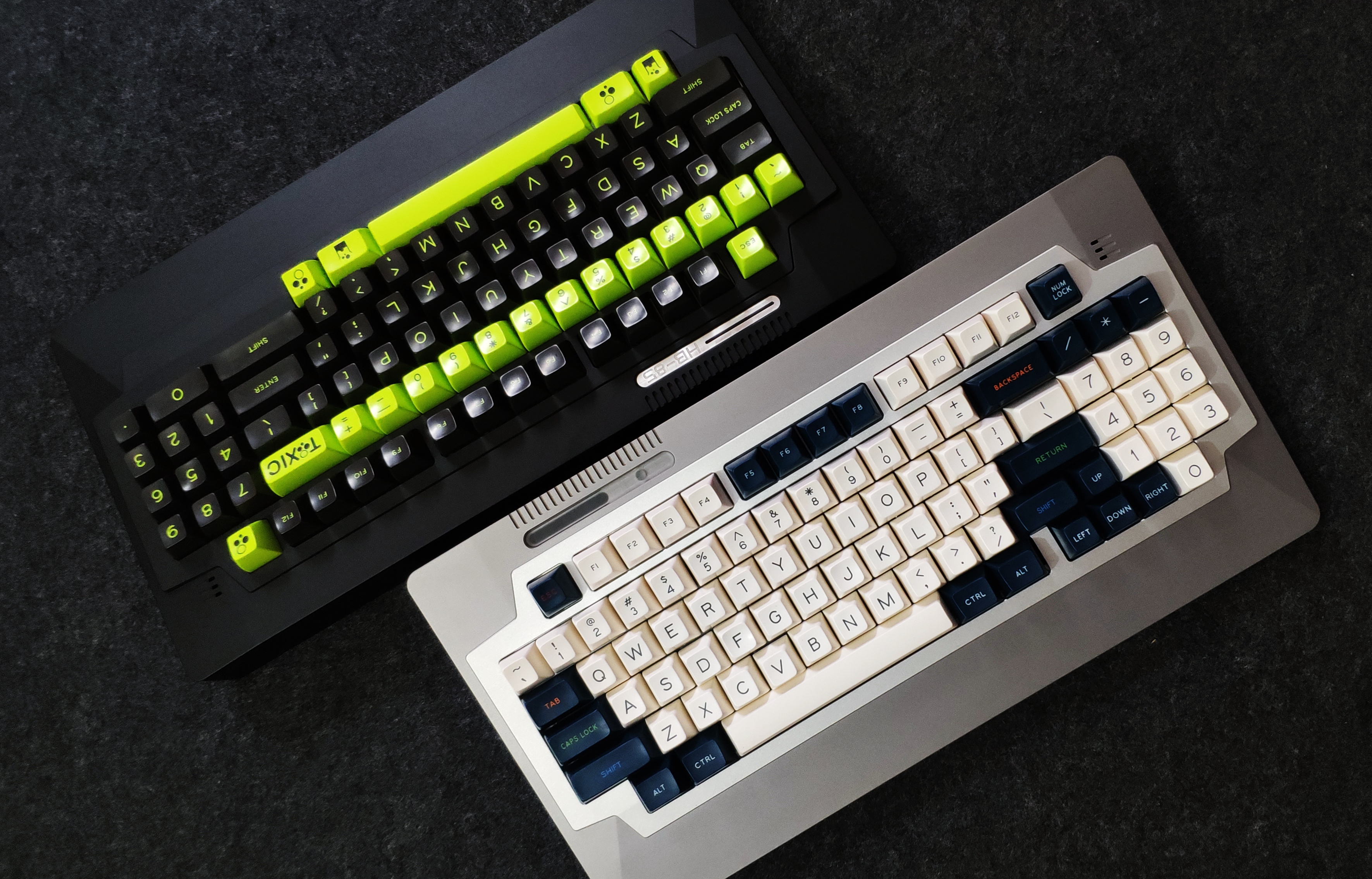

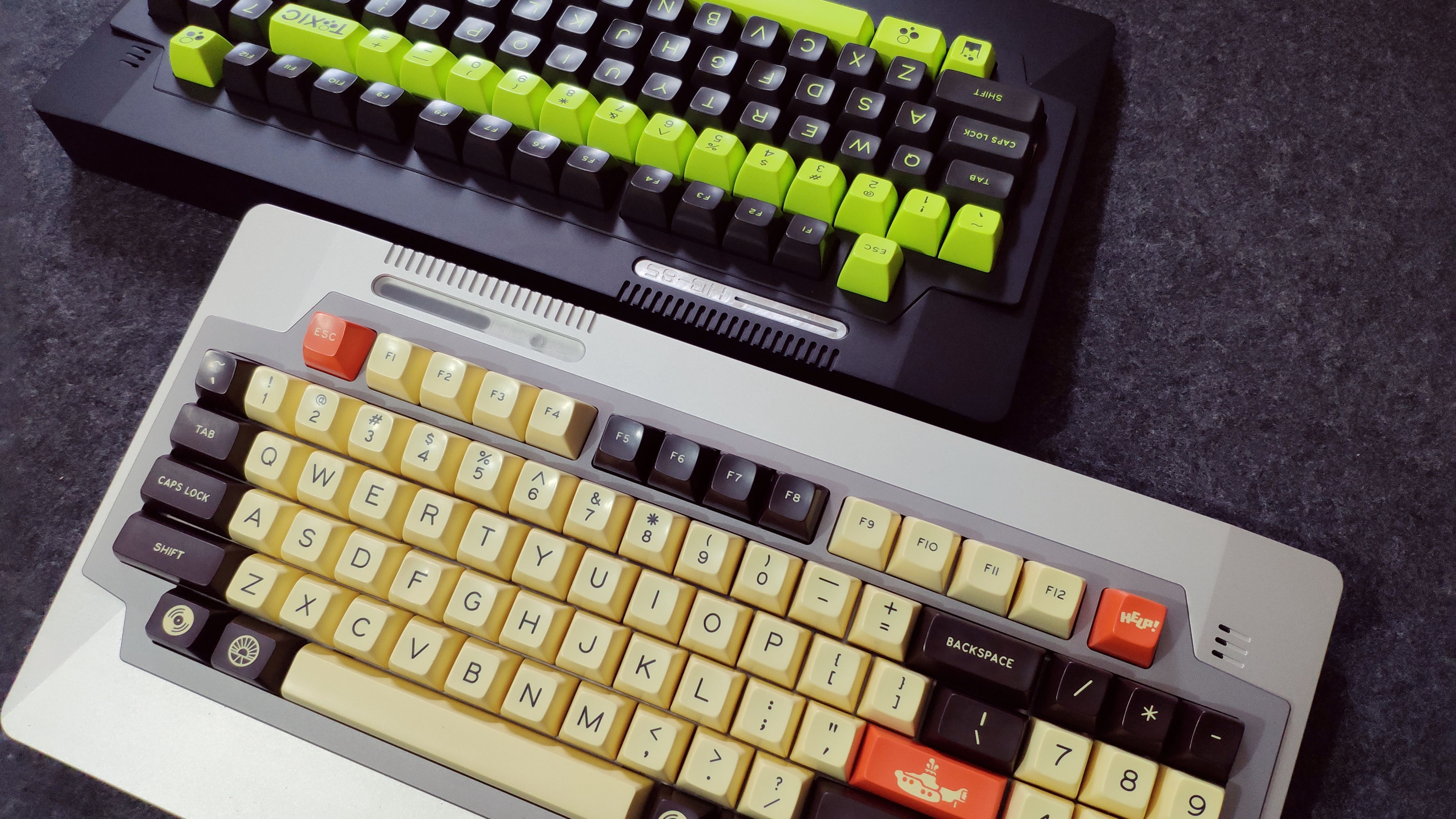

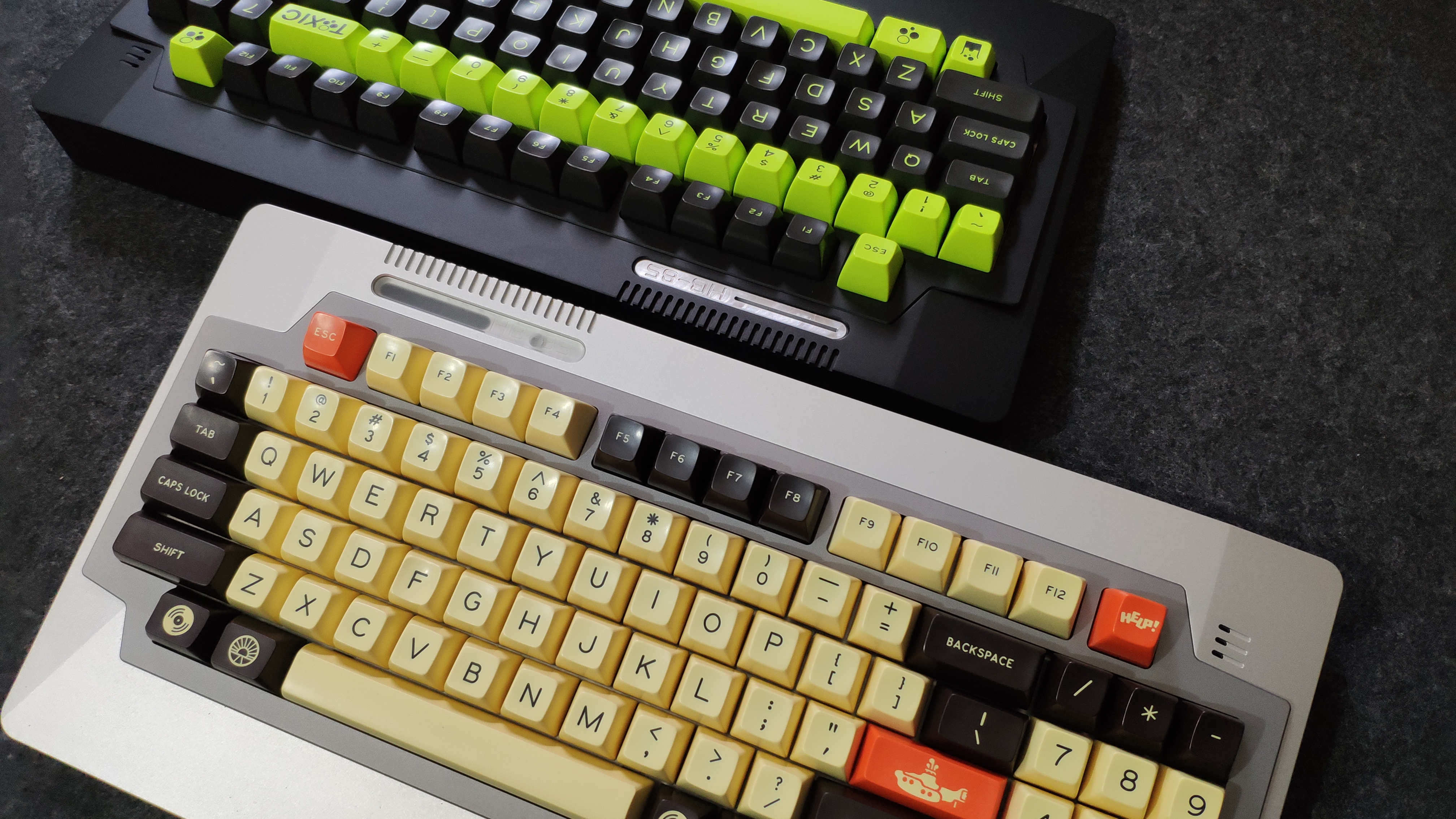

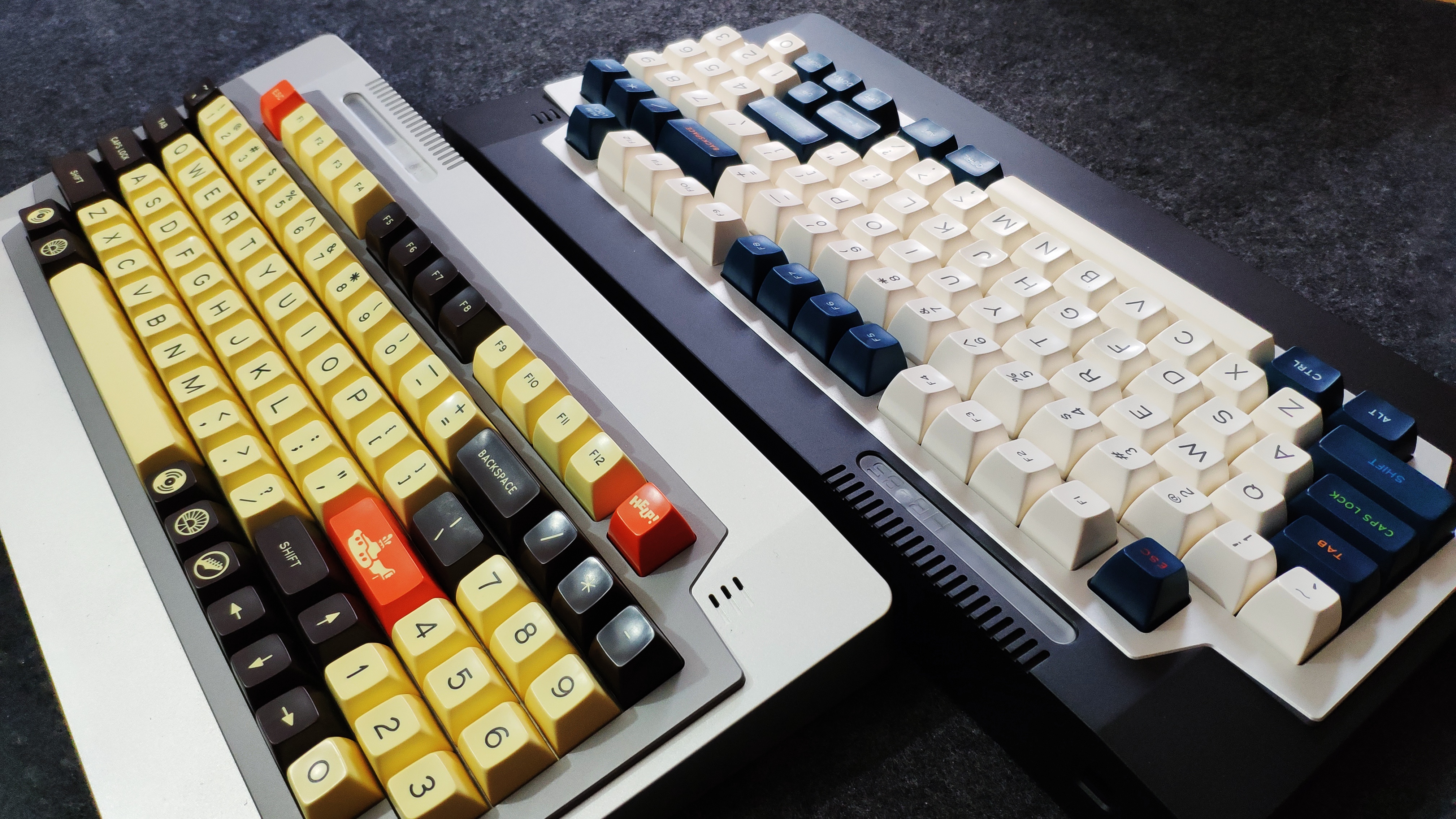

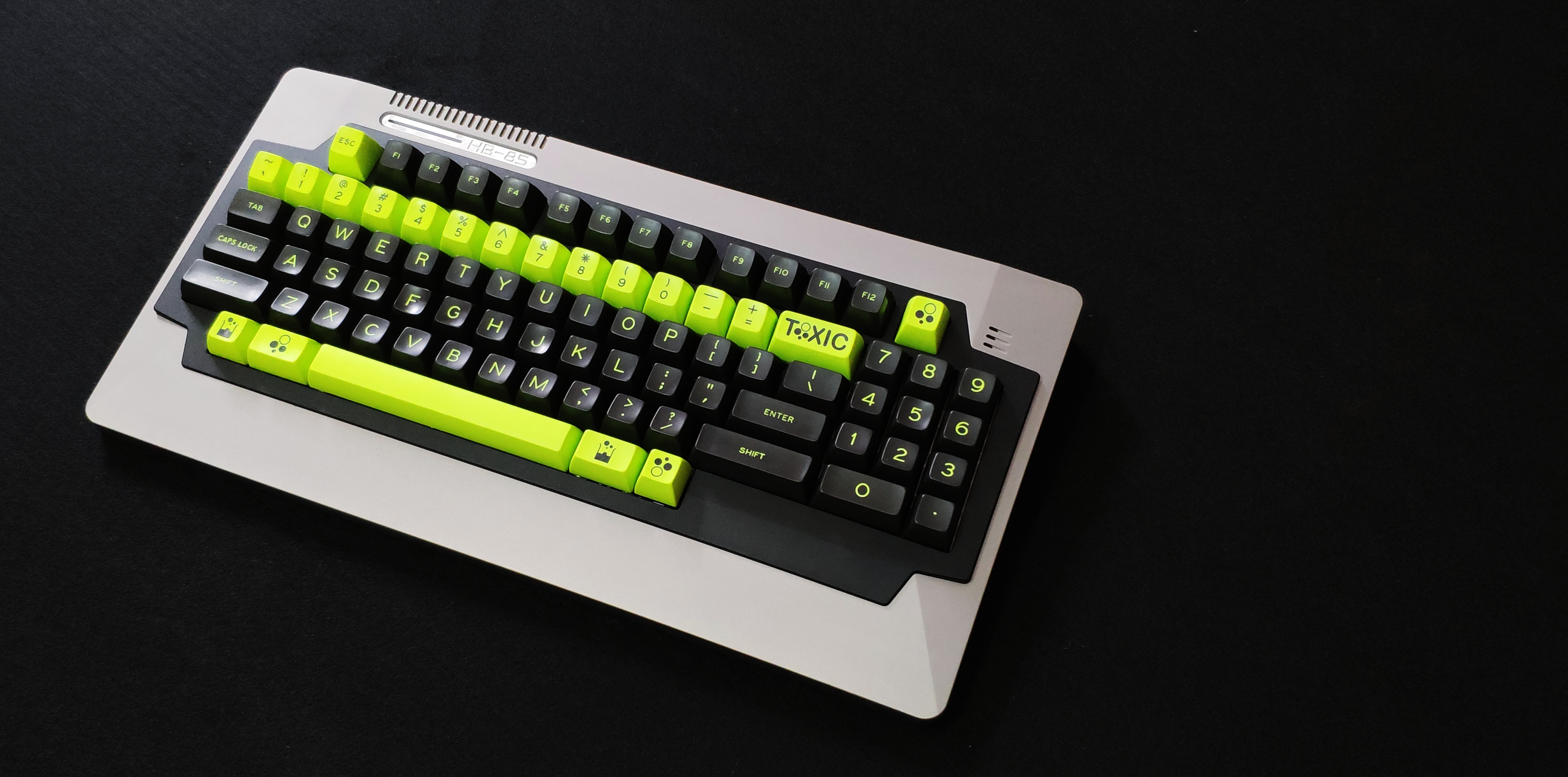

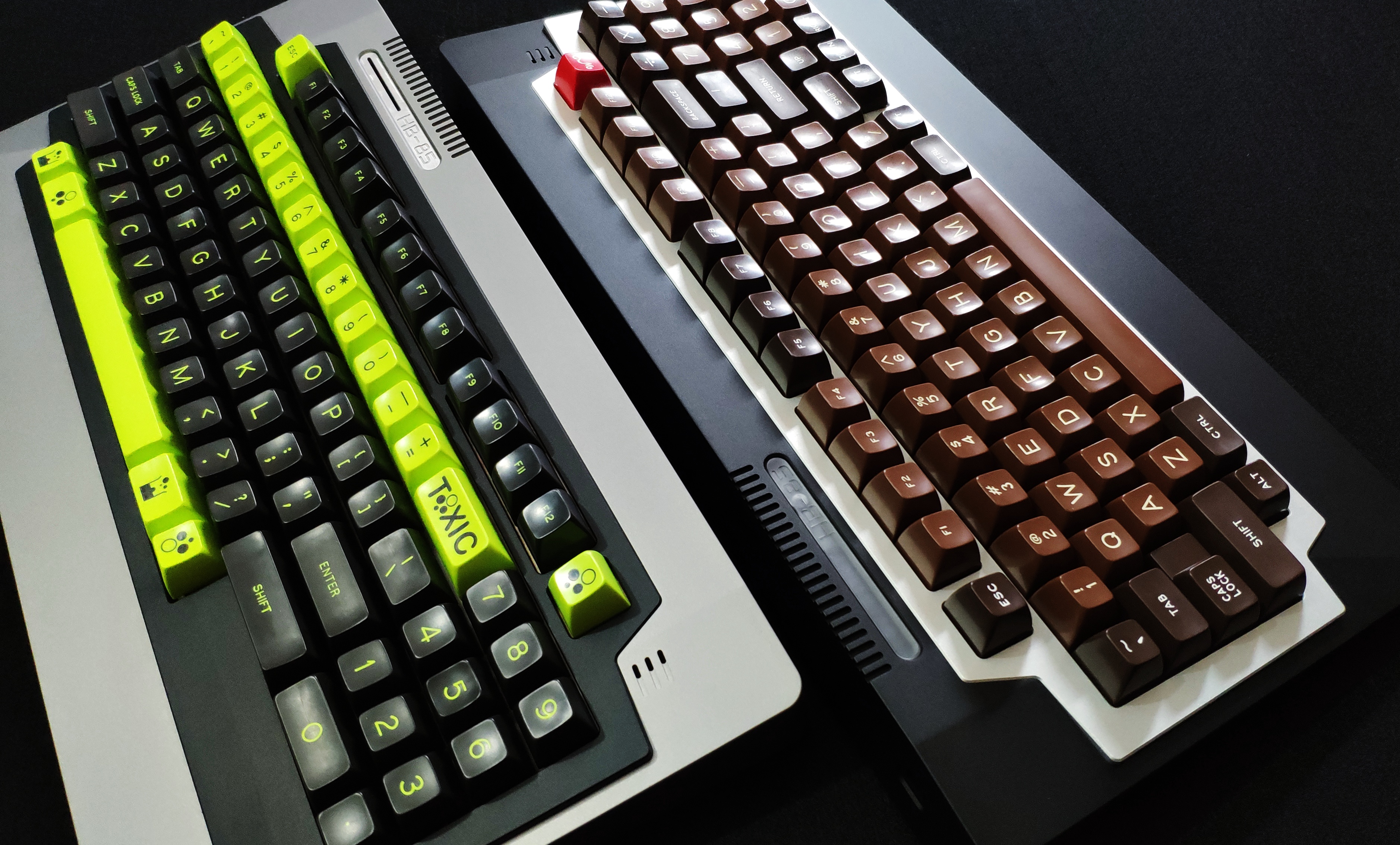

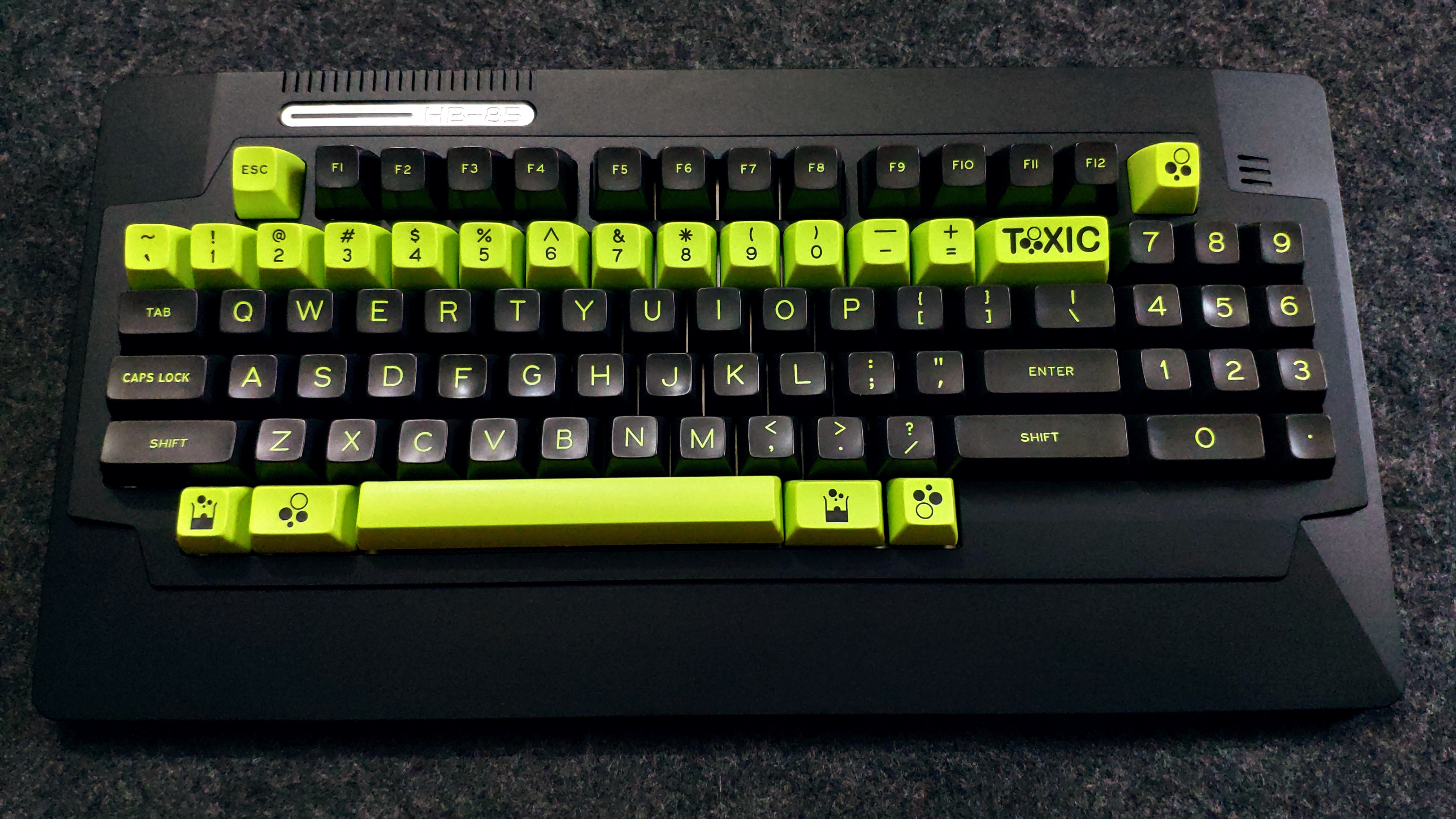

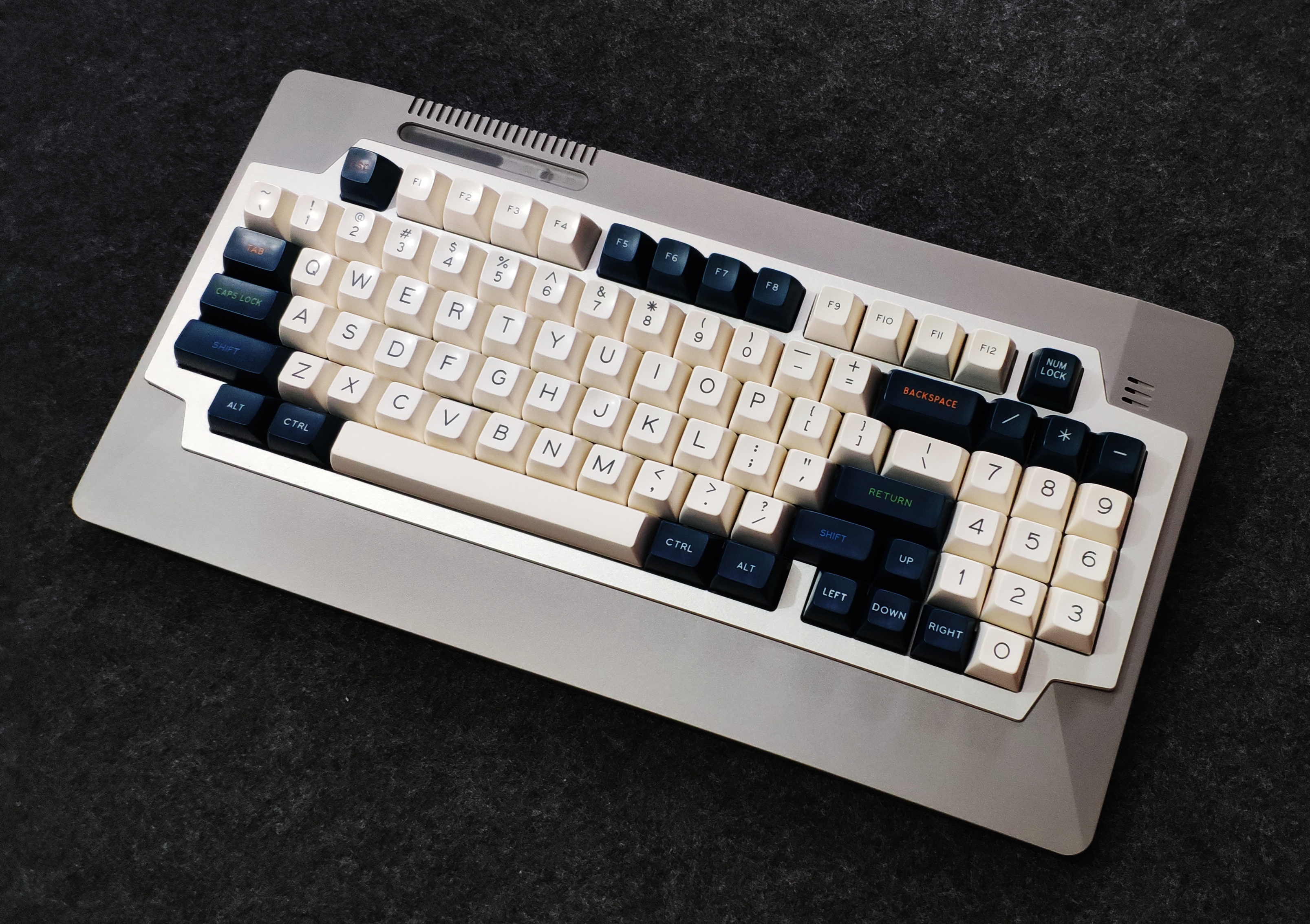

203620-23203622-24203624-25203626-26203628-27203630-28203632-29203634-30203636-31203638-32203640-33

【Update09.22】

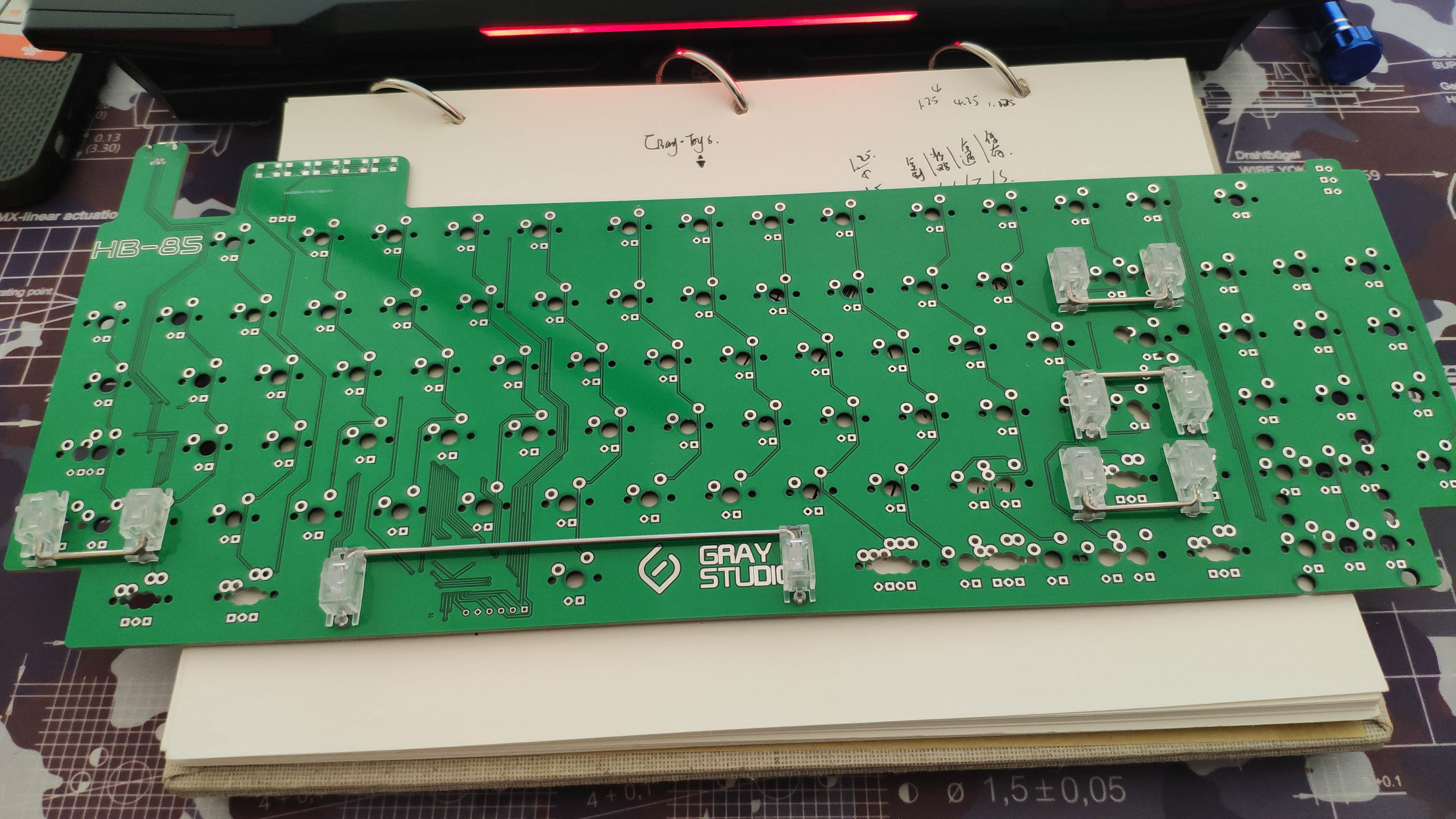

PCB proofing!
204095-34
The bad news is that the USB port was designed wrong :-[(it was supposed to be under the PCB board, but now it was designed to be on top of the PCB).

The good news is that all the switch holes are all right.
 After changing the location of the USB port, there is no problem with the hole position.

Now wait for the new PCB proofing, then test the function.
« Last Edit: Sat, 20 October 2018, 09:26:04 by AIRPOTTER »
