Hello all! I had an idea a while ago (

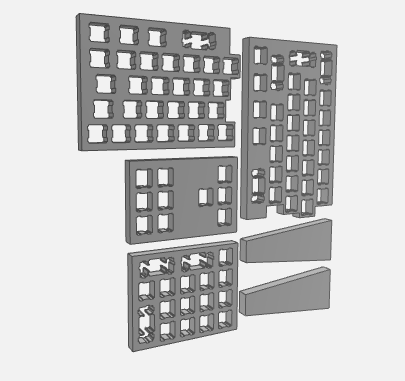

here) about creating a custom modular keyboard. You may have seen a similar design on the /r/mechanicalkeyboard subreddit a little while after. I've decided to push forward with my attempt and designed a couple of 3d printed parts using kle and swill.

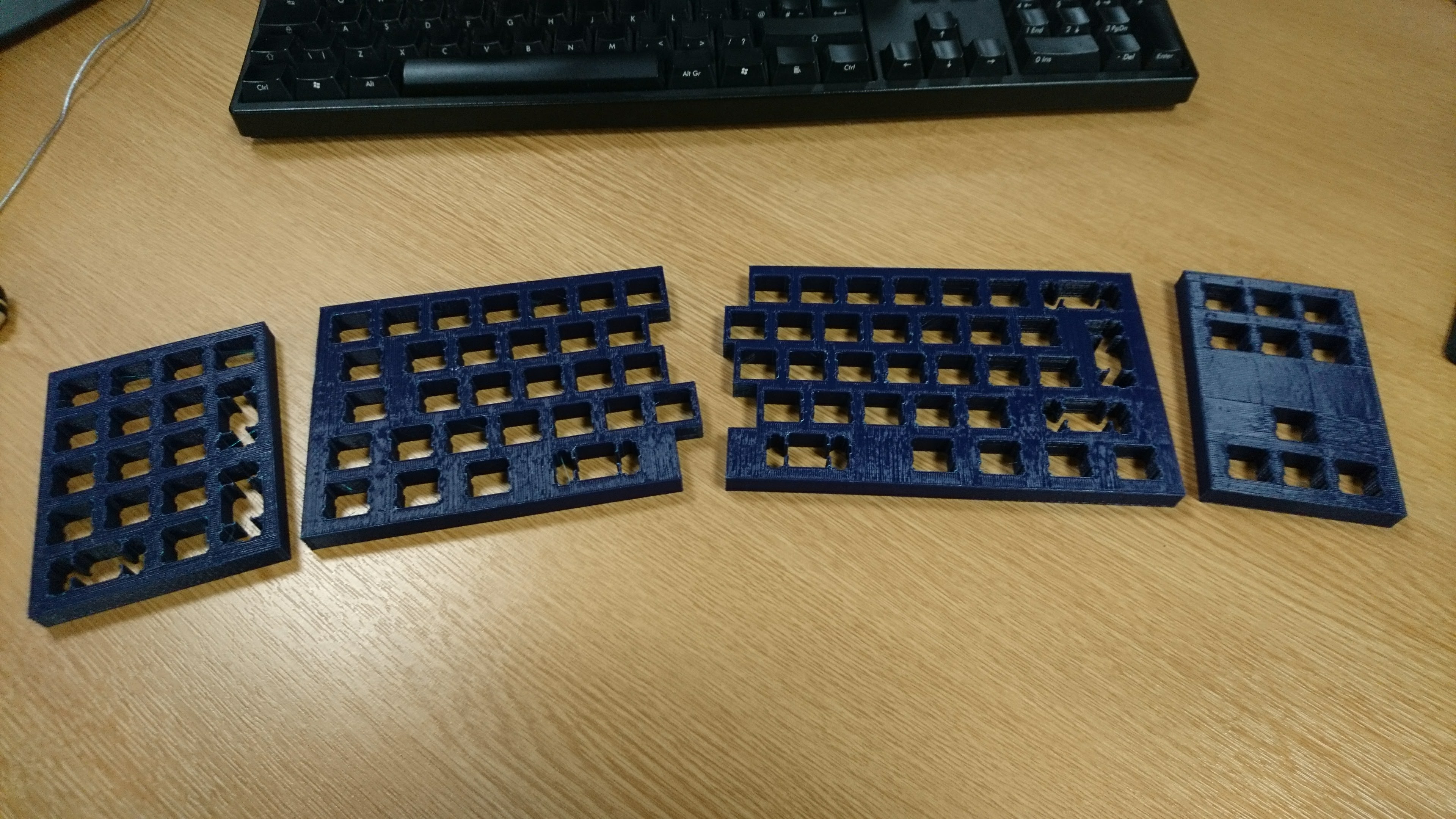

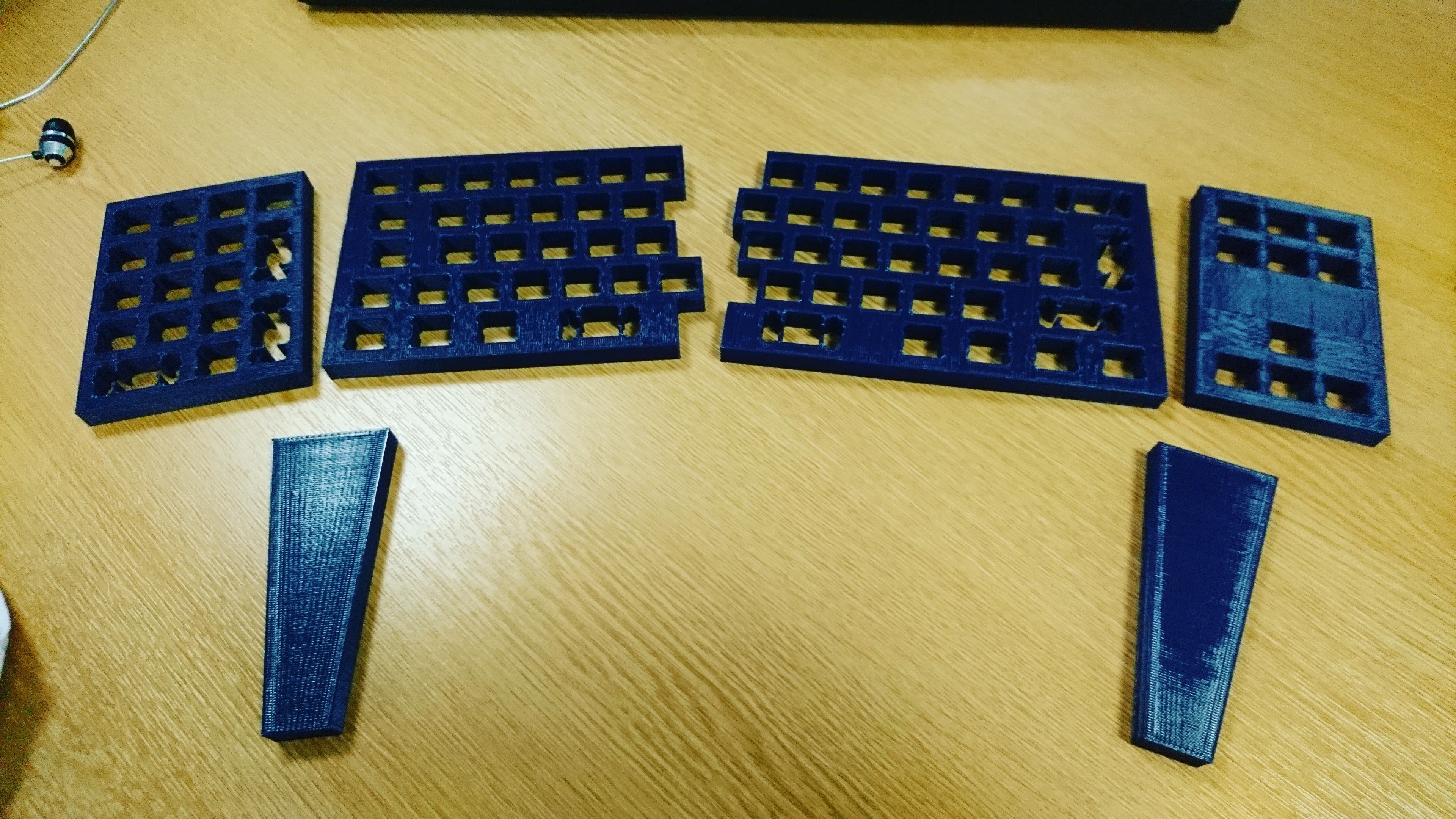

TO RECEIVE UPDATES - CLICK HERE3D printed parts that I got printed locally for £40.

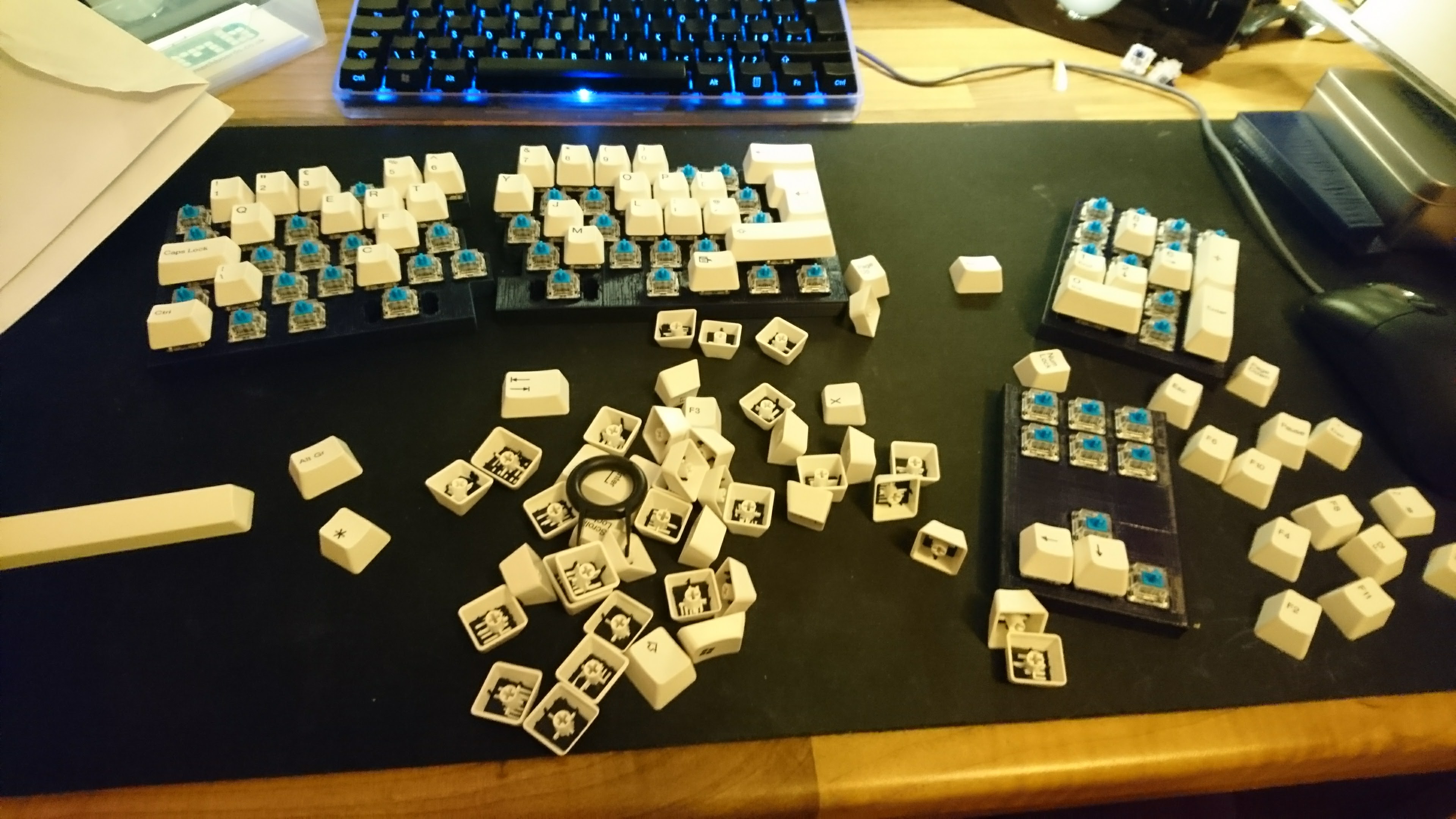

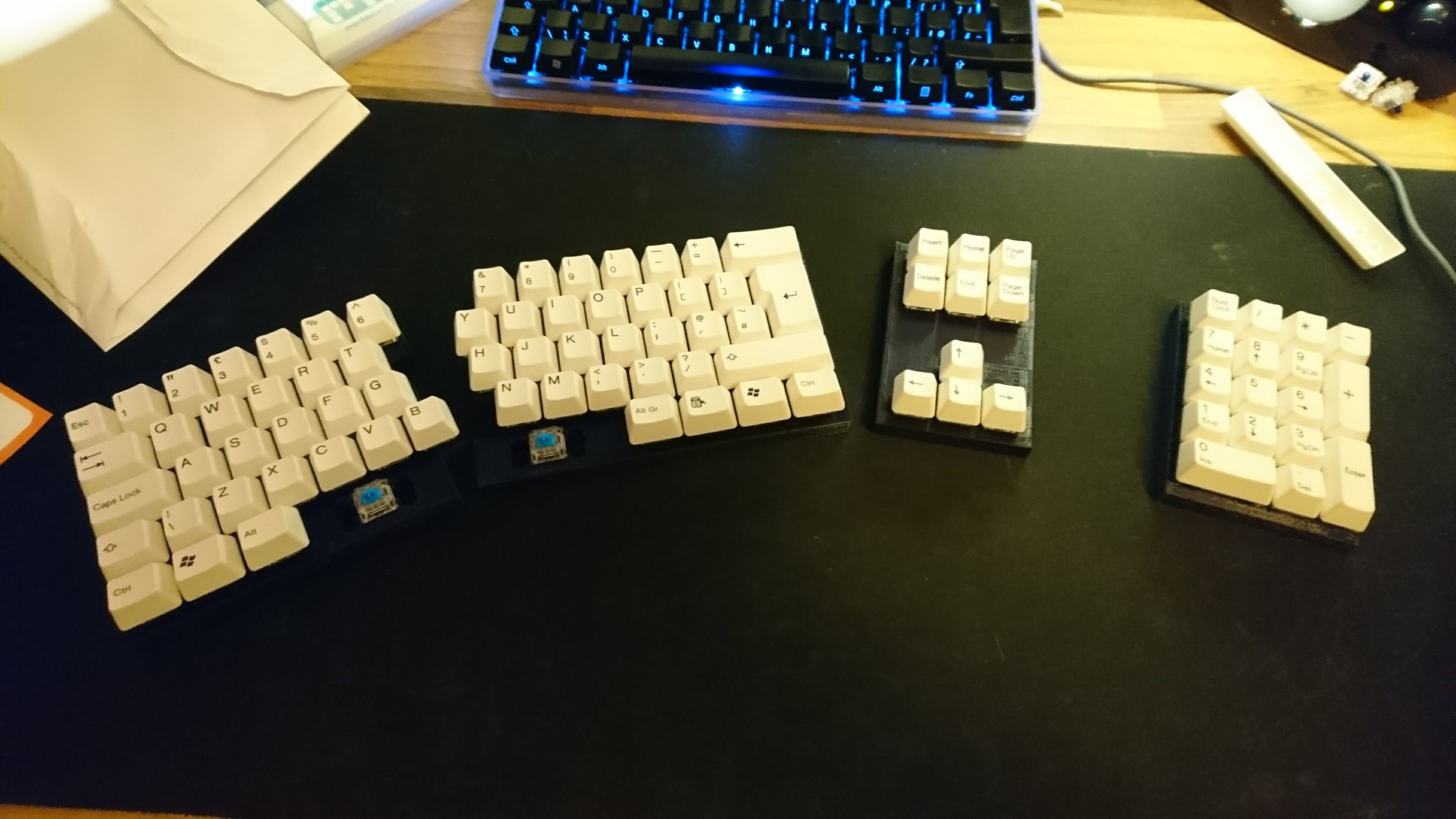

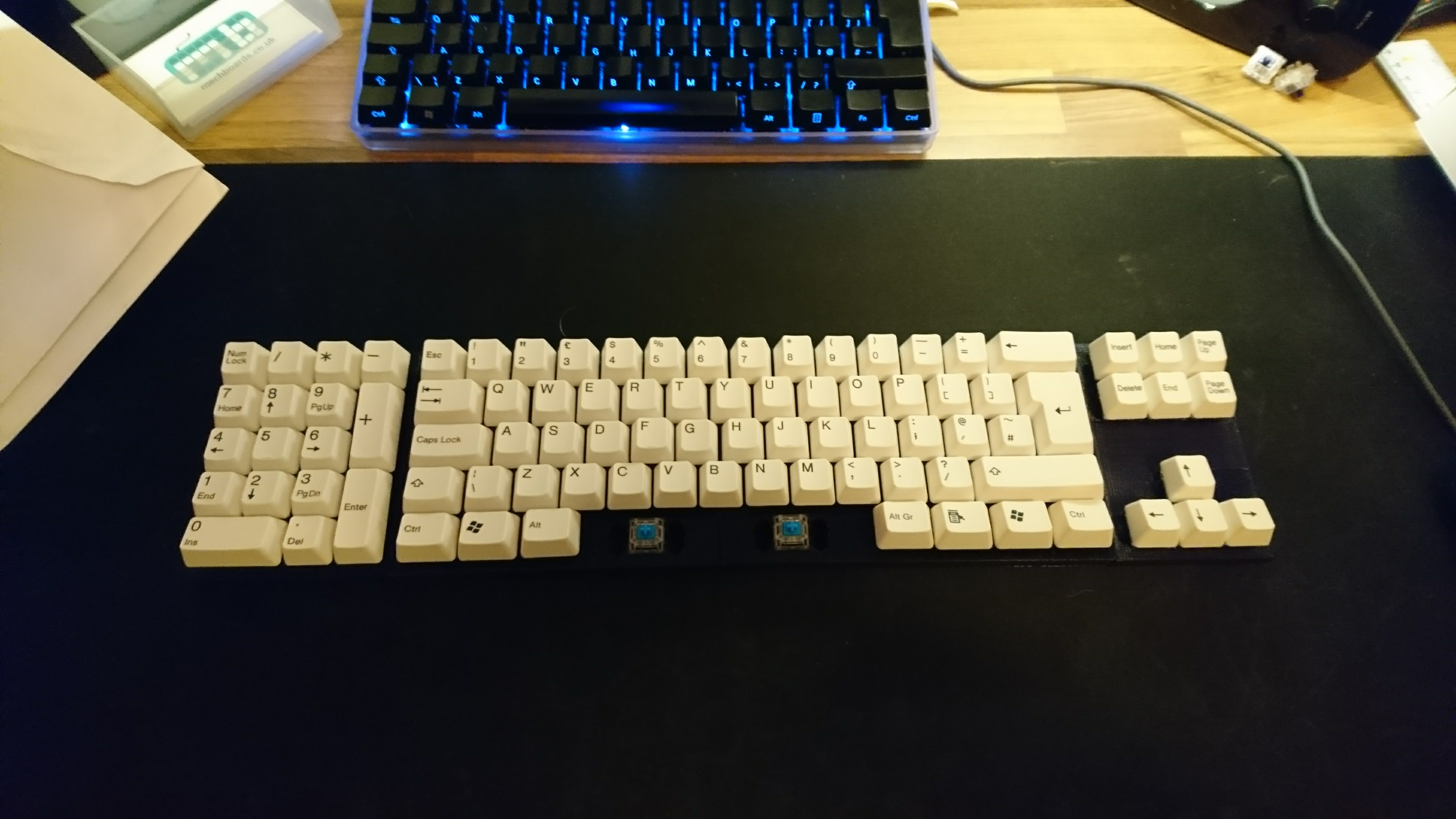

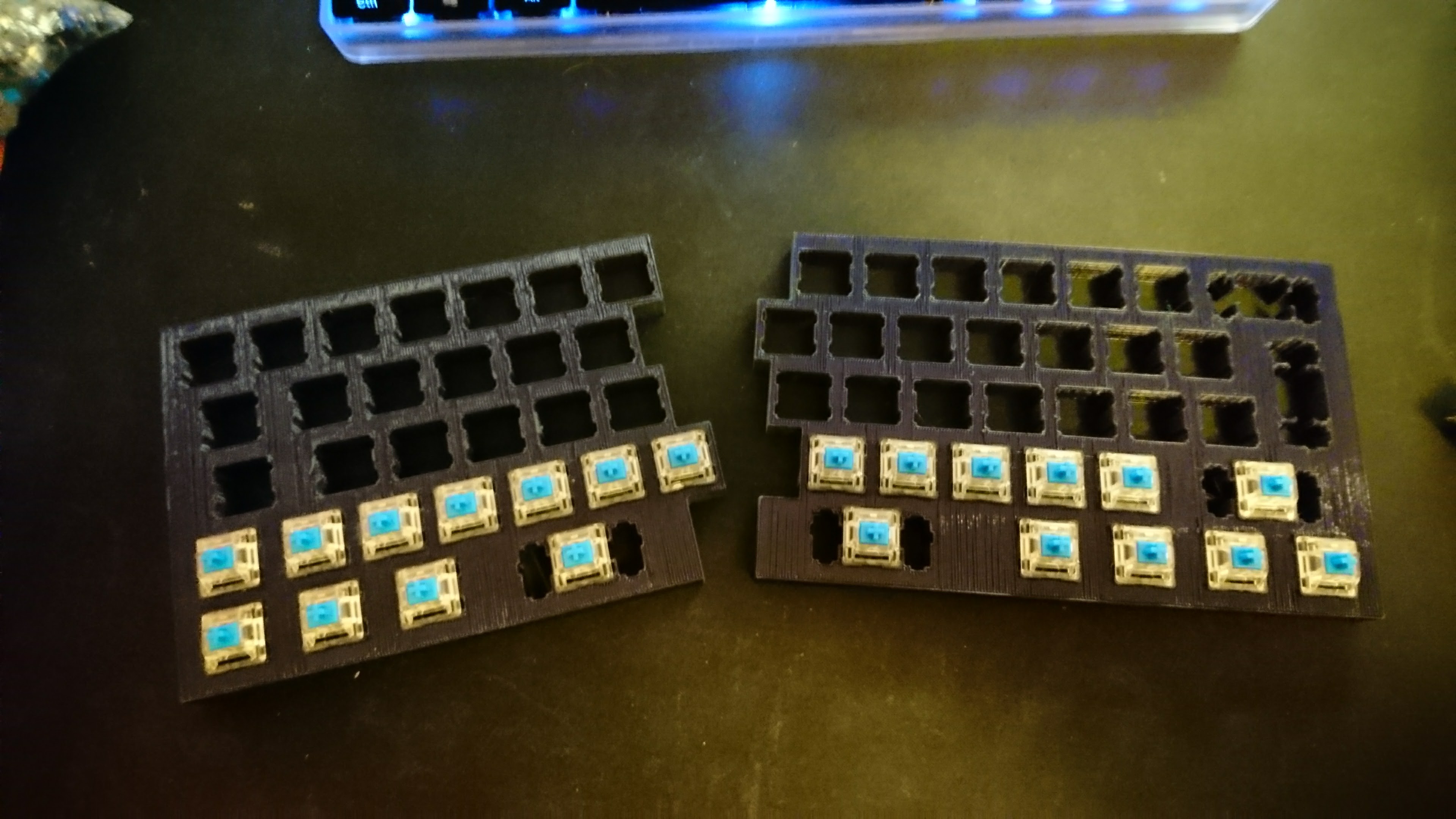

Starting to install switches and keycaps
Next stage is to edit the original 3d files to include room for PCB+Teensy, magnets to hold the parts together, as well as bottom plate which would include rubber feet.
I'm hoping this could become a real product in the near future with an IC once I figure out all the PCB issues with connecting the parts.
