Author Topic: Tp4 Reviews 2016's Top microSD Cards. (Detailed Benchmarks Inside)  (Read 17545 times)

0 Members and 1 Guest are viewing this topic.

Offline tp4tissue

  • * Destiny Supporter
  • Thread Starter
  • Posts: 13547
  • Location: Official Geekhack Public Defender..
  • OmniExpert of: Rice, Top-Ramen, Ergodox, n Females
Tp4 Reviews 2016's Top microSD Cards. (Detailed Benchmarks Inside)
« on: Sat, 31 December 2016, 22:09:38 »
So, you're looking to buy a new microSD card..

But Which one... ??

64GB Samsung Pro Select (to replace Pro+ which is being retired)
64GB Sandisk Extreme Pro (UHS-1 version)
64GB Sandisk Extreme (2016 Edition)


/Tp4 Demystifies 2016's Top cards..



Tp4 has benched the 64GB iterations of the popular cards. They're FASTER than the 128GB versions.

Did 3 Runs, formatted between Each run. No unexpected deviation, Pictures are of FRESH out of box runs.

Benchmarking Hardware_ PC + 2 Different Cellofone

          Lexar Workflow SR2 Card Reader via USB3.0

          Cpu: Intel 2500k @ 5GHz

          Memory: Corsair DDR3 - 2133Mhz

          Mock-Fill-Data: 33,000 files, size range from 1kb to 300MB

          Cpu speed locked to 5Ghz through Bios, no downclocking, high performance mode set in
          windows, Timer-Resolution App engaged to minimize DPC-Latency


Software_

          Crystal Disk Mark
          (Picture 1, Fresh out of the box, Picture 2, 86% filled w/ Mock Data)

          ATTO Disk Benchmark
          (Picture 1 only, Fresh out of the box, Bench)

          A1 SD Bench
          Used on Cellofones


Samsung PRO Select 64GB

156558-0

86% filled
156560-1


Sandisk Extreme Pro (UHS-1 Ver.) 64GB

156562-2

86% filled
156564-3


Sandisk Extreme (2016 Ver.) 64GB

156566-4

86% filled
156568-5



Benchmarks from My Cellofone, android 6: A1 SD Bench, Advanced benchmark enabled

Samsung Pro Select:
Random I/O__             8.28    MB/s Read  1.65    MB/s Write
Accurate sequential__  65.16  MB/s Read  40.66  MB/s Write

Sandisk Extreme Pro:
Random I/O__             8.01    MB/s Read  1.76    MB/s Write
Accurate sequential__  69.67  MB/s Read  55.13  MB/s Write

Sandisk Extreme:
Random I/O__             10.97  MB/s Read  2.97    MB/s Write
Accurate sequential__  76.41  MB/s Read  54.49  MB/s Write


Benchmarks from Different Cellofone 2, android 5: A1 SD Bench, Advanced benchmark enabled

Samsung Pro Select:
Random I/O__             17.01  MB/s Read  3.14    MB/s Write
Accurate sequential__  41.15  MB/s Read  34.61  MB/s Write

Sandisk Extreme Pro:
Random I/O__             17.03  MB/s Read  2.90  MB/s Write
Accurate sequential__  39.97  MB/s Read  37.0  MB/s Write

Sandisk Extreme:
Random I/O__             17.08  MB/s Read  4.07  MB/s Write
Accurate sequential__  40.71  MB/s Read  35.9  MB/s Write


Observations and Conclusion:


So, It was odd that the Samsung card was so much slower in my Samsung phone, as Samsung has been caught red-handed cheating in Benchmarks by Review sites, You'd think samsung would cheat with their cards in their own fone..  But alas this doesn't seem to be the case.

An explanation for this lower performance would be perhaps Samsung card use a more involved wear-leveling algorithm.   This would inherently slow down the cards, because the card needs to take more time with its allocation.

Another possibility that Samsung is slower is that, they've tuned the controller for more durable continuous writing. These cards get real hot during continuous I/O, so you can tune either for peak performance which heats up, or tune it for continuous where it's more towards warm.

I know for a fact (contacted sandisk) that their extreme lines are NOT designed for continuous i/o and it in fact voids the warranty.


The Sandisk Extreme (2016) is a newer iteration than the Original Sandisk Extremes sold in 2014 which were TLC.

The Newly Produced Line of Sandisk Extreme and Ex Pro are now MLC..

The fact that the Sandisk Extreme PRO is slower than the Extreme in my fone would Indicated that the Newest 2016 iteration of the Extreme either has a stronger microcontroller, or uses less aggressive wear leveling.

The Extreme only loses to the Extreme Pro and Samsung Pro Select in Sequential Write,  Something that really doesn't matter because these cards are not going into expensive DSLRs..

These chips are mostly going into Cellphones and GoPros,  both of which only writes at a Max speed of 7.5MB/s for their 4K video recording.

They would certainly work well in a raspberry pi for ur pi server needs.

It's impossible to test durability, because there's no way any one guy would have a large sample size of these cards, since they're not commonly used in bulk quantities.


Based on these tests,  Sandisk Extreme seems to be the Best Choice for Performance...



Samsung Pro+ is being retired, replaced by Pro Select

NEW line of Sandisk Extreme Pro is now UHS-II only, the UHS-I cards of the Older PRO line is now called Extreme Plus.


UPDATE:


Sandisk Extreme 128GB,   the 128gb is indeed slower than the 64gb variant .. (Not by much) .. but slower..

Performance in Cellfone

sandisk extreme 128gb 2016

Random Performance:

7.83 MB/s Read     3.06 MB/s  Write

Sequential Performance:

76.14 MB/s Read     50.71  MB/s Write

158258-6

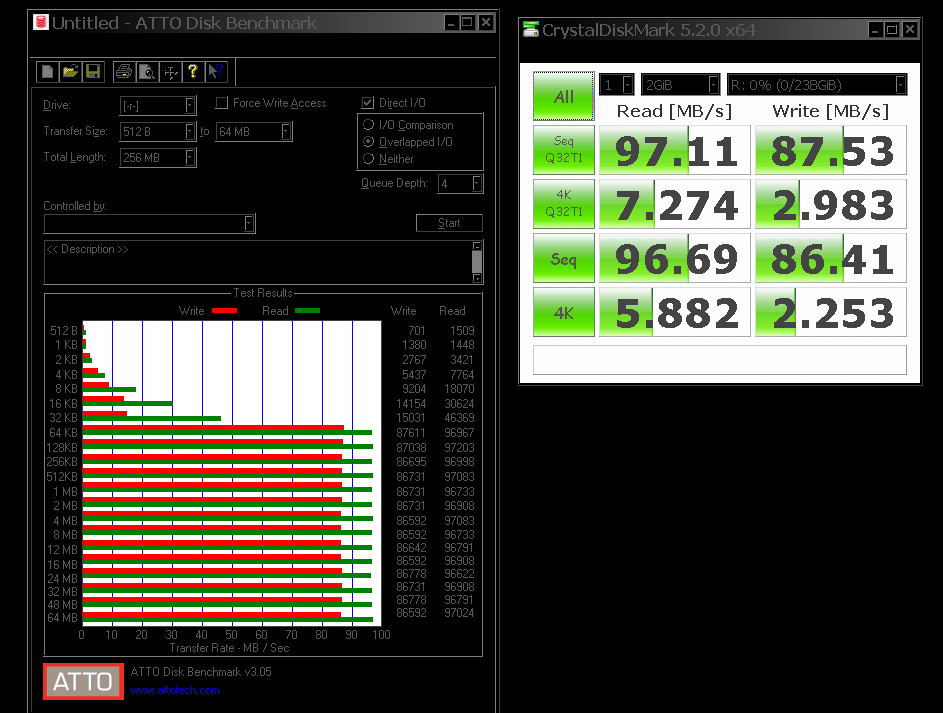

Update: Nov 26, 2018

256GB  Samsung Evo Select

Kind of lack luster.. hrrrmm...


207835-7



Offline rabbitfire

  • Posts: 232
  • Location: Rabbitfire102
Re: Tp4 Reviews 2016's Top microSD Cards. (Detailed Benchmarks Inside)
« Reply #1 on: Sun, 01 January 2017, 05:14:01 »
thanks for your review!  :thumb:

Offline fanpeople

  • Posts: 970
Re: Tp4 Reviews 2016's Top microSD Cards. (Detailed Benchmarks Inside)
« Reply #2 on: Sun, 01 January 2017, 17:04:22 »
thanks for your review!  :thumb:

Did you find it helpful in your quest for a new sd card?

Offline tp4tissue

  • * Destiny Supporter
  • Thread Starter
  • Posts: 13547
  • Location: Official Geekhack Public Defender..
  • OmniExpert of: Rice, Top-Ramen, Ergodox, n Females
Re: Tp4 Reviews 2016's Top microSD Cards. (Detailed Benchmarks Inside)
« Reply #3 on: Tue, 03 January 2017, 20:43:06 »
Just benched a 128gb.. it's def slower.

will report when full bench completes.

Offline rabbitfire

  • Posts: 232
  • Location: Rabbitfire102
Re: Tp4 Reviews 2016's Top microSD Cards. (Detailed Benchmarks Inside)
« Reply #4 on: Wed, 04 January 2017, 03:21:08 »
thanks for your review!  :thumb:

Did you find it helpful in your quest for a new sd card?

Looking for a new SD card for my GoPro
Did my appreciation to threat starter bother you?  :))
« Last Edit: Wed, 04 January 2017, 03:23:14 by rabbitfire »

Offline fanpeople

  • Posts: 970
Re: Tp4 Reviews 2016's Top microSD Cards. (Detailed Benchmarks Inside)
« Reply #5 on: Wed, 04 January 2017, 03:52:50 »
thanks for your review!  :thumb:

Did you find it helpful in your quest for a new sd card?

Looking for a new SD card for my GoPro
Did my appreciation to threat starter bother you?  :))

It was a genuine question, did my question regarding your appreciation to threat starter bother you?

Offline rabbitfire

  • Posts: 232
  • Location: Rabbitfire102
Re: Tp4 Reviews 2016's Top microSD Cards. (Detailed Benchmarks Inside)
« Reply #6 on: Thu, 05 January 2017, 08:17:44 »
thanks for your review!  :thumb:

Did you find it helpful in your quest for a new sd card?


Did my appreciation to threat starter bother you?  :))

It was a genuine question, did my question regarding your appreciation to threat starter bother you?

Haha..thanks! It does not bother me at all dude. I'm not a **** like you.

Offline ygor

  • Posts: 424
  • Location: 559/697*65/*598
  • eat a butt, monkey lord
Re: Tp4 Reviews 2016's Top microSD Cards. (Detailed Benchmarks Inside)
« Reply #7 on: Thu, 05 January 2017, 08:23:11 »
Damn. It's tough out here on the streets of microSD.
I generally hate all keycaps. Keycaps are for poofs. Real men touchtype on stems. Non-functional artisans are awesome, I use them for the ESC key ... escape is for cowards anyways, real men go frontal assault.

Offline fanpeople

  • Posts: 970
Re: Tp4 Reviews 2016's Top microSD Cards. (Detailed Benchmarks Inside)
« Reply #8 on: Thu, 05 January 2017, 23:32:48 »
thanks for your review!  :thumb:

Did you find it helpful in your quest for a new sd card?


Did my appreciation to threat starter bother you?  :))

It was a genuine question, did my question regarding your appreciation to threat starter bother you?

Haha..thanks! It does not bother me at all dude. I'm not a **** like you.

I was asking a serious question, re-calibrate your forum interpretive skills. no need to call me a **** and if you feel the need to call me a **** at least turn your child filter off so I know what **** is.

Offline tp4tissue

  • * Destiny Supporter
  • Thread Starter
  • Posts: 13547
  • Location: Official Geekhack Public Defender..
  • OmniExpert of: Rice, Top-Ramen, Ergodox, n Females
Re: Tp4 Reviews 2016's Top microSD Cards. (Detailed Benchmarks Inside)
« Reply #9 on: Fri, 06 January 2017, 00:28:01 »

I was asking a serious question, re-calibrate your forum interpretive skills. no need to call me a **** and if you feel the need to call me a **** at least turn your child filter off so I know what **** is.

Uh oh.. fanpeople you've engaged maximum ruffle..

hahahahahahahahahaha...


Relax ya'll..

Take some pictures...



@ rabbitfire:

Don't waste money on these extreme cards rabbitfire..

The only reason I tested them (borrowed from my photography guy),  is because I need Random i/o performance.


If you're using a Go Pro,  that only writes at a maximum of 7.5MB/s in 4k mode.

So there's absolutely no reason to spend the money on these extreme cards.


For a Go pro, you can safely go with the Samsung Evo/ Evoselect/ Evoplus line..  They will be more than adequate as long as you're not backfilling.

Offline JaccoW

  • Fire Typer!!
  • * Elevated Elder
  • Posts: 2003
  • Keyboard is Lava!
Re: Tp4 Reviews 2016's Top microSD Cards. (Detailed Benchmarks Inside)
« Reply #10 on: Tue, 10 January 2017, 15:55:55 »
Looking for a good 128GB card for my new phone and the Samsung Pro+@€86 looked quite good on paper. You're saying it's not all that?

I mean there is always the Lexar@€169 but that's at double the price. And the Sandisk@€195 is even more expensive around here.

Just looking for something that can handle 4K video (bitrate of 52 Mbps) and lots of data like music files and photos.
« Last Edit: Tue, 10 January 2017, 16:08:32 by JaccoW »
|||Daily driver: Duck Orion TKL
|||My other keyboards :
More
|||The Original|Home|Work|Numpad|Play|Endgame|Keycaps
x
|Déck Legend Frost|Keycool 87 LE|Leopold FC660M|FC 210TP|Raptor K1 Gaming|Duck Orion TKL|My keycaps & sets
|Pics|Pics|Pics|Pics|Pics|Pics

|||Want to know what Keycap stores there are? Check out my Keyboard Pearltree and my (FS/FT/WTB) thread

Offline tp4tissue

  • * Destiny Supporter
  • Thread Starter
  • Posts: 13547
  • Location: Official Geekhack Public Defender..
  • OmniExpert of: Rice, Top-Ramen, Ergodox, n Females
Re: Tp4 Reviews 2016's Top microSD Cards. (Detailed Benchmarks Inside)
« Reply #11 on: Wed, 11 January 2017, 16:12:11 »
Looking for a good 128GB card for my new phone and the Samsung Pro+@€86 looked quite good on paper. You're saying it's not all that?

I mean there is always the Lexar@€169 but that's at double the price. And the Sandisk@€195 is even more expensive around here.

Just looking for something that can handle 4K video (bitrate of 52 Mbps) and lots of data like music files and photos.

get the sandisk extreme (uhs-1)....   not the extreme plus or extreme pro.

If you look at the benchmarks,  it's pretty clear that the samsung pro select has the weakest random i/o performance.


Sequential is pretty much the same all around..  if you're using it just for video and no apps.. It doesn't matter which one you get..

You should probably consider the EVO line from samsung if you're only worried about videos and no apps..


Apps are what you need the extreme series for.



The two cards you linked to are UHS-2 cards which is why they're expensive..  UHS-2 cellfones do not yet exist .


UHS-2 is for High end DSLR cameras with very high bit rate..

Things like our cellfones and go pro has 4k resolution recording, but it's very low bitrate for 4k..

Even entry level cards will be sufficient.. 60mbit 4k on most hand-mobile devices like the go PRO records at 7.5MB/s  that's it, there's no magic to it.. it's a number..


THe UHS-2 also have slow random i/o performance , but they're not designed for it, so that's expected.




Offline tp4tissue

  • * Destiny Supporter
  • Thread Starter
  • Posts: 13547
  • Location: Official Geekhack Public Defender..
  • OmniExpert of: Rice, Top-Ramen, Ergodox, n Females
Re: Tp4 Reviews 2016's Top microSD Cards. (Detailed Benchmarks Inside)
« Reply #12 on: Sun, 22 January 2017, 15:30:40 »
128GB  Sandisk Extreme card..

Performance in Cellfone

sandisk extreme 128gb 2016

Random Performance:

7.83 MB/s Read     3.06 MB/s  Write

Sequential Performance:

76.14 MB/s Read     50.71  MB/s Write

PC Performance:


158254-0

Offline tp4tissue

  • * Destiny Supporter
  • Thread Starter
  • Posts: 13547
  • Location: Official Geekhack Public Defender..
  • OmniExpert of: Rice, Top-Ramen, Ergodox, n Females
Re: Tp4 Reviews 2016's Top microSD Cards. (Detailed Benchmarks Inside)
« Reply #13 on: Mon, 26 November 2018, 18:32:44 »
Update: Nov 26, 2018

256GB  Samsung Evo Select

Kind of lack luster.. hrrrmm...



207833-0

Offline JianYang

  • Posts: 114
Re: Tp4 Reviews 2016's Top microSD Cards. (Detailed Benchmarks Inside)
« Reply #14 on: Tue, 27 November 2018, 01:28:49 »
Having personally destroyed a handful of SD cards, I would really like to see some destructive tests (But I understand the hurdle).

May I ask why you are looking for random IO performance? For my application, I can boot from an SD card, and have the rest on a USB SSD.

Offline tp4tissue

  • * Destiny Supporter
  • Thread Starter
  • Posts: 13547
  • Location: Official Geekhack Public Defender..
  • OmniExpert of: Rice, Top-Ramen, Ergodox, n Females
Re: Tp4 Reviews 2016's Top microSD Cards. (Detailed Benchmarks Inside)
« Reply #15 on: Tue, 27 November 2018, 09:00:41 »
Having personally destroyed a handful of SD cards, I would really like to see some destructive tests (But I understand the hurdle).

May I ask why you are looking for random IO performance? For my application, I can boot from an SD card, and have the rest on a USB SSD.

I load apps onto the card from the phone.. and over time, with photos/videos being deleted, alot of back filling, I noticed that low random i/o cards slow to a crawl..

This is the same in raspberry pi applications.

Offline switchnollie

  • sleever supreme
  • * Exquisite Elder
  • Posts: 1631
  • Location: 白い帽子
  • greyhat co-leader
Re: Tp4 Reviews 2016's Top microSD Cards. (Detailed Benchmarks Inside)
« Reply #16 on: Thu, 29 November 2018, 16:45:14 »
2018 version pls


Keyboards: HHKB Pro 1 & OTD 356CL Dark Greyhat Edition, baybee!

Offline tp4tissue

  • * Destiny Supporter
  • Thread Starter
  • Posts: 13547
  • Location: Official Geekhack Public Defender..
  • OmniExpert of: Rice, Top-Ramen, Ergodox, n Females
Re: Tp4 Reviews 2016's Top microSD Cards. (Detailed Benchmarks Inside)
« Reply #17 on: Thu, 29 November 2018, 20:52:38 »
2018 version pls

One word of warning.. the 2018 version of the sandisk extreme (plus) is much slower than the original 2016 sandisk extreme.

WAyyyyyy slower, 30% reduction in random i/o performance.

Samsung has been mostly consistent.
