F-row less TKL keyboard
« on: Wed, 29 January 2020, 08:37:25 »
Now, when Cygnus is cancelled, is there any other project with f-row less TKL keyboard?
I always wanted f-row less tkl board and this was going to be something cool, now is dead:(
Anyone is planning to run similar design?
« Last Edit: Fri, 31 January 2020, 02:33:03 by phinix »
9100 | 3070 | 2x 1TB SSD | Z390 Aorus Pro ITX | 16GB RAM | SFX 600W | Sentry 2.0 | LG OLED 48 CX
Realforce R2 55g Novatouched+Deskeys #3 | CM QuickFire Rapid Frosty Flake MX Blacks | IDOBAO ID87 w/ Glorious Holy Pandas| Model M | Razer Pro Click | X52 PRO
SA: Carbon, Penumbra, 7bit's Round6, Amber Screen Cherry: OG caps XDA: Canvas MDA: Big Bone MT3: Serika

 ::: Phinix Cube ::: Phinix Nano Tower ::: Phinix Aurora ::: Phinix Chimera ::: Phinix Retro :::
star citizen :::  CMDR Phinix 325A LTI

Offline Maledicted

  • Posts: 1552
  • Location: Wisconsin, United States
Re: F-row less TKL keybaord
« Reply #1 on: Wed, 29 January 2020, 09:08:14 »
Now, when Cygnus is cancelled, is there any other project with f-row less TKL keyboard?
I always wanted f-row less tkl board and this was going to be something cool, now is dead:(
Anyone is planning to run similar design?

Model F77?  ;D

Offline phinix

  • Thread Starter
  • Posts: 1302
  • Location: Haggis Land
  • RIP typo...
Re: F-row less TKL keybaord
« Reply #2 on: Wed, 29 January 2020, 09:20:03 »
Now, when Cygnus is cancelled, is there any other project with f-row less TKL keyboard?
I always wanted f-row less tkl board and this was going to be something cool, now is dead:(
Anyone is planning to run similar design?

Model F77?  ;D

Noooo ;D

I mean TKL profile, but no F row. So cursor and Insert clusters are still there in usual place.

So far I know about Cygnus and CROSS 70% FRL keyboard.

Dream come true would be Rama making Cygnus-like keyboard, with rgb led and hot-swap...

EDIT: SMol TKL is similar, only not a full GB, plus nav cluster is close to alpha.
« Last Edit: Fri, 31 January 2020, 02:34:03 by phinix »
9100 | 3070 | 2x 1TB SSD | Z390 Aorus Pro ITX | 16GB RAM | SFX 600W | Sentry 2.0 | LG OLED 48 CX
Realforce R2 55g Novatouched+Deskeys #3 | CM QuickFire Rapid Frosty Flake MX Blacks | IDOBAO ID87 w/ Glorious Holy Pandas| Model M | Razer Pro Click | X52 PRO
SA: Carbon, Penumbra, 7bit's Round6, Amber Screen Cherry: OG caps XDA: Canvas MDA: Big Bone MT3: Serika

 ::: Phinix Cube ::: Phinix Nano Tower ::: Phinix Aurora ::: Phinix Chimera ::: Phinix Retro :::
star citizen :::  CMDR Phinix 325A LTI

Offline Maledicted

  • Posts: 1552
  • Location: Wisconsin, United States
Re: F-row less TKL keybaord
« Reply #3 on: Wed, 29 January 2020, 09:55:56 »
I'm pretty sure that Ellipses' new Fs can be configured in the way you prefer:



That's the option that I chose. If you got one of the ultra compacts, you would have something pretty close to what you might find in a brand new design as well, but with capacitive buckling springs to boot, though I imagine the emphasis is on an extremely slender keyboard from front to back.

I'm out of ideas there though. I'm usually fine with a 75% myself. Have you thought about designing a plate/case and/or hand-wiring one?

That Cross board looks pretty cool.
« Last Edit: Wed, 29 January 2020, 10:04:08 by Maledicted »

Offline thearctican

  • Posts: 151
  • Location: Philadelphia, PA
Re: F-row less TKL keybaord
« Reply #4 on: Wed, 29 January 2020, 11:06:37 »
It's called the Uniqey C70, or you could make it work with any 65% board since you're going to use a function key anyway.

Offline Maledicted

  • Posts: 1552
  • Location: Wisconsin, United States
Re: F-row less TKL keybaord
« Reply #5 on: Wed, 29 January 2020, 11:52:29 »
It's called the Uniqey C70, or you could make it work with any 65% board since you're going to use a function key anyway.

I saw at least one with a similar layout on Amazon, and it does intrigue me. I have a feeling that he wants to be able to use it like any other TKL without an adjustment to muscle memory, but maybe not. I know I hate anything that doesn't have dedicated arrow keys myself (for example), since doing things like navigating Google Sheets effectively already involves multiple modifier keys.

Offline phinix

  • Thread Starter
  • Posts: 1302
  • Location: Haggis Land
  • RIP typo...
Re: F-row less TKL keybaord
« Reply #6 on: Wed, 29 January 2020, 14:38:05 »
It's called the Uniqey C70, or you could make it work with any 65% board since you're going to use a function key anyway.

I saw at least one with a similar layout on Amazon, and it does intrigue me. I have a feeling that he wants to be able to use it like any other TKL without an adjustment to muscle memory, but maybe not. I know I hate anything that doesn't have dedicated arrow keys myself (for example), since doing things like navigating Google Sheets effectively already involves multiple modifier keys.

Exactly. Muscle memory is the problem. I tried 65% keyboards and it was like igony, I cannot switch to different layoyt. If I could I would already buy myself  something like Space65 or CA66, Koyu. But I can't use them, I need to have cursor cluster on the right and Insert one on top.
« Last Edit: Thu, 30 January 2020, 02:22:58 by phinix »
9100 | 3070 | 2x 1TB SSD | Z390 Aorus Pro ITX | 16GB RAM | SFX 600W | Sentry 2.0 | LG OLED 48 CX
Realforce R2 55g Novatouched+Deskeys #3 | CM QuickFire Rapid Frosty Flake MX Blacks | IDOBAO ID87 w/ Glorious Holy Pandas| Model M | Razer Pro Click | X52 PRO
SA: Carbon, Penumbra, 7bit's Round6, Amber Screen Cherry: OG caps XDA: Canvas MDA: Big Bone MT3: Serika

 ::: Phinix Cube ::: Phinix Nano Tower ::: Phinix Aurora ::: Phinix Chimera ::: Phinix Retro :::
star citizen :::  CMDR Phinix 325A LTI

Offline waymon

  • Posts: 3
Re: F-row less TKL keybaord
« Reply #7 on: Wed, 29 January 2020, 17:35:44 »
I am also looking for this keyboard.

Varmilo VA68M is close but never in stock..and I'd fully programmable.

Offline phinix

  • Thread Starter
  • Posts: 1302
  • Location: Haggis Land
  • RIP typo...
Re: F-row less TKL keybaord
« Reply #8 on: Thu, 30 January 2020, 02:25:33 »
I am also looking for this keyboard.

Varmilo VA68M is close but never in stock..and I'd fully programmable.

I had Varmilo va68, but that moved cursor cluster was a bit off putting for me.
I couldn't properly hit Del, as I use my hand to first find cursors keys then jump on insert cluster.
I don't know what is wrong with me, but I cannot adjust to 65% keyboards, when I really would love to use one.
FRL is my last chance:)
9100 | 3070 | 2x 1TB SSD | Z390 Aorus Pro ITX | 16GB RAM | SFX 600W | Sentry 2.0 | LG OLED 48 CX
Realforce R2 55g Novatouched+Deskeys #3 | CM QuickFire Rapid Frosty Flake MX Blacks | IDOBAO ID87 w/ Glorious Holy Pandas| Model M | Razer Pro Click | X52 PRO
SA: Carbon, Penumbra, 7bit's Round6, Amber Screen Cherry: OG caps XDA: Canvas MDA: Big Bone MT3: Serika

 ::: Phinix Cube ::: Phinix Nano Tower ::: Phinix Aurora ::: Phinix Chimera ::: Phinix Retro :::
star citizen :::  CMDR Phinix 325A LTI

Offline Tom_Kazansky

  • Posts: 373
  • Location: Vietnam
  • Oblivion Knight
Re: F-row less TKL keybaord
« Reply #9 on: Thu, 30 January 2020, 21:17:28 »
I have a similar project. (though... it's more similar to Smol TKL than the Cygnus)

Here are some pics
234700-0

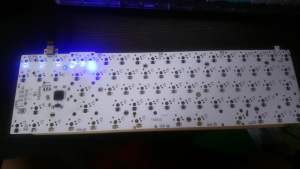

PCB in the work, soldering some RGB leds... I'm clumsy in this...

234696-1

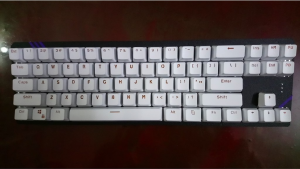

this one has no RGB leds.

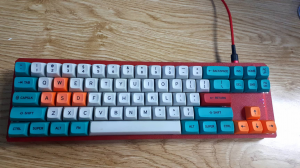

234698-2
