I have a similar project. (though... it's more similar to
Smol TKL than the Cygnus)
Here are some pics
![F-row less TKL keyboard 234700-0](https://geekhack.org/index.php?action=dlattach;topic=104442.0;attach=234701;image)

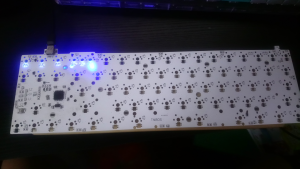

PCB in the work, soldering some RGB leds... I'm clumsy in this...
![F-row less TKL keyboard 234696-1](https://geekhack.org/index.php?action=dlattach;topic=104442.0;attach=234697;image)

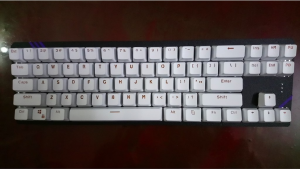

this one has no RGB leds.
![F-row less TKL keyboard 234698-2](https://geekhack.org/index.php?action=dlattach;topic=104442.0;attach=234699;image)

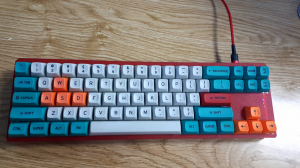

layout with 4 bottom-row mod keys on the left.
specs:
- ATMega32u4 with QMK
- USB Type-C connector
- ESD Proection (I put the esd protection diode in the board, as instructed but not sure if it works)
- RGB Backlight
- non-hotswap (but it should be compatible with mill-max sockets, have not tested though)
- acrylic sandwich case is available.
supported layout:
![F-row less TKL keyboard 234702-3](https://geekhack.org/index.php?action=dlattach;topic=104442.0;attach=234703;image)
it was my mistake that I don't put a gap between the main typing area and the nav clusters.
I don't think I can run GB of this, as I can only offer acrylic sandwich case, also I have not figured out how to ship internationally with acceptable cost.
