Author Topic: 7G, button doesn't work  (Read 1860 times)

0 Members and 1 Guest are viewing this topic.

Offline AmitB

  • Thread Starter
  • Posts: 11
7G, button doesn't work
« on: Fri, 13 June 2014, 07:43:12 »
Hey guys,  few weeks ago i've asked for some place to buy switches to my 7G, so I've did some iron-soldering and the button doesn't work.
Any ideas what's the cause?
Logged

Offline AmitB

  • Thread Starter
  • Posts: 11
Re: 7G, button doesn't work
« Reply #1 on: Fri, 13 June 2014, 07:54:31 »
Here's some pics to make it clearer
Logged

Offline CPTBadAss

  • Woke up like this
  • Posts: 14391
    • Tactile Zine
Re: 7G, button doesn't work
« Reply #2 on: Fri, 13 June 2014, 08:20:39 »
I don't see any pictures :(
Logged

Offline AmitB

  • Thread Starter
  • Posts: 11
Re: 7G, button doesn't work
« Reply #3 on: Fri, 13 June 2014, 08:30:58 »
Logged

Offline CPTBadAss

  • Woke up like this
  • Posts: 14391
    • Tactile Zine
Re: 7G, button doesn't work
« Reply #4 on: Fri, 13 June 2014, 08:32:16 »
Can you take a picture of just the joint you soldered close up? It's impossible to see what your joint looks like from that angle.
Logged

Offline AmitB

  • Thread Starter
  • Posts: 11
Re: 7G, button doesn't work
« Reply #5 on: Fri, 13 June 2014, 08:49:55 »
http://imgur.com/AmWREGn
I dont really know what you mean by Joint
Logged

Offline CPTBadAss

  • Woke up like this
  • Posts: 14391
    • Tactile Zine
Re: 7G, button doesn't work
« Reply #6 on: Fri, 13 June 2014, 08:50:50 »
Looks like you torched the pad and then tried to glob on solder to try and fix the connectivity. You can try reflowing that bubble and seeing if it fixes it. If not, you'll have to jump it to another switch. I have a few lifted pads on my Kingsaver which I managed to fix by just adding tons of solder like you tried. So there's a chance you don't need to jump it.
Logged

Offline AmitB

  • Thread Starter
  • Posts: 11
Re: 7G, button doesn't work
« Reply #7 on: Fri, 13 June 2014, 08:51:40 »
What do you mean by jump to another swotch?
Logged

Offline CPTBadAss

  • Woke up like this
  • Posts: 14391
    • Tactile Zine
Re: 7G, button doesn't work
« Reply #8 on: Fri, 13 June 2014, 08:53:22 »
So like I said I messed up some of my Kingsaver's pads. A possible fix would be like this post from intelli78. See that red wire? That's referred to as jumping the switch.



You'll have to figure out where the traces line up or ask someone else who is more knowledgeable than I.
« Last Edit: Fri, 13 June 2014, 08:55:10 by CPTBadAss »
Logged

Offline AmitB

  • Thread Starter
  • Posts: 11
Re: 7G, button doesn't work
« Reply #9 on: Fri, 13 June 2014, 09:19:41 »
Thanks dude
Logged

Offline CPTBadAss

  • Woke up like this
  • Posts: 14391
    • Tactile Zine
Re: 7G, button doesn't work
« Reply #10 on: Fri, 13 June 2014, 09:27:00 »
Just make sure to doublecheck and do more research 'cause this isn't my strong suit. I've always had a lot of backup when I went into PCB repairs.
Logged

Offline blackbox

  • Posts: 725
Re: 7G, button doesn't work
« Reply #11 on: Fri, 13 June 2014, 10:18:46 »
Here is a good read about soldering problems:

https://learn.adafruit.com/adafruit-guide-excellent-soldering/common-problems

Looks like you have an cold joint.
Logged
Keyboards: Dell AT102W (matias standard clicky), Maltron two-hand 3D fully ergonomic keyboard (Vintage MX Black). CM QF XT (MX Grey) IBM model M

The LAN table!
http://geekhack.org/index.php?topic=62536.0

Offline AmitB

  • Thread Starter
  • Posts: 11
Re: 7G, button doesn't work
« Reply #12 on: Fri, 13 June 2014, 10:59:20 »
Somehow I managed to get output of L few times,  gotta test it more
Logged

Offline tp4tissue

  • * Destiny Supporter
  • Posts: 13724
  • Location: Official Geekhack Public Defender..
  • OmniExpert of: Rice, Top-Ramen, Ergodox, n Females
Re: 7G, button doesn't work
« Reply #13 on: Fri, 13 June 2014, 12:26:38 »
Quote from: AmitB on Fri, 13 June 2014, 10:59:20
Somehow I managed to get output of L few times,  gotta test it more



since this is low precision stuff, no need to consider length of wire or resistance..

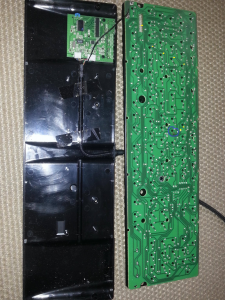

Bridge the fried solder point to ANY of the yellow dots i've marked..

If you could provide a Higher-Res (in focus) picture,  I can make sure those points are correct..


But.. it SHOULD be right as is..   (you need to dl the picture and ZOOM IN)

also.. try the Points  further away from the controller before you go direct..

This is so that you don't fry the solder points most nearest to controller, because in order to fix a fry there,   You may have to solder to the OTHER side   and that might be inconvenient..

67902-0
« Last Edit: Fri, 13 June 2014, 12:36:11 by tp4tissue »
Logged

Offline AmitB

  • Thread Starter
  • Posts: 11
Re: 7G, button doesn't work
« Reply #14 on: Fri, 13 June 2014, 15:56:37 »
I've managed to get my button to output  somehow...
any ideas which dots i need to connect?
Logged

Offline tp4tissue

  • * Destiny Supporter
  • Posts: 13724
  • Location: Official Geekhack Public Defender..
  • OmniExpert of: Rice, Top-Ramen, Ergodox, n Females
Re: 7G, button doesn't work
« Reply #15 on: Sat, 14 June 2014, 01:31:42 »
Quote from: AmitB on Fri, 13 June 2014, 15:56:37
I've managed to get my button to output  somehow...
any ideas which dots i need to connect?

if it's intermittent, that means the problem is not fixed..

you can solder to any of the dots I labeled in (Yellow)

I assume the one chared contact that's black is the one that's not making a good connection..

if that's not the one,   then just follow the trace of the other switch prong..



The Traces are JUST WIRES.. but flat..  don't think of them as this complicated thing that you can't move around...

Logged

Offline AmitB

  • Thread Starter
  • Posts: 11
Re: 7G, button doesn't work
« Reply #16 on: Sat, 14 June 2014, 02:17:31 »
I've managed to fix it ;] thanks all
Logged
